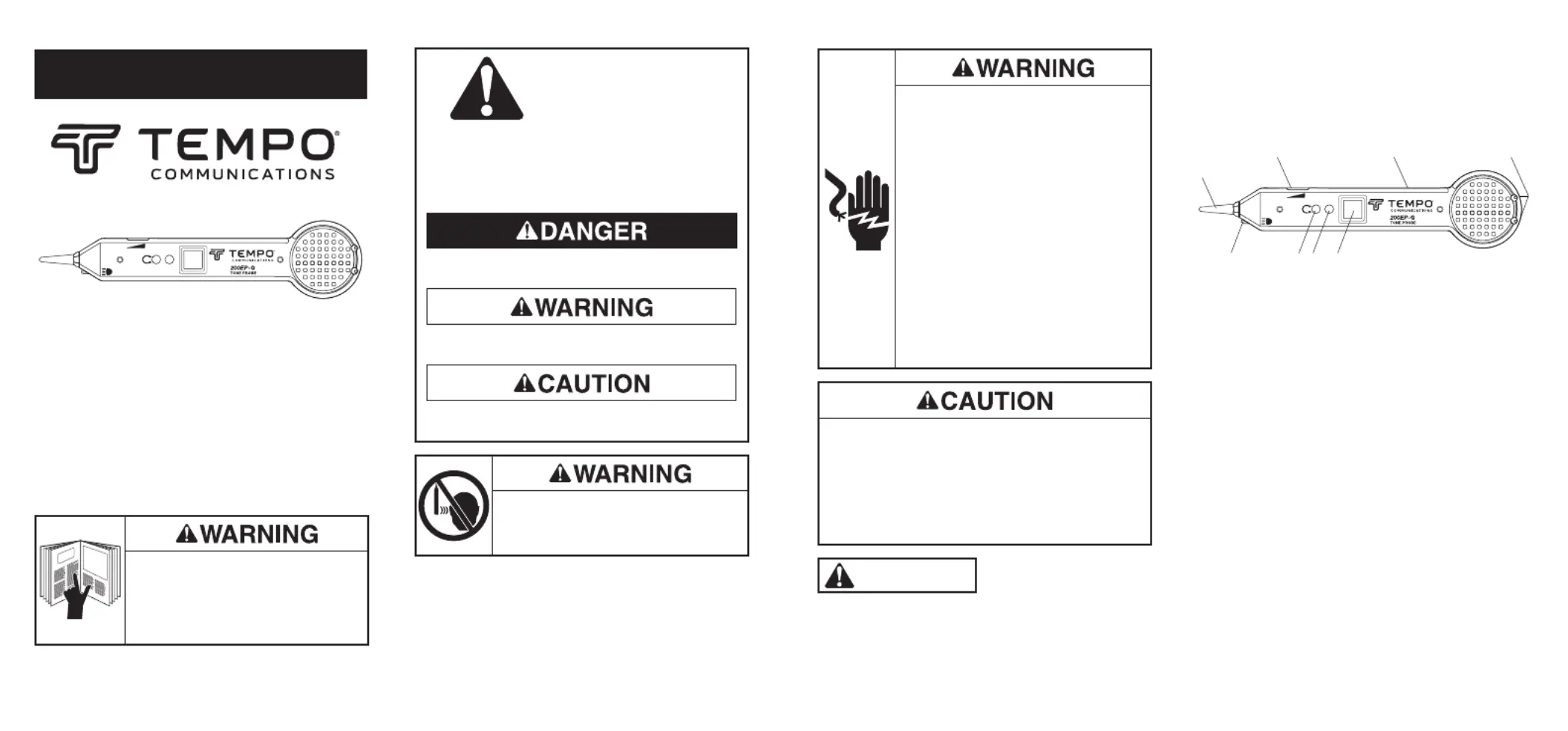

INSTRUCTION MANUAL

200B-G Tone Probe

with Adjustable Volume

200EP-G Tone Probe

with Adjustable Volume, Visual

Signal Indicator, Headset Jack,

Handset Connection Tabs,

and Flashlight

Read and understand this material before

operating or servicing this equipment.

Failure to understand how to safely operate

this tool could result in an accident causing

serious injury or death.

SAFETY ALERT

SYMBOL

This symbol is used to call your attention to hazards or

unsafe practices which could result in an injury or property

damage. The signal word, deﬁned below, indicates the

severity of the hazard. The message after the signal word

provides information for preventing or avoiding the hazard.

Immediate hazards which, if not avoided, WILL result in

severe injury or death.

Hazards which, if not avoided, COULD result in severe

injury or death.

Hazards or unsafe practices which, if not avoided, MAY

result in injury or property damage.

When in Loudspeaker mode, hold loudspeaker

more than 30 cm (1 ft) from ear.

Misuse could result in hearing damage.

All speciﬁcations are nominal and may change as design improvements

occur. Tempo Communications Inc. shall not be liable for damages resulting

from misapplication or misuse of its products.

KEEP THIS MANUAL

Electric shock hazard:

• Do not expose this unit to rain or moisture.

Contact with live circuits could result in

severe injury or death.

• Use this unit for the manufacturer’s

intended purpose only, as described in

this manual. Any other use can impair the

protection provided by the unit.

• Use test leads or accessories that are

appropriate for the application. Refer to the

category and voltage rating of the test lead

or accessory.

• Inspect the test leads or accessory before

use. The item(s) must be clean and dry, and

the insulation must be in good condition.

Failure to observe these warnings could result

in severe injury or death.

Electric shock hazard:

• Do not attempt to repair this unit. It contains no user-

serviceable parts.

• Do not expose the unit to extreme temperatures or high

humidity. Refer to “Speciﬁcations.”

Failure to observe these precautions may result in injury and

can damage the instrument.

CAT O 100V MAX.

Description

The 200B-G and 200EP-G Tone Probes, when used in

conjunction with any Tempo tone generator, are designed

to identify and trace wires or cables within a group without

damaging the insulation.

2 3 4

8 7 6 5

Figure 1. Features

Features include:

1. Resistive plastic carbon-ﬁber tip to prevent accidental shorts

when probing wires

2. Adjustable volume sensitivity control

3. Battery compartment

4. Recessed terminal ports for handset connection*

5. Spring-loaded ON/OFF/ﬂashlight* button

6. LED*

7. Headset jack (acoustically protected)*

8. High power ﬂashlight*

* 200EP-G only.

Safety

Safety is essential in the use and maintenance of Tempo tools

and equipment. This instruction manual and any markings on

the tool provide information for avoiding hazards and unsafe

practices related to the use of this tool. Observe all of the safety

information provided.
