Sida 1/41

Connect the primary node

1. Power off your modem, and remove its battery (if any).

2. Use the included Ethernet cable to connect a LAN port

of your modem or the Ethernet jack to the (WAN/LAN)

port of any node. This node is your primary node.

4. Use the included power adapter to connect the primary

node to a power source. Its LED indicator lights solid green.

Wait for about 40 seconds. The system completes startup

when the LED indicator blinks green.

3. Reinstall the battery of your modem, and power it on.

*The first node you set up serves as the primary node,

while the other is referred to as the secondary node.

Ⅱ

Set up the primary node for

internet access

1. Go to the WiFi network list on your mobile device,

select the SSID of the primary node, and enter its

password. The default SSID and password are

specified on the bottom label of any node.

2. Run the App and follow the onscreen Tenda WiFi

instructions to set up the primary node. After the

primary node is connected to the internet, its LED

indicator lights solid green.

Ⅲ

1. Place the secondary node:

−

In an elevated, open position within the WiFi coverage

area of the primary node.

−

Keep the node away from electronics with strong

interference, such as microwave oven, induction cooker,

and refrigerator.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

Operations in the 5.15-5.25GHz band are restricted to indoor use only.

This equipment should be installed and operated with minimum distance 20cm

between the device and your body.

NOTE: (1) The manufacturer is not responsible for any radio or TV interference

caused by unauthorized modifications to this equipment.

(2) To avoid unnecessary radiation interference, it is recommended to use a

shielded RJ45 cable.

WARNING: The mains plug is used as disconnect device, the disconnect device

shall remain readily operable.

Declaration of Conformity

Hereby, SHENZHEN TENDA TECHNOLOGY CO., LTD. declares that the radio

equipment type Mesh12, MW12 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet

address: http://www.tendacn.com/en/service/download-cata-101.html

For EU/EFTA, this product can be used in the following countries:

Download and install the

Tenda WiFi App

Ⅰ

Download the App on your mobile device Tenda WiFi

by searching for in App Store/Google Play, Tenda WiFi

or by scanning the QR code. Then, install the App.

Tenda WiFi

Available for and iOS Android

2. Use the other power adapter to connect the secondary node

to a power source, and its LED indicator lights solid green.

Wait for about 40 seconds. The secondary node is connecting

to the primary node when its LED indicator blinks green.

3. Observe the LED indicator of the secondary node until its LED

indicator lights one of the following colors:

4. If the LED indicator of a node does not light solid green,

relocate it according to step in to get better connection. IV

Solid green Good connection

Solid yellow Fair connection

Solid red Disconnection

FAQ

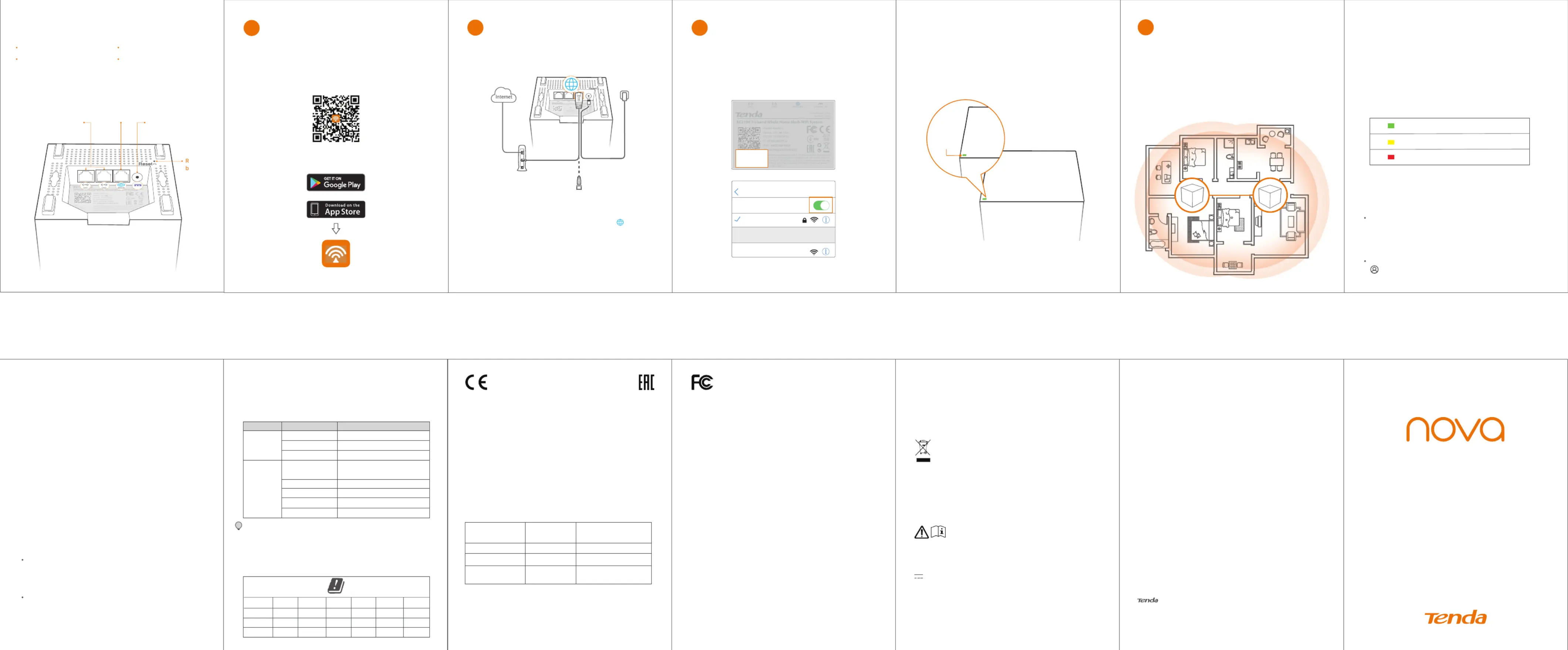

Quick Installation Guide

is a registered trademark legally held by Shenzhen Tenda

Technology Co., Ltd. Other brand and product names mentioned herein

are trademarks or registered trademarks of their respective holders.

Specifications are subject to change without notice.

*MW12 is a serial name coming with one, two or three Mesh12.

Technical Support

Shenzhen Tenda Technology Co., Ltd.

6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road,

Nanshan District, Shenzhen, China. 518052

USA hotline: 1-800-570-5892

Toll Free: 7 x 24 hours

Canada hotline: 1-888-998-8966

Toll Free: Mon-Fri 9 am - 6 pm PST

Hong Kong Hotline: 00852-81931998

Website: www.tendacn.com

Email: support.nova@tenda.com.cn

A1: Run the App, tap in the lower-right corner, tap Tenda WiFi Settings Wireless

Settings Save, change your SSID and password, and tap .

Then, you need to reconnect your mobile devices using the new SSID and

password.

A2: Tap the node on the App, tap “ ” in the upper-right corner, and Tenda WiFi …

choose “ ”.Delete

This removing operation restores the node to factory settings.Note:

A4: With the nodes powered on, hold the button of your primary node down Reset

using a paper clip for about 6 seconds, release when the LED indicator blinks

fast. Your network is reset successfully when the LED indicator lights solid on

then blinks again. And all nodes are restored to factory settings.

A3:

Yes. Run the App, tap in the lower-right corner, tap Tenda WiFi Settings Add

Nova, and follow the on-screen instructions.

Q1: How can I change my SSID and password?

Q2: How can I remove node from my WiFi network?

Q4: How to restore my network to factory settings?

Q3: Can I add another new set of node to expand my network coverage?

Done.

To access the internet with:

− Wired devices: Connect wired devices to the LAN ports of

any node.

− Wireless devices: Connect wireless devices to the WiFi

network using the SSID and the WiFi password you set.

If you want to manage the network anytime, anywhere, tap

and log in to your account.

Operating Environment

Temperature: 0°C-40°C

Humidity: (10 - 90)% RH, non-condensing

Adapter Model: BN067-A18012E/BN067-A18012U/BN074-A18012B

Manufacturer: SHENZHEN HEWEISHUN NETWORK TECHNOLOGY CO., LTD.

Input: 100 – 240V AC 50/60Hz 0.6A

Output: 12V DC 1.5A

: DC Voltage

This product bears the selective sorting symbol for Waste electrical and electronic

equipment (WEEE). This means that this product must be handled pursuant to

European directive 2012/19/EU in order to be recycled or dismantled to minimize

its impact on the environment.

User has the choice to give his product to a competent recycling organization or to

the retailer when p1-he buys new electrical or electronic equipment.

BE BG CZ DK DE EE IE

EL ES FR HR IT C Y LV

LT LU H U MT NL AT P L

PT RO S I SK F I S E UK

Mesh12 x 2 Ethernet cable x 1

Power adapter x 2 Quick installation guide x 1

Get to know your device

Package contents

NOVA_XXXX

XXXXXX

Wi-Fi

CHOOSE A NETWORK...

Settings

Wi-Fi

Caution:

RECYCLING

Ⅳ

Connect the secondary node

to the internet

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

The device is for indoor usage only.

Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Radiation Exposure Statement

This device complies with FCC radiation exposure limits set forth for an

uncontrolled environment and it also complies with Part 15 of the FCC RF Rules.

This equipment should be installed and operated with minimum distance 20cm

between the device and your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Operating frequency: 2412-2462MHz, 5150-5250MHz, 5725-5850MHz

NOTE: (1) The manufacturer is not responsible for any radio or TV interference

caused by unauthorized modifications to this equipment.

(2) To avoid unnecessary radiation interference, it is recommended to use a

shielded RJ45 cable.

Caution:

Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate this equipment.

A5:

If your 2.4 GHz WiFi-enabled device supports the WPS function, perform the

steps below:

Step 1 Run App, and tap , , and the WPS button Tenda WiFi Settings WPS

corresponding to the node near your device.

Step 2 Within 2 minutes, enable the WPS function on your device.

If your 2.4 GHz WiFi-enabled device does NOT support the WPS function,

perform the steps below:

Step 1 Connect your smart phone used for setup to the WiFi network.

Step 2 Run Tenda WiFi App, tap Settings, Smart Assistant, and Enable.

Your smart phone connects to the 2.4 GHz WiFi network.

Step 3 Use the smart phone to set up your 2.4 GHz WiFi-enabled device

guided by its App.

Q5: My 2.4 GHz WiFi-enabled devices, such as a home security camera, cannot

connect to my nova WiFi network. What should I do?

LED indicator description

After a node is powered on, the LED indicator lights solid green for about 40 s

econds to complete startup. Then, the LED indicator lights one of thefollowing

colors:

* Weather radar frequency (5600-5650MHz) is excluded; the corresponding

channels are 120, 124 and 128.

Software Version: V1.0.0.X

Software updates can be released by Tenda to fix bugs or enhance functions after

the product has been released. Updated software versions released will not impact

continued compliance with all applicable rules. Radio Frequency parameters are not

accessible for the user, and cannot be changed by the user.

AC2100 Tri-band Whole Home Mesh WiFi System

MW12 (2-pack)

Frequency range

(MHz)

Channel used Max. transmit power (dBm)

1-132400-2483.5

5150-5250

5470-5725*

36-48

100-140

19.9

22.9

29.9 with TPC

26.9 non-TPC

SSID:

NOVA_XXXX

Password:

10/100/1000Mbps

LAN ports

10/100/1000Mbps

WAN/LAN port

DC power jack

eset

utton

Modem

Ethernet jack

Mesh12

LED

Power DC-IN

The primary

node

The secondary

node

Blinking green fast

Solid red

Solid green

Solid yellow

Solid green

Blinking green slowly

Blinking green fast

Solid red

Connecting to the internet

Connecting to a node

Connected to the internet

Disconnection

Good connection

Fair connection

Disconnection

Wait for connecting to another node,

or searching for another node

Node Type Status Description

Tips:

When a node is performing WPS negotiation, the LED indicator description is

shown as below:

• Blinking green slowly: Ready for WPS negotiation.

• Blinking green fast: Performing WPS negotiation with a wireless device.

Produktspecifikationer

Varumärke:	Tenda
Kategori:	Wifi
Modell:	Nova MW12
Produkttyp:	Bärbar router
Färg på produkten:	Wit
Bredd:	100 mm
Djup:	100 mm
Höjd:	100 mm
Tillgångar:	1200 W
Mobila operativsystem som stöds:	Android, iOS
LED-indikatorer:	Power, Status, WLAN
Processorfrekvens:	900 MHz
Wi-Fi-standarder:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Certifiering:	CE, FCC, RoHS
Internminne:	256 MB
Fungerar med Amazon Alexa:	Ja
SIM-kortplats:	Nej
Kabelteknik:	10/100/1000Base-T(X)
3G:	Ja
4G:	Nej
Uteffekt:	1.5 A
Förvaringsväska:	Ja
Återställningsknapp:	Ja
Filtrering:	Ja
Ethernet WAN:	Ja
Brandvägg:	Ja
Snabbinstallationsguide:	Ja
DHCP-server:	Ja
DHCP-klient:	Ja
Jonisk funktion:	Nee
Koncentratormunstycke:	Ja
Diffusor kop:	Nee
Antal-temperaturinställningar:	3
Antal kanaler:	3 kanaler
DSL WAN:	Nej
Vridbar sladd:	Ja
URL-filtrering:	Ja
Typ av WAN-anslutning:	RJ-45
MU-MIMO-teknik:	Ja
Intelligent mesh-teknik:	Ja
Antenndesign:	Intern
Hårborste:	Ja
Systemhändelselogg:	Ja
Produktens färg:	Vit
Inbyggd processor:	Ja
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	3
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-40 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	5 - 90 %
Antal produkter som medföljer:	3 styck
Föräldrakontroll:	Ja
Utgångsspänning:	12 V
AC-inspänning:	100 - 240 V
Kryptering/säkerhet:	WPA-PSK, WPA2-PSK
Kabel inkluderad:	LAN (RJ-45)
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
Filtrering för IP-adress:	Ja
Strömkälla av typen:	AC
Växelström Frekvens:	50 - 60 hz
AC-adapter inkluderad:	Ja
På / av-knapp:	Ja
Webbaserad adminstraion:	Ja
Antenner mängd:	4
USB-port:	Nej
Processorkärnor:	2
Garantisedel:	Ja
Kommunikationsstandarder:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Typ av Ethernet LAN-gränssnitt:	Gigabit Ethernet
Harmonized System (HS)-kod:	85176990
Wi-Fi-standard:	Wi-Fi 5 (802.11ac)
Wi-Fi-band:	Tri-band (2,4 GHz / 5 GHz / 5 GHz)
Statisk routning:	Ja
Portvidarebefordran:	Ja
Löstagbar(a) antenn(er):	Nej
Dataöverföringshastighet via WLAN (max):	1000 Mbit/s
Dataöverföringshastighet via WLAN (första bandet):	300 Mbit/s
Dataöverföringshastighet via WLAN (andra bandet):	867 Mbit/s
Kontrollampa:	Ja
Gästanvändare:	Ja
Brandväggssäkerhet:	Forbid TCP/UDP flood attack VPN(PPTP/L2TP/IPsec )pass through
Minneskortsplats(er):	Nej
Dataöverföringshastighet via WLAN (tredje bandet):	867 Mbit/s
WiFi-konfigureringskort:	Ja
