Sida 1/6

www.tendacn.com

TEF1026F

24-Port 10/100M Unmanaged

Switch with 2 GE Ports and 2 SFP Slots

Products Description

Tenda TEF1026F is a high-performance, easily maintainable gigabit switch with 2 GE uplink ports and 2 SFP uplink slots

specially designed for small and medium-sized monitoring projects and enterprises that require common downlink

rates, high-speed uplinks and long-distance networking. It oﬀers 24 10/100Mbps RJ45 ports to serves as many as 24

Ethernet devices such as computers, IP cameras, small servers, 2 10/100/1000Mbps RJ45 ports to connect to routers or

NVRs for addressing bandwidth bottleneck in cascade connection, 2 1000Mbps SFP combo ports used to connect Tenda

optical modules for up to 20-kilometer transmission. The plug-and-play 1U switch is compatible with standard 19 inch

racks, supports desktop mounting and rack mounting, and allows users to change its work mode at the press of a

button, making it the perfect choice for easy network performance improvement.(SMBs, hotels, Video Surveillance)

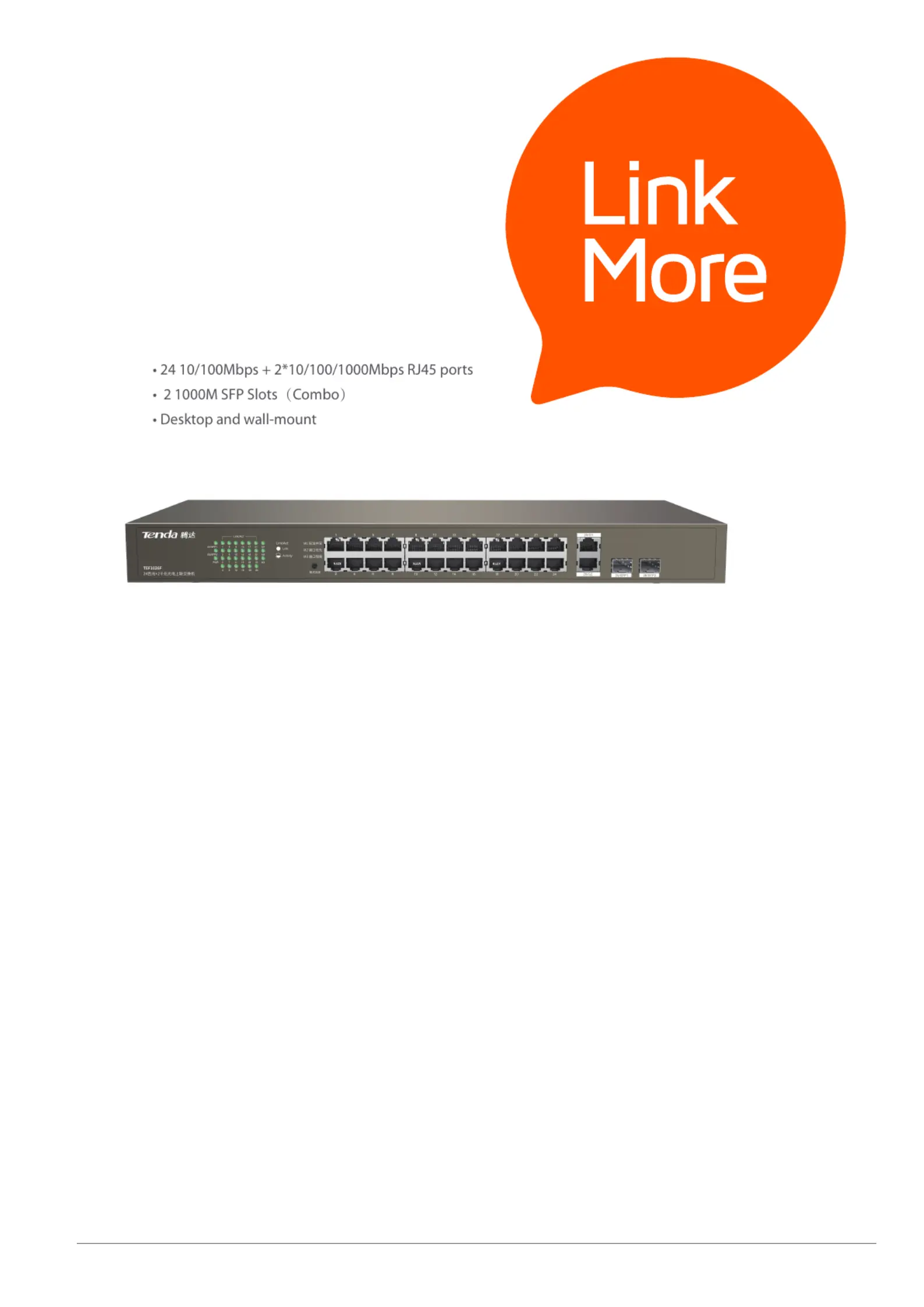

TEF1026F/24-Port 10/100M Unmanaged Switch with 2 GE Ports and 2 SFP Slots

TEF1026F

24-Port 10/100M Unmanaged Switch with 2 GE Ports and 2 SFP Slots

TEF1026F/24-Port 10/100M Unmanaged Switch with 2 GE Ports and 2 SFP Slots

Key Feature

Product Features

Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab

Store & forward, share memory, non-blocking architecture

Supports MAC address self-learning and auto MDI/MDIX

Provide 24 10/100Mbps+2 10/100/1000Mbps auto-negotiation ports

Provide 2 1000Mbps SFP Slots (Combo)

Supports full-deplux 802.3x ﬂow control and half-duplux backpressure

ﬂow control

Supports 4K MAC address list, MAC address learning and auto-ageing

Supports Uplink ports Inductive Lightning Protection up to 6KV

Supports power supply Inductive Lightning Protection up to 6KV

Supports loop detection and prevention

Supports 3 modes for diﬀerent networks

Fanless design

Desktop and wall-mount Design

•

M1: Standard mode, the default mode of the switch. In that mode, all

ports can communicate with each other, but the switch could not be

managed through web UI.

M2: Port-based priority mode. In that mode, ports 1 to 8 have higher

priority than other ports, and all ports can communicate with each other.

When the switch is connected to multiple IP cameras, you are recom-

mended to use this mode for better smooth transmission, and connect

the key IP cameras to the ports with higher priority, connect the two

uplink ports (ports 25 and 26) to uplink devices (such as NVR or router).

M3: Port-based VLAN mode. In that mode, ports 1 to 24 can communicate

with uplink ports (ports 25 and 26) but cannot communicate with each

other. You can use this mode to isolate DHCP broadcast and eliminate

broadcast storm.

3 modes for diﬀerent networks

All ports support line-speed forwarding , and built-in 4Mb SRAM for

packet buﬀer (twice than similar normal switch) ensure the smoothly and

timely transfer of large ﬁles and stable streaming video. Stay connected

for 7*24.

Stable connection for 7*24

7x24

Stable connection

for 7x24

Modes

Produktspecifikationer

Varumärke:	Tenda
Kategori:	Växla
Modell:	TEF1026F
Bredd:	440 mm
Djup:	179 mm
Höjd:	44 mm
LED-indikatorer:	Ja
Strömförbrukning (max):	12 W
Rackmontering:	Ja
Full duplex:	Ja
Kabeltyper som stöds:	Cat3, Cat5, Cat5e
Antal Combo SFP-portar:	2
Produktens färg:	Svart
Formfaktor:	1U
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Strömförsörjning via Ethernet (PoE) stöd:	Nej
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-40 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	5 - 90 %
AC-inspänning:	100 - 240 V
Kabel inkluderad:	AC
Växelström Frekvens:	50 - 60 hz
Manual:	Ja
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Loopskydd:	Ja
Adresstabellstorlek:	16000 poster
Switch kapacitet:	8.8 Gbit/s
Hastighet vid vidarebefordran:	1.488 Mpps
10G stöd:	Nej
Antal grundläggande RJ-45 Ethernet-portar:	24
Typ av grundläggande RJ-45 Ethernet-portar:	Fast Ethernet (10/100)
Switch typ:	Ohanterad
Switch-lager:	L2
Lagra-och-vidarebefordra:	Ja
Antal SFP-modulplatser:	2
Autonegotiation:	Ja
Auto MDI / MDI-X:	Ja
Koppar Ethernet-kablar teknik:	10BASE-T, 100BASE-TX, 1000BASE-T
Stöd för automatisk inlärning av MAC-adresser:	Ja
Antal Fast Ethernet (koppar) portar:	24
