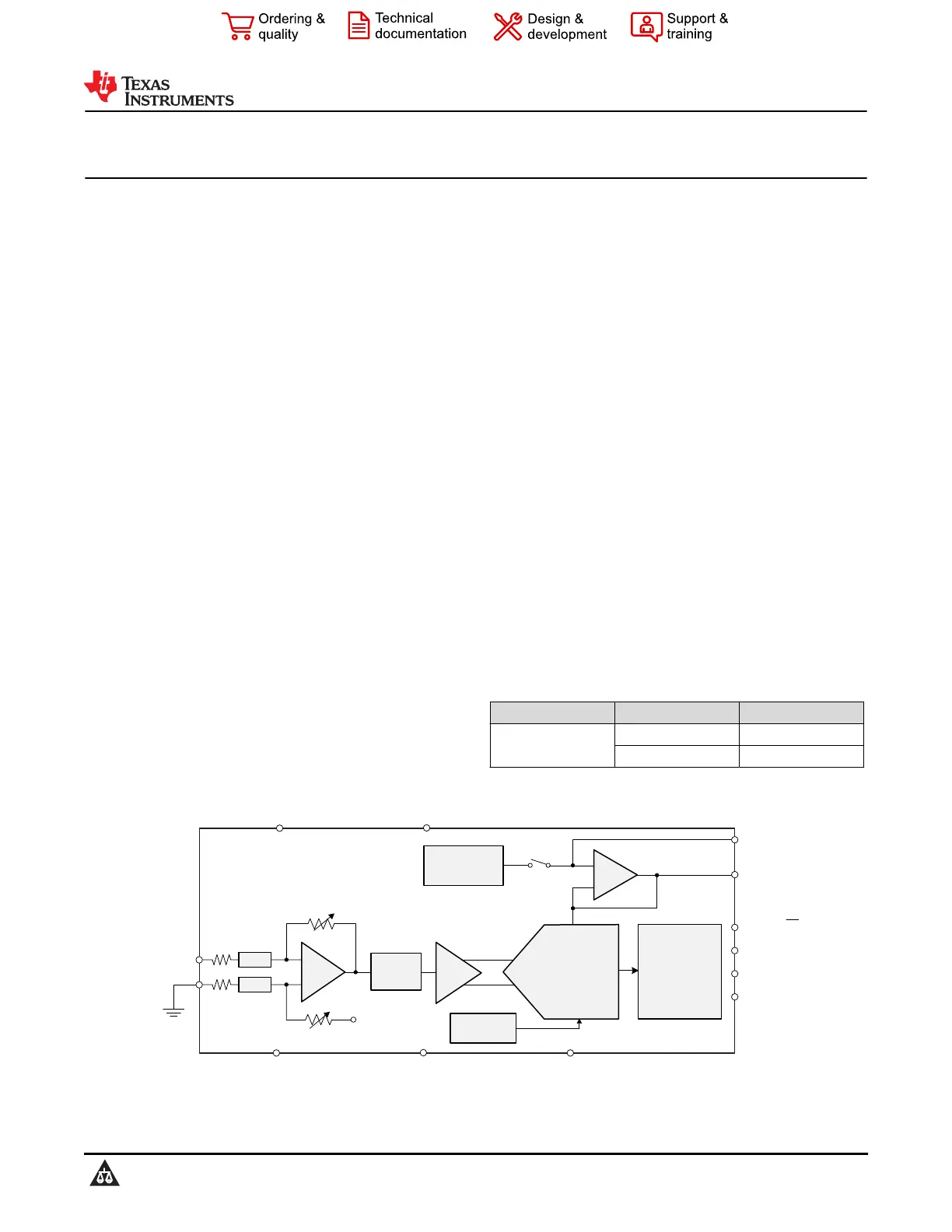

ADS868x 16-Bit, High-Speed, Single-Supply, SAR ADC Data Acquisition System

With Programmable, Bipolar Input Ranges

1 Features

•16-bit ADC with integrated analog front-end

•High speed:

–ADS8681: 1 MSPS

–ADS8685: 500 kSPS

–ADS8689: 100 kSPS

•Software programmable input ranges:

–Bipolar ranges: ±12.288 V, ±10.24 V, ±6.144 V,

±5.12 V, and ±2.56 V

–Unipolar ranges: 0 V–12.288 V, 0 V–10.24 V,

0 V–6.144 V, and 0 V–5.12 V

•5-V analog supply: 1.65-V to 5-V I/O supply

•Constant resistive input impedance ≥ 1 MΩ

•Input overvoltage protection: Up to ±20 V

•On-chip, 4.096-V reference with low drift

•Excellent performance:

–DNL: ±0.4 LSB; INL: ±0.5 LSB

–SNR: 92 dB; THD: –107 dB

•ALARM → high, low threshold

•multiSPI

™

interface with daisy-chain

•Extended industrial temperature range:

–40°C to +125°C

2 Applications

•Analog input modules

•Semiconductor test

•Servo drive control module

3 Description

The ADS8681, ADS8685, and ADS8689 belong to a

family of integrated data acquisition system based on

a successive approximation (SAR) analog-to-digital

converter (ADC). The devices feature a high-speed,

high-precision SAR ADC, integrated analog front-end

(AFE) input driver circuit, overvoltage protection circuit

up to ±20 V, and an on-chip 4.096-V reference with

extremely low temperature drift.

The devices operate on a single 5-V analog supply,

but support true bipolar input ranges of ±12.288 V,

±6.144 V, ±10.24 V, ±5.12 V, and ±2.56 V, as well

as unipolar input ranges of 0 V to 12.288 V, 0 V to

10.24 V, 0 V to 6.144 V, and 0 V to 5.12 V. The gain

and offset errors are accurately trimmed within the

specified values for each input range to ensure high

dc precision. The input range selection is done by

software programming of the device internal registers.

The devices offer a high resistive input impedance

(≥ 1 MΩ) irrespective of the selected input range.

The multiSPI digital interface is backward-compatible

to the traditional SPI protocol. Additionally,

configurable features simplify interface to a wide

range of host controllers.

Package Information

(1)

PART NUMBERPACKAGEBODY SIZE (NOM)

ADS868x

TSSOP (16)5.00 mm × 4.40 mm

WQFN (16)4.00 mm × 4.00 mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

Oscillator

CONVST/CS

PGA

1 M:

OVP

1 M:

OVP

2

nd

-Order

LPF

ADC

Driver

V

BIAS

AIN_P

AIN_GND

4.096-V

Reference

REFGND

DGNDAGND

DVDD

AVDD

Digital Logic

and Interface

REFIO

REFCAP

SCLK

SDI

SDO

16-Bit

SAR ADC

ADS868x

Block Diagram

ADS8681, ADS8685, ADS8689

SBAS633E – FEBRUARY 2016 – REVISED AUGUST 2022

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
