The Box CL 115 Sub MK II Bruksanvisning
Läs gratis den bruksanvisning för The Box CL 115 Sub MK II (32 sidor) i kategorin högtalare. Guiden har ansetts hjälpsam av 20 personer och har ett genomsnittsbetyg på 5.0 stjärnor baserat på 10.5 recensioner. Har du en fråga om The Box CL 115 Sub MK II eller vill du ställa frågor till andra användare av produkten? Ställ en fråga
Sida 1/32

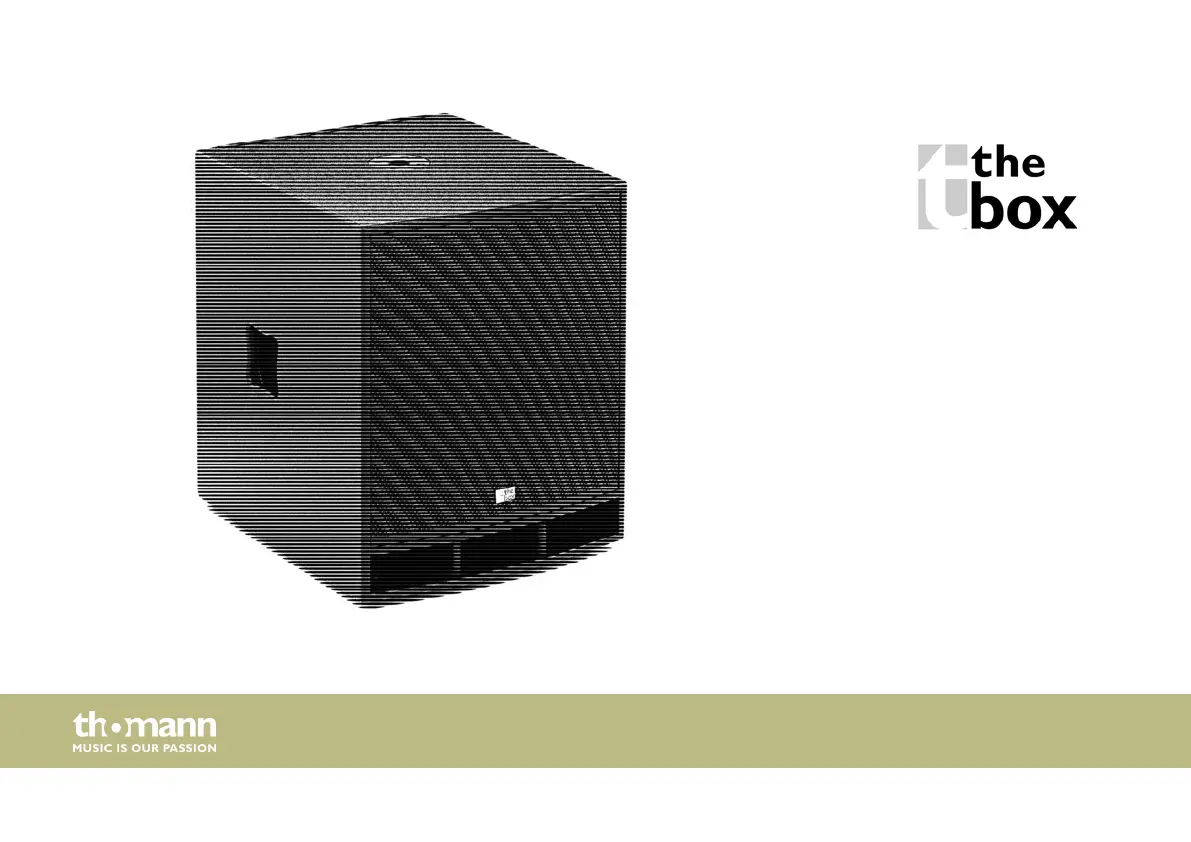

CL 112 / CL 115 /
CL 118 SUB MKII
active subwoofer
user manual
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: info@thomann.de
Internet: www.thomann.de
06.05.2020, ID: 341323, 341324, 341325 (V2)
Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 14
4.1 Tips on handling speakers............................................................................................................ 16
5 Connections and operating elements........................................................................................... 17
6 Technical specications....................................................................................................................... 21
7 Plug and connection assignment.................................................................................................... 24
8 Protecting the environment.............................................................................................................. 28
Table of contents
CL 112 / CL 115 / CL 118 SUB MKII
3
1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
active subwoofer
4
1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search
Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides
Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service
If you have any problems with the device the customer service will
gladly assist you.
General information
CL 112 / CL 115 / CL 118 SUB MKII
5
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
active subwoofer
6
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
CL 112 / CL 115 / CL 118 SUB MKII
7
2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
active subwoofer
8
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or re. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
CL 112 / CL 115 / CL 118 SUB MKII
9
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use su‐
cient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
Safety instructions
active subwoofer
10
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
Safety instructions
CL 112 / CL 115 / CL 118 SUB MKII
11
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire
hazard!
Only fuses of the same type may be used.
Safety instructions
active subwoofer
12
3 Features
Special features of the device:
n Inputs: XLR and 1/4" phone sockets, RCA sockets (CL 115 and CL 118)
n Outputs: NL4 chassis connectors for passive speaker boxes (top), DIRECT OUT (CL 115 and
CL 118)
n 36 mm pole mount ange
n Buttery handles
n Transport casters
n PU coating
n Protective cover optionally available
Features
CL 112 / CL 115 / CL 118 SUB MKII
13
4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
For operation, the device must be placed on the rubber feet over the side provided with a pro‐
tective edge. Do not operate the device when it is standing on the transport rollers. There is a
risk of overheating and the possibility of the unit moving uncontrollably on the rollers.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation
active subwoofer
14
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation
CL 112 / CL 115 / CL 118 SUB MKII
15
4.1 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplier. Always follow the technical specications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.
Installation
active subwoofer
16
5 Connections and operating elements
Rear panel CL 112 SUB MKII
Connections and operating elements
CL 112 / CL 115 / CL 118 SUB MKII
17
Rear panel CL 115 SUB MKII,
CL 118 SUB MKII
Connections and operating elements
active subwoofer
18
1 Mains switch [POWER]
Turns the device on and o.
2 IEC chassis plug with fuse holder for the power supply.
3 [SAT POWER OUT RIGHT | LEFT]
Speaker outputs (Speaker Twist panel connectors).
4 [INPUT RIGHT | LEFT]
Inputs for balanced or unbalanced line level signals (XLR sockets).
5 [INPUT RIGHT | LEFT]
Inputs for balanced or unbalanced line level signals (RCA sockets).
6 [POWER]
This LED indicates that the device is switched on and operational.
7 [SUB LEVEL]
This rotary control can be used to adjust the subwoofer volume.
Connections and operating elements
CL 112 / CL 115 / CL 118 SUB MKII
19
8 [SUB PHASE]
This slide switch can be used to reverse the phasing (0 ° / 180 °). This avoids unwanted cancellation eects in combi‐
nation with other speakers.
9 [MAIN LEVEL]
This rotary control can be used to adjust the overall volume (subwoofer and connected external speakers).
10 [PROTECT]
This LED lights up red when the unit switches to protection mode. In this case, check the cables for short circuit or
bad connection. If this LED lights constantly, please contact our service centre. Contact details can be found at
www.thomann.de.
11 [INPUT RIGHT | LEFT]
Inputs for balanced or unbalanced line level signals (XLR / 1/4" combo sockets).
12 [DIRECT OUT]
Outputs for looping the signal to further active systems.
Connections and operating elements
active subwoofer
20
