Sida 1/32

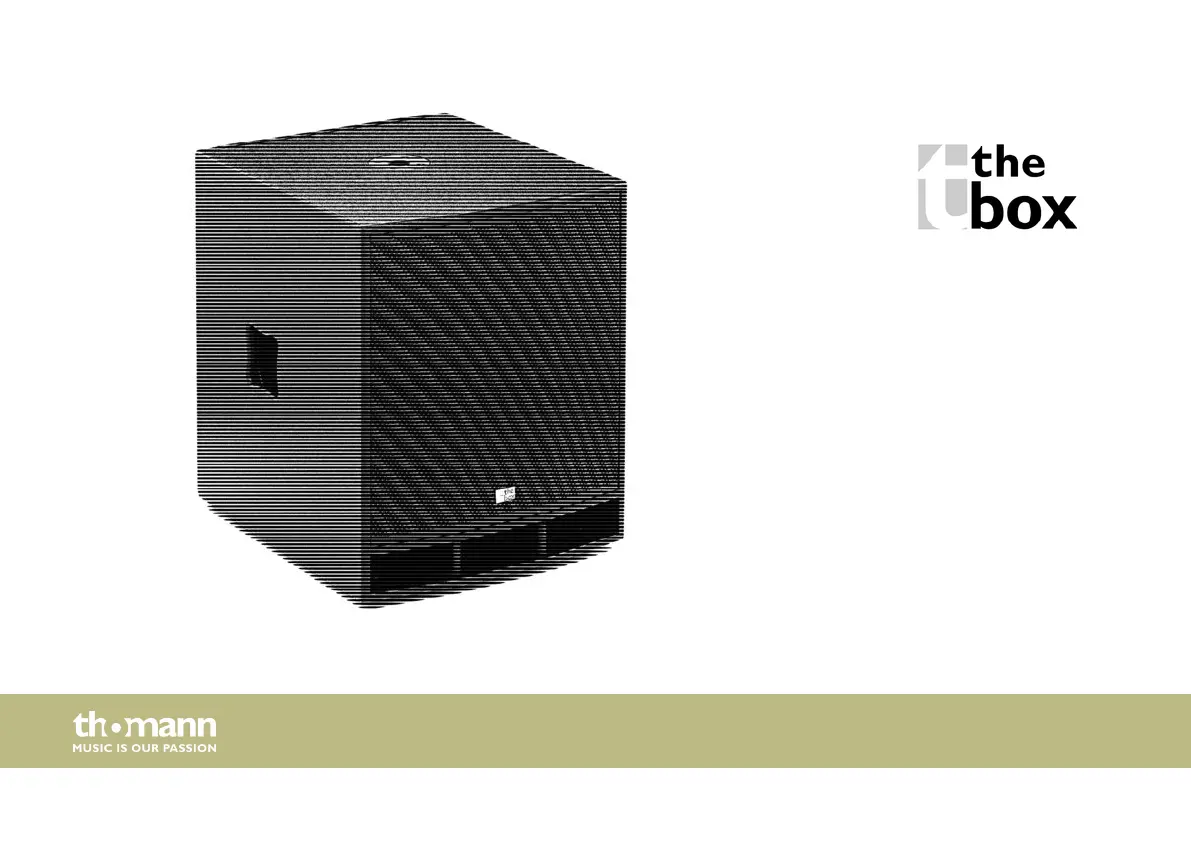

CL 112 / CL 115 /
CL 118 SUB MKII
active subwoofer
user manual
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: info@thomann.de
Internet: www.thomann.de
06.05.2020, ID: 341323, 341324, 341325 (V2)
Table of contents
1 General information 4.................................................................................................................................
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions 8.....................................................................................................................................
3 Features 13.......................................................................................................................................................
4 Installation 14..................................................................................................................................................
4.1 Tips on handling speakers............................................................................................................ 16
5 Connections and operating elements 17...........................................................................................
6 Technical 21specications.......................................................................................................................
7 Plug and connection assignment 24....................................................................................................
8 Protecting the environment 28..............................................................................................................
Table of contents
CL 112 / CL 115 / CL 118 SUB MKII
3
1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under .www.thomann.de
General information
active subwoofer
4
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: control, button.[VOLUME] [Mono]
1.3 Symbols and signal words
In this section you will an overview of the meaning of symbols and signal words that arend
used in this manual.
Letterings
General information
active subwoofer
6
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
CL 112 / CL 115 / CL 118 SUB MKII
7
2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with physical, sensorial, and intellectualsucient
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
active subwoofer
8
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or If in doubt, seek advice from a regis‐re.
tered electrician.
Safety instructions
CL 112 / CL 115 / CL 118 SUB MKII
9
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use su‐
cient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
Safety instructions
active subwoofer
10
3 Features
Special features of the device:
nInputs: XLR and 1/4" phone sockets, RCA sockets (CL 115 and CL 118)
nOutputs: NL4 chassis connectors for passive speaker boxes (top), DIRECT OUT (CL 115 and
CL 118)
n36 mm pole mount ange
nButtery handles
nTransport casters
nPU coating
nProtective cover optionally available
Features
CL 112 / CL 115 / CL 118 SUB MKII
13
4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
For operation, the device must be placed on the rubber feet over the side provided with a pro‐
tective edge. Do not operate the device when it is standing on the transport rollers. There is a
risk of overheating and the possibility of the unit moving uncontrollably on the rollers.
Create all connections while the device is Use the shortest possible high-quality cables foro.
all connections. Take care when running the cables to prevent tripping hazards.
Installation
active subwoofer
14
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic Therefore, maintain an appropriateeld.
distance to devices that can be adversely or damaged by an externalaected
magnetic eld.
Installation
CL 112 / CL 115 / CL 118 SUB MKII
15
4.1 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the Always follow the technical of the speakers! Theamplier. specications
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.
Installation
active subwoofer
16
5 Connections and operating elements

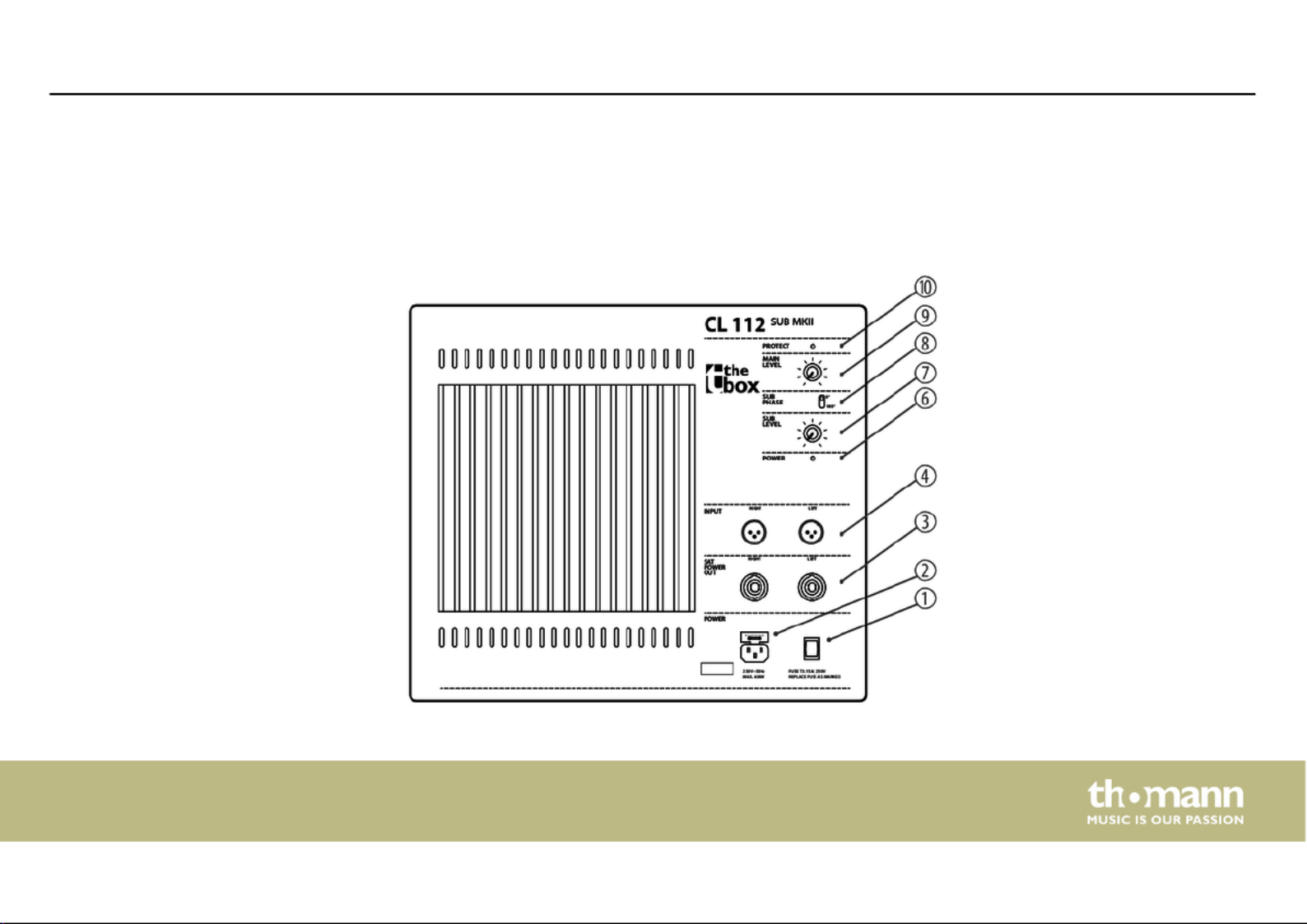

Rear panel CL 112 SUB MKII
Connections and operating elements
CL 112 / CL 115 / CL 118 SUB MKII
17

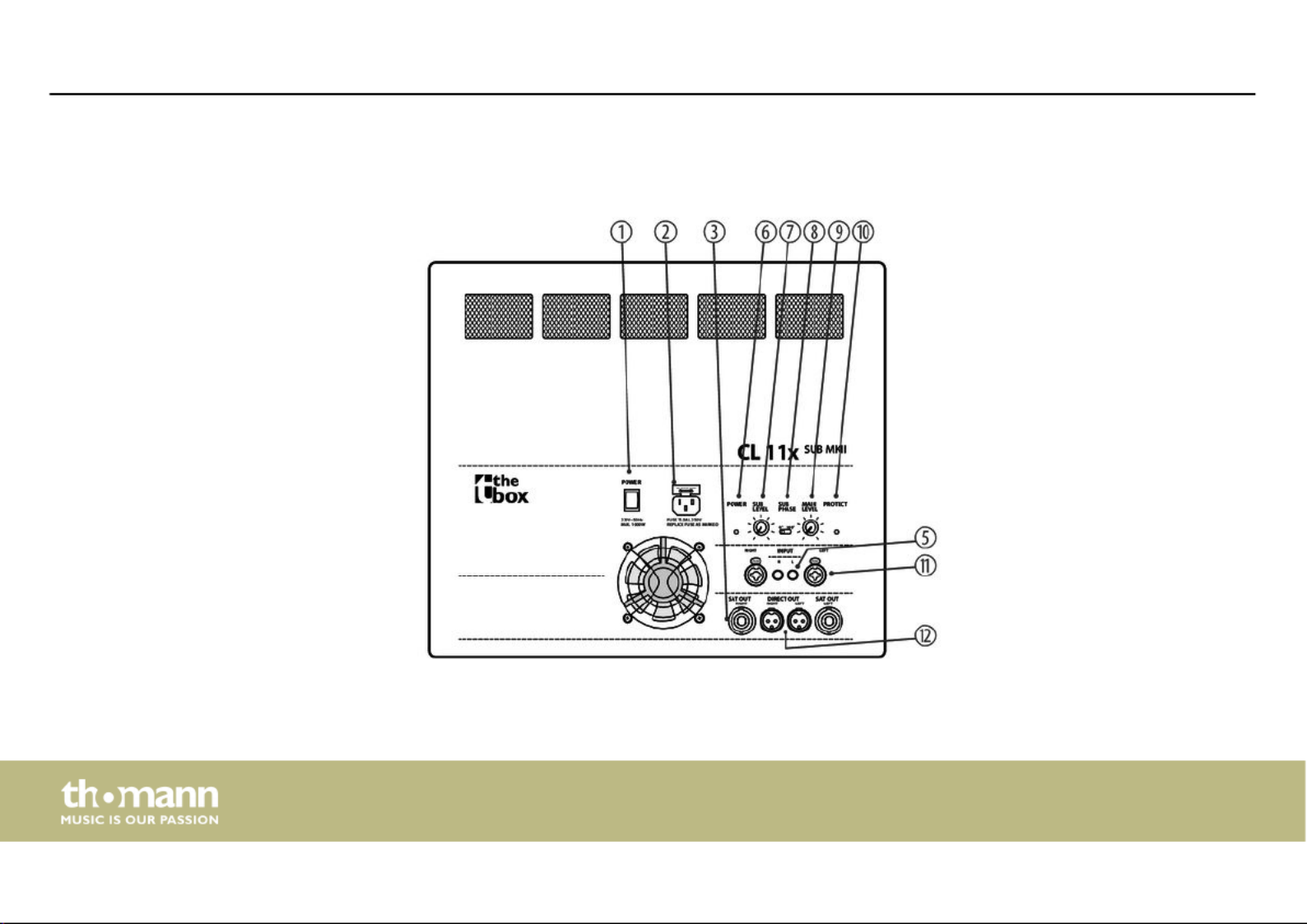

Rear panel CL 115 SUB MKII,
CL 118 SUB MKII
Connections and operating elements
active subwoofer
18
1 Mains switch [POWER]
Turns the device on and o.
2 IEC chassis plug with fuse holder for the power supply.
3[SAT POWER OUT RIGHT | LEFT]
Speaker outputs (Speaker Twist panel connectors).
4[INPUT RIGHT | LEFT]
Inputs for balanced or unbalanced line level signals (XLR sockets).
5[INPUT RIGHT | LEFT]
Inputs for balanced or unbalanced line level signals (RCA sockets).
6[POWER]
This LED indicates that the device is switched on and operational.
7[SUB LEVEL]
This rotary control can be used to adjust the subwoofer volume.
Connections and operating elements
CL 112 / CL 115 / CL 118 SUB MKII
19
8[SUB PHASE]
This slide switch can be used to reverse the phasing (0 ° / 180 °). This avoids unwanted cancellation in combi‐eects
nation with other speakers.
9[MAIN LEVEL]
This rotary control can be used to adjust the overall volume (subwoofer and connected external speakers).
10 [PROTECT]
This LED lights up red when the unit switches to protection mode. In this case, check the cables for short circuit or
bad connection. If this LED lights constantly, please contact our service centre. Contact details can be found at
www.thomann.de.
11 [INPUT RIGHT | LEFT]
Inputs for balanced or unbalanced line level signals (XLR / 1/4" combo sockets).
12 [DIRECT OUT]
Outputs for looping the signal to further active systems.
Connections and operating elements
active subwoofer
20
6 Technical specications
CL 112 SUB MKII (item
no. 341323)
CL 115 SUB MKII (item
no. 341324)
CL 118 SUB MKII (item
no. 341325)
Speaker 1 × 12" woofer 1 × 15" woofer 1 × 18" woofer
Input connections Voltage supply IEC chassis plug C14 IEC chassis plug C14 IEC chassis plug C14
Line-in 2 × XLR (balanced) 2 × XLR (balanced) 2 × XLR (balanced)
2 × 1/4" jack socket (bal‐
anced / unbalanced)
2 × 1/4" jack socket (bal‐
anced / unbalanced)
2 × 1/4" jack socket (bal‐
anced / unbalanced)
2 × RCA socket 2 × RCA socket
Impedance passive speakers min. 4 Ω min. 4 Ω min. 4 Ω
Output connections Lockable Speaker Twist
chassis connector (1+/1-)
Lockable Speaker Twist
chassis connector (1+/1-)
Lockable Speaker Twist
chassis connector (1+/1-)
2 × DIRECT OUT (XLR) 2 × DIRECT OUT (XLR)
Output power 120 W (RMS) 220 W (RMS) 350 W (RMS)
Technical specications
CL 112 / CL 115 / CL 118 SUB MKII
21
