Sida 1/7
1

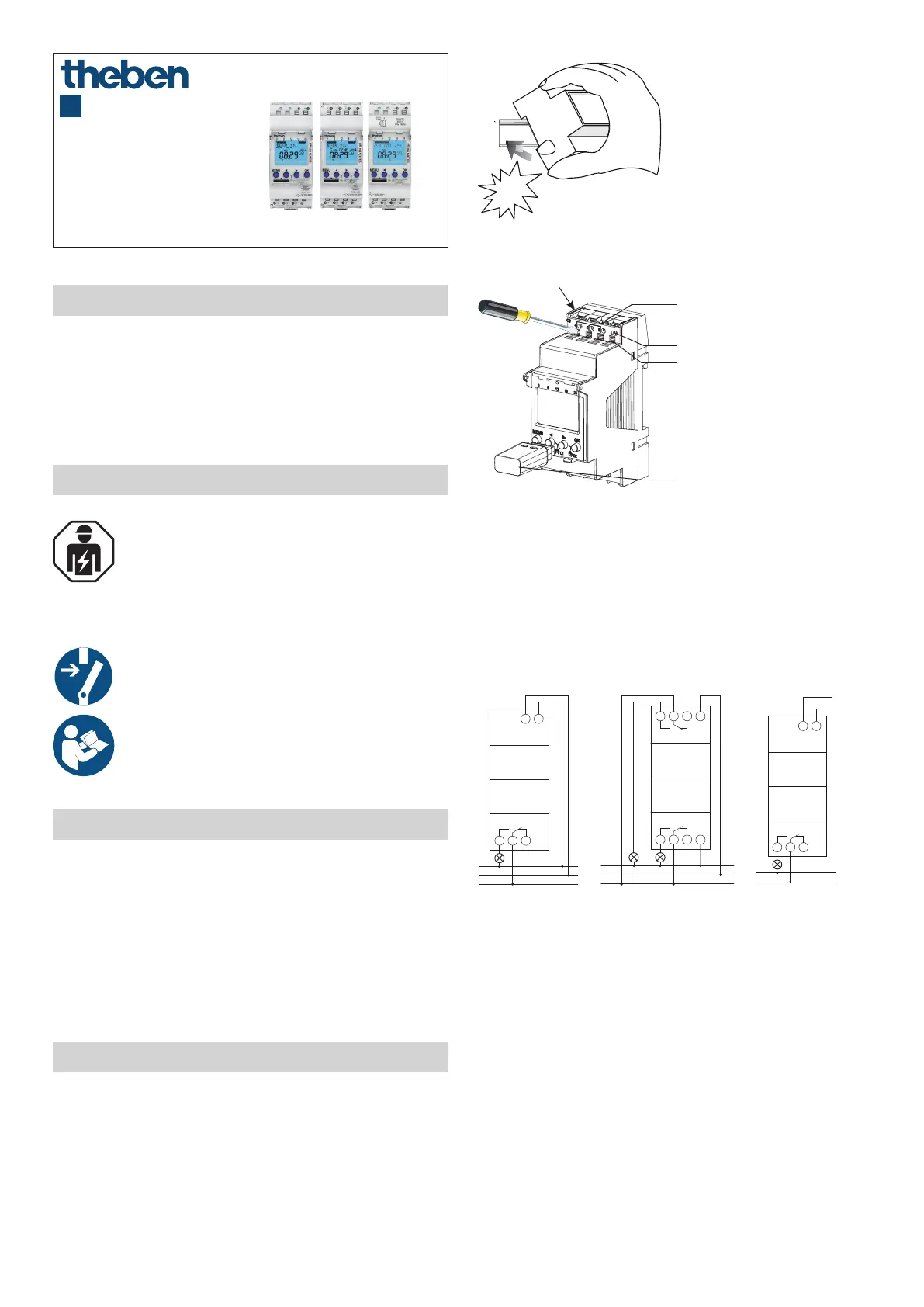

SELEKTA 170 top3
1700130
SELEKTA 174 top3
1740130
SELEKTA 170 top3 12–24V
1704130
307304 04
21.03.2025
Astro Time Switch
EN
1. General information
•
The device is designed for installation on DIN rails (in
accordance with EN 60715)
•
Power reserve (10 years) is reduced if memory card is
inserted (using battery power)
•
Corresponds to type 1.B.S.T.U nach IEC/EN 60730-2-7
2. Safety
Assembly and installation should only be carried
out by a qualied electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
the entire manual and follow the instructions.
3. Proper use
•
The astronomic time switch is used, for instance, for
lighting equipment (roads, external staircases, display
windows, entrances etc.)
•
Interface for Bluetooth OBELISK top3 (app)
•
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, re
safety equipment etc.
4. Installation and connection
Mounting the time switch
Mount on DIN rail.
TH 35-7,5
(DIN EN 60715)
click
Test connection
45° cable
Spring plug-
in terminal
opener
Bluetooth OBELISK top3
(9070130)
DuoFix spring
plug-in terminal
!
Check the depth of the control cabinet when OBELISK
top3 is connected. The depth must be > 94 mm.
Connecting the time switch
!
Correct connection required for smooth zero-cross
switching operation.
SELEKTA 170 top3 SELEKTA 174 top3 SELEKTA 170 top3 12–24V
C1
1 2 3
N
L
L
L N
C2
C1
1 2 3
4 5 6 L
N
L
L
N
C1
1 2 3
+
~
–
~
12–24 V
+
~
–
~
N
L
Connecting the cable
Strip cable to 8 mm (max. 9).
Insert cable in the open DuoFix plug-in terminal at 45°.
L 2 cables per terminal position possible.
To open the DuoFix plug-in terminal, press screwdriver
downwards.
Disconnecting the cable
Use the screwdriver to push the spring plug-in terminal
downwards.
2

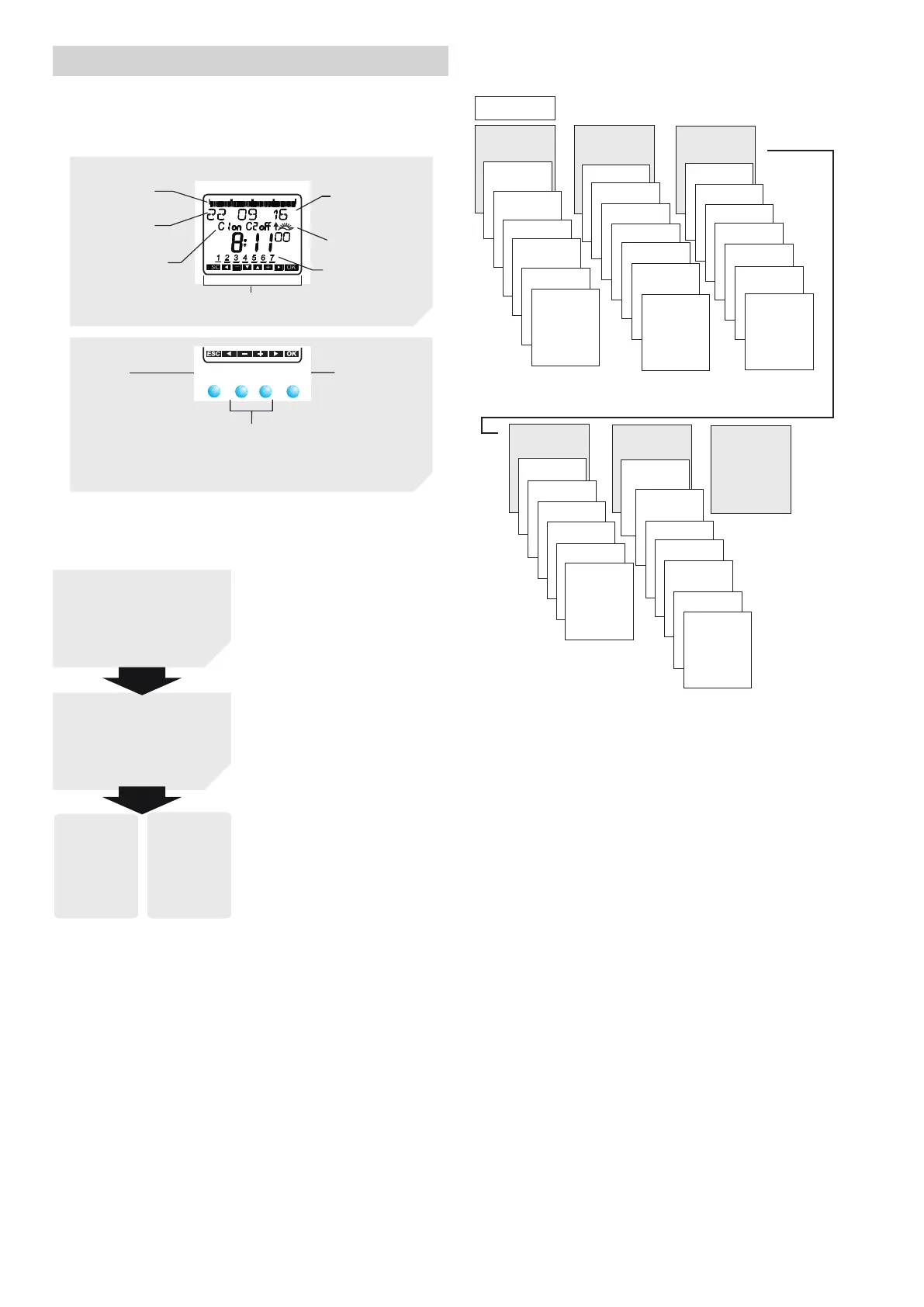

5. Device description
Display & buttons
06
12
18
24
MENU OK
OKMENU
Date display
Channel status
ON = On
OFF = Off
Programmed
ON times
Days of the week
from 1 to 7
Display of the active buttons
with the relevant function
– Activate screen
– Open menu
– Cancel menu
– ESC
(leave menu)
–Store
selection
–Confirm
selection
Selection options
are displayed
Time display
Sunrise/sunset
display
Operating instructions
YES
Confirmation
press
OK
NO
Change/
select
press
t u
1. Read text lines
Flashing text/symbol
is a prompt
2. Make a decision
Overview of menu selection
ASTRO
MANUAL
PROGRAM
OPTIONS
TIME/DATE
END
MENU
u u u
ASTRO-
TIMES
TOTAL
SIMULATION
u
u
u
OFFSET
ASTRO-
MODE
LOCATION
END
CHANNEL C1
NEW
CHECK
MODIFY
DELETE
TOTAL
SIMULATION
END
CHANNEL C1
TIME
SET DATE
SU-WI
WEEK DAY
FORM DATE
FORM TIME
END
PERM ON
PERM OFF
OVERR ON
HOLIDAY
END
OPERATING
HOUR
LCD-ILLUMI-
NATION
LANGUAGE
PIN
FACTORY
SETTINGS
INFO
END
