Part no: SFRI1030 – 0923-V01

ADDENDUM THETFORD HOBINSTALLATION MANUALS

For all hobs & combination units (hob & sink)this addendum replaces instructions related to the

installation cabinetry dimensions described in chapter6. Position and placementof the installation

manual of the hob.

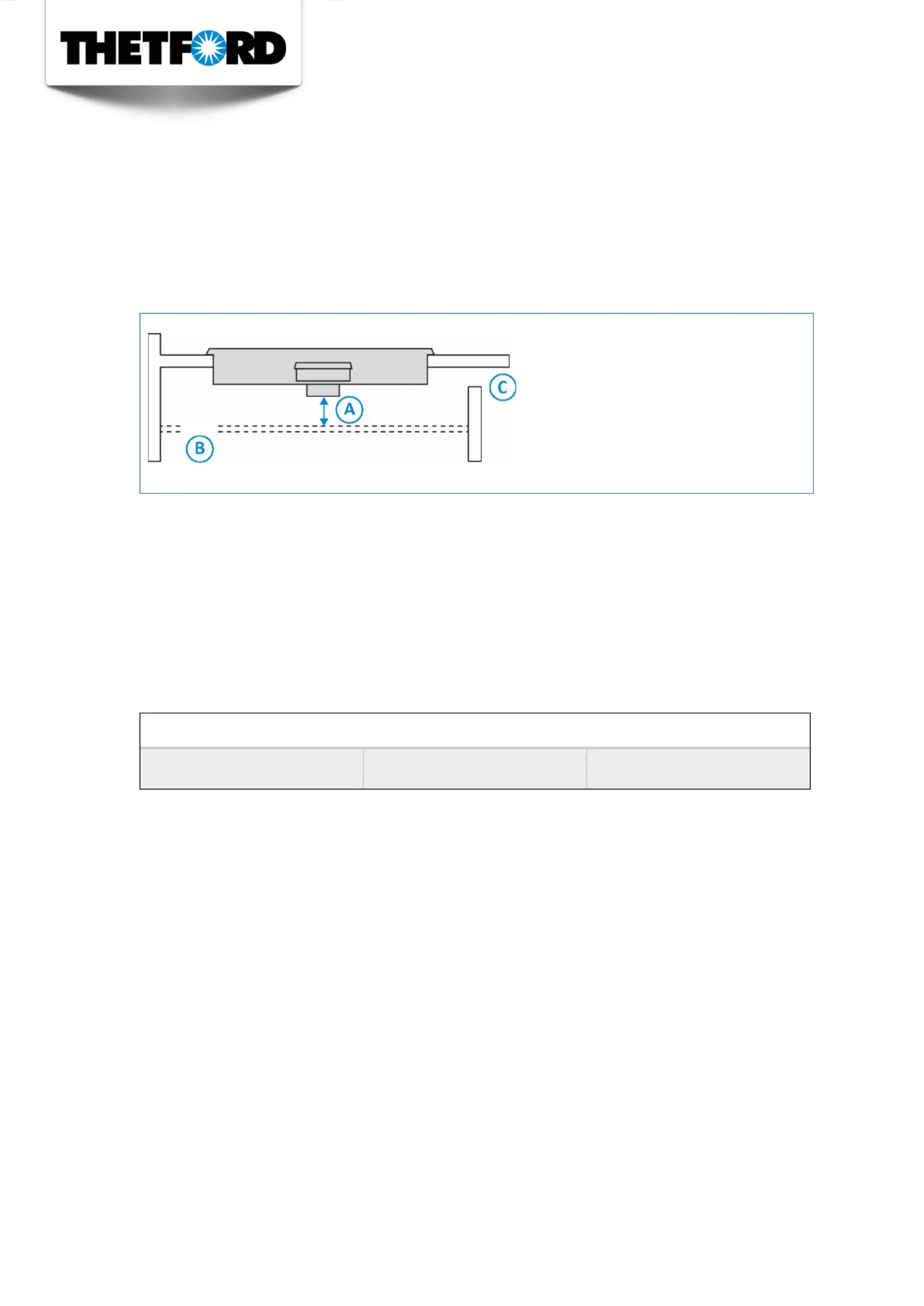

Picture 1: cabinetry locations

A -distancetononcombustible

material from the lowest point of

the hob (e.g. gas pipework, gas

taps, spark generator etc.)

B gas drop hole

C front vent

Make sure the installation is according to the following, referring to the distances indicated in table 1:

ventilation & protection dimensions

Apply a minimum distance (A) . fromthe lowest point of the hob, in all scenariosAnd where the

underneath -of the hob is exposed, then anoncombustible heat shield at point Ais mandatory.

Create a gas drop hole (B) , which must vent to the outside of the leisure vehicle.

I to t is strongly recommended to cut a slot in the cabinet under the front of the worktop(C),

dissipate heat from under . the appliance

Table 1: ventilation & protection dimensions

A in mmB in mmC in mm

3025 - 508x100
