Repair instruction
PRODUCT GROUP [COOKING APPLIANCES]
PRODUCT CATEGORY [HOBS]
PRODUCT CODE : VARIOUS
WARNING! Before commencing work, disconnect the electricity and turn o the gas.
A
These instrucons are for Theord
cookers with electric hotplates. For
surface-mounted hobs please refer to
page 3. Electric hotplates should only
be removed and replaced by a
qualied competent person.
B

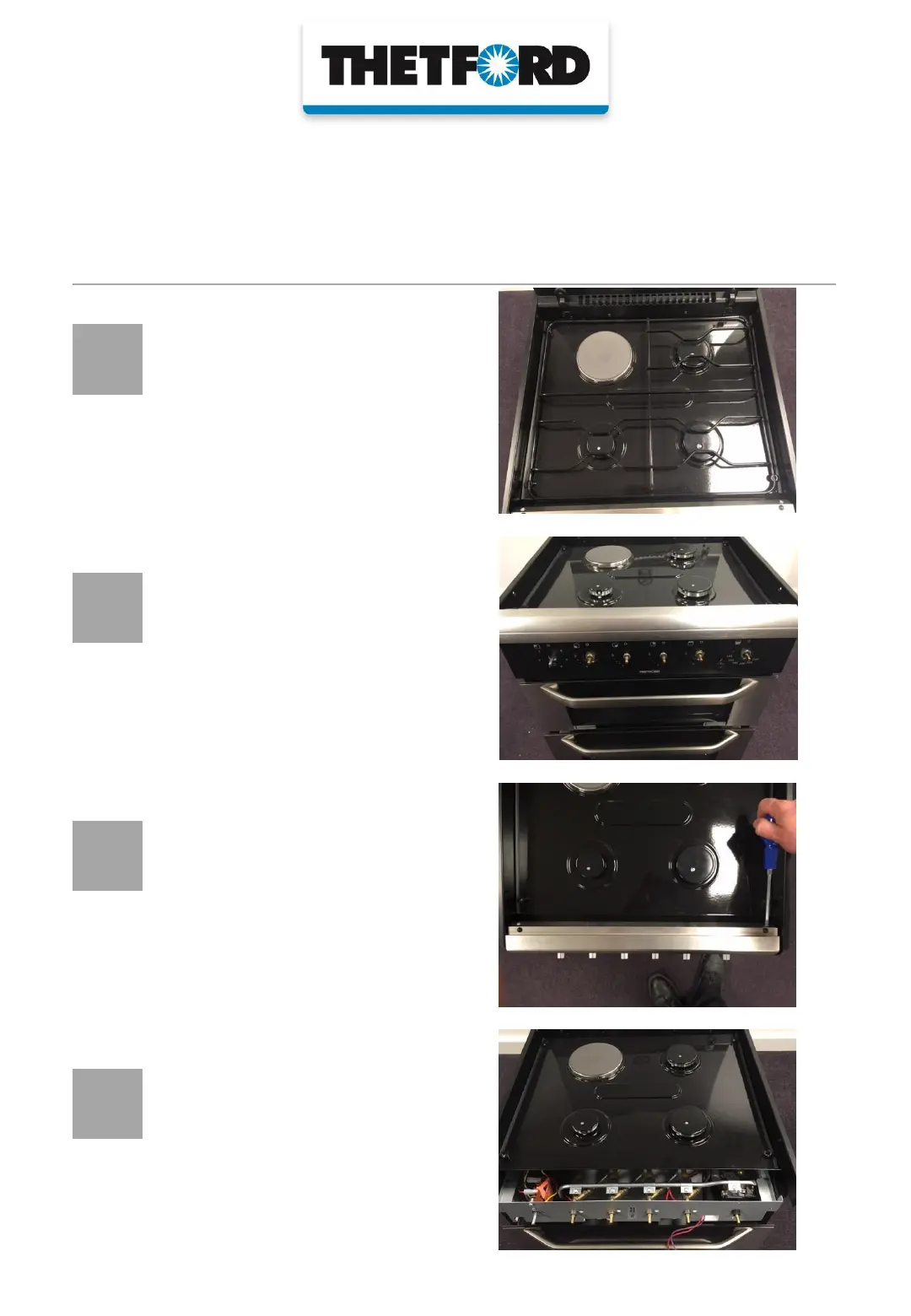

Remove the pan-rest(s) and all the
control knobs. Behind the knobs
locate and remove the 16/17mm
hexagonal nuts from the controls and
2 screws (where appliacable).
C
On the back edge of the control
fascia, remove the 2 screws.
D
The control fascia and prole can now
be removed. Li up and forward, and
carefully remove the spade
connecons for the ignion buon
and oven light switch, where ed.
17 02 2017- - 1/3
Repair instruction
PRODUCT GROUP [COOKING APPLIANCES]
PRODUCT CATEGORY [HOBS]
PRODUCT CODE : VARIOUS
WARNING! Before commencing work, disconnect the electricity and turn o the gas.
E
Remove any screws ed to the rear
trim and loosen the 2 screws in each
hinge, but do not remove.
F
In each black enamel burner cap
remove the retaining screw(s).
G
The enamel burner caps and cast
burner rings can now be removed.
Next remove the screws/retaining
studs found beneath the burner rings.
H
Finally, if applicable, remove the 2
screws found in the pan-
rest clips that
are holding the hob pressing in place.
17 02 2017- - 2/3
Repair instruction
PRODUCT GROUP [COOKING APPLIANCES]
PRODUCT CATEGORY [HOBS]
PRODUCT CODE : VARIOUS
WARNING! Before commencing work, disconnect the electricity and turn o the gas.
I
The hob pressing can now be raised,
giving access to the underside of the
hot plate.
J
Undo the nut holding the earth strap
in place, ensuring that you retain the
star lock washer.
K
Undo the second nut, if the bracket
doesn’t release remove the screw in
the back le corner from the top side
of the pressing. The hotplate will now
be released to remove from the
underside.
L
Take care in removing the hotplate
leads. For individual leads take note
of the posions of the leads. To
reassemble follow these instrucons
in reverse order, replacing with a new
hotplate. The hotplate is a sealed
construcon and has no user-
serviceable components.
17 02 2017- - 3/3
