APPEARANCE

PM-222

PM-222D

PM-222U

MICROPHONE

The PM-222 series is a close-talking microphone for making general announcements. It comes with a talk switch that can

be locked. The PM-222D and PM-222U are provided with the function to remotely control both the amplifier power and

chime operation. Refer to the amplifier instruction manual for details of the remote control function and connections to the

amplifier.

Push-to-talk switch

OFF

Phone plug

Push-to-talk switch

OFF

5-pin DIN

plug

Black

Red

Shield

White

Yellow

* This specification is subject to change without notice.

• PM-222

• PM-222D/U

Model No.

Type

Directivity

Rated Impedance

Rated Sensitivity

Frequency Response

Cable

Cable length

Terminal

Weight

Dimensions

Talk switch

Remote switch

Finish

PM-222 PM-222D/-222U

Moving coil microphone

Unidirectional

600 , unbalanced 600 , balancedΩ Ω

47 dB (1 kHz 0 dB=1 V/Pa)

100 Hz-10 kHz

1-core shielded cable 2-core shielded plus 2-core cable

2 m (when extended)

Phone plug

PM-222D: 5-pin DIN plug

PM-222U: No connector

200 g

44 (w) x 160 (h) x 38 (d) mm

Short-off type with lock

Make contact (linked with talk switch)

ABS resin, gray

PM-222 PM-222D

Phone plug 5-pin DIN plug

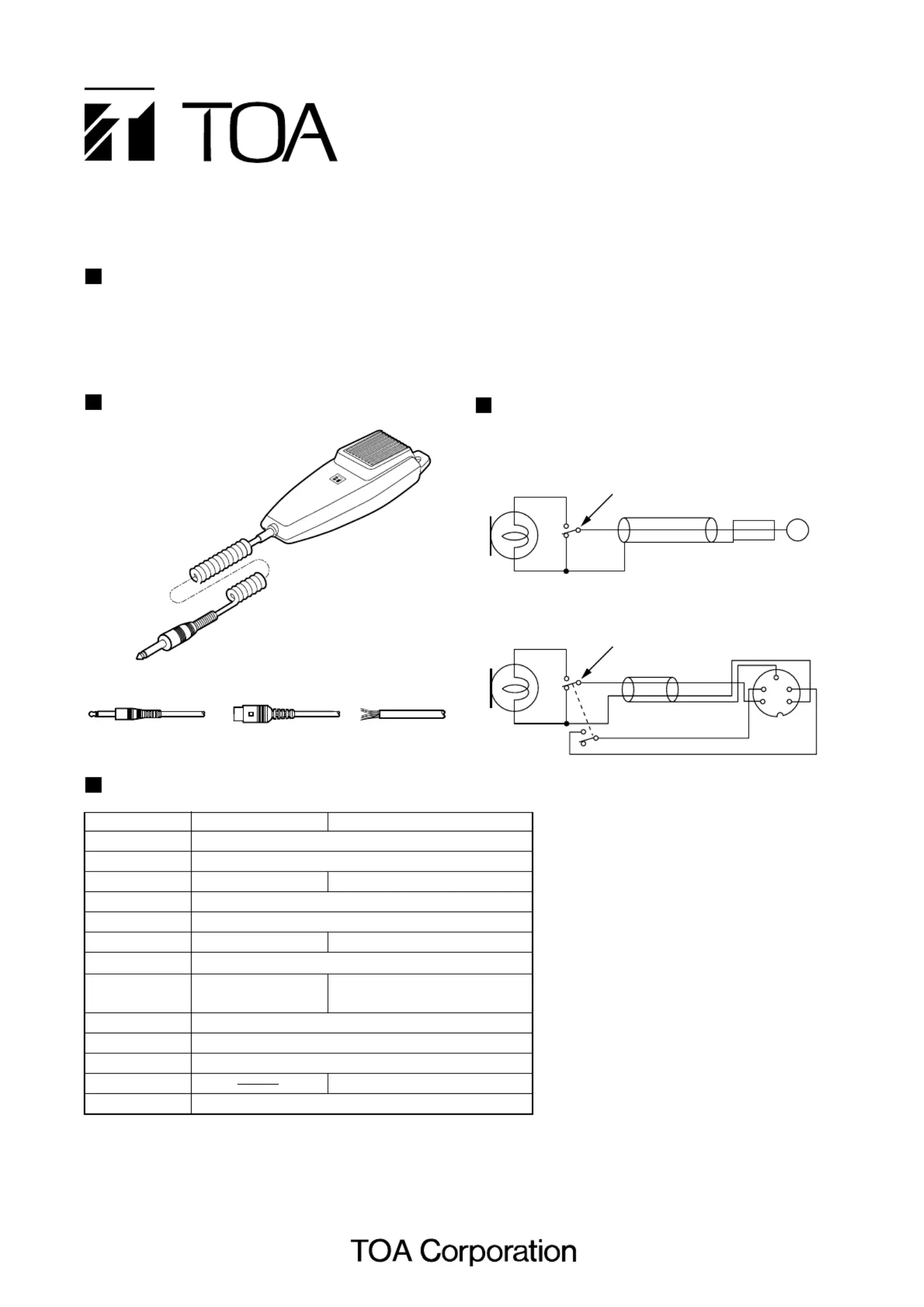

INSTRUCTION MANUAL

GENERAL DESCRIPTION

SPECIFICATIONS

CIRCUIT DIAGRAM

Printed in Indonesia

Note: The PM-222U is equipped with no connector.

PM-222U

No connector

• Accessories

Microphone holder .............................. 1

Microphone holder metal fitting .......... 1

Microphone holder screw ................... 2

Produktspecifikationer

Varumärke:	Toa
Kategori:	mikrofon
Modell:	PM-222D
Bredd:	44 mm
Djup:	38 mm
Höjd:	160 mm
Mikrofonfrekvens:	100 - 10000 hz
Kabellängd:	2 m
Produktens färg:	Grå
Vikt inkl. förpackning:	300 g
Antal produkter som medföljer:	1 styck
Mikrofonvikt:	200 g
Material, hölje:	Acrylonitrile butadiene styrene (ABS), Metal
Anslutningsteknologi:	Kabel
Mikrofon känslighet (utnivå):	-47 dB
Mikrofon, riktning:	Riktad
Mikrofon ingångsimpedans:	600 Ω
