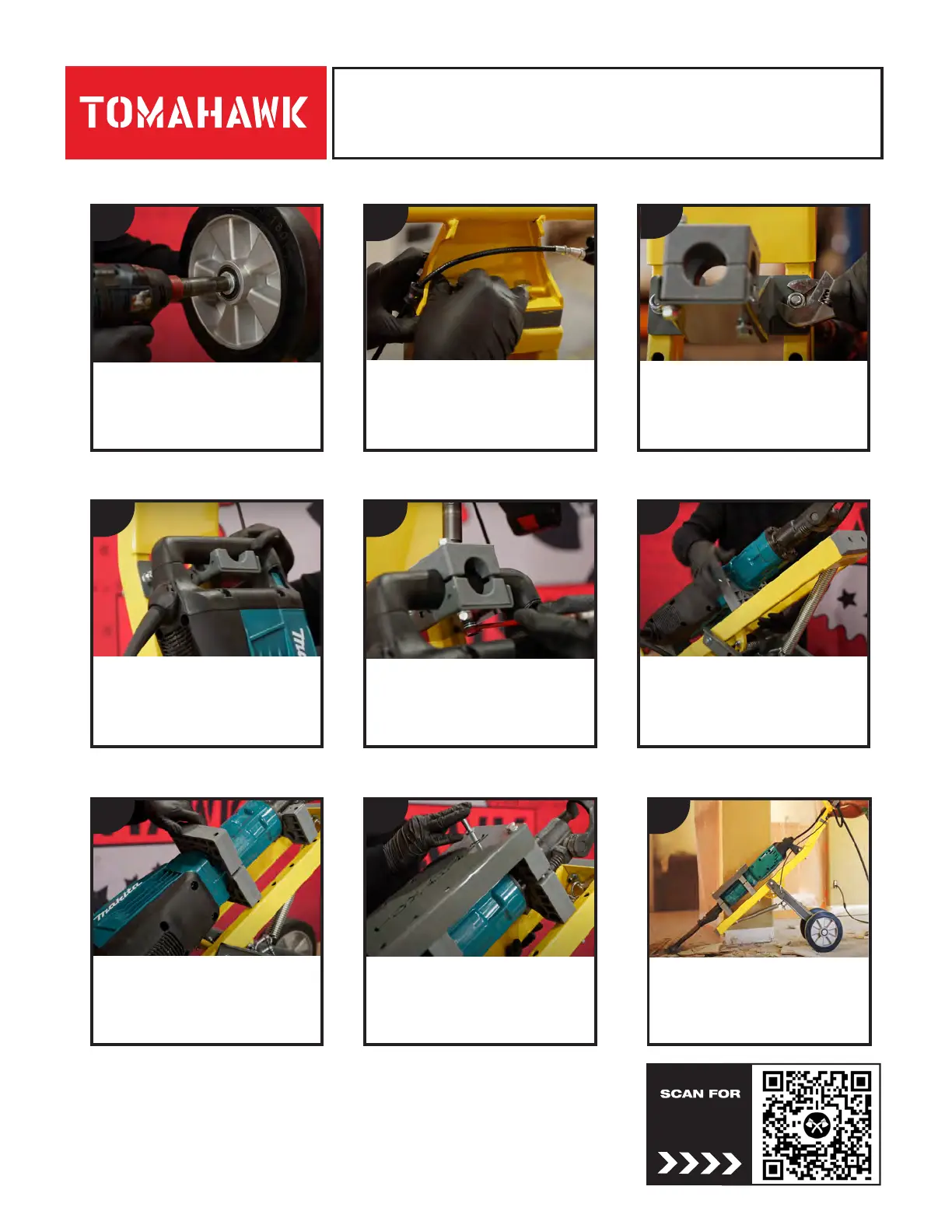

DEMO HAMMER TROLLEY QUICK ASSEMBLY

GUIDE - MAKITA HAMMER& OTHERS

SKU: TDHT55

Remove the bolts and washers from

the trolley base. Slide each wheel

onto the peg and secure them with

bolts and washers. Tighten

everything using a 13mm socket.

Remove the top portion of the

mount and slide the demo

hammer handle into position.

Align the top halves of the

hammer mounts with the

corresponding lower halves.

Attach the top block and secure

the upper mount with bolts and

washers using a 13mm socket.

Align the housing plate with the

hammer mounts. Once aligned,

secure it in place with 4 long

bolts and a 17mm socket.

Your Demo Hammer Trolley

is now assembled.

Flip the trolley onto the handles

and align the lower halves of

the hammer mounts with the

mounting holes on the

hammer and trolley.

Remove the bolts and washers

from the top of the trolley. Align

the handles with the bolt holes

and secure them in place using

a 19mm socket.

Attach the upper mount to the top

of the frame and secure it in place

using a 13mm socket and

an adjustable wrench.

1

45

6

897

2

3

Tomahawk Power | San Diego, California

(866) 577 4476 | www.tomahawk-power.com

STEP-BY-STEP

ASSEMBLY

VIDEO
