Sida 1/13

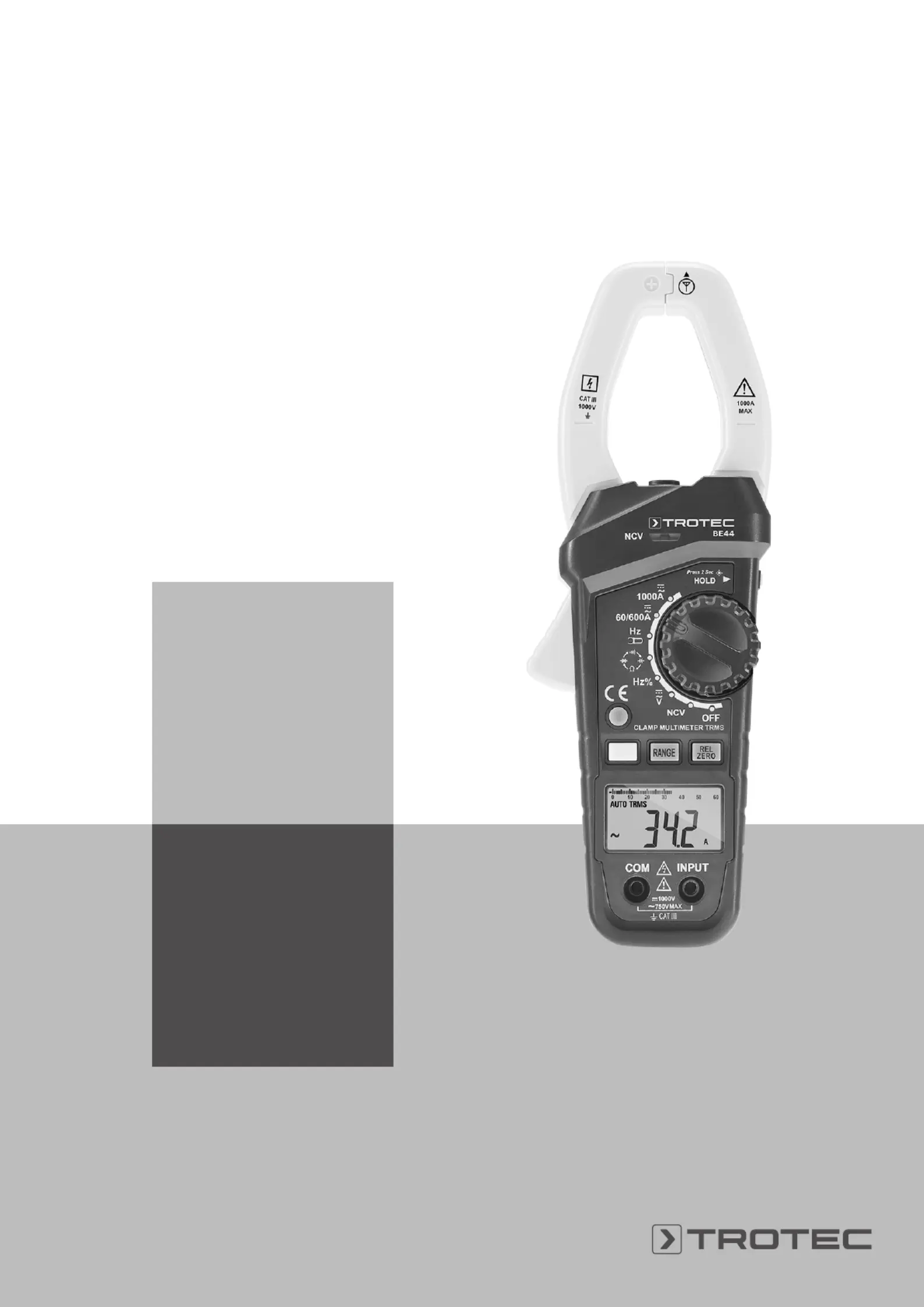

TRT-BA-BE44-TC220314TTRT01-004-EN
BE44
EN
INSTRUCTIONS
CLAMP METER
2 EN
clamp meter BE44
Table of contents
Information on the use of these instructions .......................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................7
Operation ...............................................................................7
Maintenance and repair ......................................................12
Errors and faults..................................................................12
Disposal ...............................................................................13
Information on the use of these instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Notice
This signal word indicates important information
(e.g. material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
BE44
https://hub.trotec.com/?id=42352
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
• The device is supplied with a warning sign. Prior to initial
start-up, make sure to paste the corresponding warning
sign in your local language, if available, over the one
present at the rear of the device as described in chapter
Operation. Otherwise, choose a label in a language you
know.
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Do not use the device in an aggressive atmosphere.
• Protect the device from permanent direct sunlight.
• Do not open the device.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Use batteries of typeAAA.
• Never charge batteries that cannot be recharged.
• Different types of batteries and new and used batteries
must not be used together.
• Insert the batteries into the battery compartment according
to the correct polarity.
EN 3
clamp meter BE44
• Remove discharged batteries. Batteries contain materials
hazardous to the environment. Dispose of the batteries
according to the national regulations.
• Remove the batteries from the device if you will not be
using the device for a longer period of time.
• Never short-circuit the supply terminal in the battery
compartment!
• Do not swallow batteries! If a battery is swallowed, it can
cause severe internal burns within2hours! These burns
can lead to death!
• If you think batteries might have been swallowed or
otherwise entered the body, seek medical attention
immediately!
• Keep new and used batteries and an open battery
compartment away from children.
• Observe the storage and operating conditions (see
Technical data).
• Disconnect the measuring cables from the device before
replacing the batteries.
Intended use
Only use the device for measurements within the measuring
ranges and overvoltage categories specified in the technical
data. Use the specified measuring equipment (clamp meter,
measuring cable or non-contact voltage detector, depending on
the device).
Any use other than the intended use is regarded as misuse.
Reasonably foreseeable misuse
Do not use the device in potentially explosive atmospheres,
when wet or very humid.
Unauthorized modifications of the device are forbidden.
Personnel qualification
People who use this device must:
• master the 5 safety rules of electrical engineering
– 1.De-energise
– 2.Secure against restart
– 3.Verify de-energised state (bipolar)
– 4.Earth and short-circuit
– 5.Cover neighbouring live parts
• use the voltage detector following safe working
procedures.
• be aware of the dangers that occur when working with
electric devices in damp areas.
• take measures to protect themselves from direct contact
with live parts.
• have read and understood the instructions, especially the
Safety chapter.
Residual risks
Warning of electrical voltage
Electric shock due to insufficient insulation! Check the
device and the measuring cables for damages and
proper function before each use.
If you detect damages, do not use the device any
longer.
Do not use the device when either the device or your
hands are damp or wet!
Do not use the device when the battery compartment
or the housing is open.
Warning of electrical voltage
Electric shock due to contact with live parts! Do not
touch any live parts. Secure neighbouring live parts by
covering them or by switching them off.
Warning of electrical voltage
When performing non-contact measurements of the
current, disconnect the measuring cables from the
device beforehand.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution
Keep a sufficient distance from heat sources.
