Sida 1/7
TRT-BA-HG125-TC2015-50-003-EN
HG 125
EN
OPERATING MANUAL
HYGROSTAT
2 EN
hygrostat HG 125
Table of contents
Notes regarding the operating manual.................................2
01. ESD protection instructions ............................................2
02. Device description...........................................................2
03. Application.......................................................................2
04. Assembly .........................................................................3
05. Configuration instructions ..............................................4
06. Setting of relays...............................................................5
07. Connection diagrams ......................................................5
08. Technical data .................................................................5
09. Note..................................................................................6
10. Optional accessories .......................................................6
Notes regarding the operating manual
Legal notice
This release replaces all previous versions. No part of this
publication may be reproduced without written permission from
TrotecGmbH. The same applies for electronically processing,
duplicating or spreading the publication. Subject to technical
changes. All rights reserved. Trademarks are used without
guarantee that they may be used freely and primarily following
the spelling of the manufacturer. Product names are registered.
Changes to construction in the interests of constant
improvements to the product, as well as changes to the shape
and colour are reserved.
The scope of delivery may vary from product images. This
document was created with all due care.
TrotecGmbH accepts no liability whatsoever for possible
mistakes or omissions.
© TrotecGmbH
Symbols
The current version of the operating manual can be found at:
HG 125 electronic
https://hub.trotec.com/?id=40528
01. ESD protection instructions
The devices contain components which can be damaged by the
effects of electrical fields or by charge equalisation when
touched.
The following safety measures must be observed when opening
the device for maintenance or for modifying the connection:
• Before opening the housing, establish potential
equalisation between you and your environment.
• Make sure that this potential equalisation is maintained
when working while the housing is open.
02. Device description
• Easy to install
• 5 m cable length for remote probe
• 2 potential-free switching outputs, configurable as NC or
NO contacts
• 2 nominal values and switching hystereses, independently
configurable
• Display of current relay switching states
• 2 continuous signal outputs (0...10 V), for relative humidity
and temperature
• Pluggable and exchangeable calibrated measuring probe
• Alternating display of relative humidity and temperature
03. Application
• Detrimental influences
Aggressive media containing solvents can cause
measuring errors and failure, depending on the type and
concentration. For instance, deposits forming a water-
repellent film on the sensor element (resin aerosols, paint
aerosols, smoke substances etc.) are damaging.
EN 3
hygrostat HG 125
04. Assembly
• Position
The place of assembly of the external sensor must be
chosen so as to ensure a representative humidity and
temperature measurement. Do not install near heat
sources such as radiators, doors, window and outer walls.
Avoid direct sunlight.
• Connection
The device is preconfigured and preassembled upon
delivery. Any modifications of the hygrostat must be
carried out by expert staff. The housing contains sensitive
components. When opening the housing, observe the ESD
protection instructions (see 01. ESD protection
instructions). Supply lines to the device as well as the
sensor cable must not be installed parallel to strong
electromagnetic fields. In case of potential overvoltage,
install appropriate overvoltage protection devices.

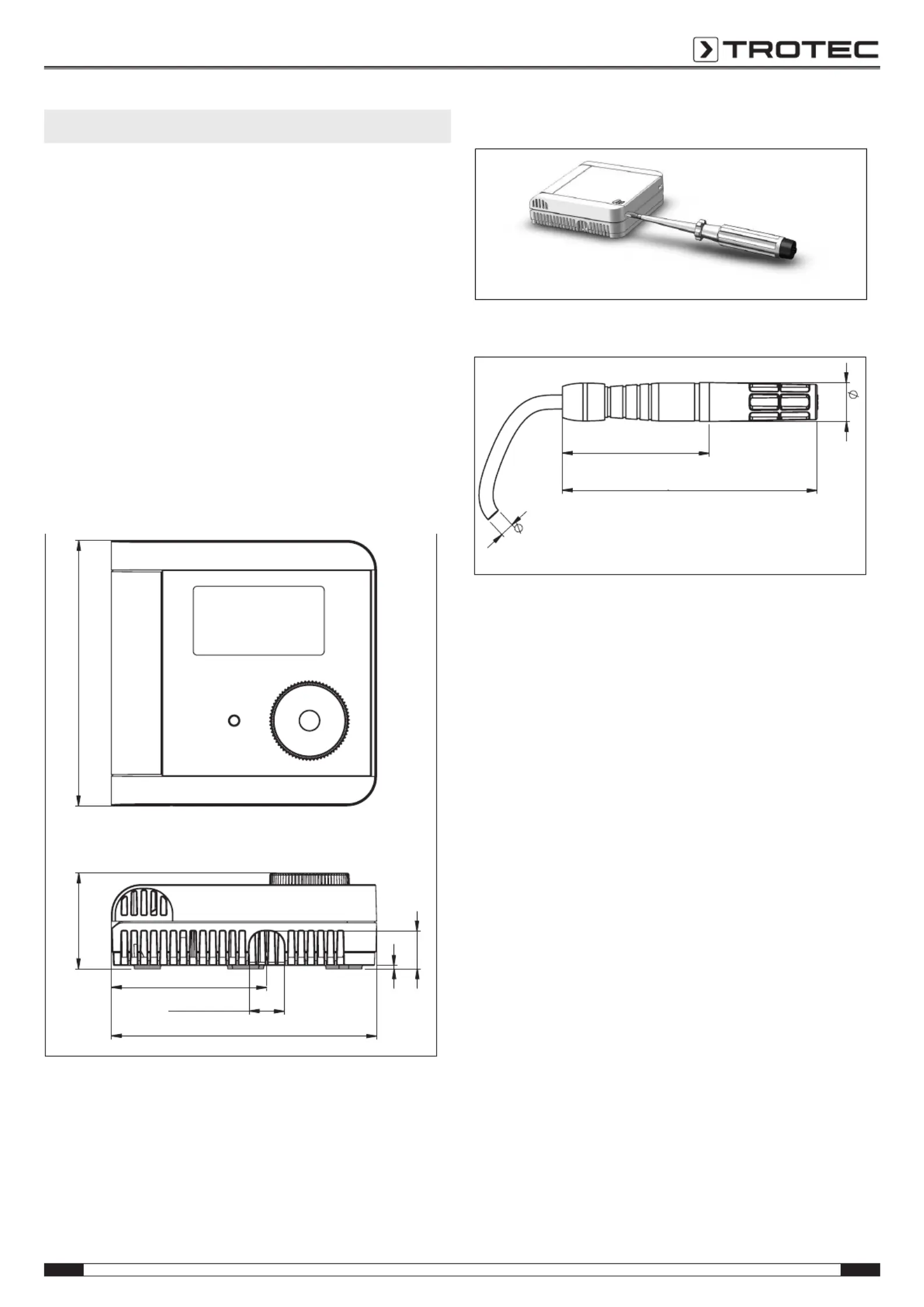

Dimension drawings
81 29
81
10,5
1
47,5
11
Opening the housing (schematic diagram)
Dimension drawing of the cable sensor
12
7
45
4,5
78...82
