Sida 1/8
TRT-BA-PVD1EU-TC221103TTRT01-001-EN
PVD1EU
EN
ORIGINAL INSTRUCTIONS

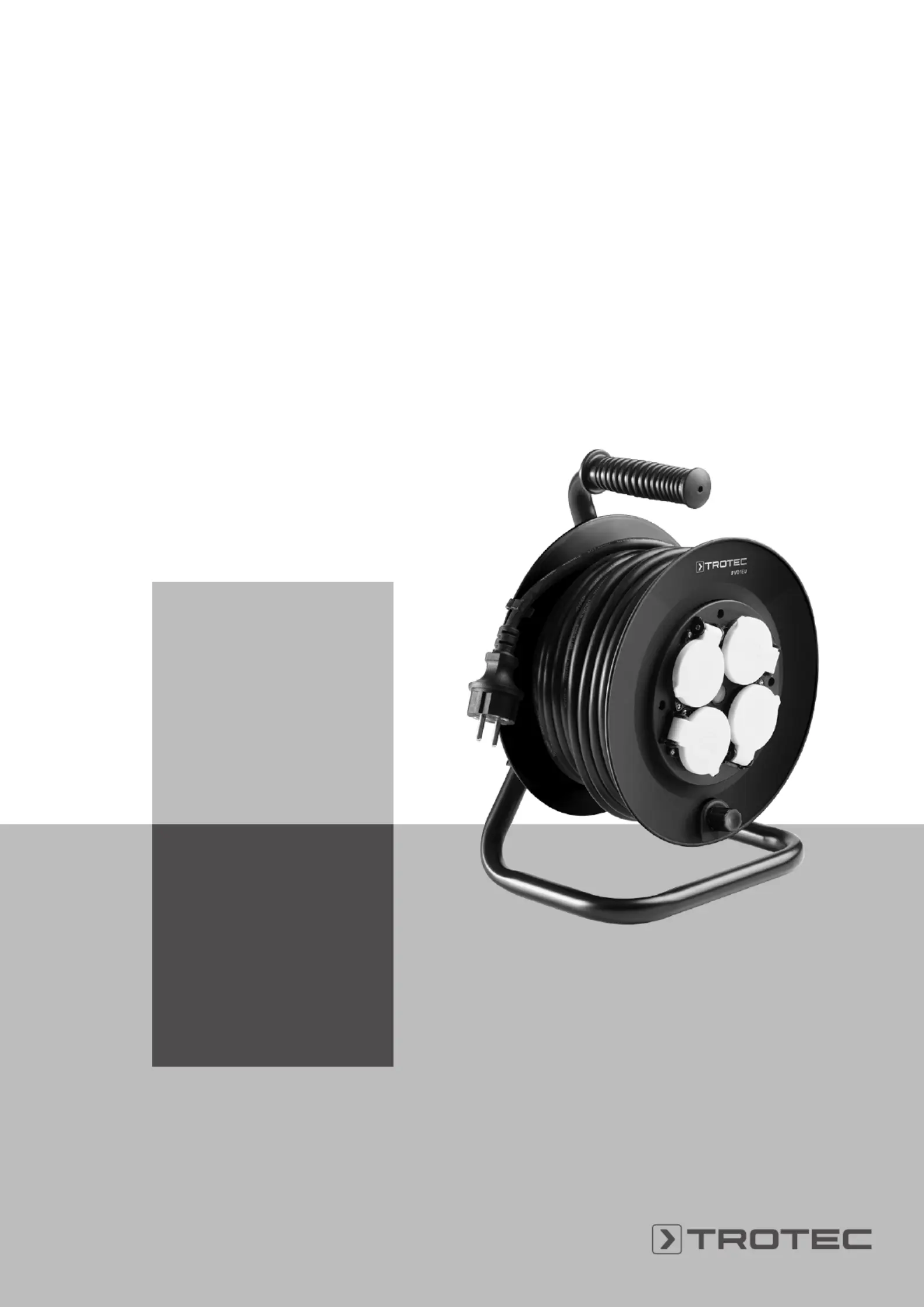

CABLE DRUM
2 EN
cable drum PVD1EU
Table of contents
Notes regarding the instructions .........................................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................6
Operation ...............................................................................6
Errors and faults....................................................................6
Maintenance ..........................................................................7
Cleaning .................................................................................7
Disposal .................................................................................7
Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
PVD1EU
https://hub.trotec.com/?id=47025
Safety
Read this manual carefully before starting or using the
product. Always store the manual in the immediate vicinity
of the product or its site of use.
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Do not use the device with wet or damp hands.
• Do not immerse the device in water.
• This appliance is not a toy. Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check the device for potential damage before each
application. Do not use any defective devices or device
parts.
• Never use the device if electric cables or the power
connection are damaged!
• Insert the mains plug into a properly secured mains
socket.
• Observe the following safety rules when performing work
on the electrical equipment: 1.De-energise, 2.Secure
against restart, 3.Verify de-energised state, 4.Earth and
short-circuit, 5.Cover or fence off live parts.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
EN 3
cable drum PVD1EU
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable. If the
supply cord is damaged, it must be replaced by the
manufacturer, his service agent or similarly qualified
persons in order to avoid a hazard. Defective power cables
pose a serious health risk!
• Observe the storage and operating conditions as given in
the Technical data chapter.
• Do not expose the device to heat or direct sunlight.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Any operation other than as described in this manual is
prohibited. Non-observance renders all claims for liability
and guarantee null and void.
Intended use
The device serves as extension line for electrical connections.
The following max. connected loads must not be exceeded:
• 3,200W/ 230V (cable unrolled)
• 1,100W/ 230V (cable rolled up)
Improper use
Do not use the device in potentially explosive areas. Do not
place the device on wet or flooded ground.
Any unauthorised changes, modifications or alterations to the
device are forbidden.
Personnel qualifications
People who use this device must:
• have read and understood the instructions, especially the
Safety chapter.
Initial start-up and maintenance tasks which require the
housing to be opened must only be carried out by qualified
electricians.
Safety signs and labels on the device
Note
Do not remove any safety signs, stickers or labels from
the device. Keep all safety signs, stickers and labels in
legible condition.
The following label is attached to the device in German:
Cable drum
WARNING! IF THE OVERHEATING PROTECTION HAS TRIPPED:
DISCONNECT THE MAINS PLUG PRESS THE RED BUTTON→
BEFORE UNWINDING, REMOVE THE PLUGS FROM THE
SOCKETS.
DO NOT CONNECT SEVERAL DEVICES BY PLUGGING ONE
INTO ANOTHER! DO NOT OPERATE WHEN COVERED!
The following symbols are indicated on the label:
Symbols Meaning
Max. 3,200W/
230V
The symbol on the device indicates that the
maximum connected load of 3,200W/
230V must not be exceeded when the
cable is unrolled.
Max. 1,100W/
230V
The symbol on the device indicates that the
maximum connected load of 1,100W/
230V must not be exceeded when the
cable is rolled up.
