Sida 1/16

TRT-BA-TGP1000E/TGP1000ES-TC220516TTRT04-004-EN

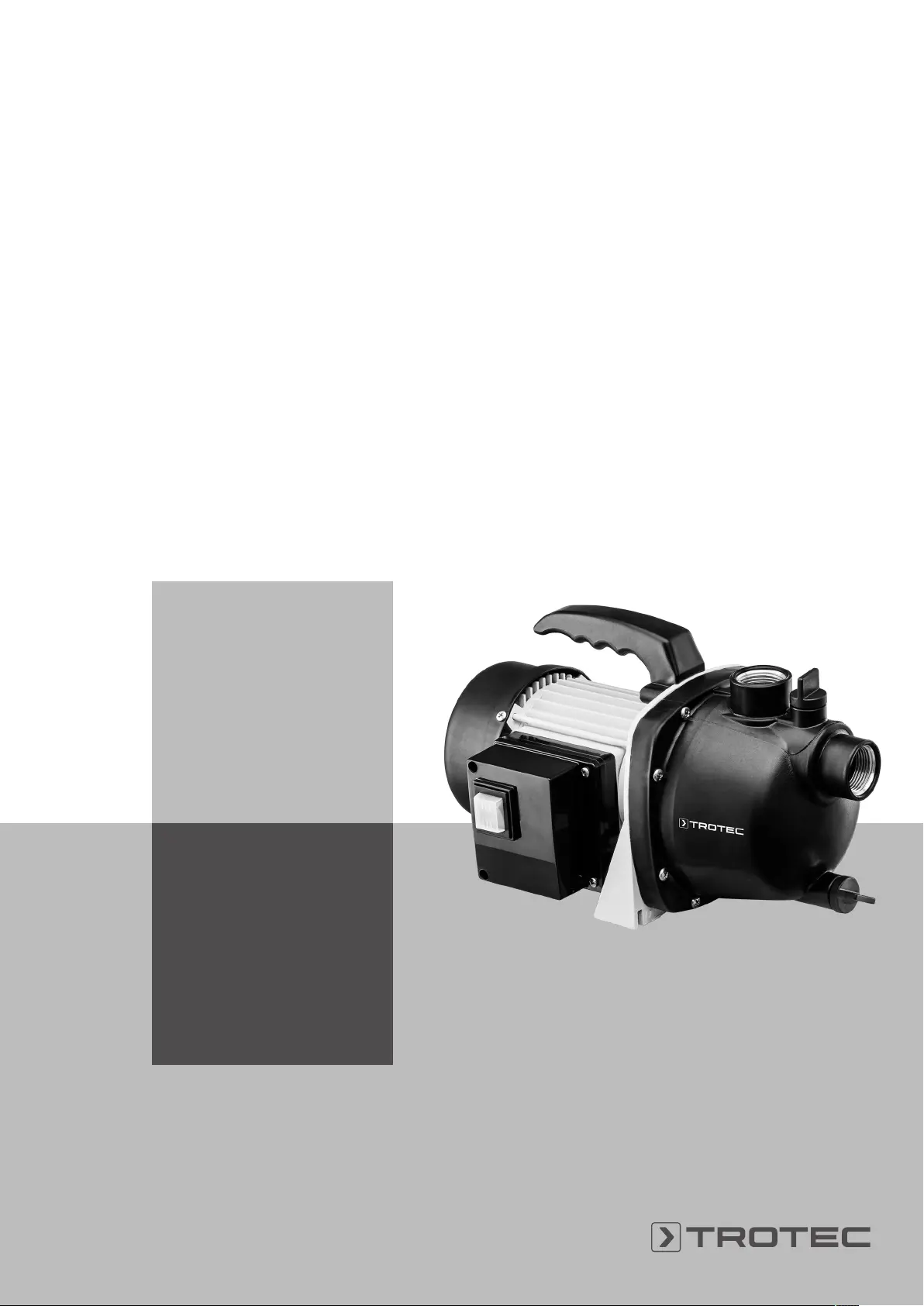

TGP 1000 E /TGP 1000 ES

ORIGINAL INSTRUCTIONS

GARDEN PUMP

2 EN

garden pump TGP 1000 E /TGP 1000 ES

Table of contents

Information on the use of these instructions .......................2

Safety .....................................................................................2

Information about the device................................................6

Transport and storage...........................................................7

Assembly and installation.....................................................7

Operation .............................................................................10

Available accessories..........................................................11

Errors and faults..................................................................11

Maintenance ........................................................................12

Technical annex...................................................................12

Disposal ...............................................................................18

Declaration of conformity ...................................................19

Information on the use of these instructions

Symbols

Warning of electrical voltage

This symbol indicates dangers to the life and health of

persons due to electrical voltage.

Warning

This signal word indicates a hazard with an average

risk level which, if not avoided, can result in serious

injury or death.

Caution

This signal word indicates a hazard with a low risk

level which, if not avoided, can result in minor or

moderate injury.

Notice

This signal word indicates important information (e.g.

material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry

out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the

instructions must be observed.

You can download the current version of these instructions via

the following link:

TGP 1000 E

https://hub.trotec.com/?id=42890

TGP 1000 ES

https://hub.trotec.com/?id=44022

Safety

Read this manual carefully before starting or using the

device. Always store the manual in the immediate vicinity

of the device or its site of use.

Warning

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may

result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future

reference.

This appliance can be used by children aged from

8years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

EN 3

garden pump TGP 1000 E /TGP 1000 ES

General safety

• Do not use the device in potentially explosive rooms or

areas and do not install it there.

• Do not use the device in aggressive atmosphere.

• Check accessories and connection parts for possible

damage prior to every use of the device. Do not use any

defective devices or device parts.

• Before carrying out maintenance, care or repair work on

the device, remove the mains plug from the mains socket.

Hold onto the mains plug while doing so.

• When positioning the device, observe the minimum

distances from walls and other objects as well as the

storage and operating conditions specified in the Technical

annex.

• Do not remove any safety signs, stickers or labels from the

device. Keep all safety signs, stickers and labels in legible

condition.

General safety warnings – Electrical safety

• The device is to be supplied with a rated residual current

of no more than 30mA by means of an RCD (Residual

Current protective Device).

• Ensure that all electric cables outside of the device are

protected from damage (e.g. caused by animals). Never

use the device if electric cables or the power connection

are damaged!

• The mains connection must correspond to the

specifications in the Technical annex.

• Insert the mains plug into a properly fused mains socket.

• Switch the device off and disconnect the power cable from

the mains socket when the device is not in use.

• Do not under any circumstances use the device if you

detect damages on the mains plug or power cable.

If the power cable is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

Defective power cables pose a serious health risk!

• Should there be a risk of flooding, install the plug

connections in a flood-proof area. There is a risk of

electric shock!

• Make sure that the mains voltage corresponds to the

specifications on the nameplate.

• Have all electrical installations carried out by an expert

according to the national regulations and the device-

specific requirements.

• Hold onto the mains plug while pulling the power cable out

of the mains socket.

• Protect the power supply cable against heat, oil and sharp

edges. Make sure that the power supply cable is not

crushed, kinked or subjected to other mechanical stresses.

• Only use splash-proof extension cables intended for

outdoor use whilst observing the device's power input.

Before using cable drums, always unroll the cable

completely. Check the cable for damage. The use of

extension cables which are not approved for outdoor use

can result in injuries due to electric shock.

• Before performing any work on the device, in case of leaks

in the water system, before taking work breaks or when

not in use, remove the mains plug from the mains socket.

General safety warnings – Personal safety

• Never use the device with persons or animals in the water

or pumping medium or if they could access it. There is a

risk of electric shock!

• Never insert any objects or limbs into the device.

• This appliance is not a toy. Keep away from children and

animals.

Device-specific safety warnings for garden pumps

• Do not position the device in damp shafts. There is a risk

of short circuit as well as damage caused by corrosion!

• Please bear in mind, that the device is not suitable for

continuous operation (e.g. for watercourses in garden

ponds). Check the device for proper functioning on a

regular basis.

• The device is not to be carried by holding it at the power

supply cable or hose. Do not fasten it there either.

• After the set-up of the device, its mains plug must be

readily accessible during operation.

• Wear sturdy shoes to protect yourself against electric

shock.

• Before taking the device into operation, have the following

checked by an expert:

– earthing, neutral conductor and RCD must be

functioning properly and correspond to the national

regulations,

– electrical plug connections must be protected from

moisture.

• Provide appropriate frost protection.

• Never operate the device in the rain. Keep the device away

from environmental influences such as wet conditions or

frost. In particular, keep the electrical connections dry and

make sure they are located in a flood-proof area.
