OPERATING MANUAL
DRYING UNIT
VX 5
EN
TRT-BA-VX5-2.0-HS-002-EN
B - 1
Operating manual drying unit VX 5
EN

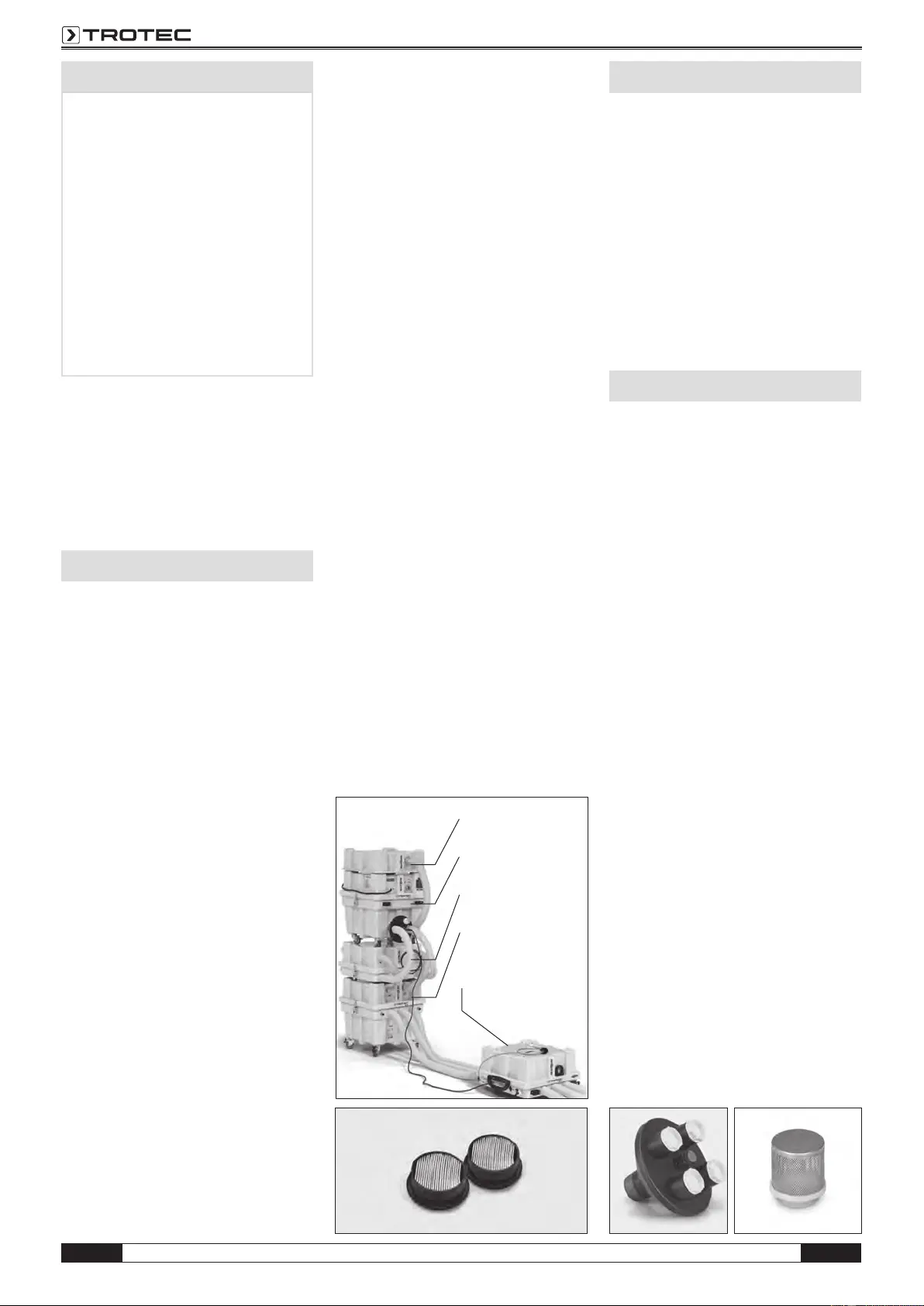

Fig. 4
Fig. 3
Fig. 1
1 silencer
NR 19
2 drying
unit VX 5
3 HEPA filter
HC
4 water separator
WA 4i with micro filter
system
5 drying unit
DA 4
Fig. 2
Table of contents
Safety .......................B - 1
Scope of delivery ..............B - 1
Device description .............B - 1
Start-up .....................B - 2
Shutdown ....................B - 2
Care and maintenance ..........B - 2
Warning .....................B - 2
Troubleshooting ...............B - 3
Technical data ................. B - 3
Declaration of conformity ........B - 4
This release replaces all previous releases. No part of this publication may
be reproduced without written permission. The same applies for elec-
tronically processing, duplicating or spreading the publication. Subject to
technical changes. All rights reserved. Trademarks are used without guar-
antee that they may be used freely and primarily following the spelling of
the manufacturer. The product names used are registered and should be
treated appropriately. The right to make construction changes in the in-
terests of constant product improvement as well as changes to the shape
and colour is reserved. Scope of delivery may vary from product images.
This document was produced with all due care. We accept no liability
whatsoever for mistakes or omissions. © TROTEC
®
Safety
Read this manual carefully before starting or us-
ing the device. Store the manual near the device
or its site of use!
Observe the following instructions:
• Do not use the device in potentially explosive
rooms.
• Do not use the device in atmospheres contain-
ing oil, sulphur, chlorine or salt.
• Set the device up in an upright and stable po-
sition.
• The device is designed for indoor use. Do not
use the device at a humidity level of more than
90% or in the rain.
• Ensure that the air inlet and outlet are not ob-
structed.
• Ensure that the suction side is kept free of dirt
and loose objects.
• Do not cover or transport the device during
operation.
• When using cable drums, always unroll the
cable completely.
m During damage restoration, provide a
sufficient fresh air supply! The room tem-
perature must not exceed 35°C. Ventilate
several times a day. If necessary, direct
the exhaust air produced by the VX out of
the room. You can also set up the VX in
another room (not outdoors!) and direct
the air current needed for drying to the
inside.
• Make sure to keep the dust exposure as low
as possible in low pressure operation by using
suitable micro filters (fig. 2).
• Make sure that the suction strainer (fig. 4) is
used when the device is operated with excess
pressure.
• Repair and maintenance work on electrical
equipment may only be carried out by an elec-
trically skilled person.
• On construction sites, the compressors must
only be operated with an upstream residual
current device (RCD) 30mA.
• Do not operate the device in a heavily
dust-loaded environment (e.g. during grinding
work).
Intended use
The turbines are to be used in low and excess
pressure mode for insulation drying of floating
screeds, flat roofs (warm roof constructions) and
hollow floorings. They are intended to transport
non-aggressive and non-explosive gaseous me-
dia. Any other use is regarded as non-intended
use.
Improper use
The devices are not suitable for the inflation of
bouncy castles or similar objects. Media other
than those listed as intended use must not be
transported.
Personnel qualifications
The compressors may only be operated by ex-
pert persons who have been instructed in the
operation of the devices and trained in insulation
drying techniques. The operating manual is to be
consulted for this purpose. Instructed persons
have been informed of and, if necessary, trained
for the tasks they were entrusted with as well as
of potential hazards resulting from inappropriate
behaviour.
Scope of delivery
Standard scope of delivery:
• 1 x compressor
• 1 x suction strainer fig. 4
• 2 x connectors 50/38 mm
• 1 x operating manual
Optionally available accessories:
• door gap nozzle PlanoPro
(Art. no. 6.100.000.160)
• MultiQube silencer NR 19
(fig. 1; no. 1);
Art. no. 6.100.000.120
• Quad distributor Pro (fig.3);
Art. no. 6.100.000.142
Description of the device
The compressors of the VX series are used for
drying insulation layers. In case of excess pres-
sure drying, the roomair is blown into the humid
insulation layer via bore holes, the insulation
layer absorbs the humidity and returns it to the
environment via the expansion joints.
In case of low pressure drying, a drying chain
(fig. 1) consisting of water separator, air filter
and compressor is used to suck the air out of the
insulation layer. The air sucked out of the bore
holes is separated from solid particles and water
drops inside the water separator. Particles and
mould spores are filtered out by the HEPA and
F7 filters.
Should there be any concerns relating to air pol-
lution due to fibres or spores from inside the in-
sulation layer (GefStoffV: Ordinance on Hazardous
Substances), the use of the low pressure proce-
dure is compulsory in order to filter the polluted
air. The silencer allows to effectively decrease the
volume in occupied buildings.
The humid air has to be dried additionally by ade-
quately powerful mobile dehumidifiers.
• To be able to use the high performance of the
VX compressors, it is necessary to operate the
optional quad distributor Pro (fig. 3) with at
least two 38mm hoses. If no quad distributor
can be used, the hose diameter should be at
least 50mm, for otherwise there might be per-
formance losses of up to 10%.
• This VX distributor is equipped with self-regu-
latory step switches.
• The device comes with 4 power stages:
stage 1 with 100 m³/h; stage 2 with 150 m³/h
and stage 3 with 180 m³/h as well as the boost
stage with up to 245 m³/h. In addition, there
is a "whisper mode" with 100 m³/h as well.
For each of these steps, the VX tries to achieve
the target air volume, regardless of the con-
struction.
Operating manual drying unit VX 5
B - 2
EN

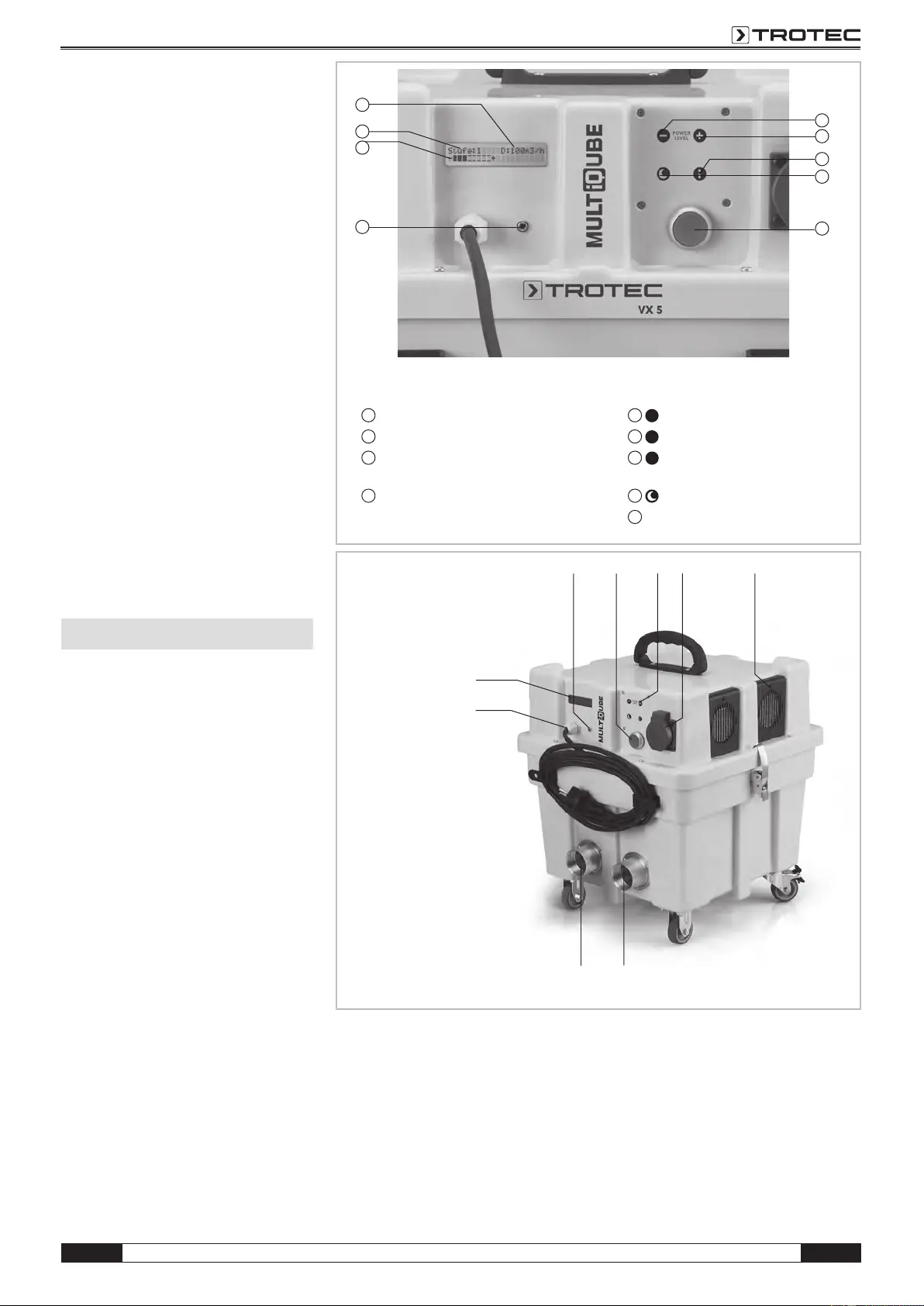

A
indication of the selected power stage
B
indication of the motor power
C
plug socket for connection
to a DA 4 or a DA 4 M
D
indication of the air volume flow
E
-
decrease power stage
F
+
increase power stage
G
i
button for indication of operating
hours and power consumption
H
whisper mode
I
power button
A
B
C
D
E
F
G
H
I
1 power cable
2 LC display
3 communication port
4 power button
5 touchscreen control panel
6 service power socket
7 cooling air filter
8 air exhaust connection
9 air intake connection
9 8
1
2
3 5 6 7
4
m The turbines are suited for transporting
clean air only. If the transported medium
contains solid particles or other impuri-
ties, it is necessary to install suitable fil-
ters on the suction side (e.g. water sep-
arators, micro filters). If impurities enter
into the turbine, this might damage the
turbine.
m During damage restoration, provide a suf-
ficient fresh air supply! Ideally, the room
temperature should not exceed 35 °C.
Ventilate several times a day. If neces-
sary, direct the exhaust air produced by
the VX out of the room. You can also set
up the VX in another room (not outdoors!)
and direct the air current needed for dry-
ing to the inside.
• The compressor is equipped with a multi-
functional LC display. Besides giving informa-
tion on the work stage, air flow rate etc., its
background colour changes. Making use of
the traffic light system, it indicates how suit-
able your drying installation is. An optimal air
flow rate is indicated by a green background
colour when the compressor is running. If the
display is illuminated in yellow, this means that
the installation is OK but the flow conditions for
the dry air are not optimal. Drying can be car-
ried out without any difficulties while the dis-
play is yellow. A red background indicates an
uneconomic operation. The compressor should
not be permanently operated in this condition.
Start-up
• Install the compressor according to the select-
ed procedure.
• Use suitable hoses (observe number and di-
ameter) to set up the drying installation.
• Remove any sealing plugs on the intake or ex-
haust connection!
• Use a water separator for the vacuum proce-
dure! In this case, connect the mains plug of
the VX5 compressor to the socket of the water
separator. This way, the water separator can
switch off the compressor if the amount of wa-
ter is too high. This leaves the water separator
enough time to pump off the accumulated wa-
ter. Once the water tank of the water separator
is empty, the compressor switches back on
and operates in the previously chosen setting.
• For drying operations, only use cables and
sockets complying with the regulations. In ad-
dition to the 16A fuse, the socket should also
be secured by a 30mA residual current device
(RCD).
• Use the power button
to switch the compressor on. The following
working stages are available:
- 3 power stages 1-3
- stage 4: boost stage
- whisper mode
• If an upstream MultiQube DA has been con-
nected, all three valves should be opened.
• Check its structure via the LCD monitor.
- green: optimal air volume flow
- yellow: limit range
- red: air flow rate too low -
installation must be optimized
• In boost mode, the motor runs at its maximum
performance.
• In whisper mode, the compressor runs with a
max. motor power of 60%, thus reducing the
noise emission at night. The night mode is au-
tomatically left after 10h and the compressor
starts to run at its previously chosen power
stage again. Selecting another stage via the
touchscreen will also stop the night mode.
• The communication port is used for
data transfer to the DA4 control unit.
The data can then be forwarded
(USB and modem or USB only).
