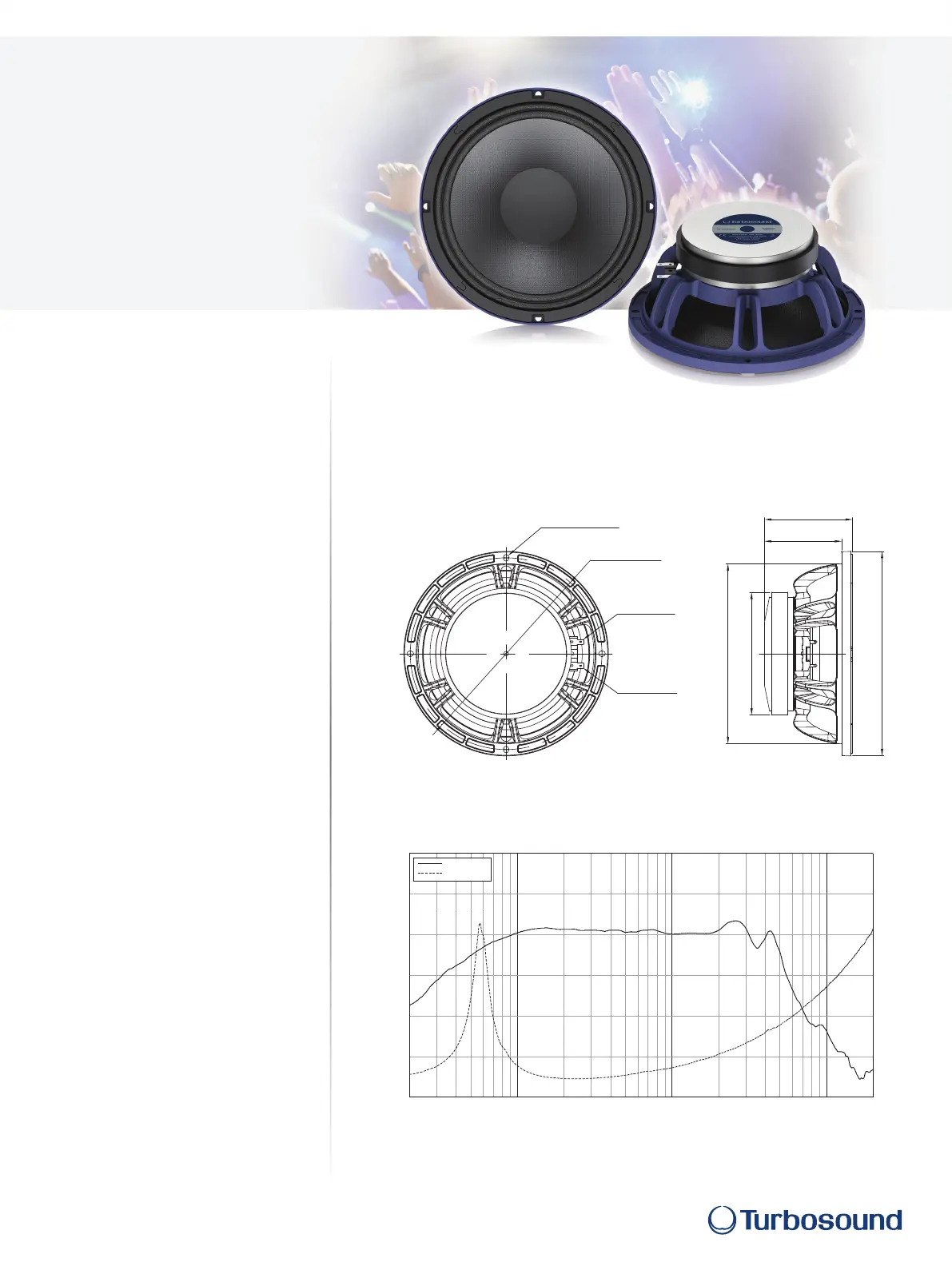

Specication Sheet

300 Watt 10" Low Frequency Loudspeaker

for PA Applications

TS-10W300/8A

Features

 10" high-power woofer for

PA applications

 Continuous power: 300 Watts RMS

 Maximum power: 1,200 Watts Peak

 Impedance: 8 Ohms

 Frequency range: 53 Hz - 4 kHz

 SPL: 93 dB (1 W / 1 m)

 Rigid aluminum die-cast frame

 Mounting hole diameter:

245 mm (9.65")

 Shipment weight: 5.1 kg (11.2 lbs)

and Net weight: 4.5 kg (9.9 lbs)

 Overall diameter: 261 mm (10.28")

 3-Year Warranty Program*

 Designed and engineered

in England

*Warranty details can be found at musictribe.com.

Dimensional Diagrams

Ø245.0±0.5

Ø261.4±1.0

Ø230.0±1.0

Ø156.0

4-6.5 x 8.8±0.3

6.3 x 0.8(+)

6.3 x 0.8(-)

111.0±1.5

98.6±1.5

Frequency Charts

20 100 1k 10k 20k

100

110

100

120

Frequency (Hz)

Sound Pressure Level (dB)

Impedance (ohm)

SPL

Impedance

General Specication

Loudspeaker diameter 261 mm / 10"

Impedance 8 Ω

Continuous power rating1 300 W

Peak power rating2 1200 W

Sensitivity 93 dB (±3 dB, 1 W / 1 m)

Frequency range Fo ~4 kHz (-10 dB)

Magnet size 156 mm

Voice coil diameter 65.5 mm / 2.5"

Bobbin material Glass ber SV

Wire type PISV wire

Winding height 17 mm

Layers 2

Cone body Paper

Cone surround Cloth

Item part number H77-00002-31669

Notes to Specication

1 Pink noise with 6 dB crest f actor for 2 hours

2 Peak power is dened as continuous power +6 dB

Thiele & Small Parameters

Resonance frequency (Fs) 53 Hz

DC resistance (Re) 7.8 Ω

Mechanical Q factor (Qms) 7.45

Electrical Q factor (Qes) 0.44

Total Q factor (Qts) 0.41

Mechanical moving mass (Mms) 47.8 g

Mechanical compliance (Cms) 0.19 Mm/N

Force factor (Bl) 16.9

Equivalent acoustic volume (Vas) 31.6 I

Maximum linear displacement (Xmax) 3.4 Mm

Diaphragm area (Sd) 346 Sq cm

Voice coil inductance @ 1 kHz (Le) 0.8 mH

Shipping Information

Net weight 4.5 kg / 9.9 lbs

Shipping weight 5.1 kg (11.2 lbs)

Specication Sheet

300 Watt 10" Low Frequency Loudspeaker

for PA Applications

TS-10W300/8A

Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specications, appearances and other information are subject to

change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio are trademarks or registered trademarks of

Application

This loudspeaker is exclusively meant for the reproduction of audio

signals according to instructions and specications given in this

manual. We‘re not liable for any damage caused by unintended use.
