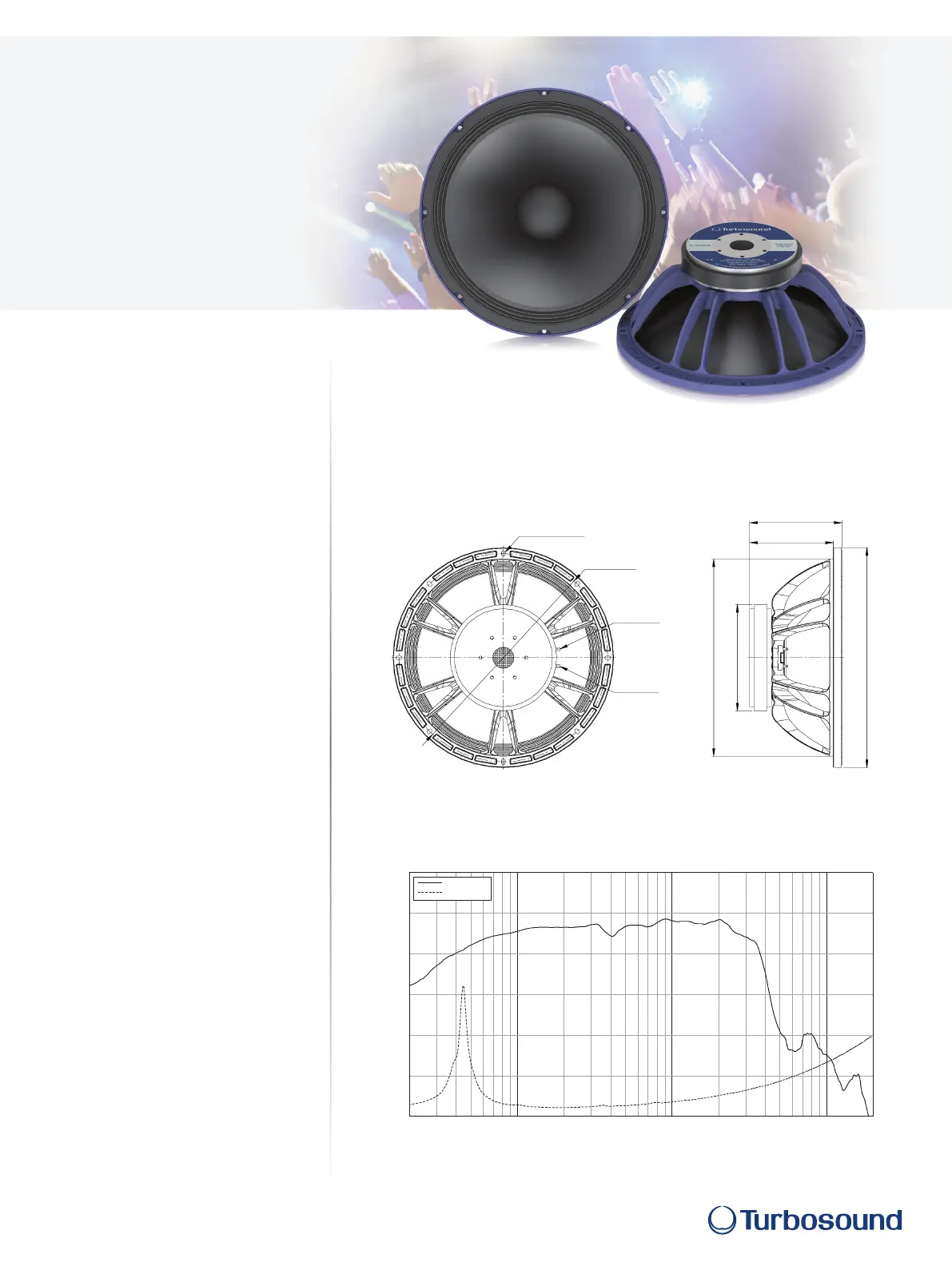

Specication Sheet

300 Watt 15" Low Frequency Loudspeaker

for PA Applications

TS-15W300/8A

Features

 15" high-power woofer for

PA applications

 Continuous power: 300 Watts RMS

 Maximum power: 1200 Watts

 Impedance: 8 Ohms

 Frequency Range: 46 Hz - 3 kHz

 SPL: 97 dB (1 W / 1 m)

 Rigid aluminum die-cast frame

 Mounting hole diameter:

372.5 mm (14.67")

 Net Weight:7.1 kg (15.6 lbs) and

Shipment Weight: 10 kg (22 lbs)

 Overall Diameter: 393.5 mm (15.49")

 3-Year Warranty Program*

 Designed and engineered in U.K.

*Warranty details can be found at musictribe.com.

Dimensional Diagrams

8 - 6.5 x 11.0±0.3

6.3 x 0.8(+)

6.3 x 0.8(-)

164.7±1.5

149.2±1.5

ø372.5±0.5

ø393.5±1.0

ø190.0

ø353.0±1.0

Frequency Charts

20 100 1k 10k 20k

100

110

100

120

Frequency (Hz)

Sound Pressure Level (dB)

Impedance (ohm)

SPL

Impedance

General Specication

Loudspeaker diameter 394 mm / 15"

Impedance 8 Ω

Continuous power rating1 300 W

Peak power rating2 1200 W

Sensitivity 97 dB (±2.5 dB, 1 W / 1 m)

Frequency range Fo ~3 kHz (-10 dB)

Magnet size 190 mm

Voice coil diameter 75.5 mm / 3"

Bobbin material Glass ber SV

Wire type Copper wire

Winding height 17.8 mm

Layers 2

Cone body Paper

Cone surround Cloth

Item part number H77-00002-31677

Notes to Specication

1 Pink noise with 6 dB crest f actor for 2 hours

2 Peak power is dened as continuous power +6 dB

Thiele & Small Parameters

Resonance frequency (Fs) 46 Hz

DC resistance (Re) 6.5 Ω

Mechanical Q factor (Qms) 16.6

Electrical Q factor (Qes) 0.49

Total Q factor (Qts) 0.47

Mechanical moving mass (Mms) 96.4 g

Mechanical compliance (Cms) 0.12 mm/N

Force factor (Bl) 19.3

Equivalent acoustic volume (Vas) 130.2 I

Maximum linear displacement (Xmax) 4.9 mm

Diaphragm area (Sd) 865.7 sq cm

Voice coil inductance @ 1 kHz (Le) 1.2 mH

Shipping Information

Net weight 7.1 kg (15.6 lbs)

Shipping weight 10 kg (22 lbs)

Specication Sheet

300 Watt 15" Low Frequency Loudspeaker

for PA Applications

TS-15W300/8A

Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specications, appearances and other information are subject to

change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio are trademarks or registered trademarks of

Application

This loudspeaker is exclusively meant for the reproduction of audio

signals according to instructions and specications given in this

manual. We‘re not liable for any damage caused by unintended use.
