Rackmount Accessory

Model: CKG2-RM

Introduction

Thank you for purchasing the Ubiquiti Networks®

UniFi® Cloud Key Gen2 Rackmount Accessory. This

Quick Start Guide is designed to guide you through

installation and also includes warrantyterms.

Package Contents

UCK G2 Rackmount Accessory

System Requirements

• UniFi Cloud Key G2 or Cloud Key G2 Plus

• Standard 19" Server Rack

Network Topology Requirement

A DHCP-enabled network (for the Cloud Key to

obtain an IP address)

US-16-150W

USG-PRO-4

(DHCP Server)

Internet

UAP-AC-HD

LAN

WAN

UCK G2 or G2 Plus

(UniFi Controller)

UAP-AC-M-PRO

Remote Access t o

UniFi Controller

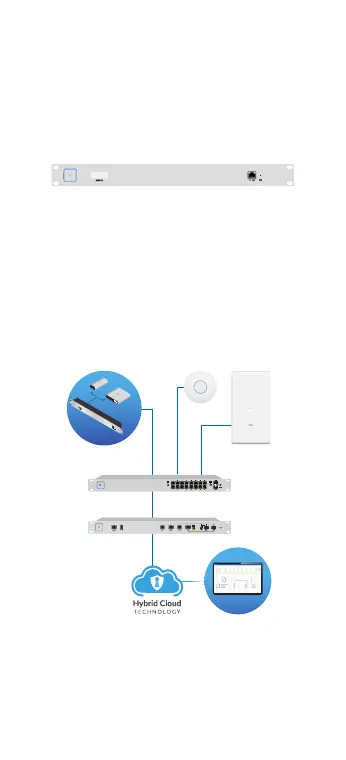

Sample Network Diagram

All UniFi devices also support off-site management

controllers. For setup details, see the User Guide on

the website at: www.ubnt.com/download/unifi

Hardware Overview

Front Panel

Note: This section provides an overview of

the front panel as it would function with a

Cloud Key installed in the .Docking Bay

LED

Reset

Button

Ethernet

Port

LED Color State Status

White Solid Ready for

configuration

Flashing Initializing

Heartbeat

Flashing

Firmware upgrade

in progress. Device

is busy; do not

touch or unplug it.

Blue Solid Device ready for use

Flashing Shutting down

Rapid

Flashing

Device failure; refer

to the display for

more information.

Slow

Flashing

User connected to

device

Off/White/Blue Repeating Recovery mode

Ethernet Connects to a DHCP server on your LAN.

Power can be provided by an 802.3af PoE switch, such

as the UniFi PoE Switch.

Reset The button serves two functions:Reset

• Press and release the button quickly to Restart Reset

restart the Cloud Key.

• Restore to Factory Default Settings Press and

hold the button for more than five seconds to Reset

restore factory default settings to the Cloud Key.
