PAGE 1 OF 60521 IH-4455

1-800-295-5510

uline.com

π H-4455

MOBILE BLUEPRINT RACK

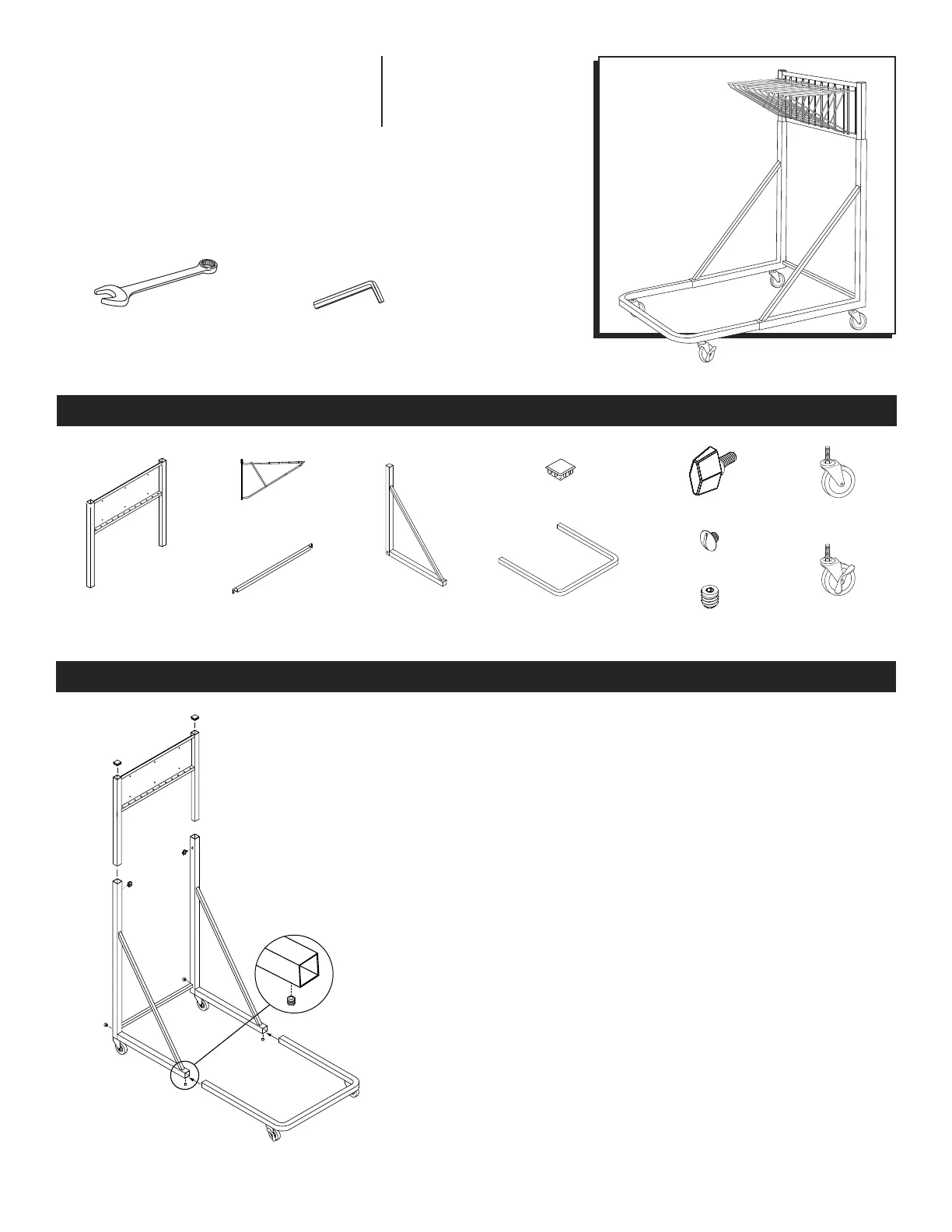

1. Position Frame Extension with holes toward the floor.

Insert Frame Extension into the short end of the Side

Frame tubes. (See Figure 1)

2. Slide posts of Upper Rack into the long end of the

Side Frame tubes. (See Figure 1)

3. Insert Knobs into upper part of Side Frames and

adjust to desired height. Insert Set Screws into lower

part of Side Frames and adjust to desired depth. Use

Allen Wrench to lock in position. (See Figure 1)

4. Attach Lower Spreader Bar to Side Frames using two

Screws. Fully tighten screws to secure bar in position.

(See Figure 1)

5. Install Casters to underside of frame by carefully

screwing them in. Position both Locking Casters at

the front of the frame by inserting into the frame

extension. (See Figure 1)

6. Insert End Caps into the Upper Rack. (See Figure 1)

ASSEMBLY

PARTS

Allen Wrench (Included)11mm Wrench

TOOLS NEEDED

Upper Rack x 1Lower Spreader

Bar x 1

Side Frame x 2Frame

Extension x 1

Pivot Hanger x 12

Swivel

Caster x 2

Locking Swivel

Caster x 2

Set Screw x 2

Screw x 2

End Cap x 2

Knob x 2

Figure 1

Para Español, vea páginas 3-4.

Pour le français, consulter les pages 5-6.
