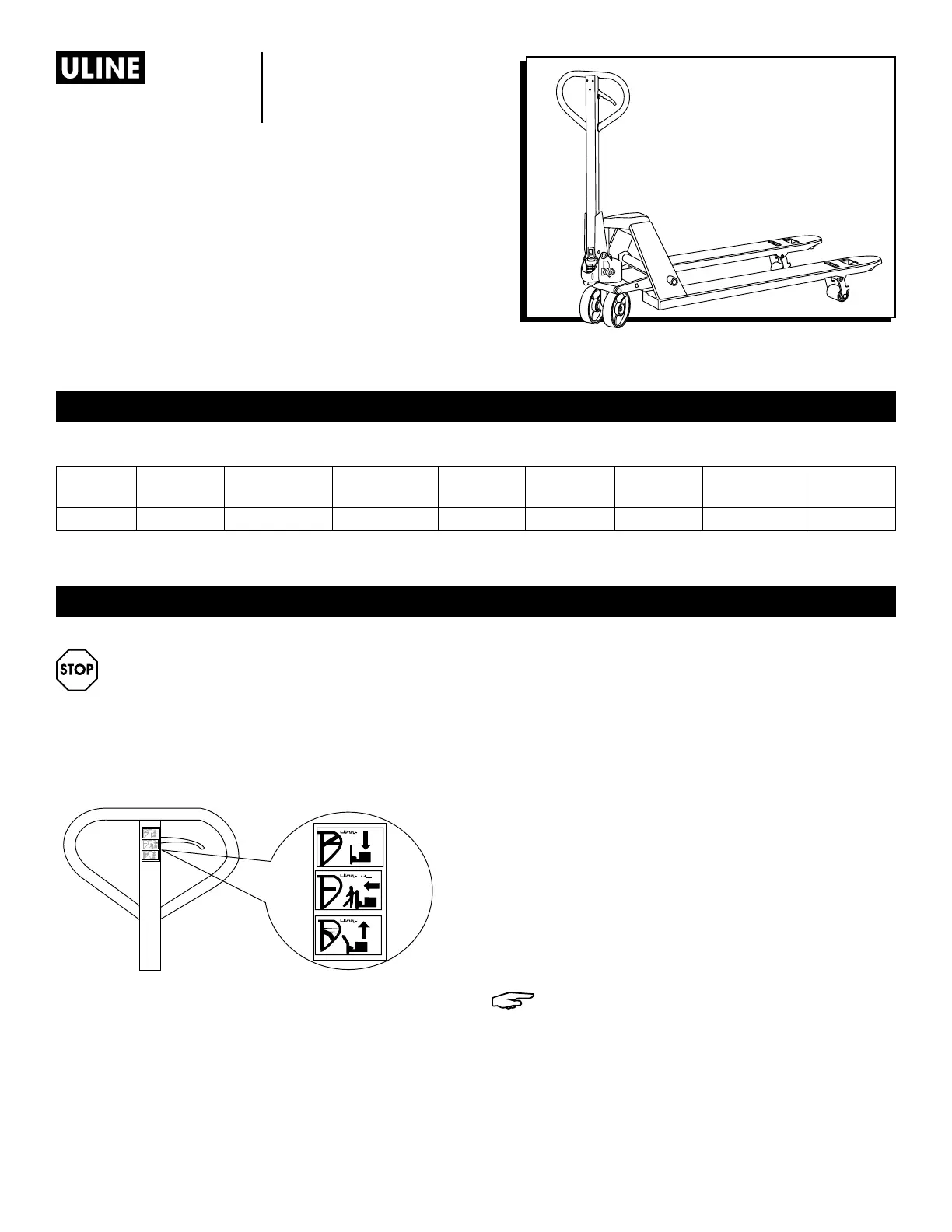

PAGE 1 OF 9 0325 IH-7574

STEEL WHEEL

PALLET TRUCK

1-800-295-5510

uline.com

H-7574

MODEL

CapacityMax. Fork HeightMin. Fork HeightFork Length

Overall

Fork Width

Fork Wheel

Diam. (Steel)

Steering Wheel

Diam. (Steel)

Net Weight

H-7574

5,500 lbs.7.5"3"48"27"3"7"168 lbs.

TECHNICAL DATA

OPERATION

WARNING! Operator must read and understand

instructions here and on truck prior to use.

On the handle of the pallet truck, you will find the control

lever, which can be set in three positions. (See Figure 1)

- DOWN = to lower the forks

- NEUTRAL = to move the load

- UP = to raise the forks

1. If the forks elevate while pumping in the NEUTRAL

position, turn the setting screw clockwise until

pumping the handle does not raise the forks and the

NEUTRAL position functions correctly.

2. If the forks descend while pumping in the NEUTRAL

position, turn the setting screw counterclockwise until

the forks do not lower.

3. If the forks do not descend when the control lever is

in the DOWN position, turn the setting screw clockwise

until raising the control lever lowers the forks. Then

check the NEUTRAL position as per steps 1 and 2.

4. If the forks do not lift while pumping in the UP position,

turn the setting screw counterclockwise until the forks

elevate while pumping in the UP position. Then check

the NEUTRAL and DOWN position as per steps 1, 2

and 3.

NOTE: When viewing the truck from the handle

side, the setting screw is located on the right

side of the pump above the right wheel. The

truck will lower faster or slower depending on

how far in or out the screw is adjusted.

Figure 1
