JET-STREAM FAN
H-9924, H-9925
H-11062, H-11063
TOOLS NEEDED
10 mm Wrench
11 mm Wrench
13 mm Wrench
16 mm Wrench
19 mm Wrench
Socket Wrench24 mm SocketDrill5/16" Nut Driver Bit
Para Español, vea páginas 6-10.
Pour le français, consulter les pages 11-15.

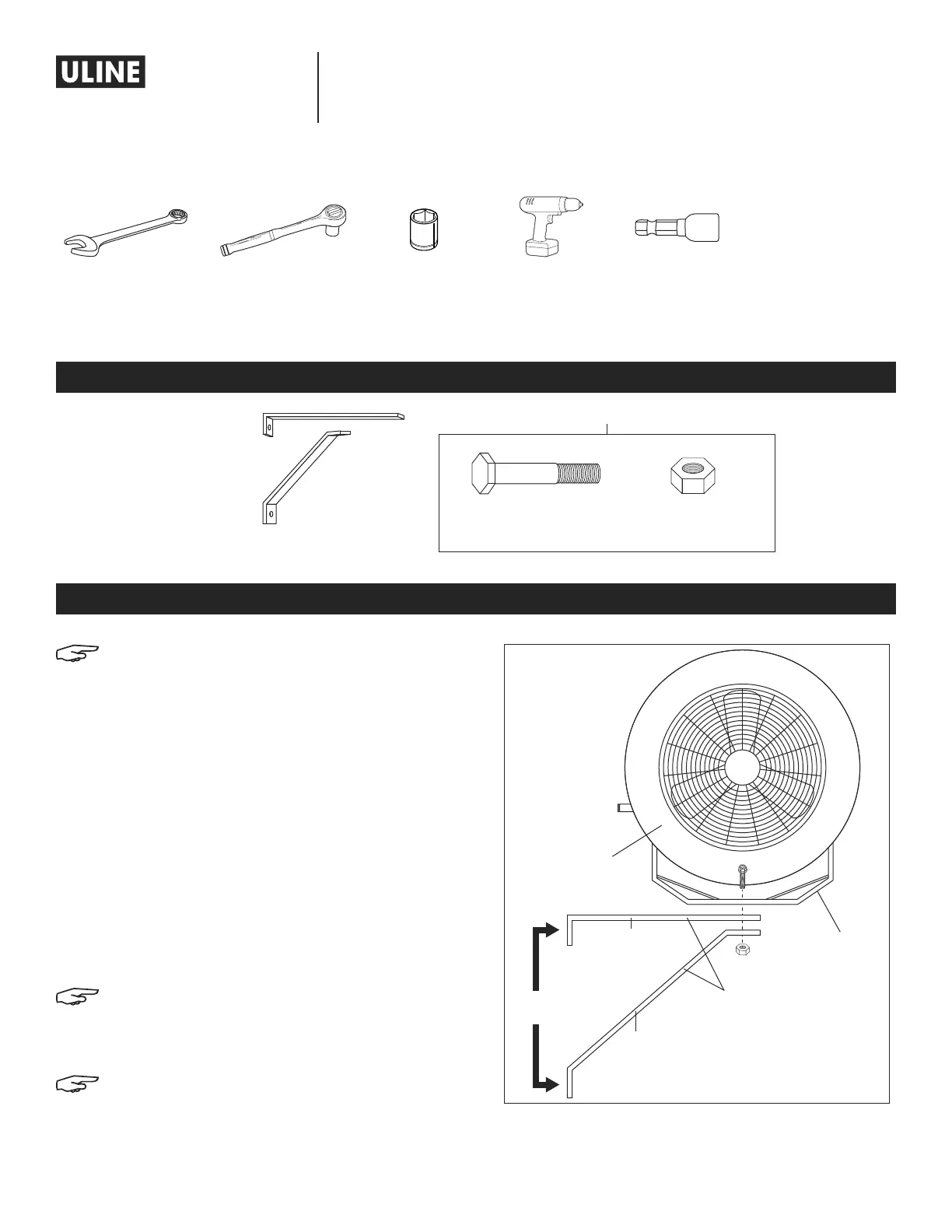

WALL BRACKET PARTS
WALL BRACKET ASSEMBLY
Bracket Assembly x 1
Hardware Kit
5/8" Nut x 15/8" Bolt x 1
NOTE: Fan can be placed above the wall
mount assembly or hung down below.
1. Secure part A of wall mount assembly bracket to
solid surface from which fan will be hung. A single
mounting hole is located on part A. Secure to
surface using a wall anchor (not included).
(See Figure 1)
2. Position part B under A and situate B so that A is level.
A single mounting hole is located on part B. Secure
part B to surface using a wall anchor (not included).
(See Figure 1)
3. Using a 16 mm wrench, secure the yoke to wall
mount assembly bracket by inserting the 5/8" bolt
through the center hole in the yoke and through
the holes in both parts of the wall mount assembly
bracket. (See Figure 1)
NOTE: The yoke may open up or down
depending on which way the wall mount
assembly bracket is hung. Ensure assembly
is level and stable.
NOTE: A safety chain (not included) is
recommended for securing fan head.
Figure 1
Yoke
Wall Mount
Assembly Bracket
Mounting Hole
A
B
Fan Head
Assembly
