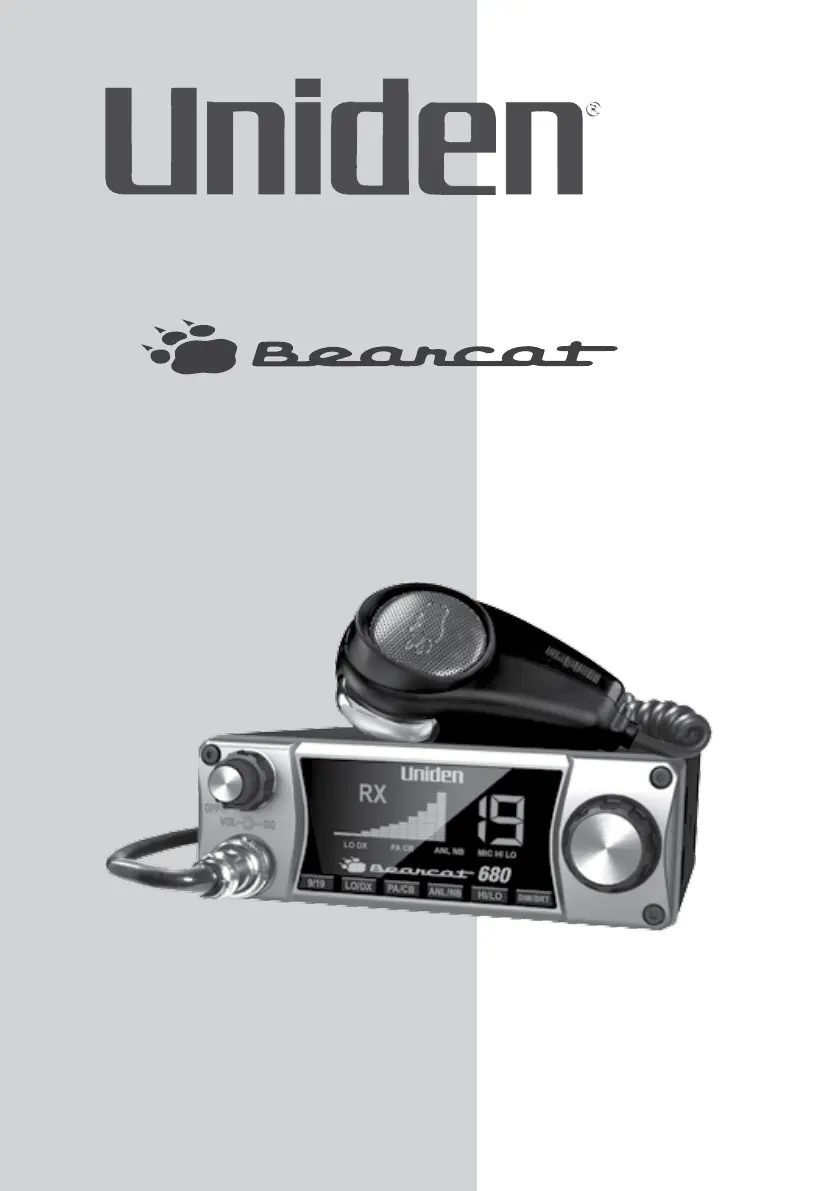

Owner’s Manual

Printed in China

U01UT389ZZA(0)

680

Uniden is a registered trademark of Uniden America Corporation.

Bearcat is a registered trademark of Uniden America Corporation.

Features, specications, and availability of optional accessories are all subject to

change without notice.

Contents

UnpaCking .......................................................................................................3

DesCription ....................................................................................................3

emergenCy operation ................................................................................3

Controls anD FUnCtions ...........................................................................4

installation ..................................................................................................6

moBile station installation .............................................................. 6

Mobile Station Antenna .............................................................................. 6

Connecting the Power Cords ...................................................................... 6

Ground Information ................................................................................... 7

install 6-pin to 4-pin aDapter ............................................................. 7

marine installation ............................................................................... 7

Using yoUr BearCat 680 ..............................................................................7

s/rF meter ................................................................................................... 7

to reCeive .................................................................................................... 8

to transmit ............................................................................................... 8

preventive maintenanCe ...........................................................................9

maintenanCe .................................................................................................9

troUBleshooting ......................................................................................10

serviCing yoUr transCeiver ...................................................................10

speCiFiCations ..............................................................................................11

two-year extenDeD warranty ..............................................................12

raDio CoDe DeFinitions ............................................................................14

UNPACKING

Unpack your Bearcat 680 and check the contents against this list:

Bearcat 680 CB 2-way mobile radio

Microphone

Mounting Bracket Kit

DC Power Cord

6-pin to 4-pin microphone adapter

Reference Guide

Part 95 Subpart D (FCC Rules)

If any items are missing or damaged, contact your place of purchase

immediately.

DESCRIPTION

Your Uniden Bearcat 680 represents the highest quality communications

device designed for use in the Citizens Band Radio Service. It will

operate on any of the 40 AM frequencies authorized by the Federal

Communications Commission (FCC).

The Citizens Band Radio Service is under the jurisdiction of the Federal

Communications Commission (FCC). Any adjustments or alterations which would

alter the performance of the transceiver's original FCC type acceptance, or which

would change the frequency determining method, are strictly prohibited.

Replacement or substitution of crystal, transistors, ICs, regulator diodes, or any

other part of a unique nature, with parts other than those recommend by Uniden,

may cause violations of the technical regulations in Part 95 of the FCC Rules or in

violation of type acceptance requirements in Part 2 of the rules.

EMERGENCY OPERATION

1. Press or turn knob to . 9/19 Channel Selector Channel 9

2. Press switch on microphone and speak clearly. PTT

3. If there is no response, select an active channel and ask that party

to relay your emergency broadcast on . Channel 9

All channels except Channel 9 may be used for normal communication. The FCC

reserves Channel 9 for emergencies involving the immediate safety of individuals

or protection of property. Use Channel 9 to render assistance to a motorist.

This is an FCC rule and applies to all CB radio operators.
