Distributed By

Cleva North America, Inc.

601 Regent Park Court

Greenville, SC 29607

Replacement Filters &

Accessories available at:

Vacmaster.com

FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual for future reference.

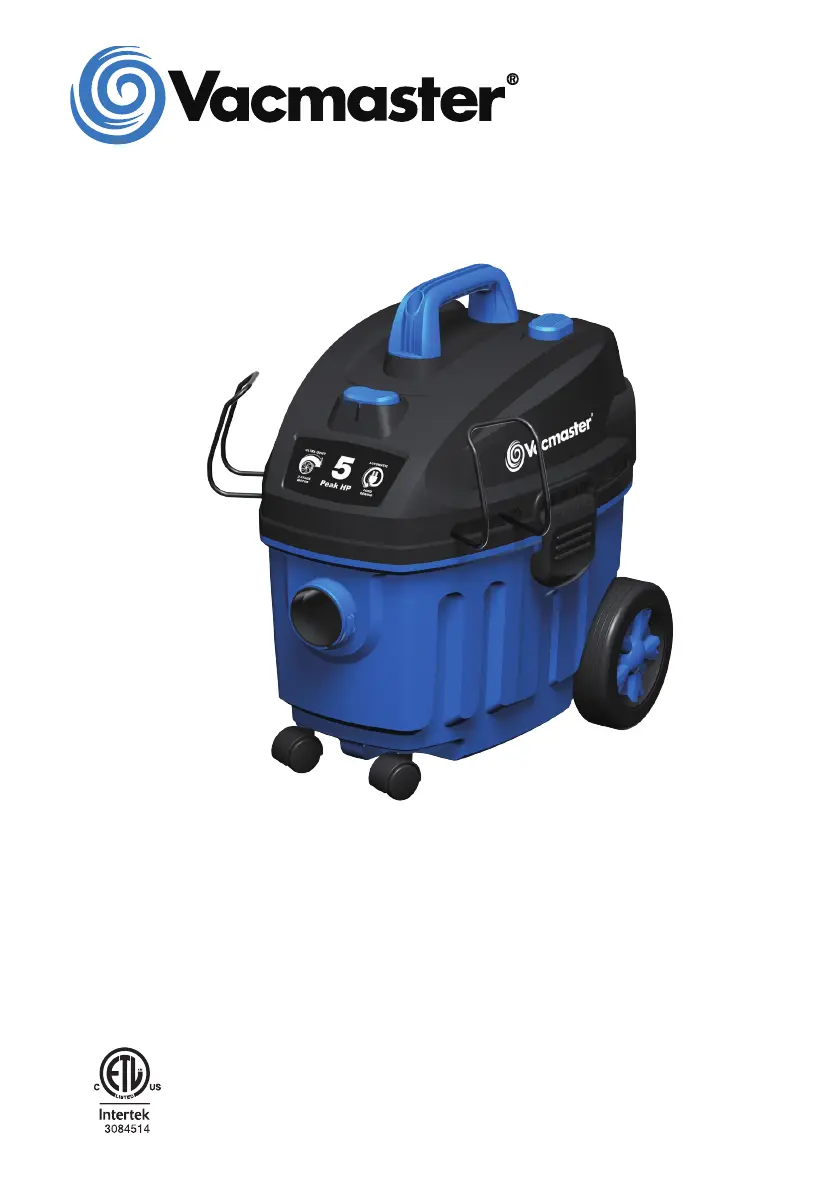

4 Gallon

Model No.

VF408

Operator’s Manual

Wet/Dry Vacuum

TABLE OF CONTENTS

WARRANTY

Warranty .......................................................................................................................................

Safety Instructions & Warnings ....................................................................................................

Double Insulation Instructions ......................................................................................................

Extension Cords ...........................................................................................................................

Unpacking & Checking Carton Contents ......................................................................................

General Assembly Instructions .....................................................................................................

Dry Vacuum Operation .................................................................................................................

Liquid Vacuum Operation .............................................................................................................

Maintenance .................................................................................................................................

Installing & Cleaning Cartridge Filter ............................................................................................

Installing & Cleaning Foam Wet Filter ..........................................................................................

Troubleshooting ............................................................................................................................

Exploded View ..............................................................................................................................

Parts List.......................................................................................................................................

SECTION PAGE

Thank you for purchasing this Vacmaster

® wet/dry vacuum cleaner. Feel condent that with

Vacmaster® you are obtaining a high quality product engineered for optimal performance.

This vacuum is capable of picking up liquids and dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

We take pride in producing a high quality, durable product. This Vacmaster® product carries a

limited two (2) year warranty against defects in workmanship and materials from date of purchase

under normal household use. If product is to be used for commercial, industrial, or rental use, a

90 day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty

gives you specic legal rights, which may vary from state to state. For product service call

Customer Service at 1-866-384-8432.

Not Covered by Warranty:

• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents,

improper maintenance, repairs, or alterations;

• Consumables such as lters and accessories;

• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;

• Normal deterioration of the exterior nish due to use or exposure;

• Any product where serial number/data label is tampered with or removed;

• Any product purchased from an unauthorized retailer.

SAFETY INSTRUCTIONS & WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

SAVE THIS MANUAL

WARNING:

FOR FUTURE REFERENCE.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

Read and understand this operator's manual and all labels on the Wet/Dry Vacuum cleaner before

operating. Safety is a combination of common sense, staying alert, and knowing how your vacuum

works. Use this Wet/Dry Vac only as described in this manual. To reduce the risk of personal

injury or damage to your Wet/Dry Vac, use only Vacmaster

® recommended accessories.

When using an electrical appliance, basic precautions should always be followed

including the following:

• Do not run vac unattended.

• Do not vacuum, or use this Wet/Dry Vac near ammable liquids, gases, or explosive vapors

like gasoline or other fuels, lighter uids, cleaners, oil-based paints, natural gas, hydrogen, or

explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the

motor can ignite ammable vapors or dust.

• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not use with damaged cord, plug, or other parts.

• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped

into water, return it to a service center.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp

edges or corners.

• Do not run Wet/Dry Vac over cord.

• Do not handle plug or the Wet/Dry Vac with wet hands.

• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.

• Do not use or store near hazardous materials.

• Do not use this Wet/Dry Vac with a torn lter or without the lter installed except when

vacuuming liquids as described in the operation section of this manual.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• To reduce the risk of injury from accidental starting, unplug power cord before changing or

cleaning lter.

• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet when not in use and

before servicing.

• Turn off Wet/Dry Vac before unplugging.

• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings

blocked; keep free of dust, lint, hair, or anything that may reduce air ow.

• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.

• To reduce the risk of falls, use extra care when cleaning on stairs.

• Unplug before connecting hose.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• This appliance is provided with double insulation. Use only identical replacement parts. See

“DOUBLE INSULATION INSTRUCTIONS”.

Household Type
