TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken connections to the unit.

Assistance in troubleshooting is available from the factory. When calling,

you should have a VOM and a lineman's test set available and be calling

from the job site. Call (540) 563-2000 and press 1 for Technical Support, or

visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service

facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the

unit clearly stating your company name, address, phone number, contact

person, and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

WARRANTY

Warranty information may be found on our website at

www.valcom.com/warranty.

INSTALLATION INSTRUCTIONS FOR

AMPLIFIED PENDENT SPEAKERS

MODEL NO. V-1015B

Issue 3 947021

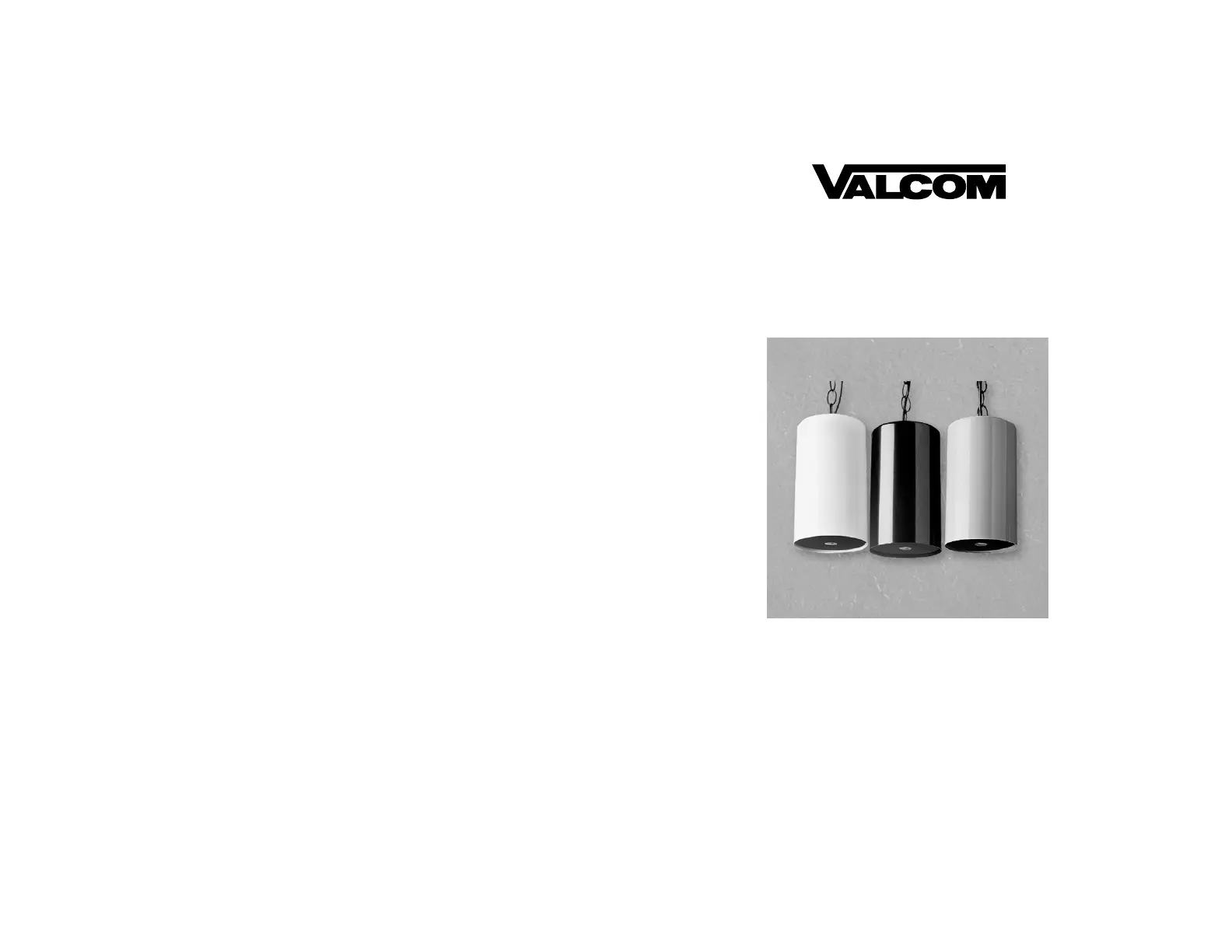

VALCOM ONE-WAY AMPLIFIED PENDENT SPEAKERS

Valcom Pendent Speaker, V-1015B (five-watt), is self-amplified and

provides voice paging as well as background music. This speaker has an

externally accessible volume control that can be adjusted by a screwdriver

through the hole in the grille. It is weather-resistant and available in white,

black, gray and custom colors.

Model V-1015B-W White

Model V-1015B-BK Black

Model V-1015B-GY Gray

DIMENSIONS/WEIGHT

 5.80” Dia. x 8.80”H (14.73cm Dia. x 22.35cm H)

 3.2 lbs. (1.45kg)

The V-1015B requires -24VDC, 300mA (6 power

units).

Note: To expand a 25/70/100 Volt system, add a

V-1095 in line before connecting this

speaker or damage to both the amplifier

and speaker may occur.

INSTALLATION

The V-1015B Pendent Speaker is designed to be

suspended from a ceiling using the enclosed chain.

The chain is not attached to the ring at the top of the

speaker to prevent damage to the speaker's finish

during shipping. To install the chain, open the link on

the end of the chain and loop the link through the ring

located on the top of the speaker and close the link.

Make sure the chain is securely fastened to the ceiling.

NOTE: An additional 6 feet length of chain is

available. Order Part Number V-1093-BK.

The area covered by a pendent speaker is determined

by the suspended height of the speaker.

Suspended Height

8 10 12 16 20

Spacing

16 20 25 30 35

Approximate Coverage

250 350 500 800 1000

CONNECTIONS

Note:

The cable is for electrical connections only. Under no

circumstances should the speaker be suspended from this

cable.

Recommended Quantity of Speakers per Specific Power Run

Speakers per

Power Run

Wire Run Length (Feet)

V-1015B 24 AWG 22 AWG

2 250 400

1 500 800

0 1000 1600

TROUBLESHOOTING CHART

SYMPTOMS ACTIONS

No audio from

speaker

1. Verify volume control is turned up (clockwise).

2. Using a lineman's test set, check for proper

audio level on Tip and Ring leads and if

necessary at the source.

Low volume from

speaker

1. Verify volume control is turned up.

2. Check voltage at the speaker when in use, (-18

to -24VDC required).

3. Using a lineman's test set, check for proper

audio level on Tip and Ring leads. It is possible

that some low level audio will be heard with only

one side of Tip and Ring connected.

Loud squeal

(feedback)

1. Decrease volume of speaker (counterclockwise).

2. Increase the distance between telephone and

speaker.

3. Install confidencer on the telephone in severe

problem areas.

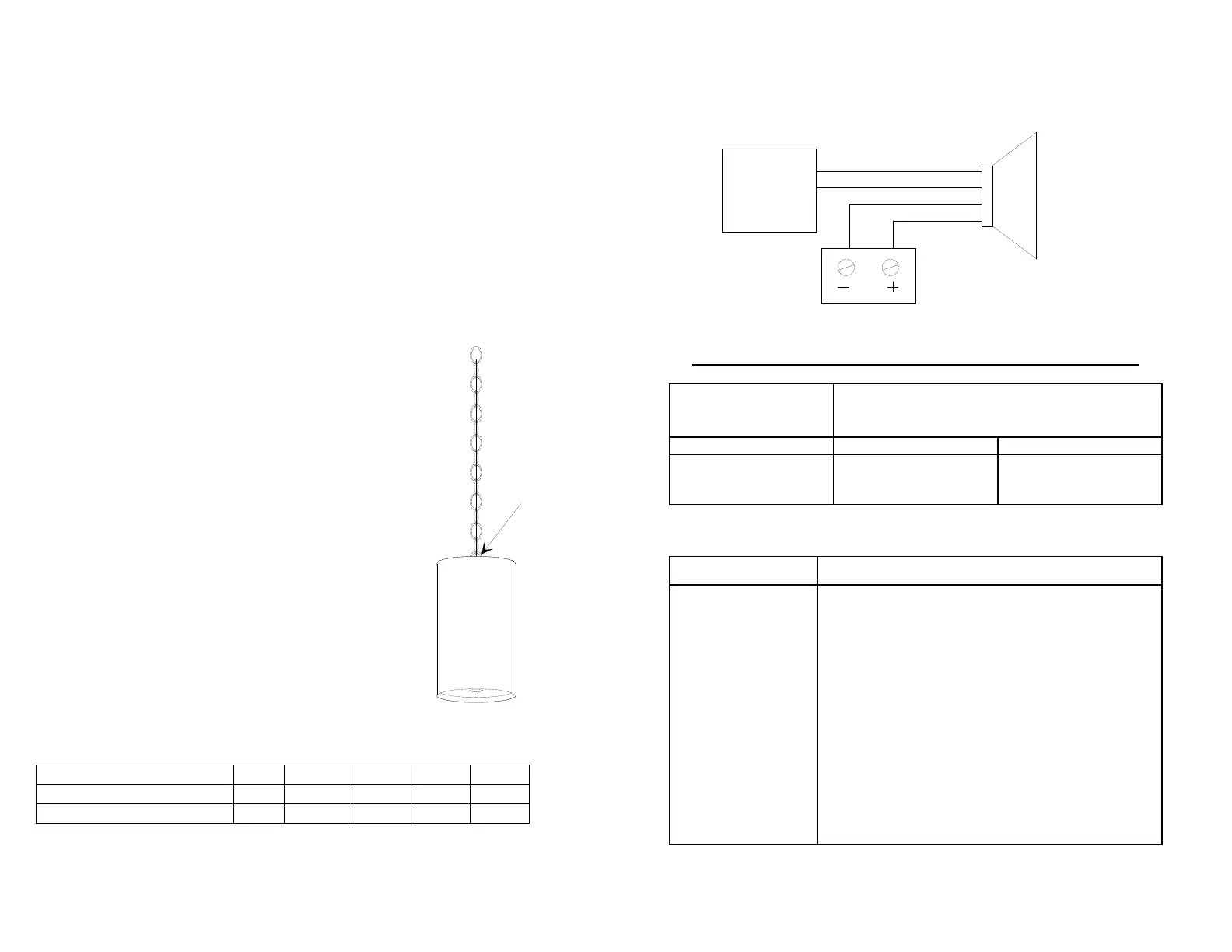

Attach chain here.

FIGURE 1

One-Way

Amplified

Speaker

Page

Out

Valcom Page

Adapter

Valcom -24VDC

Power Supply

FIGURE 2

(GND) Black

(-24VDC) White

(Ring/B) Red

(Tip/A) Green

Produktspecifikationer

Varumärke:	Valcom
Kategori:	högtalare
Modell:	V-1015B
Vikt:	1440 g
Bredd:	223.52 mm
Djup:	147.32 mm
Höjd:	147.32 mm
LED-indikatorer:	Nej
Wi-Fi:	Nej
Volymkontroll:	Rotations-
Rekommenderad användning:	Universal
Impedans:	8 Ω
Bakgrundsbelysning:	Nej
Ljudutgångskanaler:	1.0 kanaler
Högtalarplacering:	Ceiling-monterbar
Antal förare:	1
Bashögtalare:	Nej
Känslighet:	-10 dB
Fjärrstyrd:	Nej
USB:	Nej
Förstärkare:	Inbyggd
Högtalarposition:	Satellit
Uteffekt (RMS):	5 W
Produktstorlek (BxDxH):	223.52 x 147.32 x 147.32 mm
Temperatur vid drift:	-20 - 55 ° C
Intervall för relativ operativ luftfuktighet:	0 - 95 %
diskanthögtalare:	Nej
Equalizer:	Nej
Material, hölje:	Gjuten aluminium
Subwooferns högtalarelement, diameter (imperial):	5 "
Frekvensområde:	70 - 16000 hz
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Nej
Strömkälla av typen:	DC
På / av-knapp:	Nej
Bluetooth:	Nej
Plug & Play-kompatibel:	Ja
Högtalartyp:	1-vägs
Högtalarlåda:	Stängd
Högtalarelement, diameter:	127 mm
Anslutning:	2
Likströmsdriftspänning:	24 V
