TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken connections to the unit.

Assistance in troubleshooting is available from the factory. When calling, you

should have a Volt-Ohm meter and a lineman's test set available and be calling from

the job site. Call (540) 563- -2000 and ask for Technical Support, or call (540) 767 1555

for Valcom 24-hour Faxback System or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating

your company name, address, phone number, contact person and the nature of the

problem. Send the unit to: Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under

conditions of normal use and service for a period of one year from the date of shipment. The

obligati on under this warranty shall be limited to the replacement, repair or refund of

any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed

units are unopened (A service charge plus parts and labor will be applied to units

defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover

minor repairs (Major repairs will be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no

event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of

time or other losses incurred by the buyer in connection with the purchase, operation or use

of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is

received in damaged condition, the carrier should be notified immediately. Claims for such

damage should be filed wi th the carrier involved in accordance with the F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Road

Roanoke, VA 24019-5056

Phone: (540) 563-2000

FAX: (540) 362-9800

In Canada:

CMX Corporation

35 Van Kirk Drive #11 and 12

Brampton, Ontario L7A 1A5

Phone: (905) 456-1072

FAX: (905) 456-2269

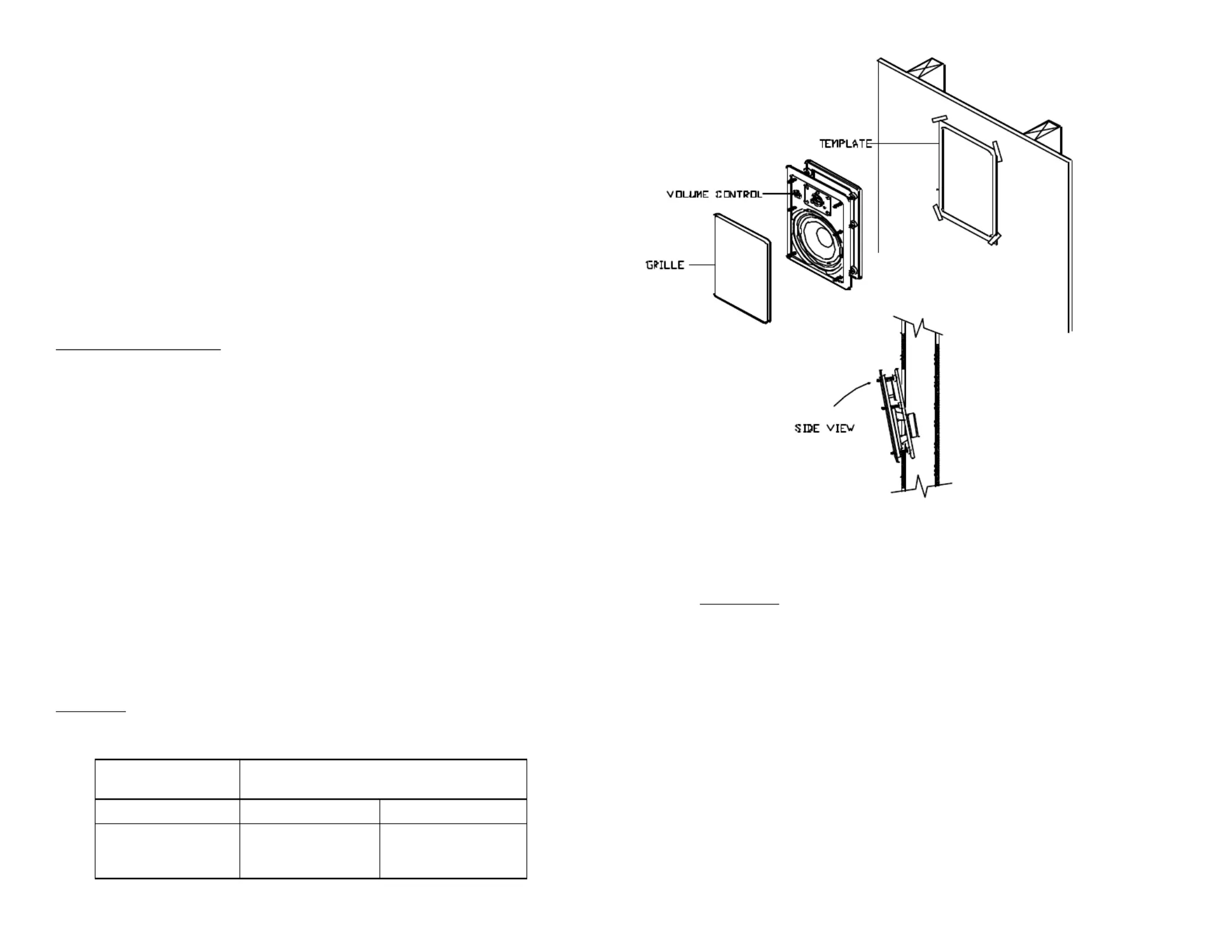

INSTALLATION INSTRUCTIONS FOR

SIGNATURE SERIES

, HIGH FIDELITY

AMPLIFIED IN-WALL SPEAKER

MODEL NO. V-1450

Issue 5 947145

TROUBLESHOOTING CHART

SYMPTOMS

ACTIONS

No audio from

speaker

Low volume

from sp eaker

Loud squeal

(Feedback)

1. Verify volume control is turned up (Clockwise).

2. Using a lineman's test set, check for proper audio level on Tip/A

and Ring/B leads and if necessary at the source.

1. Verify volume control is turned up.

2. Check voltage at speaker when in use (- -18 to 24VDC required).

3. Using a lineman's test set, check for proper audio level on Tip/A

and Ring/B leads. It is possible some low level audio will be

heard with only one side of Tip/A and Ring/B connected.

1. Decrease volume of speaker (Counterclockwise).

2. Increase the distance between telephone and speaker.

3 I t ll fid t l h i bl

Produktspecifikationer

Varumärke:	Valcom
Kategori:	högtalare
Modell:	V-1450
Vikt:	1360 g
Bredd:	219.7 mm
Djup:	81.3 mm
Höjd:	304.8 mm
LED-indikatorer:	Nej
Wi-Fi:	Nej
Högtalare:	2
Volymkontroll:	Rotations-
Material:	ABS synthetics, Ceramic, Metal
Rekommenderad användning:	Universal
Bakgrundsbelysning:	Nej
Ljudutgångskanaler:	1.0 kanaler
Högtalarplacering:	I vägg/i tak
Antal förare:	2
Bashögtalare:	Ja
Känslighet:	102 dB
Fjärrstyrd:	Nej
USB:	Nej
Förstärkare:	Inbyggd
Högtalarposition:	Satellit
Produktens färg:	Vit
Uteffekt (RMS):	6 W
Produktstorlek (BxDxH):	219.7 x 81.3 x 304.8 mm
Temperatur vid drift:	0 - 50 ° C
Intervall för relativ operativ luftfuktighet:	0 - 85 %
diskanthögtalare:	Ja
Equalizer:	Nej
Material, hölje:	Metall
Frekvensområde:	60 - 20000 hz
Anslutningsteknologi:	Kabel
Nätverksansluten (Ethernet):	Nej
Strömkälla av typen:	DC
På / av-knapp:	Nej
Ström:	0.05 A
Woofer diameter (imperial):	6.5 "
Bluetooth:	Nej
Plug & Play-kompatibel:	Ja
Högtalartyp:	2-vägs
Högtalarlåda:	Stängd
Basnivåkontroll:	Nej
Likströmsdriftspänning:	24 V
Disktanthögtalare diameter:	1 "
Övergångsfrekvens:	2800 hz
Magnetiskt skyddad:	Nej
Bindande stolpe:	Ja
Driver Konmaterial:	Polypropylen
Förstärkare uteffekt:	6 W
Transducermaterial:	Sidentyg
Löstagbar skyddskåpa:	Ja
