Issue 2

1947342

V-420

DYNAMIC NOISE CANCELLING MICROPHONE

INTRODUCTION

These instructions contain the

specifications and information necessary

to install, operate and maintain the V-

420 Dynamic Noise Cancelling

Microphone.

SPECIFICATIONS

Applications

• Valcom Paging Systems

Features

• Dynamic Element

• Soft Lip Guard

• Cycolac Housing

• Push to Talk Button

• Heavy Duty Four Conductor

Shielded Cable

• Low Impedance (Balanced)

Dimensions/Weight

• 3.94"H x 2.97"W x 2.63"D

(10.00cm H x 7.54cm W x 6.68cm D)

• 10 oz. (284 grams)

Specifications

• Element Dynamic

• Frequency Response 100 to 5KHz

• Output Impedance Lo Z 200 Ohms

• Output Level Lo Z -58dB

(0dB = 1 mw/10 microbars)

INSTALLATION

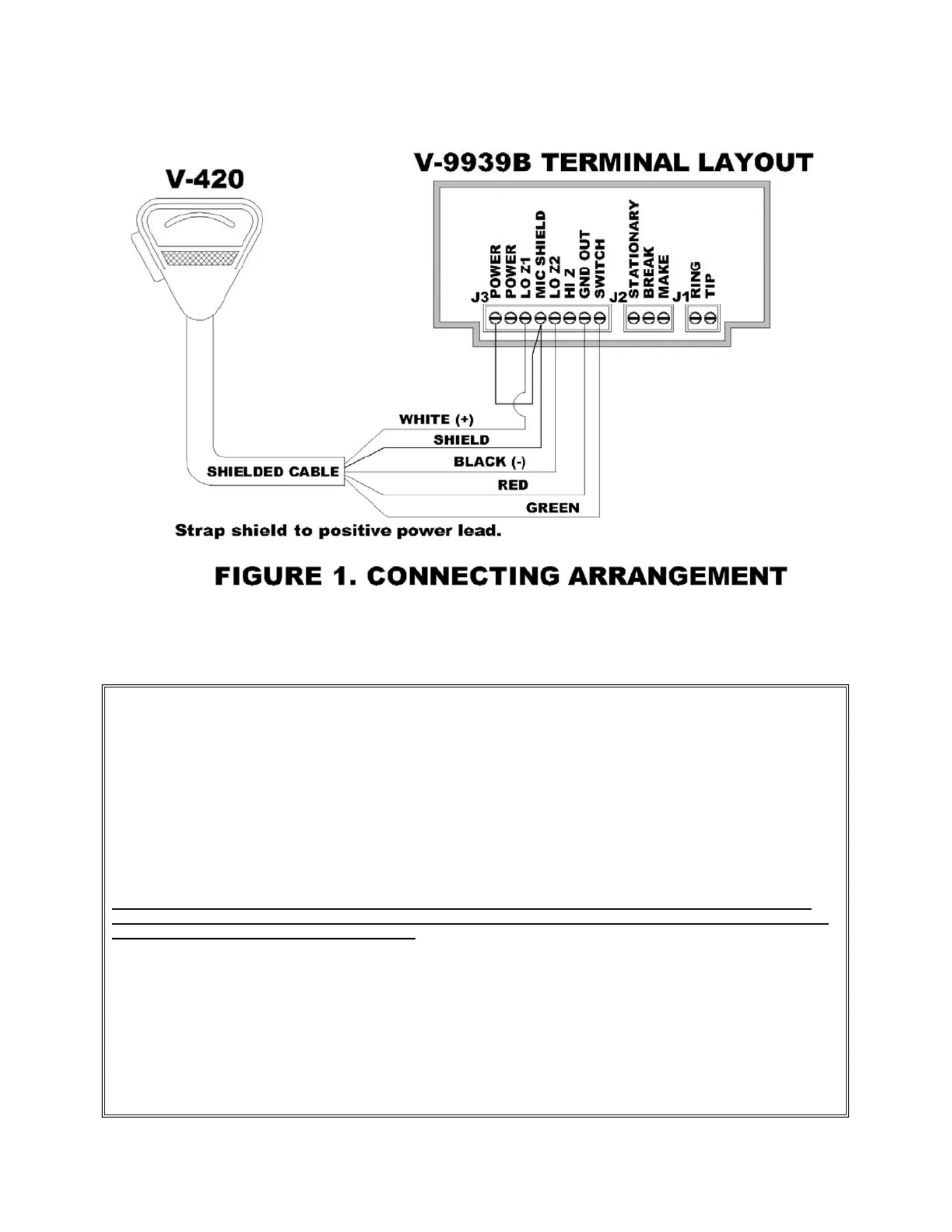

Figure 1 (on reverse) depicts the V-420

connected to the Valcom V-9939B

microphone adapter.

TECHNICAL ASSISTANCE

When trouble is reported, verify the unit

is turned on and there are no broken

connections leading to this unit.

Assistance in troubleshooting is

available from the factory. When

calling, have a VOM and a test set

available and call from the job site. Call

(540) 563-2000 and ask for Technical

Support and press 1 or visit our website

at http://www.valcom.com.

Valcom equipment is not field

repairable. Valcom, Inc. maintains

service facilities in Roanoke, VA.

Should repairs be necessary, attach a

tag to the unit clearly stating your

company name, address, phone

number, contact person and the nature

of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

2947342

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service

for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse, or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service

charge plus parts and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (major repairs will

be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be

liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection

with the purchase, operation, or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the

carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the

F.O.B. point.

Headquarters: In Canada

Valcom, Inc. CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019 Brampton, Ontario L7A 1A5

Phone: (540) 563-2000 Phone: (905) 456-1072

FAX: (540) 362-9800 FAX: (905) 456-2269

Produktspecifikationer

Varumärke:	Valcom
Kategori:	mikrofon
Modell:	V-420
Vikt:	284 g
Bredd:	75.4 mm
Djup:	66.8 mm
Höjd:	100 mm
Utgångsimpedans:	200 Ω
Produktens färg:	Svart
Frekvensområde:	100 - 5000 hz
Anslutningsteknologi:	Kabel
Ljuddämpning:	Ja
Signal/brusförhållande (SNR) för linjeutgång:	-58 dB
