1 9471023

Issue 1

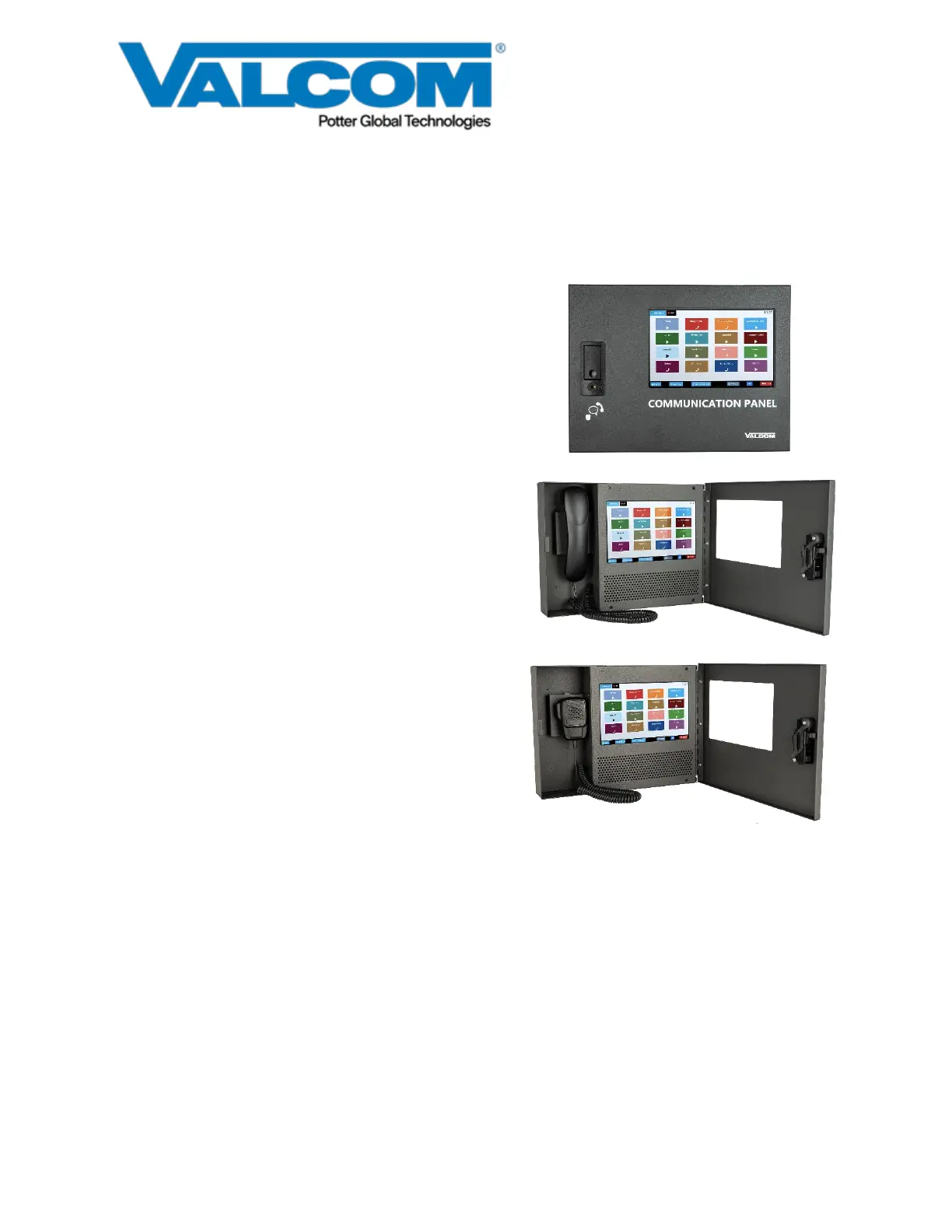

IP Communication Panels

VIP-TCHH & VIP-TCHC

INTRODUCTION

The VIP-TCH Communication Panels are

innovative touchscreen appliances that send live

voice, pre-recorded audio, and uploaded audio file

announcements to Valcom IP Multicast Page

Groups, IP speakers or horns, and VIP Page

Controllers. The VIP-TCH can also initiate and

receive intercom calls to or from Valcom IP

talkback-enabled endpoints or SIP telephones. The

Communication Panel can receive and play paging

announcements via its built-in speaker from other

Valcom IP gateways. The VIP-TCHH model is

equipped with a handset; the VIP-TCHC is

equipped with a handheld microphone with push-

to-talk button.

Applications

•Emergency Alert Terminal

•Public Address / Paging Console

•Intercom Answering Station

SPECIFICATIONS

Access Methods

•Touchscreen activation of announcements

•SIP protocol phone calls

•Valcom Page Controller

•Valcom Multicast Page Group

Features

•Wall-mounted interactive IP device with 10.1”

color touch screen display, loudspeaker, and

handheld microphone (VIP-TCHC) or handset

(VIP-TCHH)

•Lockable front cover

•Send pre-recorded audio files at the push of a

button

•Sends voice pages, either “Live” or Record &

Send for feedback elimination

•Makes/receives bidirectional voice calls to Valcom

IP and SIP endpoints

•Receives audio pages

•Simple configuration via web browser interface

•Power over Ethernet Plus (PoE+), or external 12

Vdc power adapter (not included)

VIP-TCHH

VIP-TCHC

Dimensions/Weight

Product:

•15.4" W x 11.4" H x 2.8” D

(39.1cm W x 29.0cm H x 7.1cm D)

•6.2 lbs. (2.8 kg)

Nominal Power Requirements

Power over Ethernet Plus (PoE+):

IEEE 802.3at compliant switch or injector

External via barrel connector:

Voltage: 12 Vdc

Current: 2A

(External Power Supply not included)
