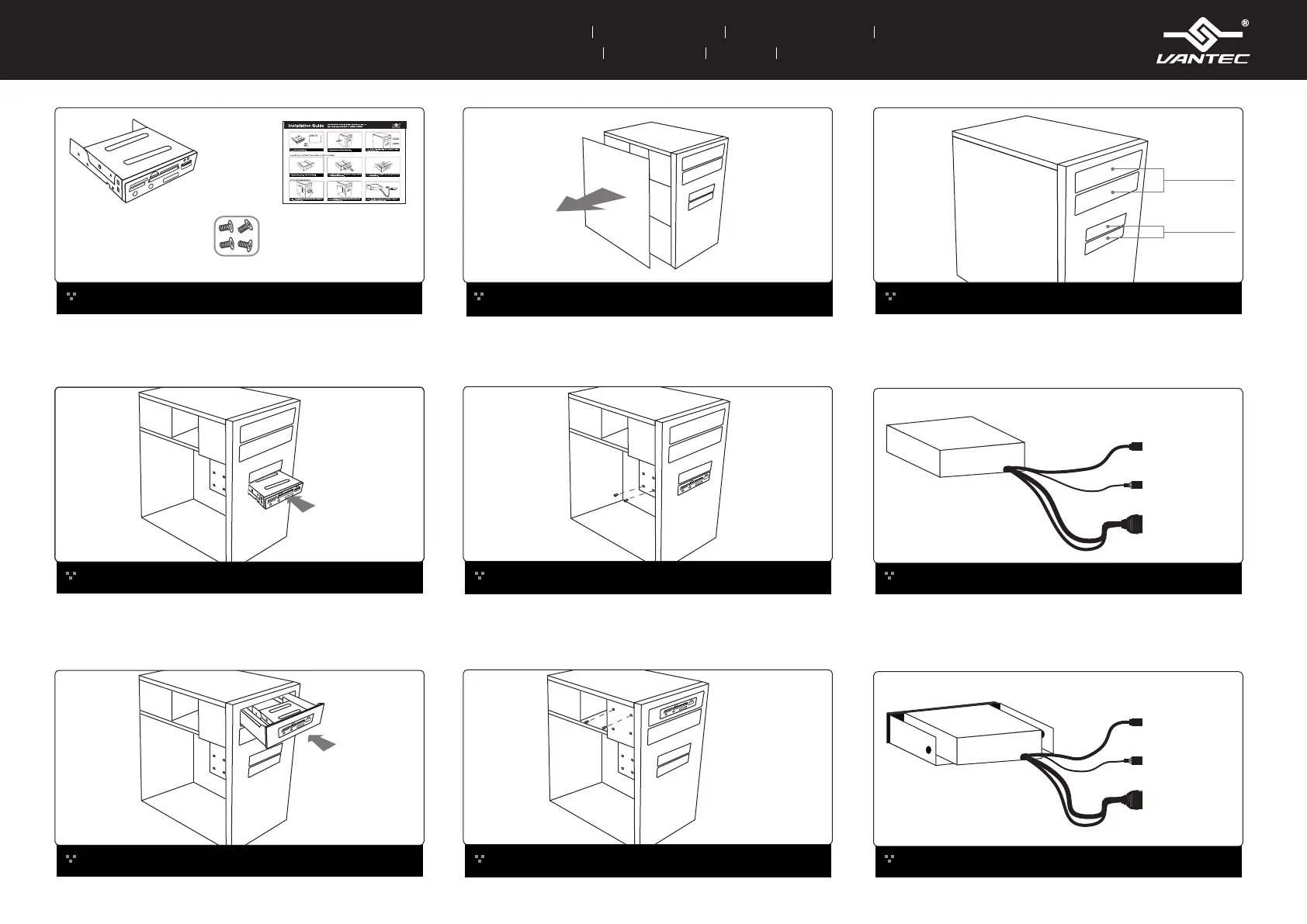

Prepare your computer case for installation.

Locate an available 3.5” or 5.25” drive bay where you would like

to install the device.

5.25” Drive Bay

3.5” Drive Bay

*Using Optional 3.5” to 5.25” Front Bay Converter Kit (HDA-525P) to install into a 5.25” Front Bay

Slide the front panel device into your case until the front panel

is flush with the front of your case.

1b.

Secure the 5.25” front panel device to your computer case with

the provided screws.

2b.

Proceed to connect the front panel device to your system’s

motherboard or expansion card.

3b.

Connect to

System 20 pin

USB 3.0 Header

Connect to

System Audio

port Header

Connect to

System SATA

port Header

Proceed to connect the front panel device to your system’s

motherboard or expansion card.

3a.

Secure the 3.5” front panel device to your computer case with

the provided screws.

2a.

Slide the front panel device into your case until the front panel

is flush with the front of your case.

1a.

3.5” Front Panel Installation

Connect to

System 20 pin

USB 3.0 Header

Connect to

System Audio

port Header

Connect to

System SATA

port Header

Installation Guide

Guía de instalación Guide d'installation Installationsanleitung

Guida all’installazione 取り付けガイド安裝指南安装指南

Verify the package contents.

3.5” Front Panel Device Installation Guide

Installation Screws

Produktspecifikationer

Varumärke:	Vantec
Kategori:	Minneskortläsare
Modell:	UGT-CR961
Bredd:	135 mm
Djup:	101 mm
Höjd:	25 mm
LED-indikatorer:	Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1)-portar:	1
Typ av minneskort:	CF, Memory Stick (MS), MicroSD (TransFlash), MMC, MS Duo, MS Micro (M2), MS PRO, MS PRO Duo, MS Pro-HG, MSXC, SD, SDHC, SDXC, xD
Produktens färg:	Svart
Material, hölje:	Plastic, Steel
Plug & Play-kompatibel:	Ja
Intern:	Ja
Faktisk dataöverföringshastighet:	6144 Mbit/s
Externa anslutningar:	Audio I/O
Strömlysdiod:	Ja
Antal eSATA portar:	1
Enhetsfack som stöds:	3.5 "
