TABLE OF CONTENTS 5/19/2022 EPT MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Page 1 of 58
EPT-Series Electric Pallet Trucks
Instruction Manual
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, record a complete description of it on the bill of lading.
If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance comply with
laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels, and
accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department can also be
contacted online at
https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-manuals.php
.
TABLE OF CONTENTS PAGE TABLE OF FIGURES PAGE
Specifications 2 Fig. 1A EPT Main Body Components 5
Signal Words 3 Fig. 1B EPT-30 (optional) Scale Components 6
Safety Instructions 3 Fig. 2 EPT-30 Hydraulic Cylinder Assembly 7
Remove the EPT from Shipping Pallet 4 Fig. 3 EPT-30 Drive Wheel Assembly 8
Using the EPT 20-21 Fig. 4A EPT-30 Forks & Carriage 9
Inspection Prior to Use 20 Fig. 4B EPT-30 Forks & Carriage with Optional Scale 10
Operating the EPT 20-21 Fig. 5A Control Yoke & Handle Components 11-12
Lifting & Transporting Loads 21 Fig. 5B Control Yoke & Handle with Optional Scale 13-14
Batteries & Battery Charger 21-22 Fig. 6 Hydraulic Pump & Motor Assemblies 15
Troubleshooting 23-27 Fig. 7 EPT-45 Main Housings & Supporting Structure 16
Changing the Cylinder 28-31 Fig. 8 Removable Battery Box & Components 16
Changing the Throttle
Assembly 32-36 Fig. 9 EPT-45 Cylinder & Fuse Panel 17
Changing the Motor Controller 37-39 F
ig. 10 EPT-45 Fork & Carriage Assemblies
18
Replacing Forward/Reverse Contactor 40-42 Fig. 11 Function Controls, Gauges, & Safety Features 19
Changing the Battery Charger 43-46
Installing Quencharcs 47-48 Inspections & Maintenance 54-55
Changing Drive Wheel Assembly 49-53 Labeling Diagram 56
Record of Satisfactory Condition 54 Limited Warranty 57
Vestil Manufacturing
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Website: www.vestil.com e-Mail: info@vestil.com
EPT-30 EPT-45
TABLE OF CONTENTS 5/19/2022 EPT MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Page 2 of 58

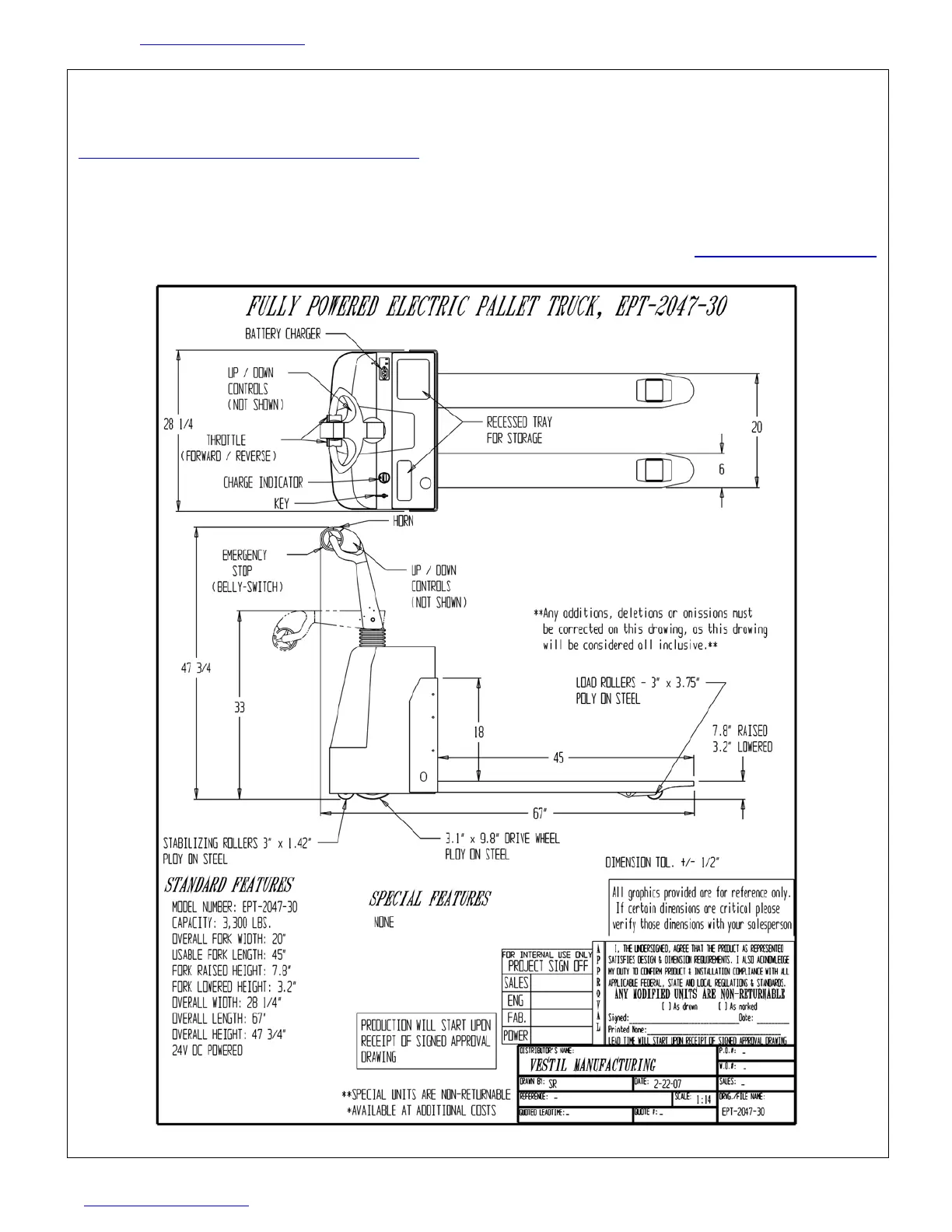

SPECIFICATIONS
Specifications for EPT-series electric pallet trucks are provided on Vestil’s website. To access the
appropriate specifications document, navigate to this webpage:
https://www.vestil.com/product.php?FID=342. Scroll down to the “Product Specifications Table”. Continue
scrolling the page to the table row of the model you purchased. Click the button in the PDF column that
looks like a pencil inside a box. A PDF document will open. This file is the specifications document. Print
a copy of the document and keep it with your copy of this manual. The following is a copy of the
specifications document for model EPT-2047-30 that is current as of the publication date of this manual.
If you have any questions about accessing specifications information, contact the
TECHNICAL SERVICE
department.
