VX3268-2KPC-mhd

VX3268-PC-mhd

Display

User Guide

Model No. VS18229 / VS18228

P/N: VX3268-2KPC-MHD/ VX3268-PC-MHD

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at ®

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precauons

P wing before you start using the device.lease read the follo Safety Precauons

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Sit at least 18" (45 cm) away from the device.

• Allow at least 4" (10 cm) clearance around the device to ensure proper

ventilation.

• Place the device in a well-ventilated area. Do not place anything on the device

that prevents heat dissipation.

• Do not use the device near water. To reduce the risk of fire or electric shock, do

not expose the device to moisture.

• Avoid exposing the device to direct sunlight or other sources of sustained heat.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including amplifiers) that may increase the temperature of the

device to dangerous levels.

• Use a soft, dry cloth to clean the external housing. For more information, refer

to the "Maintenance" section on page 33.

• Oil may collect on the screen as you touch it. To clean the greasy spots on the

screen, refer to the "Maintenance" section on page 33page 33.

• Do not touch the screen surface with sharp or hard objects, as it may cause

damage to the screen.

• When moving the device, be careful not to drop or bump the device on

anything.

• Do not place the device on an uneven or unstable surface. The device may fall

over resulting in an injury or a malfunction.

• Do not place any heavy objects on the device or connection cables.

• If smoke, an abnormal noise, or a strange odor is present, immediately turn the

device off and call your dealer or ViewSonic®. It is dangerous to continue using

the device.

• Do not attempt to circumvent the safety provisions of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding prong. The

wide blade and the third prong are provided for your safety. If the plug does not

fit into your outlet, obtain an adapter and do not attempt to force the plug into

the outlet.

• When connecting to a power outlet, DO NOT remove the grounding

prong. Please ensure grounding prongs are NEVER REMOVED.

• Protect the power cord from being treaded upon or pinched,

particularly at the plug, and at the point where it emerges from

the equipment. Ensure that the power outlet is located near the

equipment so that it is easily accessible.

• Only use attachments/accessories specified by the manufacturer.

• When a cart is used, use with caution when moving the cart/equipment

combination to avoid injury from tipping over.

• Disconnect the power plug from the AC outlet if the device is not being used for

a long period of time.

• Refer all servicing to qualified service personnel. Service will be

required when the unit has been damaged in any way, such as:

ͫif the power supply cord or plug is damaged

ͫif liquid is spilled onto or objects fall in the unit

ͫif the unit is exposed to moisture

ͫif the unit does not operate normally or has been dropped

• NOTICE: LISTENING THROUGH EAR-/HEADPHONES AT A HIGH VOLUME FOR

EXTENDED PERIODS CAN CAUSE HEARING DAMAGE/HEARING LOSS. When using

ear-/headphones, adjust the volume to appropriate levels, or hearing damage

may result.

• NOTICE: THE MONITOR MAY OVERHEAT AND SHUTDOWN! If the device shuts

down automatically, please turn on your monitor again. After rebooting, change

your monitor's resolution and refresh rate. For details, please refer to the

graphics card's user guide.

Contents

Safety Precautions 3 .......................................................

Introduction 7 ................................................................

Package Contents 7 ...................................................................................................

Product Overview 8 ...................................................................................................

Front and Rear View 8 ................................................................................................

I/O Ports 8 .................................................................................................................

Initial Setup 9 .................................................................

Installing the Stand 9 .................................................................................................

Wall Mounting 10 ......................................................................................................

Using the Security Slot 11 .................................................................... ......................

Making Connections 12 ..................................................

Connecting to Power 12 ............................................................................................

Connecting External Devices 13 ................................................................................

Using the Monitor 14 .....................................................

Adjusting the Viewing Angle 14 .................................................................... .............

Tilt Angle Adjustment 14 ............................................................................................

Turning the Device On/Off 15 ...................................................................................

Quick Menu 16 ...........................................................................................................

Hot Keys 17 ................................................................................................................

Configuring the Settings 19 .......................................................................................

General Operations 19 ...............................................................................................

On-Screen Display (OSD) Menu Tree 21 ....................................................................

Appendix 25 ...................................................................

Specifications 25 .................................................................... ....................................

Glossary 27 ................................................................................................................

Troubleshooting 31 ...................................................................................................

Maintenance.........................................................................................................33

General Precautions 33 ..............................................................................................

Cleaning the Screen 33 ...............................................................................................

Cleaning the Case 33 ..................................................................................................

Regulatory and Service Information 34 ..........................

Compliance Information 34 .......................................................................................

FCC Compliance Statement 34 ...................................................................................

Industry Canada Statement 34 ...................................................................................

Declaration of RoHS2 Compliance......................................................................... 35

Indian Restriction of Hazardous Substances 36 .........................................................

Product Disposal at End of Product Life 36 ................................................................

Customer Service 38 ..................................................................................................

Limited Warranty 39 ..................................................................................................

Mexico Limited Warranty 42 ......................................................................................

Introducon

Package Contents

• Monitorwswswsw

• Power cord

• Video cable

• Quick start guide

NOTE: The power cord and video cables included in your package may vary

depending on your country. Please contact your local reseller for more

informaon.

Product Overview

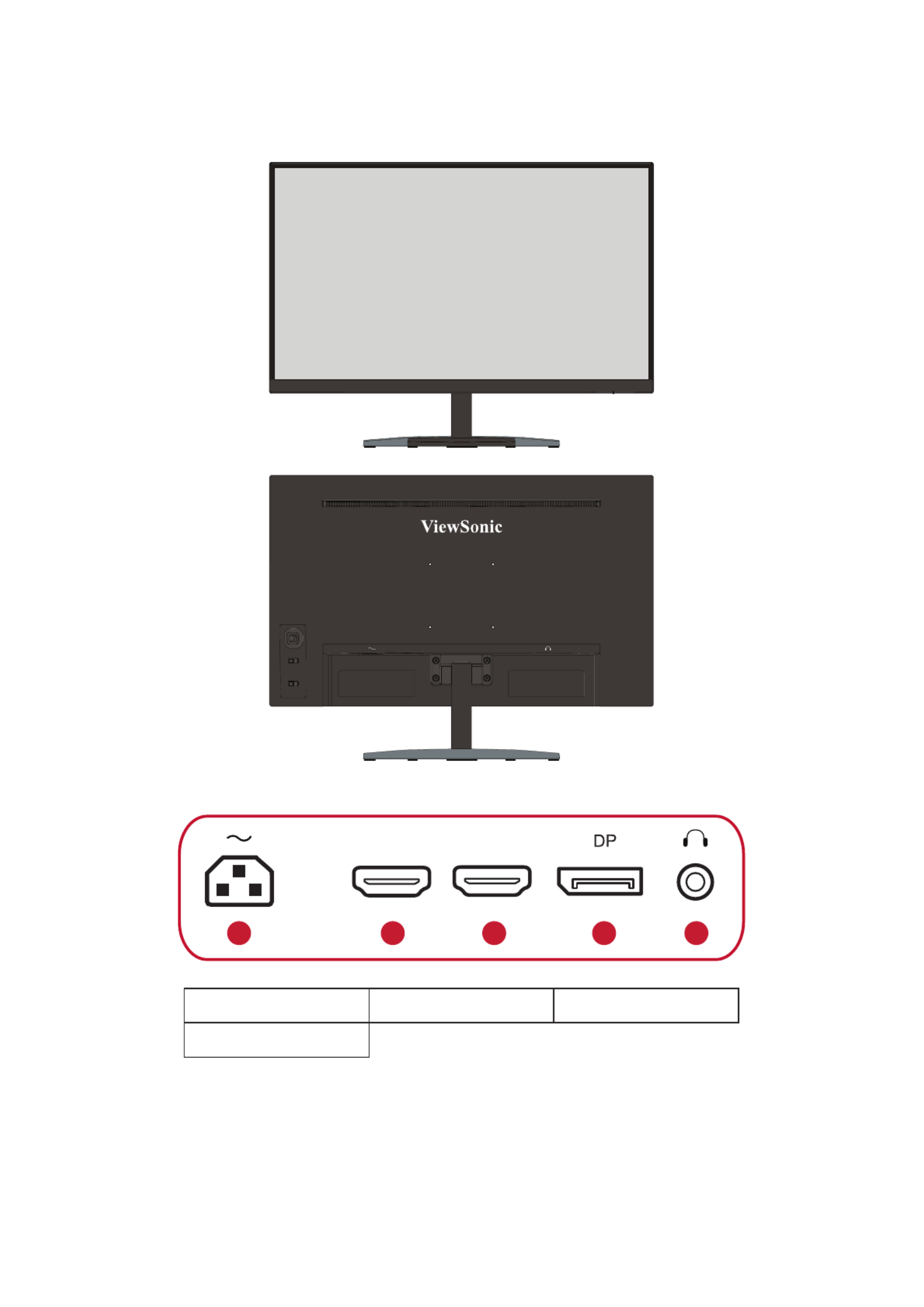

Front and Rear View

HDMI 1 HDMI 2 DP

I/O Ports

HDMI 1 HDMI 2

1 32 2 4

1. 2. 3. AC IN HDMI DisplayPort

4. Audio Out

NOTE: For more informaon about the key and its funcons, l/ / / /p q t u

refer to “Hot Keys” on page 17.

Inial Setup

Installing the Stand

NOTE: Always place the device on a at, stable surface. Failure to do so may

cause the device to fall and damage the device and/or result in personal

injury.

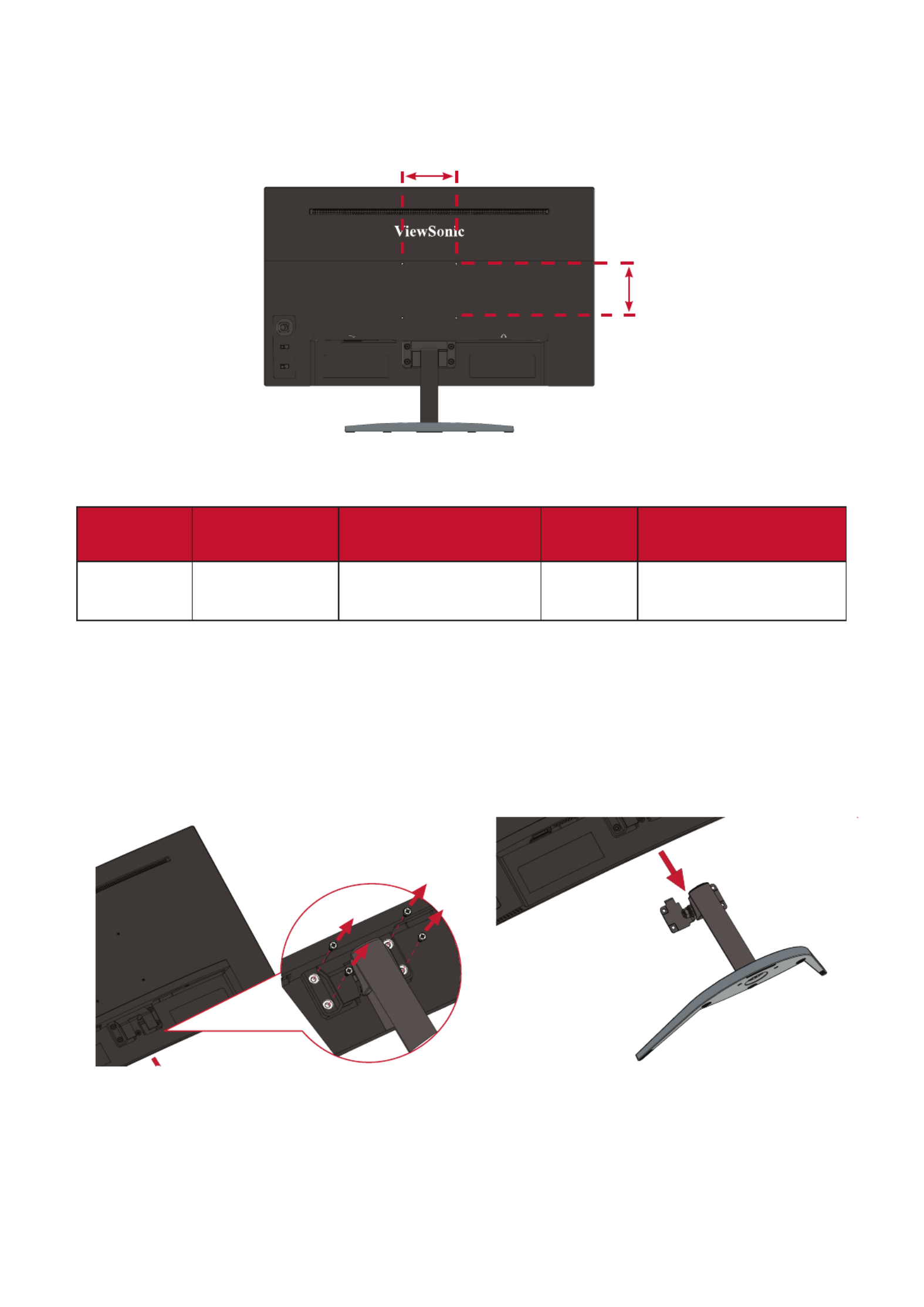

Wall Mounng

NOTE: Only use UL Cered wall mount kits.

HDMI 1 HDMI 2 DP

100 mm

Refer to the table below for the standard dimensions for wall mount kits.

Maximum

Loading Hole paern

(W x H) Interface Pad

(W x H x D) Pad Hole Screw Specicaon

& Quanty

14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm

4 pieces

NOTE: Wall mount kits are sold separately. To obtain a wall mounng kit,

contact ViewSonic® or your local dealer.

1. Turn o the device and disconnect all cables.

2. Place the device on a at, stable surface with the screen facing down.

3. Remove the monitor stand.

1 2

4. Aach the mounng bracket to the VESA mounng holes at the rear of the

device. Then secure it with four (4) screws (M4 x 10 mm).

5. Follow the instrucons that come with the wall mounng kit to mount the

monitor onto the wall.

100 mm

Using the Security Slot

To help prevent the device from being stolen, use a security slot locking device to

secure the device to a xed object.

Below is an example of seng up a security slot locking device on a table.

Making Connecons

This secon guides you on how to connect the monitor with other equipment.

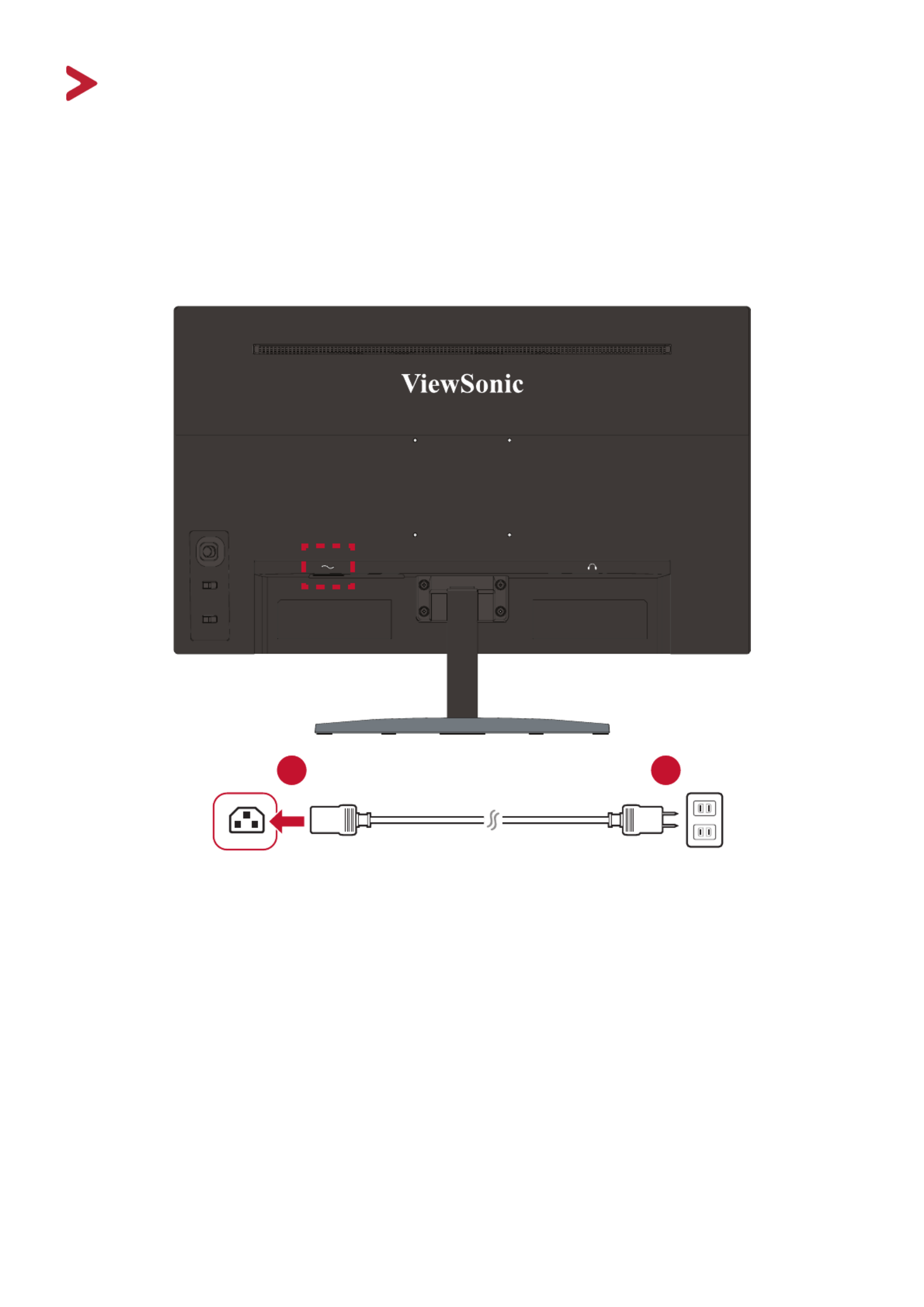

Connecng to Power

1. Connect the power cord to the AC IN jack at the rear of the device.

2. Connect the power cord plug to a power outlet.

HDMI 1 HDMI 2 DP

1 2

Connecng External Devices

HDMI 1 HDMI 2 DP

HDMI HDMI

1414

Using the Monitor

Adjusng the Viewing Angle

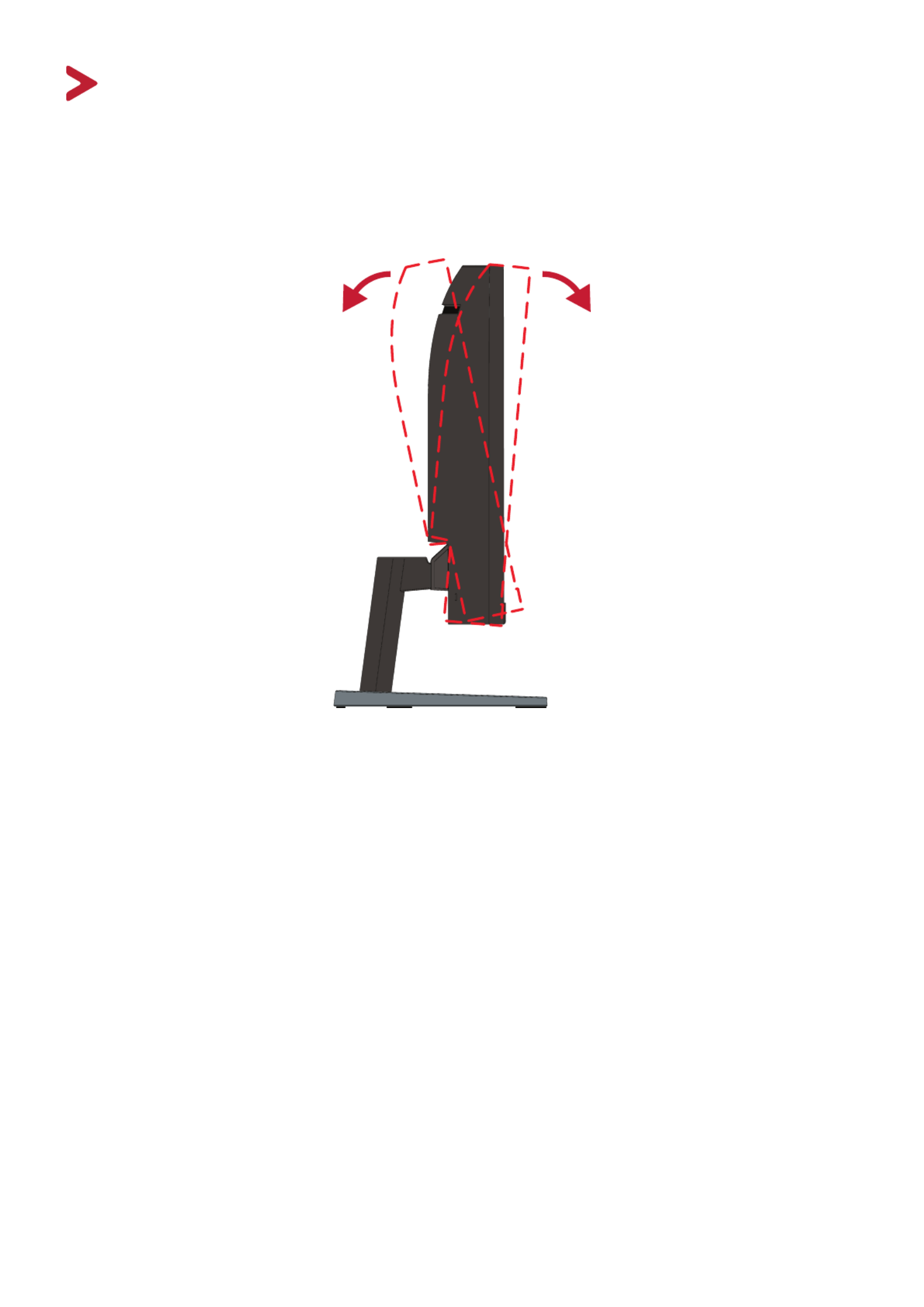

Tilt Angle Adjustment

Tilt the monitor forwards or backwards to the desired viewing angle (-5˚ to 23˚).

NOTE: When adjusng, support the stand rmly with one hand while lng the

monitor forwards or backwards with the other hand.

Turning the Device On/O

1. Plug the power cord into a power outlet.

2. Press the Power buon to turn on the monitor.

3. To turn the monitor o, press the buon again.Power

HDMI 1 HDMI 2 DP

NOTE: The monitor will sll consume some power as long as the power cord

is connected to the power outlet. If the monitor is not being used for a

long period of me, please disconnect the power plug from the power

outlet.

Using the Control Panel Keys

Use the control panel keys to access the Quick Menu, acvate Hot Keys, navigate

the On-Screen Display (OSD) Menu, and change the sengs.

Joy Key

Shortcut Key

Power Key ( )

Quick Menu

Press the Shortcut key to acvate the Quick Menu.

View Mode

Standard

FPS Game

RTS Game

MOBA Game

Movie

Web

Text

MAC

Mono

NOTE: Follow the key guide that appears on the screen to select the opon or

make adjustments.

Menu Descripon

ViewMode Select one of the preset color sengs.

Volume Adjust the level, or mute the volume.

Contrast/Brightness Adjust the contrast or brightness level.

Input Select Select the input source.

Exit Exit the Quick Menu.

Hot Keys

When the On-Screen Display (OSD) Menu is o, you can quickly access special

funcons by using the control panel keys.

Key Descripon

uPress and hold the joy key for ve (5) seconds.

When the menu appears on the screen, connue holding both

keys for 10 seconds to lock/unlock the OSD Menu.

OSD Lock/Unlock

Locking OSD

Press and hold for 10s

to lock OSD

If the OSD Menu is locked, the below message will appear on the

screen:

OSD Lock/Unlock

OSD Locked

Produktspecifikationer

Varumärke:	Viewsonic
Kategori:	Övervaka
Modell:	VX Series VX3268-2KPC-MHD
Enhetsplacering:	Vrijstaand
Typ av operation:	Buttons, Rotary
Färg på produkten:	Wit
Dörrgångjärn:	Boven
Inbyggd display:	Ja
Vikt:	60000 g
Bredd:	400 mm
Djup:	600 mm
Höjd:	890 mm
Nettoskatt:	2200 W
Typ av laddare:	Bovenbelading
Dörrfärg:	Wit
Sladdlängd:	1.65 m
Energie-efficiëntieklasse:	F
Tvätt energiförbrukning:	- kWu
Vattenförbrukning per cykel:	43 l
Centrifuger läkemedelsklass:	B
Ljudnivå (tvätt):	56 dB
Justerbar centrifughastighet:	Ja
Maximal centrifugeringshastighet:	1200 RPM
Bulleremissionsklass:	C
Ljudnivå under centrifugering:	77 dB
Cykeltid (max):	247 min
Cykelns längd (snabbtvättprogram):	20 min
Energiförbrukning per 100 cykler:	83 kWu
På-/-Av-knapp:	Ja
AquaStop-funktion:	Ja
Avloppsslangens längd:	1.5 m
Vattentillförselslangens längd:	2.02 m
Justerbar temperatur:	Ja
Easy Iron funktion:	Ja
Nominell kapacitet:	6 kg
Type beeldscherm:	LCD
Energieffektivitetsskala:	A tot G
Wasprogramma's:	Cotton, Eco, Hand/wool, Wool, Jeans/denim, Sport, Synthetics, Delicate/silk
