Sida 1/3
Specifications are subject to change without notice
AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: (800) 876-3332 • FAX: (800) 765-3435
©2002 ATLAS SOUND LP Printed in U.S.A. 00402 ATS001215 Rev A 4/02 PN 245691

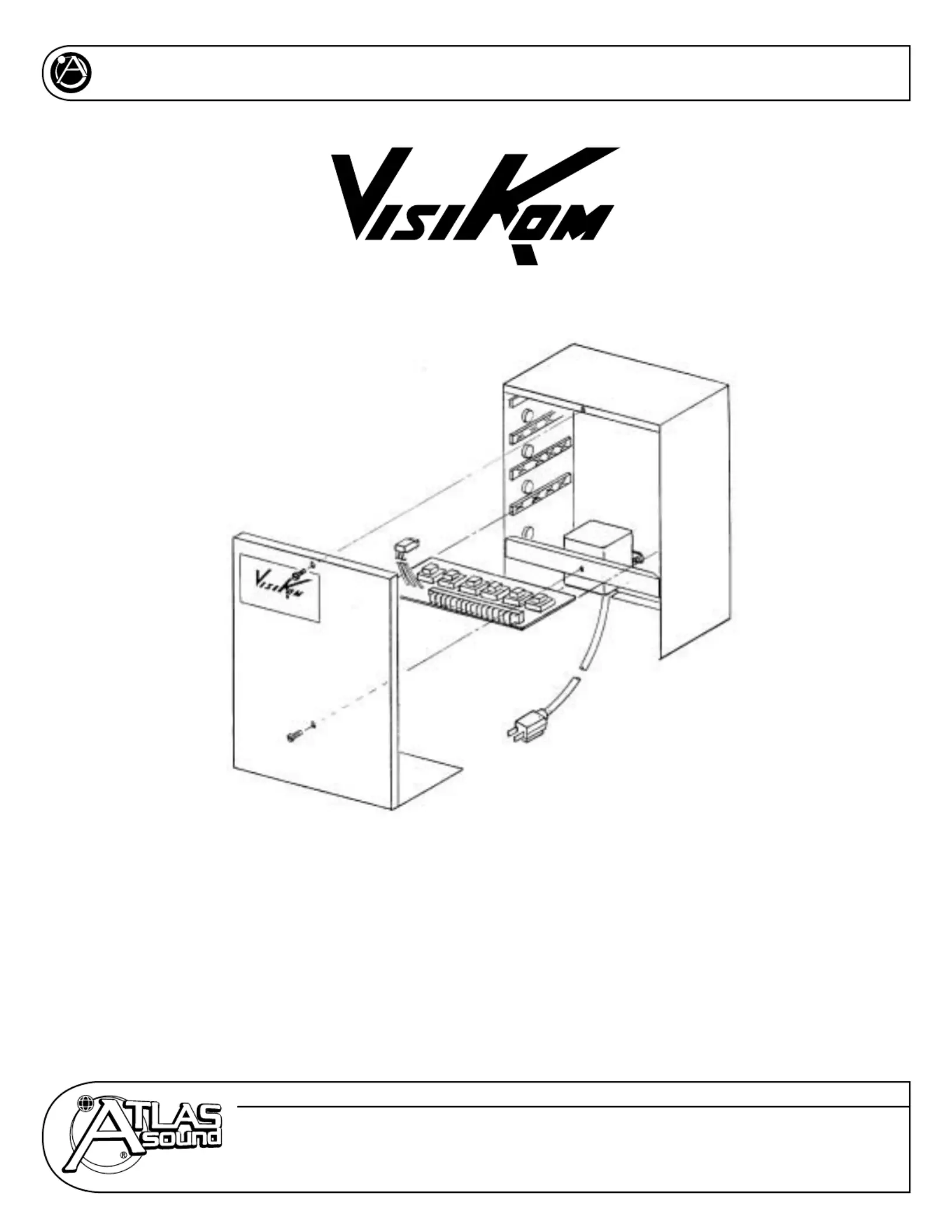

INSTALLATION INSTRUCTIONS
VISIKOM PVP-24, PVP-6
MODEL PVP-24 CONTROL UNIT
MODEL PVP-6 STATION INTERFACE MODULE
The VisiKom System is designed to provide multiple independent phone lines which can each be connected
to two or more telephone stations (Model CE-2-AC or equivalent) in a common talk mode. The unique filter
circuitry used in the PVP-6 Interface Module assures absolute privacy and freedom from crosstalk between
phone lines. The PVP-24 Control unit is completely self-contained and mounts conveniently via key-hole slots
in the chassis. Each PVP-24 will accommodate up to four PVP-6 interface modules which provide six phone
lines each. (Up to 24 phone lines per system.)
The first PVP-6 Module installed in the PVP-24 (top position) plugs into the power supply via a convenient
push-on connector. Each subsequent module plugs into the one above it. Individual phone lines are brought
into the unit through wiring ports in the PVP-24 chassis.
SPECIFICATIONS
PVP-24 Control Unit
PVP-6 Interface Module
Power Supply: 8 VAC, 2A Input: 8 VAC
Dimensions: 9
1
⁄2" W x 13" H x 4
1
⁄2" D Six isolated phone linesOutput:
Capcity: Four PVP-6 modules

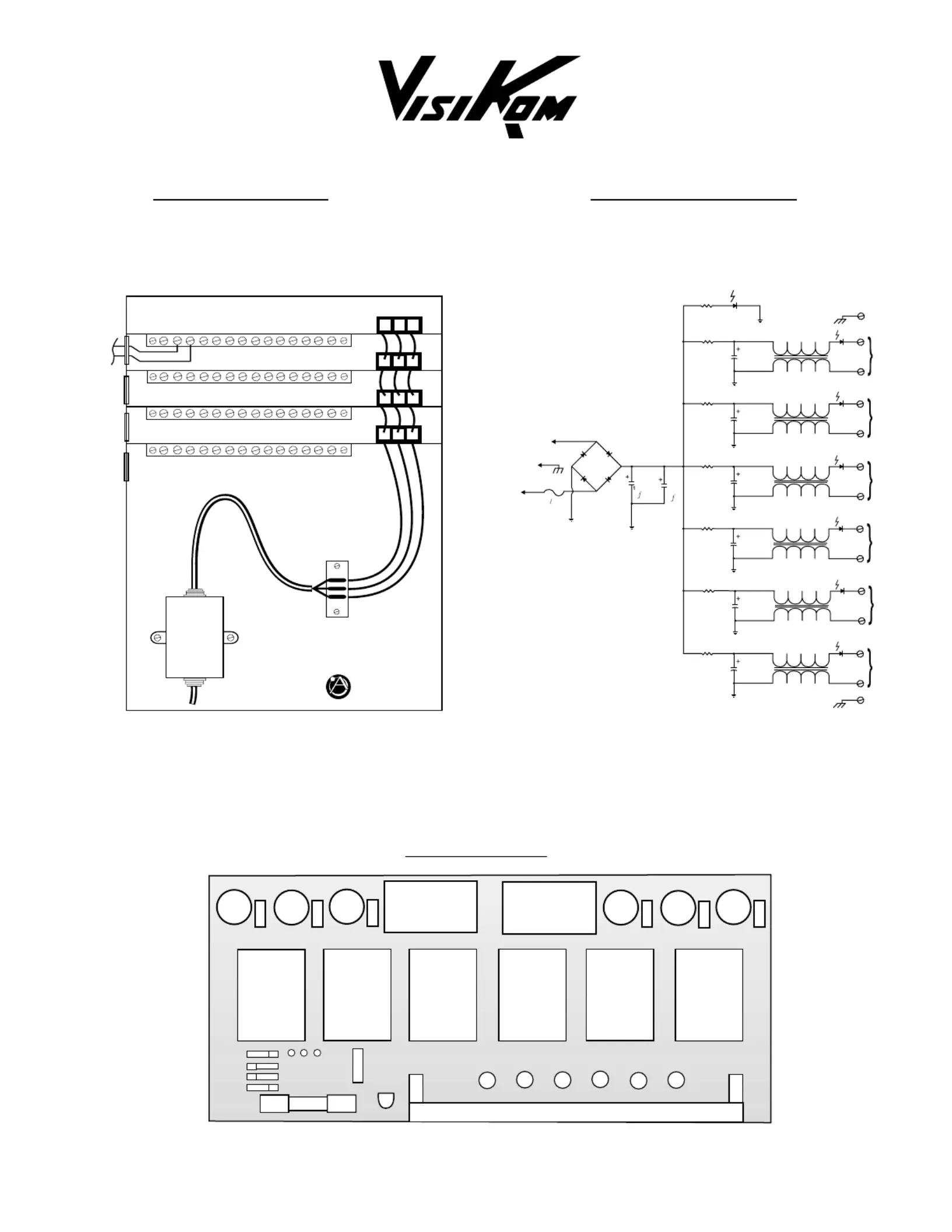

PVP-6 PC Board
– 2 –
GND 1 2 3 4 5 6 GND
MODEL PVP-24
To Visitors
Stations*
(6 per PVP.6)
*If sheilded cable is used, sheild can
be connected to ground terminal at
either end of terminal strip.
Phone
Phone
Phone
Phone
Phone
Phone
GND
GND
1K
1/2W
R7
LED 7
RED
R1R1
R2
R3
R4
R5
R6
C1
C2
C3
C4
C5
C6
T1
T2
T3
T4
T5
T6
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
GND
8 VAC
8 VAC
D1 D2
D3 D4
C7
C8
1500
m
1500
m
1/2A.
Resistors: R1-R-6 47Ω.
1
⁄2W
Capacitors: C1-C6 470mf 35 V
LED1-LED6: Green
LED7: RED
C1
C2
C3
C4
C5
C6
+
+ +
+
+ +
R1
R2
R3
R4
R5
R6
T1
T2
T3
T4
T5
T6
C7
C8
R7
1/2 Amp Fuse
D1
D2
D3
D4
WRT
GPN
WHT
LED 7
GND GND
- +
- + - +
- +
- + - +

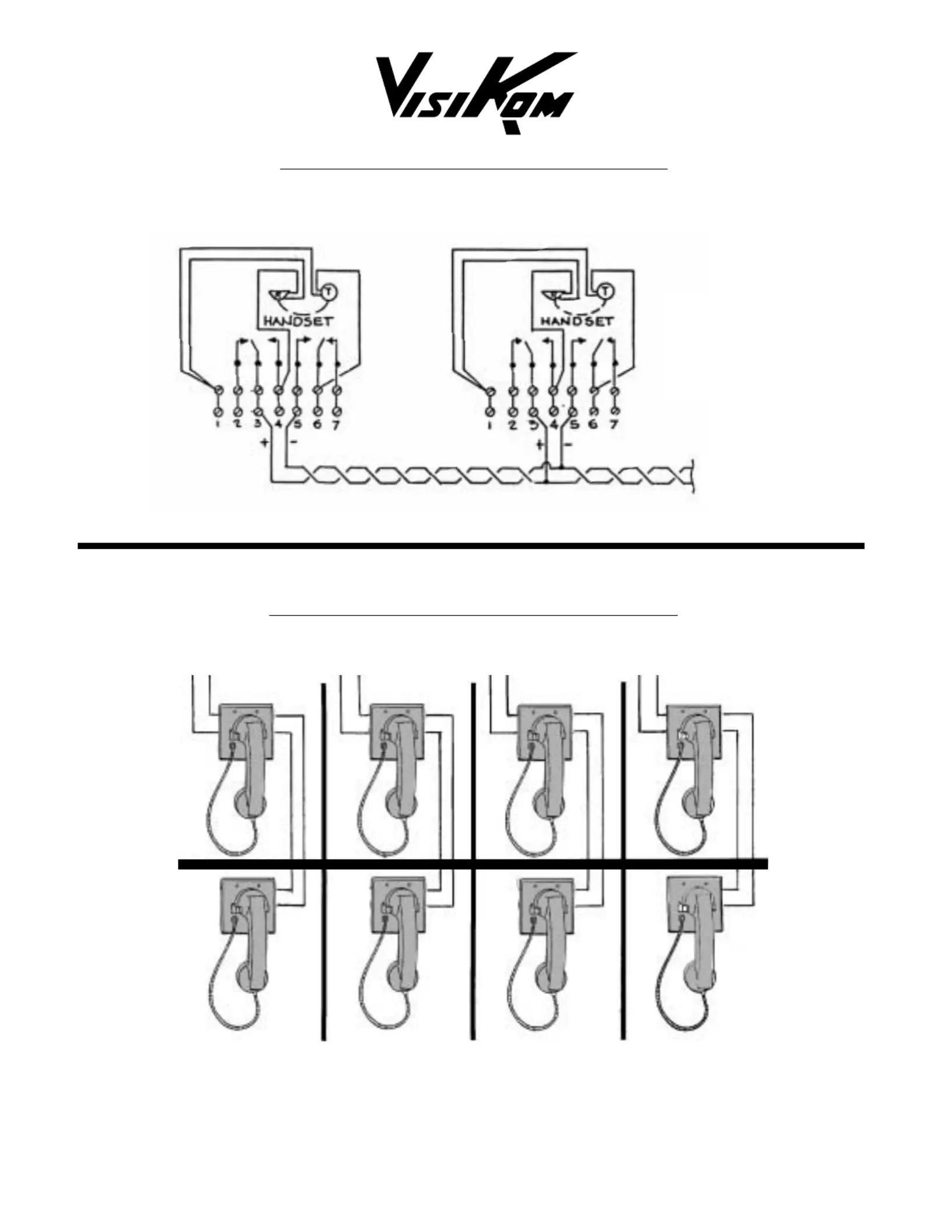

VISITATION PHONE STATION WIRING
Using Model CE-2-AC or Equivalent
TYPICAL
PRISON VISITATION LAYOUT
– – 3
Hook switch shown wIth
handset "On-Hook"
Connect to
PVP-6
To PVP
+ –
To PVP
+ –
To PVP
+ –
To PVP
+ –
Line 1 Line 2 Line 3 Line 4
Phone Stations: Model CE-2-AC or Equivalent
Connect Line to Terminals 3(+) and 5(-)
Note: More than two phone stations may be used per line
