INSTALLATION INSTRUCTION

Volta 2” LED-Wall Wash Round Trim

R2RWT

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

• Read all instructions before installing.

• System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

• Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch “OFF” the

circuit breaker switch(es) that control the power to the xture or room that you are working on.

• Place the wall switch in the “OFF” position.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

• Lisez toutes les instructions avant d’installer.

• Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.

• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).

• Placez l’interrupteur mural en position d’arrêt (« OFF »).

CAUTION

All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or

broken. Failure to follow could invalidate the ETL/cETL listing of this xture.

TRIM MODEL

The trim R2RWT can be used with remodel and new construction round housings. The invisible trim R2RWT can be used only with new

construction round housing. Refer to specication sheets for compatible housing and trim details. Follow appropriate housing instructions

to begin installation.

TRIM INSTALLATION (R2RWT)

1. Raise trim assembly to ceiling cutout.

2. For remodel housing application, connect power connector, install cap onto top of heat sink and turn wing nut to lock cap securely

(no retaining cable) (See FIG.1).

3. For new construction housing application, connect power connector and retaining cable (See FIG.2).

4. Fold trim assembly mounting spring tabs inward and insert trim assembly into ceiling cutout with the angle of heat sink opposite the wall

to be illuminated. Be sure once installed, trim assembly is ush and secure (See FIG.3).

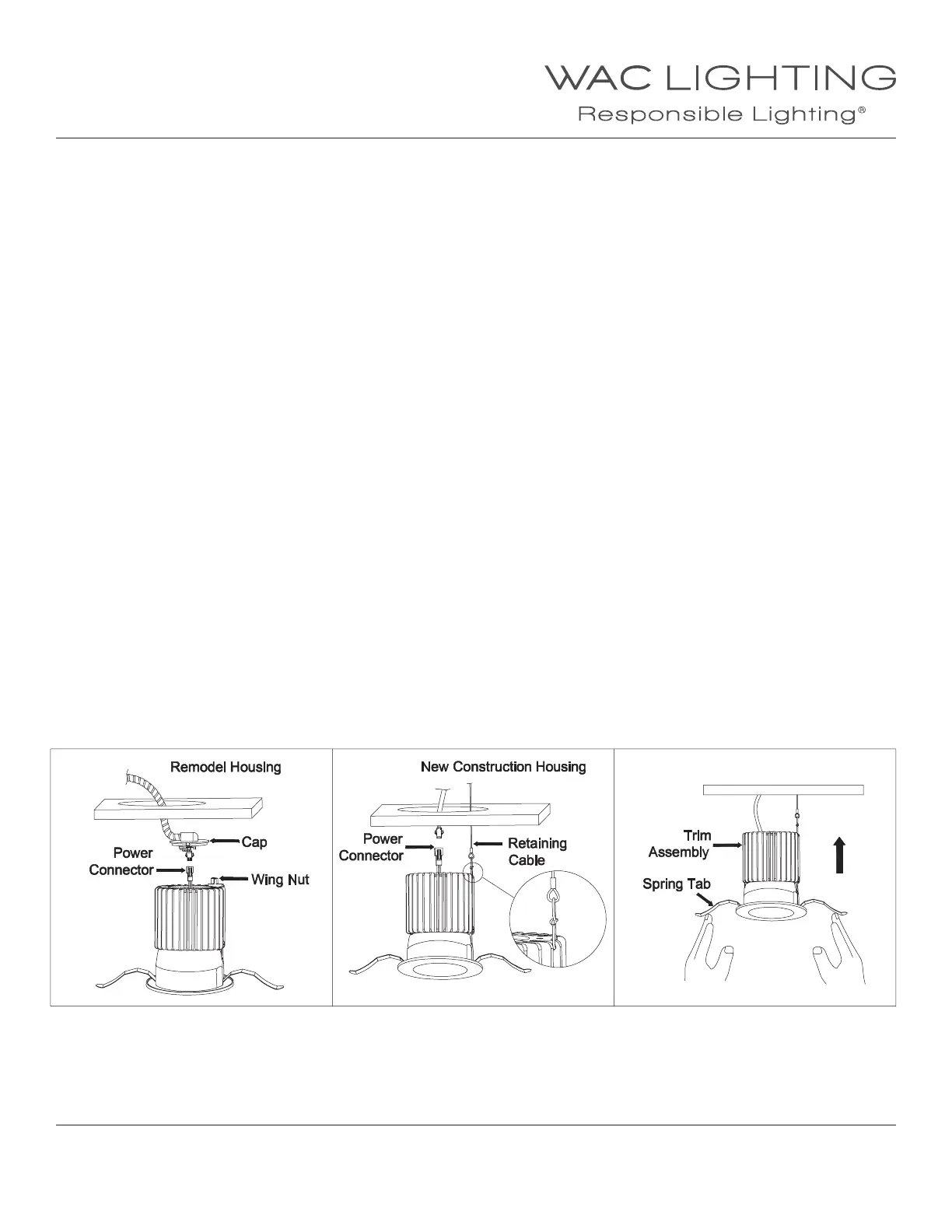

FIG.1FIG.2FIG.3
