INSTALLATION INSTRUCTION

OCULUX 3” LED - New Construction

R3BNICA-10

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

• Read all instructions before installing.

• System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

• Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch “OFF” the

circuit breaker switch(es) that control the power to the xture or room that you are working on.

• Place the wall switch in the “OFF” position.

AVERTISSEMENT

IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

• Lisez toutes les instructions avant d’installer.

• Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.

• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt (« OFF »).

• Placez l’interrupteur mural en position d’arrêt (« OFF »).

CAUTION

All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or

broken. Failure to follow could invalidate the ETL/cETL listing of this xture.

OVERVIEW

Housing is new construction Airtight IC (Refer to table below). Housing requires a trim for nished look. Refer to specication sheets for

compatible trim options.

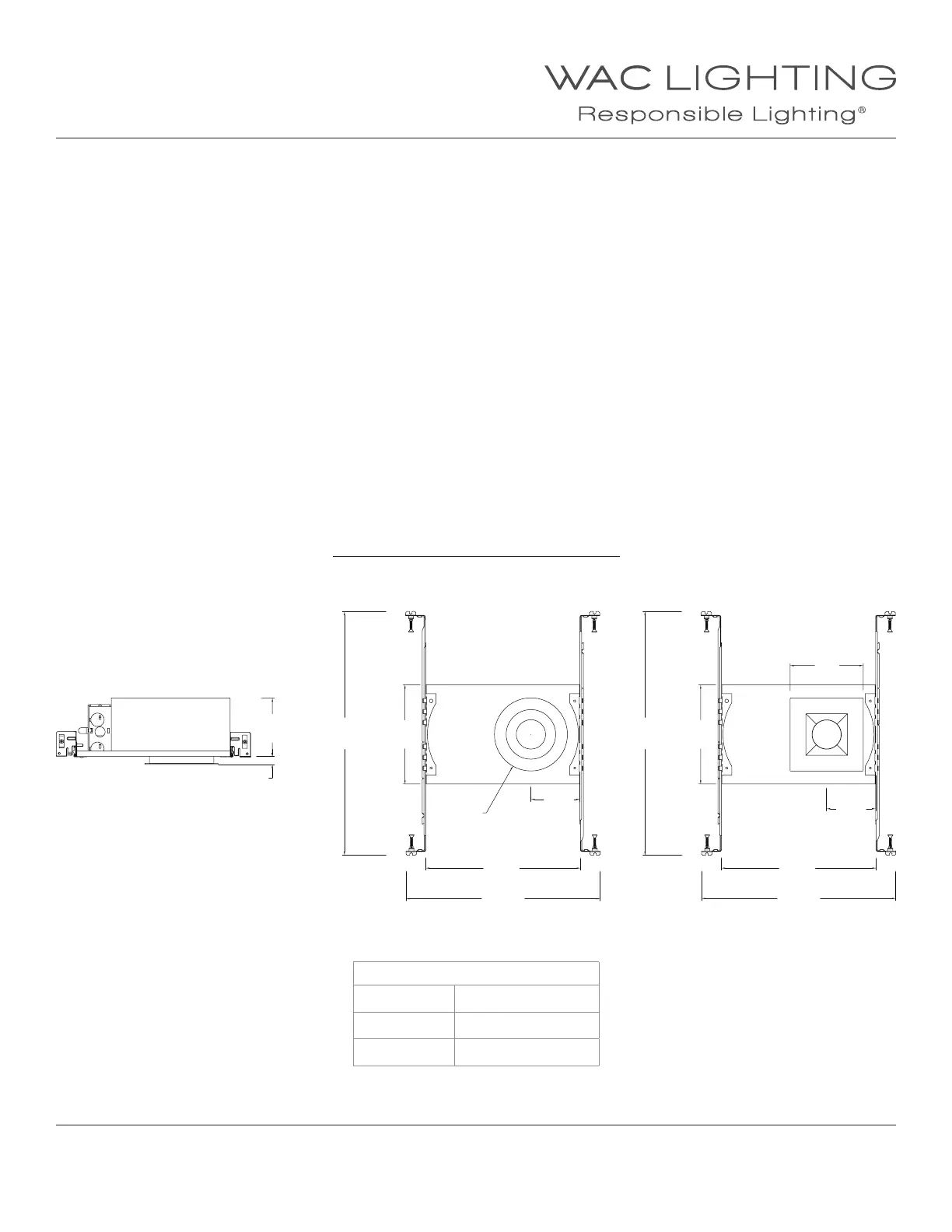

NEW CONSTRUCTION OVERALL DIMENSIONS

SPECIFICATIONS

Input:120V

Installation:IC for all models (11W)

Dimming:ELV / TRIAC / 0-10V

3⁄"

6⁄"6⁄"

Ø4¾"

3⁄"

3⁄"

4¾"

10⁄"10⁄"

12⁄"12⁄"

MIN 14½"

MAX 24½"

MIN 14½"

MAX 24½"

½"
