Waterstone 5130 Bruksanvisning
Läs gratis den bruksanvisning för Waterstone 5130 (7 sidor) i kategorin ej kategoriserat. Guiden har ansetts hjälpsam av 4 personer och har ett genomsnittsbetyg på 3.5 stjärnor baserat på 2.5 recensioner. Har du en fråga om Waterstone 5130 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga
Sida 1/7

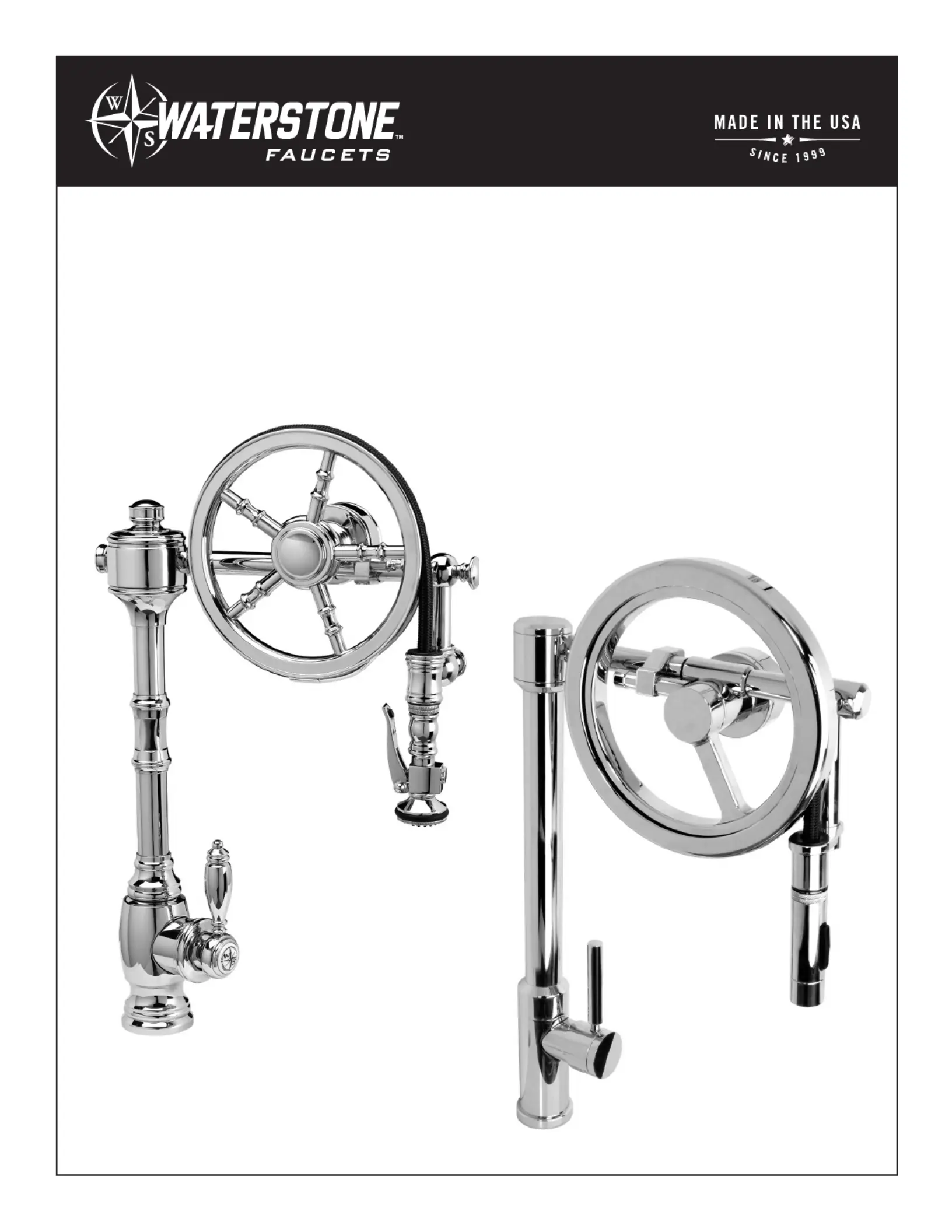

Model #s:
5100
5125
5130
WHEEL P ULLDOWN FAUCET
INSTALLATION INSTRUCTIONS
1 2 3 4
Turn o water supply. Observe all local
plumbing codes.
Inspect plumbing for signs of
damage. Replace as necessary.
DO NOT use petroleum based
products on this faucet.
REQUIRED TOOLS:
Phillips ScrewdriverAdjustable Wrench
Channel Locks

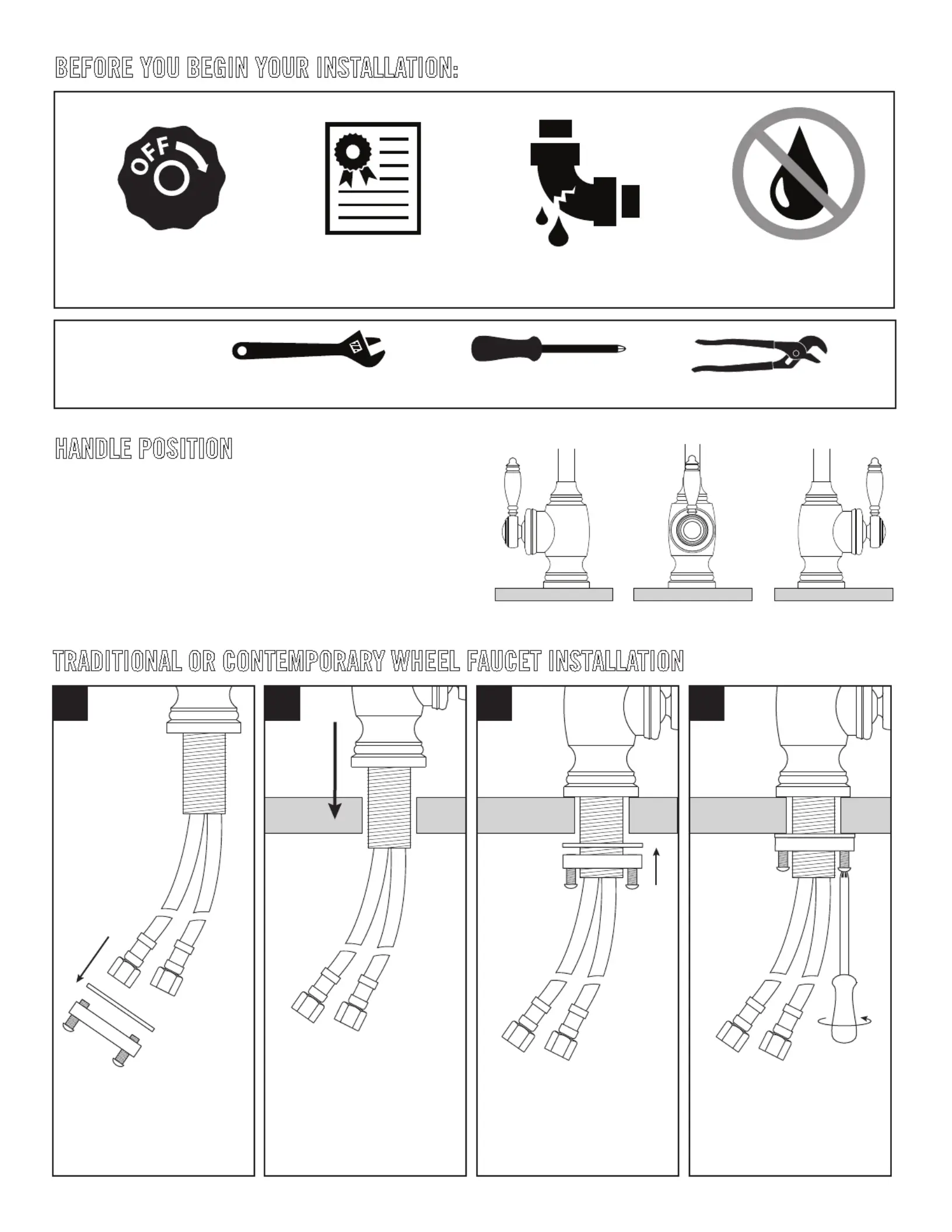

BEFORE YOU BEGIN YOUR INSTALLATION:
Waterstone faucets are designed to be installed in 3 dierent faucet
positions. Choose to have the handle on left, front or right. Your faucet is
factory congured for the most common positions - a front and right side
installation. To reverse this and have the handle positioned on the left,
connect the hose for cold water to the hot supply and the hose for hot water
to the cold supply. This will maintain the relationship of pulling the handle
for hot water or pushing for cold water.
HANDLE ON LEFT HANDLE IN FRONT HANDLE ON RIGHT
HANDLE POSITION
E
COUNTER
OR SINK
D
2. 3. 4.
1.
A
B
C
TRADITIONAL OR CONTEMPORARY WHEEL FAUCET INSTALLATION
Remove the clamp nut (A) and
washer (B) from the threaded
shroud (C).
Slide washer and thread the
clamp nut onto threaded shroud.
Tighten nut snug to underside of
sink or counter.
Turn faucet to the desired handle
position. Securely tighten clamp
screws (E).
Fit exible hoses (D) through hole
on counter or sink. (No plumbers
putty is required. O-ring seals base).
A
C
D
E
F
B
A
B
ORIGINAL FACTORY POSITION
MAY HIT BACKSPLASH
NEW ADJUSTED POSITION
CLEARS BACKSPLASH
HOW TO ADJUST HANDLE POSITION AND HANDLE TENSION
On some kitchen countertops, the handle may hit the backsplash when the faucet handle is positioned to the left or right (Fig. 1). Waterstone gives you the
option of adjusting the handle 45 degrees for traditional or 22 degrees for contemporary models to avoid hitting backsplash. The contemporary models
DO NOT need handle tension adjustment.
FIG.1 FIG.1
TRADITIONAL MODEL 5100 CONTEMPORARY MODELS - 5125, 5130
To remove handle, place a small standard screwdriver in slot at bottom
of metal ring that surrounds handle button (A). Gently pry button from
handle (B). Unscrew and remove holding screw (C) and washer (D).
Hold handle in a vertical position. Wiggle and pull straight o faucet.
Rotate handle away from backsplash 45 degrees then slide handle
back onto valve stem (E). Insert
holding screw with washer
and tighten. Snap handle cap
back into place. To adjust
handle tension, turn ring
(F) clockwise to increase
or counterclockwise
to decrease handle
tension.
H C
A
B
C D
E
F
ORIGINAL FACTORY POSITION
MAY HIT BACKSPLASH
NEW ADJUSTED POSITION
CLEARS BACKSPLASH
To remove handle, unscrew and remove metal cap (A) and hot/cold
indicator ring (B). Unscrew and remove holding screw (C) and washer
(D). Hold handle (E) in a vertical position. Wiggle and pull straight o
faucet. Rotate handle 22 degrees away from backsplash then slide
handle back onto valve stem (F). Insert holding screw with washer and
tighten. Slide hot/cold indicator ring
(optional) onto handle and thread
metal cap back into place. The
contemporary models need DO NOT
handle tension adjustment.
A B EC D
F
Before connecting supply hoses,
ush supply stops to clear any
debris. Place a bucket underneath
stops and run water for 5 to 10
seconds. Turn water o. Carefully
position hot and cold supplies so
they will not interfere with other
hoses. Connect supply hoses (A) to
supply stops (B). use teon DO NOT
tape or plumbers putty. Turn water
back on and check for leaks.
CONNECTING SUPPLY HOSES
To change button, nd the
slot (A) at bottom of
retainer ring (B). With a
small standard screwdriver,
g
ently pry retainer
ring
from faucet handle (C).
Remove button assembly (D). Insert new button
by lining up pin (E) on handle
with hole (F) on bottom of
button assembly. With
slot facing down, press
the button retainer
ring rmly back
into place.
OPTIONAL DECORATIVE BUTTONS
