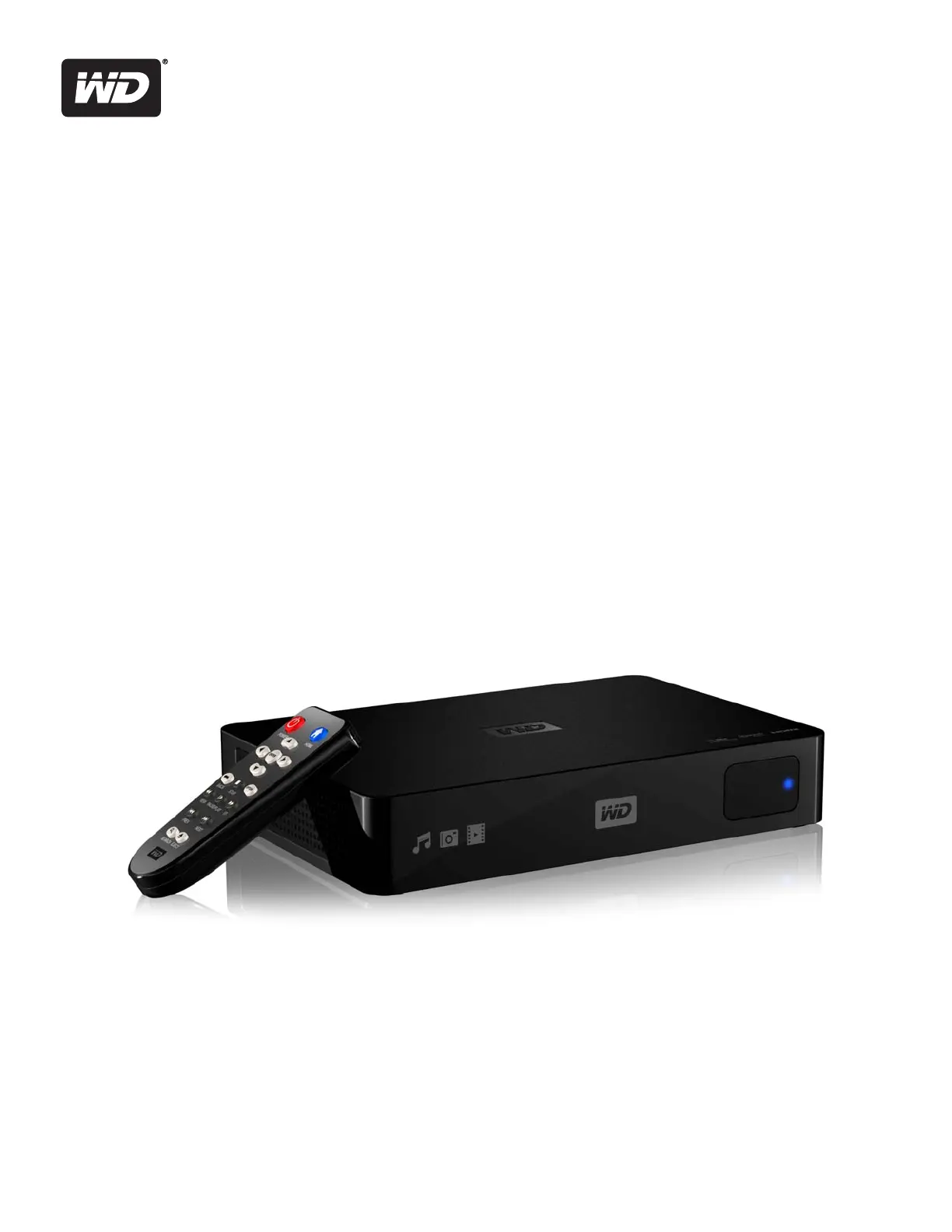

WD Elements™Play
Multimedia Drive
User Manual
WD® Service and Support
Should you encounter any problem, please give us an opportunity to address it before returning
this product. Most technical support questions can be answered through our knowledge base
or e-mail support service at http://support. wdc.com. If the answer is not available or, if you
prefer, please contact WD at the best telephone number shown below.
Your product includes 30 days of free telephone support during the warranty period. This
30-day period starts on the date of your first telephone contact with WD technical support.
E-mail support is free for the entire warranty period and our extensive knowledge base is
available 24/7. To help us keep you informed of new features and services, remember to
register your product online at http://register.wdc.com.
Accessing Online Support
Visit our product support website at http://support. wdc.com and choose from these topics:
Downloads - Download drivers, software, and updates for your WD product.
Registration - Register your WD product to get the latest updates and special offers.
Warranty & RMA Services - Get Warranty, Product Replacement (RMA), RMA Status,
and Data Recovery Information.
Knowledge Base - Search by keyword, phrase, or answer ID.
Installation - Get online installation help for your WD product or software.
Contacting WD Technical Support
When contacting WD for support, have your WD product serial number, system hardware, and
system software versions available.
North America Asia Pacific
English 800.ASK.4WDC Australia 1 800 42 9861
(800.275.4932) China 800 820 6682/+65 62430496
Spanish 800.832.4778 Hong Kong +800 6008 6008
India 1 800 11 9393 (MNTL)/1 800 200 5789 (Reliance)
011 26384700 (Pilot Line)
Europe (toll free)* 00800 ASK4 WDEU Indonesia +803 852 9439
(00800 27549338) Japan 00 531 650442
Korea 02 719-3240
Europe +31 880062100 Malaysia +800 6008 6008/1 800 88 1908/+65 62430496
Middle East +31 880062100 Philippines 1 800 1441 0159
Africa +31 880062100 Singapore +800 6008 6008/+800 608 6008/+65 62430496
Taiwan +800 6008 6008/+65 62430496
* Toll free number available in the following countries: Austria, Belgium, Denmark, France, Germany, Ireland, Italy,
Netherlands, Norway, Spain, Sweden, Switzerland, United Kingdom.
TABLE OF CONTENTS – i
Table of Contents
1 Important User Information . . . . . . . . . . . . . . . . . . . . 1
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Recording your WD Product Information . . . . . . . . . . . . . . . . . . . . . 2
Registering your WD Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Features and Functions . . . . . . . . . . . . . . . . . . . . . . . 4
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating System Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Operating the Multimedia Drive. . . . . . . . . . . . . . . . 18
Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the Multimedia Drive Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 19
File Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Auto Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 Watching Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Video Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Video Playback Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Video Playback Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7 Playing Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Music Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Music Playback Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
TABLE OF CONTENTS – ii
8 Viewing Photos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Photo Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Photo Display Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Photo Slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9 Settings and Advanced Features. . . . . . . . . . . . . . . 38
Settings Navigation Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Available Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Locating Media Content. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10 System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 46
System Firmware Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Common Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installing, Partitioning, and Formatting the Drive . . . . . . . . . . . . . . . 49
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
11 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Supported Media File Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
WD ELEMENTS PLAY MULTIMEDIA DRIVE
USER MANUAL
IMPORTANT USER INFORMATION – 1
Important User Information
Important Safety Instructions
This device is designed and manufactured to assure personal safety. Improper use
can result in electric shock or fire hazard. The safeguards incorporated into this unit
will protect you if you observe the following procedures for installation, use, and
servicing.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
Do not expose the batteries or the remote control with batteries installed to
excessive heat (direct sunlight, fire, etc.).
Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for long periods
of time.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
Carefully read and follow the Quick Install Guide and User Manual.
Do not operate this device outside the temperature range of 5°C–35°C
(41°F–95°F).
Do not drop or shake the device.
Do not move the device when it is powered on.
Power supply cords should be routed so that they are not likely to be walked on
or pinched by items placed upon them or against them.
Do not overload wall outlets.
For additional safety information, refer to www.wdc.com.
1
WD ELEMENTS PLAY MULTIMEDIA DRIVE
USER MANUAL
PRODUCT OVERVIEW – 3
Product Overview
Thank you for purchasing the WD Elements Play multimedia drive. This user manual
provides step-by-step instructions for installing and using your new multimedia drive.
For the latest WD product information and news, visit our website at
www.westerndigital.com.
The WD Elements Play multimedia drive is an easy, affordable way to supersize your
movies and photos on your big-screen TV and play your music collection on your
home entertainment center. Save your media collection on the multimedia drive, then
simply connect the drive to your TV and you’re ready to enjoy all your digital media in
Full-HD 1080p resolution.
Full-HD 1080p resolution – Experience spectacular Full-HD video picture quality
and crystal-clear digital audio. The HDMI port lets you connect to the highest quality
HDTV or home theater.
Plenty of room for your media collection – The built-in high capacity hard drive
offers room for tons of media. If you need more space, plug USB drives into the
available ports.
Supports a wide variety of file formats – Most popular formats are supported
including RMVB, H264, and MKV.
Camera compatible – Connect your digital camera or camcorder and play or
transfer content from your camera to the drive.
Easy, intuitive user interface – Simple, intuitive and beautiful, the user interface
provides the following navigation options:
DVD navigation with complete menu navigation, chapter listings, special
features, and subtitles
Photo slideshow with unique transitions and music on your HDTV
Supports photo thumbnails, video cover art and music album art
Music playlist support for PLS, M3U, WPL file types
Preview your video during navigation
Multi-language subtitle support for video playback
Automatic play – Set the player to play a selected media file automatically when
the unit is turned on. Perfect for living art on your HD TV or for digital signage.
Composite video connection – Composite (RCA) outputs ensure compatibility
with virtually all television sets.
Digital optical audio – High fidelity audio or pass-through digital audio signal to
your AV receiver for surround sound experience. Supports SPDIF and Dolby Digital
native playback.
2
WD ELEMENTS PLAY MULTIMEDIA DRIVE
USER MANUAL
FEATURES AND FUNCTIONS – 4
Features and Functions
Features
Audio/Video Interface
HDMI 1.4 interface for digital audio and high-definition video
Composite interface (RCA yellow/white/red) for analog AV connection
Toslink (optical) audio for high-fidelity digital audio
Video output resolution includes 480i and 576i (composite interface), or 480p,
576p, 720p, 1080i, and 1080p (HDMI interface)
Stereo or multi-channel digital surround (pass through only) audio output
Advanced Navigation Options
Thumbnail and list views—browse your content by filename or by thumbnails of
photos, album covers, and movie preview
Search—search by filename and partial filename
Content Playback
The multimedia drive is capable of playing several different types of multiformat files.
For a detailed list of supported formats, go to “Supported Media File Formats” on
page 52. The included remote control lets you quickly browse through your media
and configure settings.
Photo Viewing
Create custom slide shows with a variety of transitions
Zoom, pan, repeat, shuffle, and rotate
Movie Viewing
Fast forward, rewind, previous, next, pause, repeat, shuffle, and zoom
View subtitles
View video menu (if supported by the file format)
Video preview (if supported by the file format)
Music Playback
Fast forward, rewind, pause, shuffle, and repeat
View album art
File Management:
View all files together
Copy or delete files directly from the TV
3
WD ELEMENTS PLAY MULTIMEDIA DRIVE
USER MANUAL
FEATURES AND FUNCTIONS – 5
Additional Features
Real Media (RMVB) playback
Plug-and-play convenience
Popular media format support
Metadata support
Thumbnail support
Aggregated music/photo/video view
HDMI or composite video outputs
Toslink (optical) audio output
Plug-n-Play USB 2.0 Support
USB storage device with a USB connector
Portable multimedia drives with USB connector
Digital cameras with USB connector
For a list of tested, compatible USB devices, see Article #5675 in our knowledge
base at http://support.wdc.com.
USB Storage File System Support
NTFS
HFS+
HFS+Journaling (read only)
For instructions on how to disable Journaling, see Article #2615 in our knowledge
base at http://support.wdc.com.
WD ELEMENTS PLAY MULTIMEDIA DRIVE
USER MANUAL
FEATURES AND FUNCTIONS – 6
Connections
Item Component Description
1 USB port Supports connection of removable storage devices, portable
multimedia drives, and digital cameras with USB connectors
2 Power jack Connects the power adapter
3 Mini USB port Supports connection of the multimedia drive to a computer as
an external USB storage device for content transfer.
4 HDMI port Connects to your TV’s HDMI port (HDMI cable sold separately)
5 Composite jacks Connect to your TV’s analog video and audio jacks
(composite cable sold separately).
Note: When making an audio connection through the Toslink
(optical) port, only the composite video connection is required.
6 Toslink (optical) audio port Connects to your AV receiver (Toslink cable sold separately)
7 Reset switch Reset the multimedia drive to factory settings (using a fine-
tipped stylus or the unfolded end of a paperclip)
1 2 3 4 5 67
Produktspecifikationer
| Varumärke: | Western Digital |
| Kategori: | Extern hårddisk |
| Modell: | WD Elements |
Behöver du hjälp?
Om du behöver hjälp med Western Digital WD Elements ställ en fråga nedan och andra användare kommer att svara dig
Extern hårddisk Western Digital Manualer
30 September 2024
17 September 2024
29 Augusti 2024
29 Augusti 2024
28 Augusti 2024
25 Augusti 2024
24 Augusti 2024
24 Augusti 2024
20 Augusti 2024
20 Augusti 2024
Extern hårddisk Manualer
- Extern hårddisk Silvercrest
- Extern hårddisk ADATA
- Extern hårddisk Trekstor
- Extern hårddisk Sonnet
- Extern hårddisk Dane Elec
- Extern hårddisk Digitus
- Extern hårddisk OWC
- Extern hårddisk Hitachi
- Extern hårddisk Inter-Tech
- Extern hårddisk Inateck
- Extern hårddisk SecureData
- Extern hårddisk Storex
- Extern hårddisk Origin Storage
- Extern hårddisk SanDisk
- Extern hårddisk Hamlet
Nyaste Extern hårddisk Manualer
30 Mars 2025
3 Mars 2025
20 Februari 2025
20 Februari 2025
20 Februari 2025
20 Februari 2025
20 Februari 2025
17 Februari 2025
31 Januari 2025
4 Januari 2025
