Sida 1/32

Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343

Instruction Manual

Thank you for choosing this WyreStorm product.

Please read these instructions carefully before installing to avoid complications later.

Wyrestorm HDBaseT

Class D Digital Audio Amplier / Receiver / Repeater

Part Number AMP-001-010

Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343

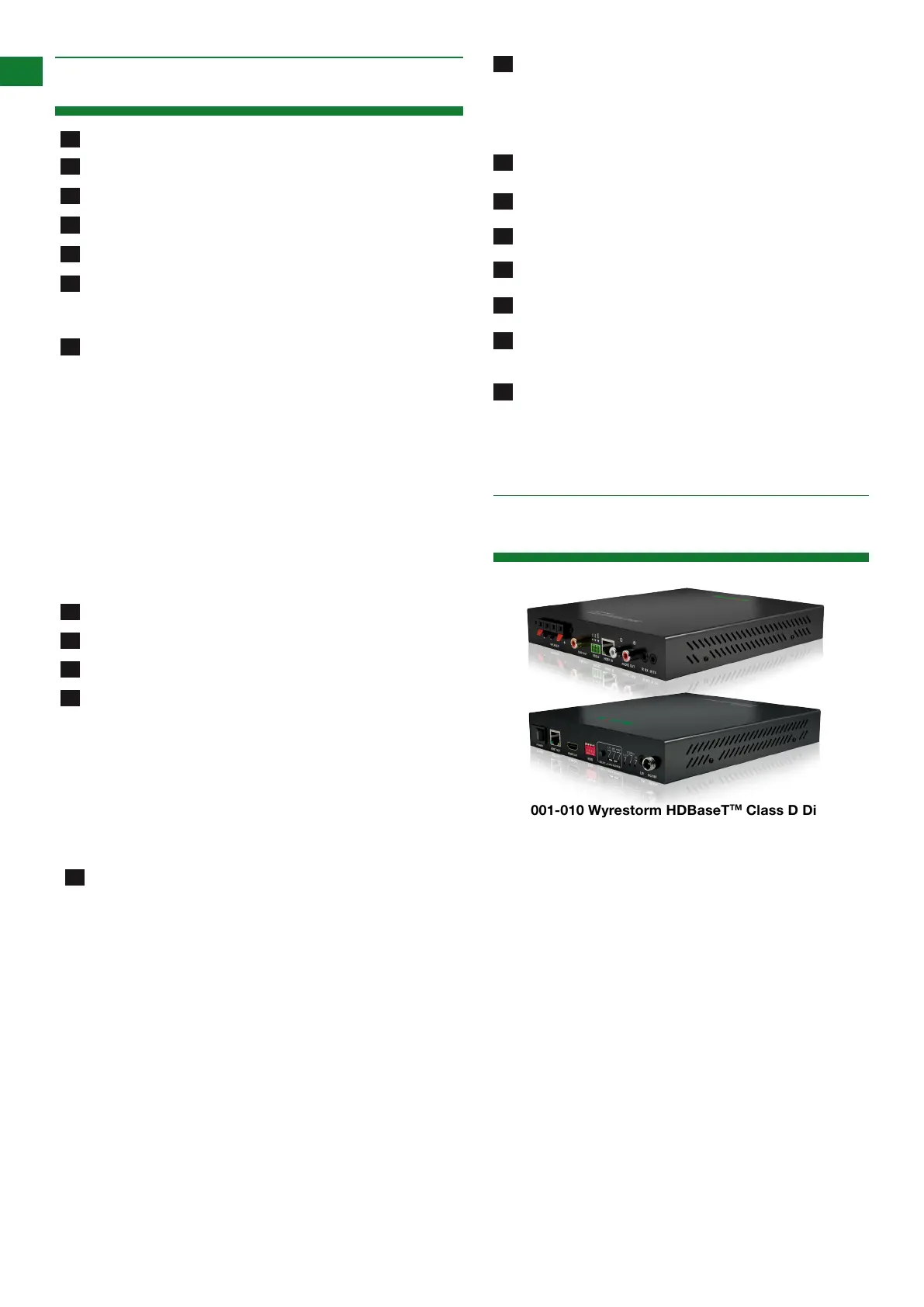

Contents

1. Introduction

CONTENTS AND INTRODUCTION

AMP-001-010 Wyrestorm HDBaseT

Class D Digital

Audio Amplier / Receiver / Extender

The Wyrestorm AMP-001-010 is a unique HDBaseT

Class D digital audio amplier with receiving and repeating

functionality that fundamentally changes the way to approach

the design of multi-room audio-visual systems.

Fully cascadable (daisy-chained) over multiple 70m/230ft

distances up to 7 times using a single Cat5e cable to create

larger distributions. It also offers HDMI/HDBaseT reception

and pass-thru, 2.1 audio amplication with subwoofer and

stereo preouts for connection to an AVR and HDMI breakout

with bidirectional control of source/display from either

location via IR/RS232.... and so much more.

Feature rich and highly versatile, the AMP simplies,

combines and improves the relationship between HDMI,

HDBaseT and stereo audio for integrators by incorporating

3:1 audio switching from centralized AV sources and ARC or

local audio input.

Introduction

Features

Safety Precautions

Package Contents

Panel Descriptions

i. Front

ii. Rear

EDID Management

i. About EDID

ii. Before EDID adjustment

iii. EDID Pre-sets

RS232 Application Scenarios

i. Understanding RS232 Connection & Signals

ii. Zonal IR for Cascading Multiple Independently

Controlled AMP units

iii. Global IR for Cascading Multiple Collectively controlled

AMP units

iv. Hybrid IR for combination of Zonal and Global IR

control of multiple AMP units

v. RS232 Addressing

vi. Routable RS232 with Wyrestorm POH-enabled

HDBaseT Matrices - MX-PP-POH

vii. Residential RS232 HDBaseT Addressing example

viii. Example system topology showing multiple, dierently

addressed amps.

ix. Commercial RS232 HDBaseT Addressing example

Specications

Basic Operation

Remote Control Handset Operation

Application Scenarios and installation benets

i. Basic Centralized Source

ii. Extended Centralized Source

iii. Basic Matrix

iv. Extended Matrix

v. AMP-001-010 as Display Receiver

vi. AMP-001-010 as In-line Solution

vii. Central Conguration

Onscreen User Interface

Connection and Operation

i. Cabling Guide

ii. RJ45 Termination

iii. Initial Connection

iv. IR/RS232 Control Connection

v. Optional Device Connection

- Personal Device Audio Input

- Speaker Connection

- Subwoofer

- External Power Amplier

- Supported Speaker Types

vi. Interface Device

Maintenance

FAQ’s

Troubleshooting

Provided Service

Mail In Service

Installation Notes

Warranty

i. Warranty Limits and Exclusions

Technical Support: support@wyrestorm.com US: +1 866 677 0053 EU: +44 (0) 1793 230 343

FEATURES AND SAFETY PRECAUTIONS

Employing a switching topology, the low voltage, energy

efcient digital Class D amplication delivers power to the

speaker load exclusively with very little power wasted in

operation. This increase in efciency has the main benet

of lowering heat dissipation and reducing the size of the

amplier assembly. If properly executed, most D-class

ampliers typically have a much smaller form factor and a

lower BOM cost than comparable Class-A/AB/B units.

In terms of installation, it can be used locally in-room as a

display device, remotely in-rack or centrally at any point in-

line for one of the most exible and powerful applications of

HDBaseT technology to date.

The AMP-001-010 is the rst product of its kind and

represents Wyrestorm’s innate understanding and

appreciation of the AV installation by continually pushing the

boundaries of what is possible to offer innovative products

that add great value to any residential or commercial

application, whatever the size or budget.

www.wyrestorm.com

2. Features

• Combined HDBaseT Repeater, Receiver and Class D Amplier – all in

one.

• Compact and easy to install & use with single Cat5e/6 cabling –

applies the same basic integration principles for residential, light or

major commercial projects.

• Flexible and versatile – multitudes of application scenarios from basic

extender to complex volume digital AV distribution installed at any

point during a cable run.

• HDBaseT Input and pass-thru with HDBaseT Output.

• 3:1 Audio Switcher/Receiver – Audio from centralized source via

HDBaseT Transmitter or Matrix Device, Audio Return Channel (ARC)

or Local Audio Input via 3.5mm.

• AMP used centrally with AV source, In-line near speakers, wall

mounted near data connections or locally at display location.

• 70m/230ft transmission distance between device and AMP > then

another 70m/230ft to next AMP.

• Fully cascadable up to 7 times from single transmitting device (Matrix

or HDBaseT transmitter).

• HDMI output for direct connection of HD display either in-line to each

AMP connected or at the end of the run.

• 2.1 stereo audio at 25w per channel - amplier capability to drive

4, 6 & 8 Ohm speaker loads.

• High quality preamplier adjustment for tone/volume/sub/mute

control.

• Variable Analog line level outputs.

• Analog (RCA) Subwoofer output.

• Stereo speaker amplied outputs with left/right spring terminal

connections.

• Bidirectional control of source and display via IR or RS232 (IR control

signal passed within HDMI transmission).

• Options range from basic control of devices using IR TX and RX ports

to fully integrated control via leading control systems using RS232.

• Commands (Tx, Rx, Gnd) sent with HD Audio & V ideo contained

within a single Cat5e/6

• AMPs addressable via RS23 • RS232 Port for rmware update or

RS232 control signal transmission.

• EDID management and pre-sets via DIP switch.

• LED indication – power status, audio source selection (HDBaseT,

Local or ARC).

• HDMI v1.4 features supported.

• HDCP compliant.

• Internal ESD protection.

• Compact size for exible integration location.

• Mounting brackets supplied.

Part Number AMP-001-010

3. Safety Precautions

1. Do not expose this apparatus to rain, moisture,

sprays, drips or splashes and ensure that no

objects containing liquids are placed on the

apparatus, including cups, glasses and vases.

2. Do not place this unit in a conned space such as

enclosed shelving, cabinets or bookshelves.

Ensure the unit is adequately ventilated.

3. To prevent the risk of electric shock or re hazard

due to overheating, do not cover the unit or

obstruct ventilation openings with material,

newspaper, cardboard or anything that may restrict

airow into the unit.

4. Do not install near external heat sources such as

radiators, heat registers, boilers or any device that

produces heat such as ampliers or computers and

do not place near sources of naked ame.

5. Unplug apparatus from power supply during

lightening storms or when unused for long periods

of time.

6. Protect the power cable from being walked on,

pinched or restricted in any way, especially at plug

connections.

7. Only use attachments/accessories specied by the

manufacturer.

8. Units contain non-servicable parts - Refer all

servicing to qualied service personnel.

WARNING

To reduce the risk of re, electric shock

or product damage:

Technical Support: support@wyrestorm.com US: +866 677 0053 EU: +44 (0) 1793 230 343

FEATURES AND SAFETY PRECAUTIONS

MX0404-QI

• Quick and easy installation – set up in seconds straight out of

the box.

• Simplied ports - Input: HDMI – Output: integrated RJ45

connectors for a single Cat5e/6/7 UTP cable to each display

point for ease of installation.

• Conforms to IEEE-568B standards

• Each HDMI port also supports DVI signals.

• Each Output port can be fed to multiple displays (cascaded).

• Enables up to 4 HDMI video/audio devices to be independently

switched through up to 4 HDMI displays or projectors for

uncompressed digital distribution.

• Each output able to show any connected source simultaneously

regardless of whether the input carries HDCP encryption.

• Rened for Custom Install and Home Theatre Installations.

• Reads and copies EDID from connected devices with additional

EDID conﬁguration through customisable DIP switch settings if

necessary.

• 2k resolution supported.

• Fully 3D compatible – Frame sequential 3D (Blu-ray) and

interlaced stereoscopic 3D (satellite broadcasts etc.)

• Supports all high denition resolutions up to and including

1080p and standard video formats.

• RS232 port.

• Choose from 6 switching modes – infrared remote control, front

panel buttons, local IR, IR call-back, LAN and RS232.

• Simple switching remote control included, which can also be

learned into a universal remote handset to allow the control of

multiple devices from one handset.

• Fully compatible for integration with market leading control systems.

• 4 x IR 3.5mm mini-jack ports for each output to link IR from

control system to control display

• Additional infrared extension port for longer IR connections

• HDMI v.1.3

• Supports 24Bit Colour depth

• Signalling rate of 6.75 Gbps

• Pack comes complete with 1 x 4x4 Matrix with 19” rack

brackets, 4 x 40m IR receivers with mounting brackets, IR

receivers, emitters and a Matrix remote control handset.

Additional features included on the RX-1UTP-IR-40

• Transmits one-way signal together with the HDMI signal over a

single Cat5e/6/7 cable.

• Receivers capable of 1080p transmissions up to 40m (131ft)

under ideal conditions*

• For even greater control and ne tuning, each receiver features

a fully adjustable EQ distance range for optimising the

transmission signal.

2. Features

3. Safety Precautions

1. Do not expose this apparatus to rain, moisture, sprays,

drips or splashes and ensure that no objects containing

liquids are placed on the apparatus, including cups,

glasses and vases.

2. Do not place this unit in a conﬁned space such as

enclosed shelving, cabinets or bookshelves. Ensure the

unit is adequately ventilated.

3. To prevent the risk of electric shock or ﬁre hazard due to

overheating, do not cover the unit or obstruct ventilation

openings with material, newspaper, cardboard or

anything that may restrict airﬂow into the unit.

4. Do not install near external heat sources such as

radiators, heat registers, boilers or any device that

produces heat such as ampliﬁers or computers and do

not place near sources of naked ﬂame.

5. Unplug apparatus from power supply during lightening

storms or when unused for long periods of time.

6. Protect the power cable from being walked on, pinched

or restricted in any way, especially at plug connections.

7. Only use attachments/accessories speciﬁed by the

manufacturer.

8. Units contain non-servicable parts - Refer all servicing to

qualiﬁed service personnel.

WARNING

To reduce the risk of ﬁre, electric shock

or product damage:

• Protection against ESD (electrostatic discharge) included within

the unit to further stabilise transmission.

• LED indications for clear power and video signal selection.

• 5v mains supply included but receivers may be powered through the

USB port of the display using Wyrestorm USB to 5v power adaptor)

• Fully cascadable to further lengthen transmission.

*NOTE: ideal conditions denote cable run is within

speciﬁed distance range of product, no electrical

interference, the use of straight cable runs with no bends

or kinks and no patch panels or wall outlets used. Please

be advised that the presence of any of these factors in

your installation may compromise bandwidth and signal

strength. For longer transmission distances, RS232 control

and Ethernet pass-through, please see our full HDBaseT

or HDBT Lite range of matrices, transmitters, receivers and

extender sets.

USB to 5V Cable

Part Number

CAB-USB-5V

Produktspecifikationer

Varumärke:	WyreStorm
Kategori:	mottagare
Modell:	AMP-001-010
Vikt:	680 g
Bredd:	202 mm
Djup:	178 mm
Höjd:	31 mm
LED-indikatorer:	Ja
Maximal räckvidd:	70 m
Videoingång:	HDMI
Ljudutgångskanaler:	2.1 kanaler
Total harmonisk distorsion (THD):	- %
Toppeffekt per kanal:	- W
Produktens färg:	Svart
Strömförbrukning (vanlig):	45 W
Temperatur vid drift:	-5 - 35 ° C
Intervall för relativ operativ luftfuktighet:	5 - 90 %
Video ut:	HDMI
Anslutningsteknologi:	Kabel
Likströmsingång:	Ja
Antal ljudutgångar vänster/höger:	1
Manual:	Ja
Inbyggd ljuddekoder:	DTS-HD Master Audio, Dolby TrueHD
Signal/brusförhållande (SNR):	- dB
Maximal input nivå:	1 V
