Digital & Analog Audio Extractor

with 18Gbps HDMI Passthrough

EXP-CON-AUD-H2 Quickstart Guide

EXP-CON-AUD-H2 Quickstart Guide | 200330

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

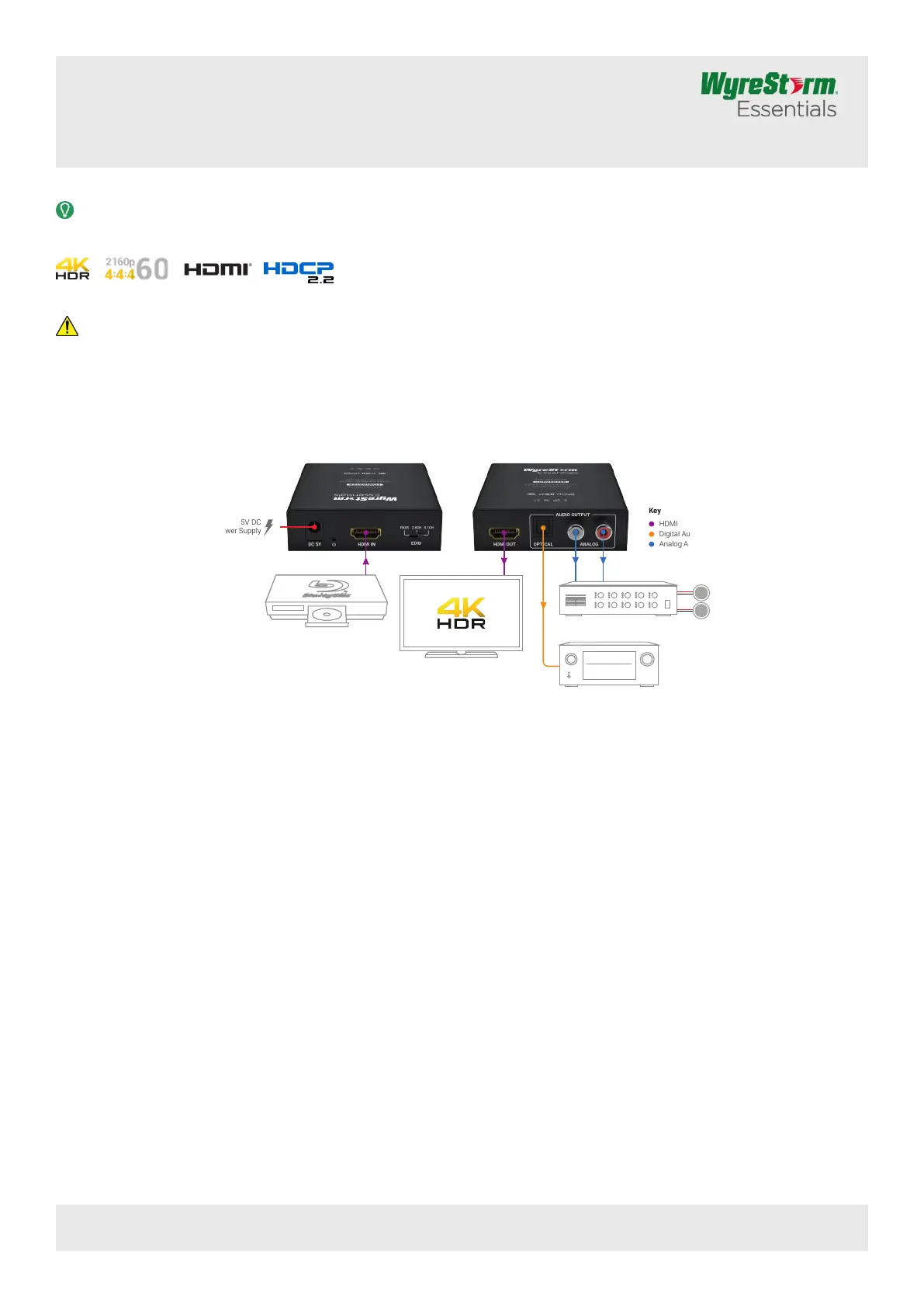

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Visit the product page to download the latest documentation.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

In the Box

1x EXP-CON-AUD-H2 Audio Converter

1x 5V DC 1A Power Supply with Wall Adapters

2x Mounting Brackets

Key

Digital Audio

HDMI

Analog Audio

HDMI Source

AVR

Multiroom Amplifier

5V DC

Power Supply

4K/UHD HDMI Display

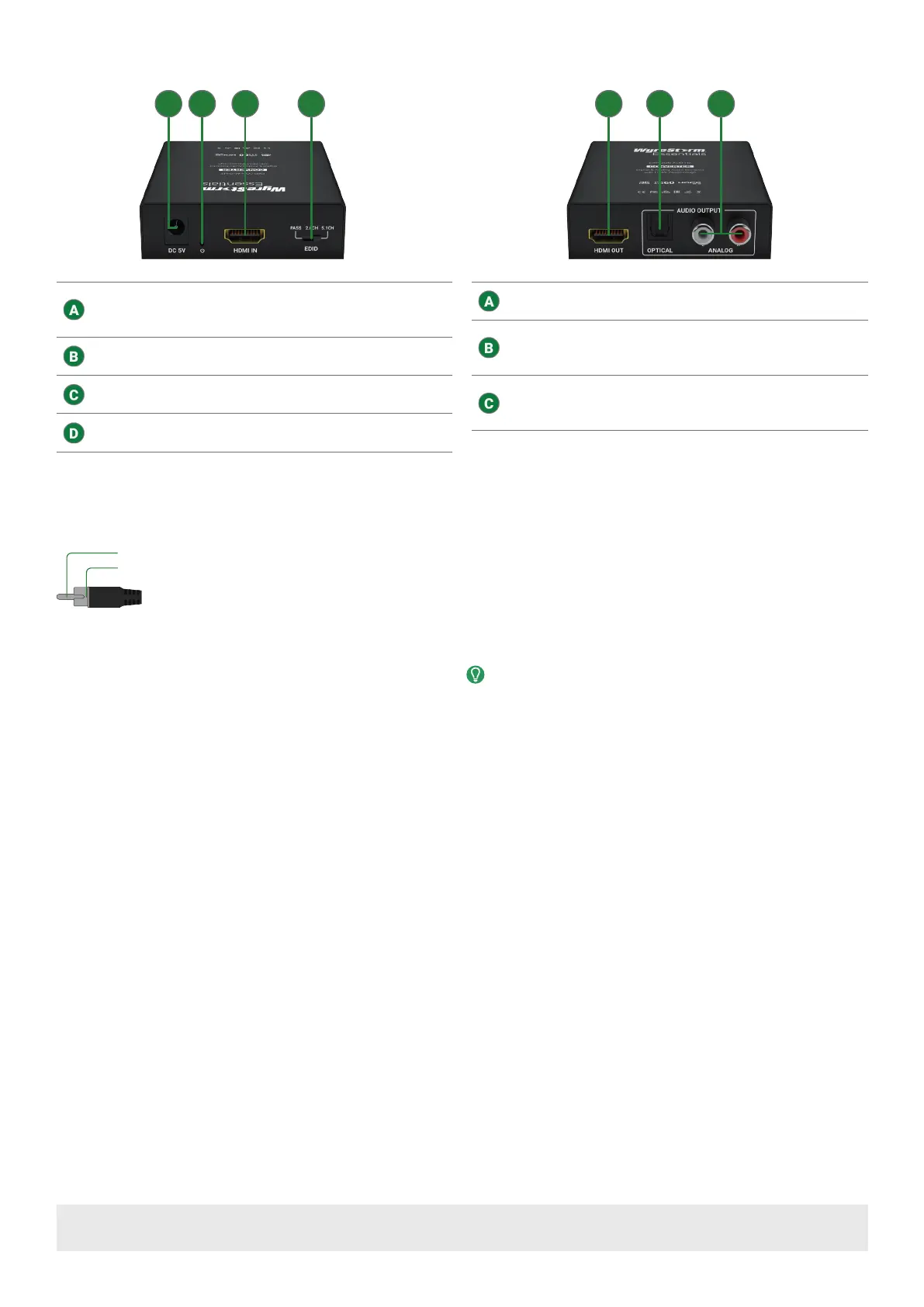

Front Panel Rear Panel

Power In

2.1mm DC Jack Input

Connect to the included 5V DC 1A power

supply.

Power LED

Solid: The unit is powered On

Off: The unit is powered Off

HDMI In

19-pin type A HDMI female

Supports HDMI and DVI/D with adapter

EDID Switch

Switch between Passthrough, 2ch and 5ch

Audio Modes

HDMI Output

19-pin type A HDMI female

Supports HDMI and DVI/D with adapter

Optical Output

Toslink optical port

Connect to digital audio input of pre-amplier,

AVR or audio system

Analog Audio

Output

2 x RCA (L/R Phono) Ports

Connect to analogue audio input of pre-

amplier, AVR or audio system

EXP-CON-AUD-H2 Quickstart Guide | 200330

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

C D A

Troubleshooting

No or Poor Quality Picture (snow or noisy image)

• Verify that power is being supplied to the device

• Verify that all HDMI connections are not loose and are functioning properly

Troubleshooting Tips:

• WyreStorm recommends using a cable tester or connecting the cable to

other devices to verify functionality.

Audio Connections

Analog Audio Out

Tip: Audio Postive (+)

Shield: Audio Negative (-)

Produktspecifikationer

Varumärke:	WyreStorm
Kategori:	ej kategoriserat
Modell:	EXP-CON-AUD-H2
Vikt:	230 g
Bredd:	80 mm
Djup:	90 mm
Höjd:	22 mm
Maximal upplösning:	4096 x 2160 pixlar
Certifiering:	CE, FCC
Rackmontering:	Ja
S/PDIF-utgång:	Ja
Antal HDMI-utgångar:	1
Driftspänning:	5 V
Ljuduppspelningsformat:	LPCM, PCM
Produktens färg:	Svart
Temperatur vid drift:	0 - 45 ° C
Temperaturintervall (förvaring):	-20 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	10 - 90 %
Hållbarhetscertifiering:	RoHS
Antal ljudutgångar vänster/höger:	1
Harmonized System (HS)-kod:	85176990
Maximal överföringshastighet avstånd:	15 m
Antal:	1
HDMI-in:	1
