IMPORTANT! Installation Requirements
Visit the product page to download the latest rmware, document version,
additional documentation, and conguration tools.
Install the latest rmware to ensure that all features described in this
document are available during and after installation.
Read through the Wiring and Connections section for important wiring
guidelines before creating or choosing premade cables.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within this product.
RX-70-4K-SCL
Scaling receiver that allows for 4K and 2K screens to be used while
maintaining output of 4K.
RX-70-4K-ARC
HDCP 2.2 receiver with audio in to send audio from built in apps back to the
matrix.
RXF-300-4K
For use with TX-H2X-OM3 when duplex OM3 Multimode ber is required.
RXV-70-4K
For use when content too high in bandwidth for HDBaseT is required, such as
high-framerate HDR or 4:4:4/60.
In the Box
1x MX-1010-H2XC or MX-1616-H2XC
1x Handheld IR Remote
10/16x IR emitters
10/16x IR Broadband Receiver (30KHz to 50KHz)
1x IR Receiver (38Khz)
10/16x 3-pin phoenix to stereo RCA sockets
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
1x AC Power Cord with EU Plug
1x USB to UART Serial Cable
2x 4U Rack Ears and Screws
1x Quickstart Guide (This Document)
Additional Information
Visit the product page on wyrestorm.com to download additional
documentation, control drivers, and conguration software.
Copyright © 2018 WyreStorm Technologies | wyrestorm.com
MX-xxxx-H2XC Quickstart Guide | 180622
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the
installation process.

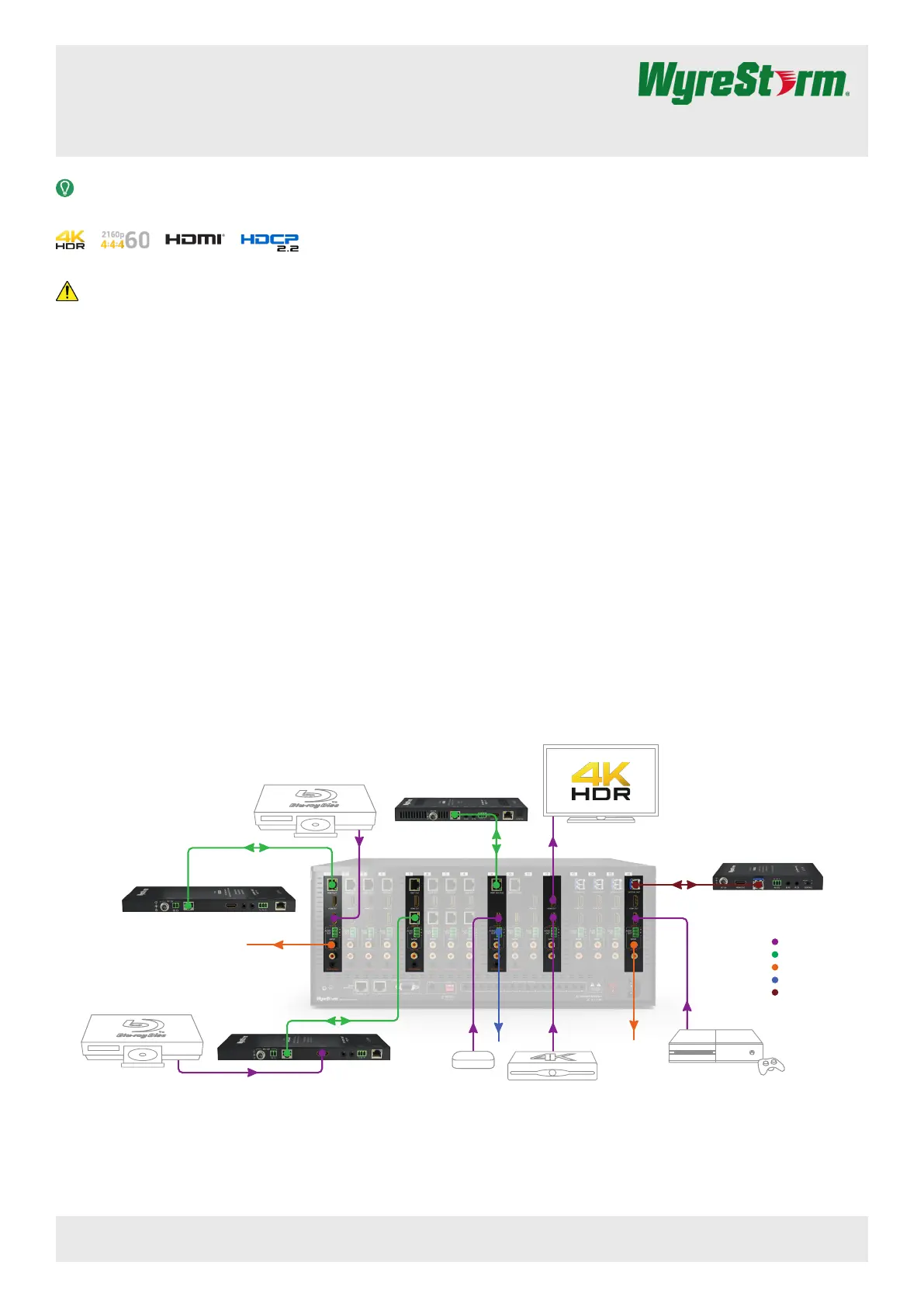

Basic Wiring Diagram
RXV-70-4K-ARC
RXF-300-4K
RX-70-4K
(Used for TX-H2X-HDMI
and TX-H2X-HDBT Cards)
KEY
HDMI
HDBaseT
Digital Audio
Analog Audio
Duplex OM3 Fiber
Blu-ray Player
Blu-ray Player
Games Console
Satellite Box
Media Player
Custom 4K HDR Video Matrix with Audio Matrix & DSP
MX-1010-H2XC | MX-1616-H2XC
Quickstart Guide


Produktspecifikationer

Varumärke: WyreStorm
Kategori: Inte kategoriserad
Modell: TX-H2X-HDBT
LED-indikatorer: Ja
Ljudformat som stöds: LPCM, PCM
Videolägen som stöds: 1080p, 2160p
Maximal upplösning: 4096 x 2160 pixlar
HDCP: Ja
Ljudutgång: 1
Grafikupplösningar som stöds: 1920 x 1080 (HD 1080),3840 x 2160,4096 x 2160
Modell: Sändare för AV-utrustning
Videoingång: 1
Bandbredd: 9.2 Gbit/s
RJ-45 utgångsportar: 1
RJ-45 ingångsportar: 1
HDBaseT-port: Ja
Kabeltyper som stöds: HDMI, Cat6, Cat6a, Cat7
Produktens färg: Svart
Anslutningsteknologi: Kabel
Firmware kan uppgraderas: Ja
Maximal överföringshastighet avstånd: 100 m
HDMI-in: 1
Fjärrstyrd (IR) ingång: 1
RS-232-ingångar: 1
Signal riktning: In/ut
Modul typ: Digital
