Sida 1/10

XP-PEN Driver

User Manual

I. Connection

Please follow the quick guide that came with your pen tablet to connect your device.

II. Support system

Windows 7/8/10, Mac OS X 10.10 or later

Certain products support Android 6.0 or later, see Table 1 for details（https://www.xp-

pen.com/topic/onAndroid.html）

Certain products support Chrome OS 88 or later, see Table 2 for details（https://www.xp-

pen.com/topic/onChromeOS.html）

III. Download

Please download the corresponding driver according to the model from the XP-PEN official

website (https://www.xp-pen.com).

IV. Installation

After downloading is completed, please unzip the folder and operate the “.exe” file (Windows)

or “.dmg” (Mac) file, and then follow the prompts until installation is completed.

Notes:

1. Before installation, please temporarily close the antivirus software and firewall, and all

opened software.

2. If other drivers have been installed on the computer, please uninstall them first.

3. It is recommended to restart the computer after installation is completed.

V. Introduction to Driver

After the driver is installed, connect your device to your computer, and then open the driver to

start customizing your device.

Notes:

This document describes all the functions of the driver, but the functions in the actual use

process will vary due to different connected devices. Please refer to the device you actually used

for specific functions.

Store configuration:

If you need to make the changed configuration still valid when you use it next time after exiting

the driver, please click the “OK” button on the left side of the driver interface to save the

settings after changing the configuration. If the settings are successfully saved, the prompt

“Configuration saved successfully” will be given; otherwise, the changed configuration will be

valid only when it is currently used.

1. Work area

1.1 Screen

If multiple monitors are used in duplicate mode (i.e. All monitors display the same picture), the

work area of the device will be mapped to all monitors. When the pen moves in the work area,

the cursor on all monitors will move at the same time.

If multiple monitors are used in extended mode, it is necessary to select the work area of the

device on the driver interface to map to the corresponding monitor.

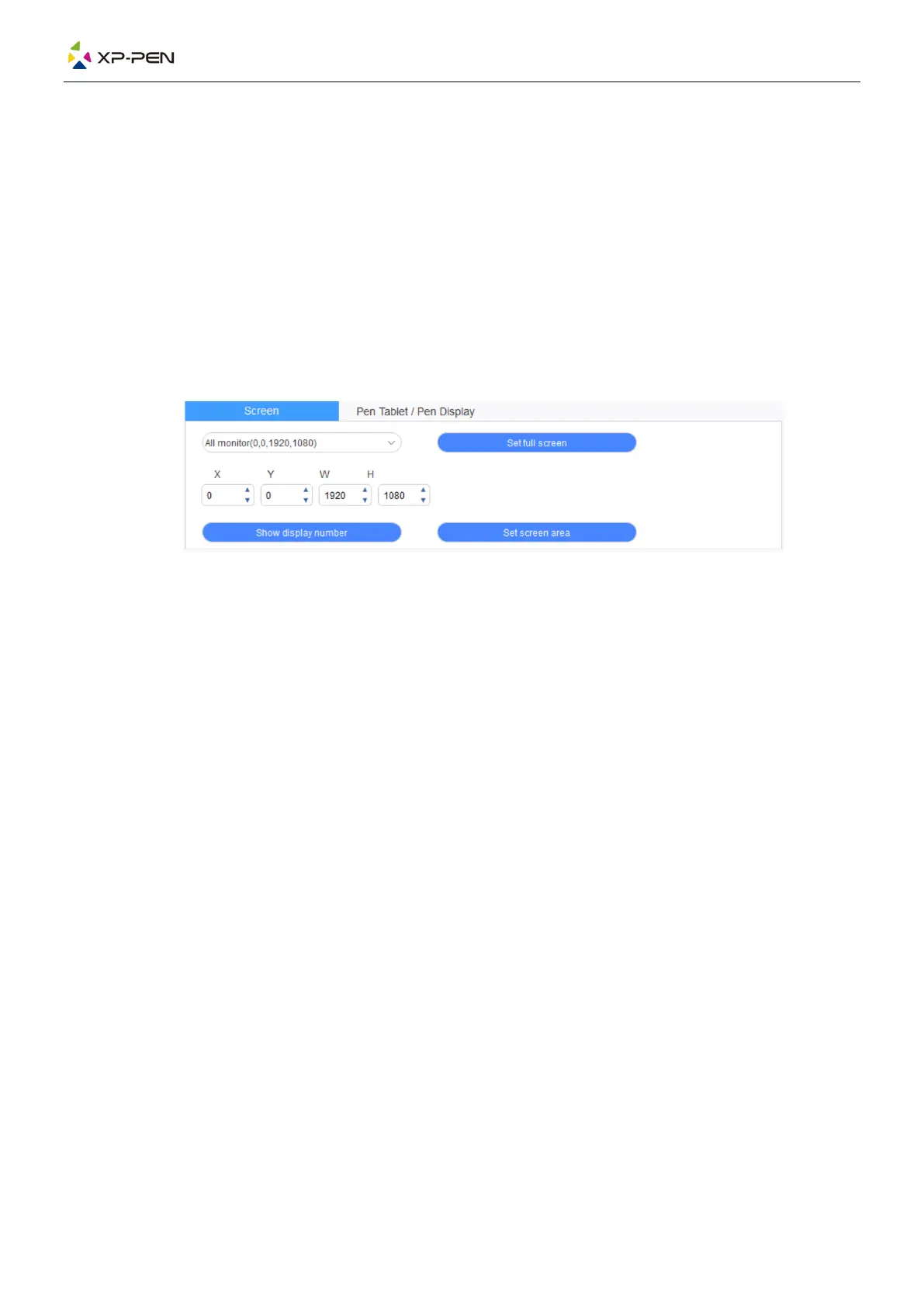

The driver provides three modes to set the display area of the screen:

(1) Set full screen: Set the screen area of the selected monitor to the maximum.

(2) Set screen area: Use the mouse to manually set the display area of the screen. Click the first

position (top left) of the display area of the screen with the mouse, and then click the

second position (bottom right).

(3) Customize: Manually enter coordinates in the corresponding input boxes below X, Y, W and

H to customize the size of the display area of the screen, or use the mouse to drag on the

screen icon of the driver interface to adjust the display area of the screen.

Show display number:

Identify all connected monitors, and numeric identifiers will be displayed in the lower left corner

of each monitor.

Produktspecifikationer

Varumärke:	XP-PEN
Kategori:	Ritplatta
Modell:	Deco Pro MW
Bredd:	399.7 mm
Djup:	227 mm
Höjd:	16.5 mm
Laddningstid:	2 h
Skärm diagonal:	- "
Upplösning:	5080 lpi
Bluetooth-version:	5.0
Gränssnitt:	Bluetooth
Känslighet:	8192
Rotationsvinkel:	60 °
Spänning:	DC 5 V
Batterityp:	Inbyggt batteri
Maximal läshöjd:	10 mm
Trådlös penna:	Ja
Rapportfrekvens (penna):	220
Batterifri penna:	Ja
Pennhållare:	Ja
Arbetsyta:	279.4 x 152.4 mm
Antal pennspetsar:	10
Produktens färg:	Svart, silver
Windows-operativsystem som stöds:	Ja
Mac-operativsystem som stöds:	Ja
Kabel inkluderad:	USB Type-A to USB Type-C, USB Type-C to USB Type-C
USB-ström:	Ja
Anslutningsteknologi:	Trådlös
laddningsbart batteri:	Ja
Linux operativsystem som stöds:	Ja
Harmonized System (HS)-kod:	84713000
USB C-typ, antal portar:	1
Drifttid för batteri:	12 h
Penna ingår:	Ja
Antal kortkommandon:	8
Tablet-ingångstyp:	Penna
