· Signal Generator:
Outputs a 1 kHz sine wave or pink
noise audio signal through XLR male,
1/4", and 1/8" connectors, with three
output level options: -10 dB, -20 dB,
and -40 dB.
· XLR Cable Tester:
Tests whether all three pins of the XLR
cable are functioning properly.
· Phantom Power Check:
Tests the output voltage of the phantom
power and ensures both pins are
functioning properly.
· XLR Input Metering:
Measures the input volume level of
the XLR female connector.
· Headphone and Speaker Monitoring:
When an audio source is connected to the XLR female / 1/4" input, you can
monitor the signal with headphones or speakers via the 1/8" headphone jack.
SPECIFICATIONS
You can use sine waves and pink noise to test the audio inputs of all kinds
of audio gear—including DI boxes, guitar pedals, wireless systems, eect
units, active speakers, mixers, etc.
Checks for phantom power
voltage, which is individually
metered on pins 2 and 3 of
the output XLR. If the voltage
detected is between 24V
and 44V, the LEDs will ash
slowly.
Activating phantom power
on the input channel you are
checking will allow you to
simultaneous test all three
pins in the XLR line.
SIGNAL GENERATOR 1 KHZ SINE WAVE AND PINK NOISE
Audio inputs are ¼” TS and XLR, and the 1/8” output can go to headphones
or a speaker.
The volume knob controls the output volume. When anything is connected
to the 1/8” output jack, the speaker is muted.
Regardless of the routing mode, as long as there is a 1/4" audio signal input,
it will be directly sent to both the speaker and the headphone output.
If you need to monitor the signal more accurately, plug your headphones
into the headphone jack and adjust the level using the volume knob on the
side of the unit.
Charge your AT-1 using a standard USB-C cable and any 5V/2A USB power
supply. A full charge cycle takes about one hour and the device can be
used while charging.
The LED by the USB-C port lights up while the battery is charging, and
turns o when the battery is fully charged.
Always power down your AT-1 after use. Depleting the battery may cause
irreversible damage, resulting in the device being unable to power on
again.
SPEAKER/HEADPHONE OUTPUT
The function LED (11) next to the SEL button will
blink white as a warning when the battery is:
• Low: 3 white blinks
• Out of charge: 6 white blinks
Consider recharging your AT-1 when the rst
‘low battery’ warnings appear.
BATTERY
CHARGING
ALERT
XLR INPUT METERING
XLR CABLE TESTER
PHANTOM POWER CHECK AND XLR PIN CHECK
48V
OUTPUT
Yellow LED: signal output via XLR
Blue LED: signal output via 6.35 mm (1/4”) TS
or 3.5 mm (1/8”) TS
TYPE
OUTPUT LEVEL
10 dB, 40 dB, 20 dB
Solid LED: pink noise
Flashing LED: 1 kHz sine wave
The PK (peak) and SG (signal) LEDs will
illuminate according to the RMS
amplitude of the signal present on the
input XLR. The SG LED is lit when the
signal exceeds -20 dBu RMS, and the
PK LED lights up when the signal
exceeds +10 dBu.
‘SG’ lights up when signal is detected.
‘PK’ lights up when the signal is very
loud. This feature is very useful in noisy
environments, or if you can’t get your
ears close enough to the speaker.
Connect an XLR cable to the input and output to test its 3 pins.
Hold SEL for 2s to enter XLR cable test mode. The LED will automatically
cycle through the pins.
Press SEL to stop the cycle and manually select a pin.
Press TO to resume the automatic cycle.
1 1
2 2
Line ok
Pin2 defective
48 V
RO UT E
XLR line
Solid LED: Line ok
Phantom power voltage: 44-52V
pin 1 defective
pin 2 defective
pin 3 defective
Flashing LED: Line ok
Phantom power voltage: 24-44V
_
01
_ _
02
_ _
03
_ _
04
_ _
05
_ _
06
_

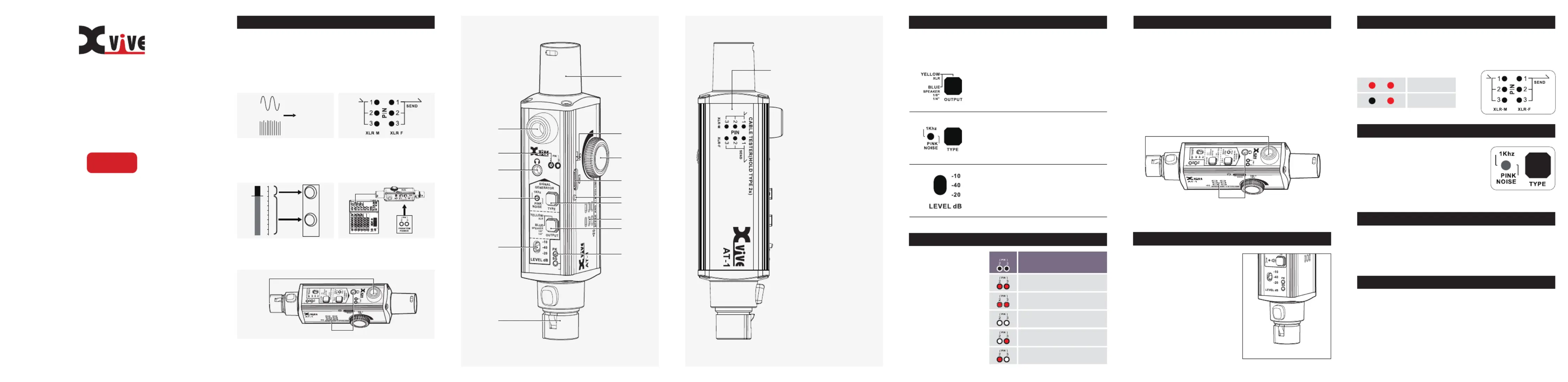

English Manual
www.xvive.com
PORTABLE
AUDIO TESTER
AT-1
03
09
15
04
13
12
02
1. XLR-M output
2. XLR-F input
3. 1/4” output/input
4. 1/8” output
5. Speaker/headphone output
volume knob
6. Speaker
7. USB type-C charging input
8. Power and Charging LED
9. Phantom power pin voltage check
10. Output select: XLR, 6.35 mm
(1/4”)/3.5 mm (1/8”) or speaker
11. Output signal generator Type select:
1 kHz sine wave or pink noise.
Hold 3s for XLR cable tester
12. Output mode / battery life LED
13. Output volume (pad) select
14. Input volume check LED
15. XLR cable test LED
16. Power on/o
48V
ROUTE
XLR
TS
OUTPUT
or
PK
SG
0
-5
-10
-20
-30
-40
-50
-60
-∞
+5
+10
OU TPU T
PI NK
1K hz
SI GNA L
GE NER ATOR
TY PE
YE LLO W
XL R
BL UE
SP EA KE R
1/ 8"
1/ 4"
NO ISE
PH ANTOM
PO WER
IN PUT LE VEL
01
05
16
06
14
10
11
08
07
OUT PUT
PIN K
1Kh z
SIG NAL
GEN ERATOR
TYP E
YEL LOW
XLR
BLU E
SPE AKER
1/8 "
1/4 "
NOI SE
PHA NTOM
POW ER
INP UT L EV EL
1/4“ or XLRF input
Headphone or
speaker output
OUT PUT
PIN K
1Kh z
SIG NAL
GEN ERATOR
TYP E
YEL LOW
XLR
BLU E
SPEA KER
1/8"
1/4"
NOI SE
PHA NTOM
POW ER
INP UT LEVE L
1/4“ or XLR-F input
Headphone or speaker output
This versatile and compact utility tool includes detection features and oers ve
main functions: a Signal Generator that can emit 1kHz tones or pink noise audio
signals, an XLR Cable Tester for detecting whether XLR cables are damaged, XLR
Input Metering to measure the strength of XLR input signals, a Phantom Power
Check to test voltage and ensure normal operation, and Headphone and
Speaker Monitoring to listen to input signals. It is suitable for testing powered
PA speakers, eect pedals, cables, DI boxes, IEM systems, mixers, and other
audio equipment, making it an essential tool for audio professionals.
