Performance Editor Essential Owner’s Manual

iPad

MIDI

i-MX1 or i-UX1

Performance Editor Essential

MOTIF XF, MOTIF XS,

S90 XS/S70 XS,

MOXF6/MOXF8, MOX6/MOX8

• Copying of the commercially available music sequence data and/or digital audio files is strictly

prohibited except for your personal use.

• The software and this owner’s manual are exclusive copyrights of Yamaha Corporation.

• Copying of the software or reproduction of this manual in whole or in part by any means is expressly

forbidden without the written consent of the manufacturer.

• Yamaha makes no representations or warranties with regard to the use of the software and

documentation and cannot be held responsible for the results of the use of this manual and the

software.

• The screen displays as illustrated in this Owner’s Manual are for instructional purposes, and may

appear somewhat different from the screens which appear on your devicer.

• Apple, iPad are trademarks of Apple Inc., registered in the U.S. and other countries.

• The company names and product names in this Owner’s Manual are the trademarks or registered

trademarks of their respective companies.

For information about the MIDI settings of the MOTIF XF, MOTIF XS, S90 XS/S70 XS, MOXF6/MOXF8, and MOX6/MOX8 refer to the respective manuals.

What is Performance Editor Essential?

This application lets you edit the VOICE/ARP/EFFECT/MEQ parameters in the Performance mode of the MOTIF XF, MOTIF XS, S90 XS/S70 XS, MOXF6/MOXF8, MOX6/MOX8

from your iPad. Select a Performance on the instrument, edit the parameters of the selected Performance on the iPad, then store the edited parameters on the instrument.

The instructions in this manual use the MOTIF XF as an example.

Depending on your particular musical instrument, there may not be equivalent displays or buttons.

Utility window

For setting the

parameters common

to all the displays.

VOICE display

For assigning the Voices to the

respective Performance Parts.

XY CONTROL display

Lets you control the specified parameter

change and MIDI Control Change messages

simultaneously by dragging in the XY Pad area.

EFFECT display

Chorus display

Reverb display

Master Effect display

ARP display MIXING window

MEQ display

By using a Yamaha i-MX1 or i-UX1, connect the

instrument to an iPad.

The MOTIF XF can be connected via wireless Network

MIDI. For details about wireless MIDI connectivity, refer

to the “New Functions in MOTIF XF Version 1.20” Manual.

NOTE

• Before editing, enter the Performance mode.

• After editing, store the edited Performance.

• You can connect i-MX1/i-UX1 to devices featuring

the Lightning connector via Apple Lightning to 30-pin

Adapter.

Performance Editor Essential Owner’s Manual 2

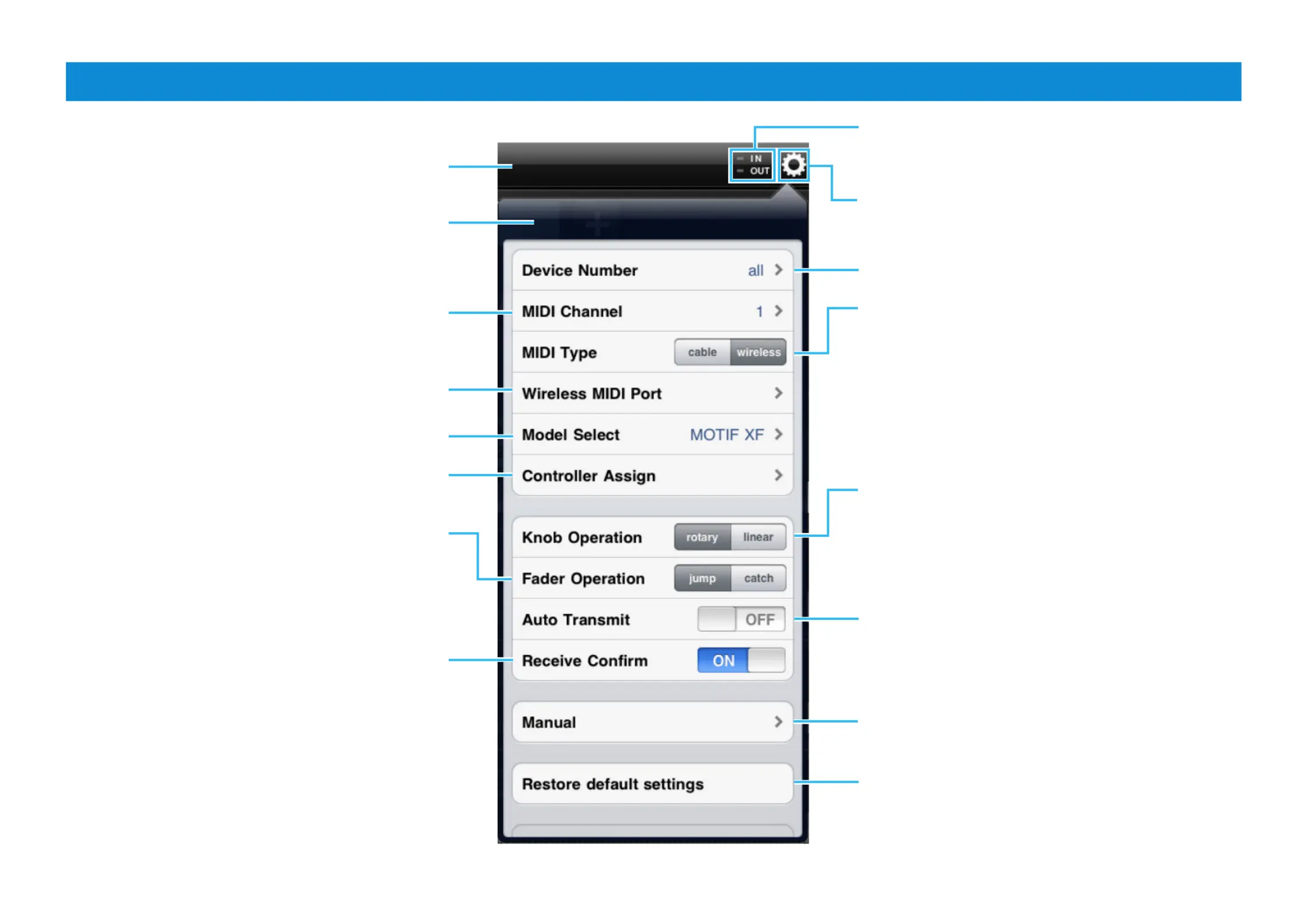

Title bar and Utility window

This window lets you set the parameters common to all the displays.

Each lamp flashes according to the MIDI in/out

messages.

Tapping this opens or closes the Utility window.

Set this to the same number as that of the instrument.

Selects the connected instrument.

Tapping this calls up the Owner’s Manual.

Tapping here initializes all the settings.

Determines the connection method between the iPad

and MIDI instrument.

cable: Should be selected when connected via the

i-MX1 or i-UX1.

wireless: Should be selected when connected via

wireless Network MIDI.

NOTE

When set to “wireless,” make the Wi-Fi setup in Settings > Wi-Fi in

your iPad.

Determines the knob behavior.

rotary: Dragging around the knob will rotate it in the

same direction.

linear: Dragging vertically upward from the knob

rotates the knob clockwise, and dragging downward

rotates counter-clockwise.

Title bar

Sets the MIDI Transmit Channel.

Selects the MIDI port of the instrument in case of

wireless connection.

Assigns the MIDI Control Change numbers to each

controller.

Utility window

*What is a Template?

Each of the Templates includes the settings of all the

displays, meaning that you can call up all the Effect

settings just by selecting the desired Template. Each

of the Templates can be renamed, called up and

initialized.

When set to on, tapping [RECEIVE] calls up a

confirmation message.

Determines the Fader behavior.

jump: The Fader jumps to any tapped location in

the Fader area.

catch: The Fader will be “caught” as you drag on it.

When set to on, selecting a Template* transmits the

corresponding settings via MIDI.

Performance Editor Essential Owner’s Manual 3

MIXING window

Adjust the by COMMON VOLUME

operating the slider. Tapping [-]/[+]

changes the value in single steps.

Tapping this closes the MIXING

window.

Allows you to edit the Part 1 parameters.

Likewise, the parameters for the Parts 2

– 4 can be edited in the corresponding

area.

Adjust the COMMON PAN/

COMMON REV SEND/COMMON

CHO SEND by operating the knob,

or by tapping the value to call up the

slider for adjusting the parameters.

Adjust the PART PAN/PART

REV SEND/PART CHO SEND by

operating the knob, or by tapping

the value to call up the slider for

adjusting the parameters.

Adjust the PART VOLUME by operating

the slider. Tapping [-]/[+] changes the

value in single steps.

Turns the on/off. Red Part Switch

indicates “ON” while gray indicates

“OFF.” The number corresponds to the

Part Number.
