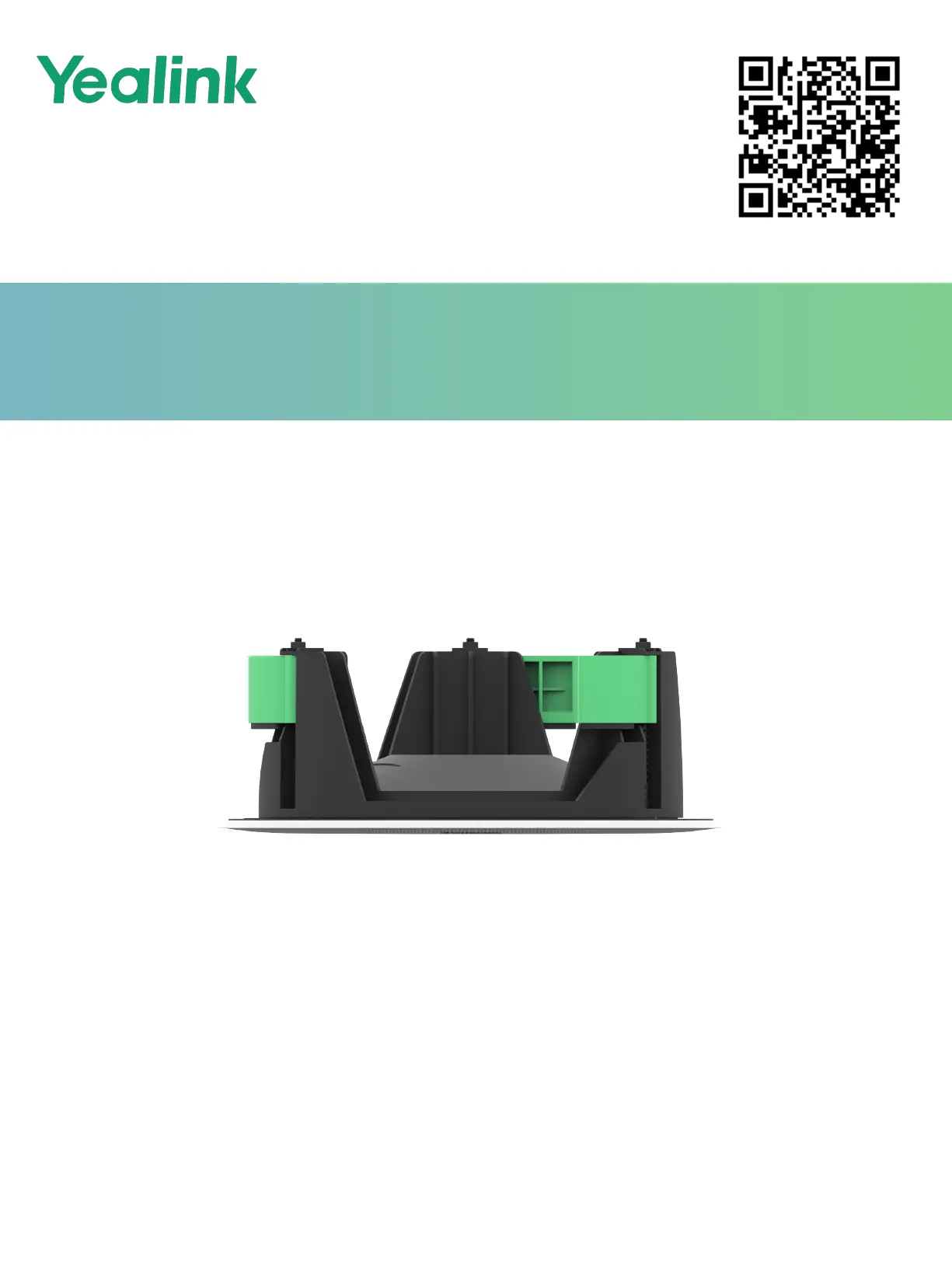

Quick Start Guide (V1.0)
English | Deutsch | Français | Español
SkySound CM20
Unboxing Video
1
Package Contents
SkySound CM20
Assembly Fixing
Bracket
Quick Start Guide
φ
6 * 30 mm, white, Polyamide
（
Optional
）
2

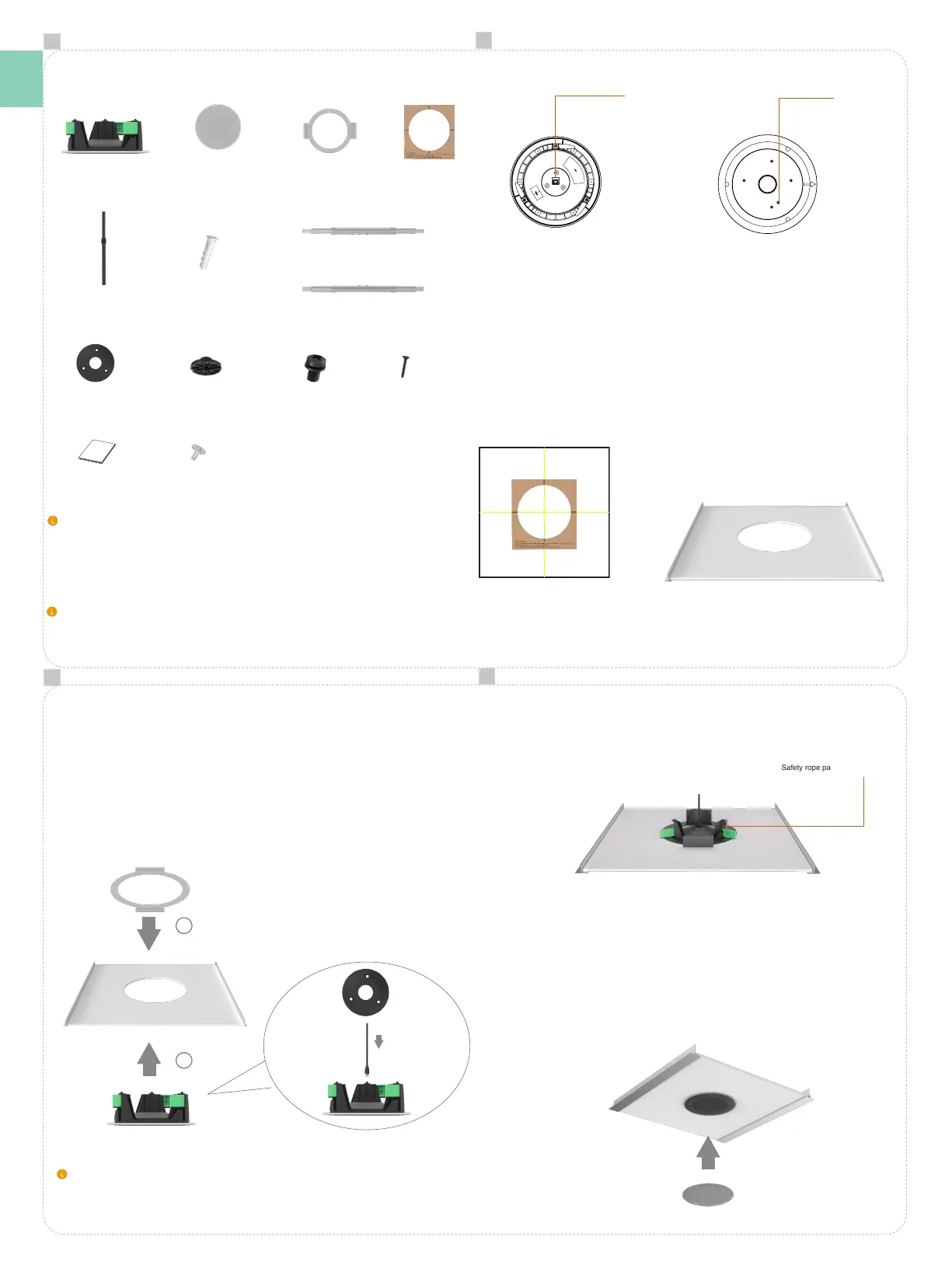

Hardware Introduction
White Mesh Cover
(Black Optional)
RJ-45 Port
Reset(Long poke
for 5s to reset.)
Bracing Bridge*2
× 6
Deployment Instruction
Templete
3
Installation
• Remove the ceiling and draw auxiliary lines at the midpoint of the length and width on the
back of the ceiling.
• Align the auxiliary lines with the
deployment instruction templete
's guidelines and cut openings
in the ceiling.
1. The installation of CM20 requires a certain level of professional expertise. We strongly recommend entrusting this
task to professional construction workers whenever possible.
2.If you choose to install it yourself, please make sure to have someone assist you for safety reasons.
The need for an auxiliary bracket during the installation of the CM20 depends mainly on the frame and the load-
bearing capacity of the suspended ceiling tiles.
- Common suspended ceiling tiles materials include gypsum, metal, and PVC.
- If your suspended ceiling tiles has a load-bearing capacity lower than 1.38KG, it is recommended to use a bracing
bridge.
- The suspension bracket requires the load-bearing capacity of your ceiling frame to be no less than 2.8KG.
- The adjustable range of the bracing bridge is 400-438mm/600-638mm/2'.
- The slot width compatibility of the ceiling tiles (T-bar) includes: 22mm, 24mm, 32mm, and 38mm.
- The slot width compatibility of the ceiling tiles (triangle) includes: 25mm
，
30mm
，
35mm.
3*6PMOZN3+
× 5
Dust Cover
Suspend Pole Adapter
（
Optional
）
T4*30mm
（
Optional
）
Length-Adjustable Pole
（
Optional
）
Φ
223*H83mm
D=205mm
D=223mm
× 6
× 20
M3*6PWMHOZN3
1. Place the assembly xing bracket onto the drop ceiling grid support (compatible with T-bar drop
ceiling grid and triangular drop ceiling grid).
2. Connect the ethernet cable and cover it with the dust cover.
3. Install CM20 along the opening circular of the drop ceiling grid, pushing it towards the ceiling.
4.Hold the device by hand and securely tighten the three screws on its surface in a clockwise
direction. Adjust the lower surface of the CM20 to align it ush with the ceiling tiles.
Installation Method 1
：
Use the assembly xing bracket
(If your ceiling has
a load-bearing capacity greater than 1.38KG, you may choose not to use the bracket for additional support, but the
assembly xing bracket is still necessary.)
1
2
• Installation completed
（
main body
）
.
• Attach the mesh cover magnetically to the CM20.
Power supply: PoE+Switch
Safety rope passes through here
E
N
1
2
3
4

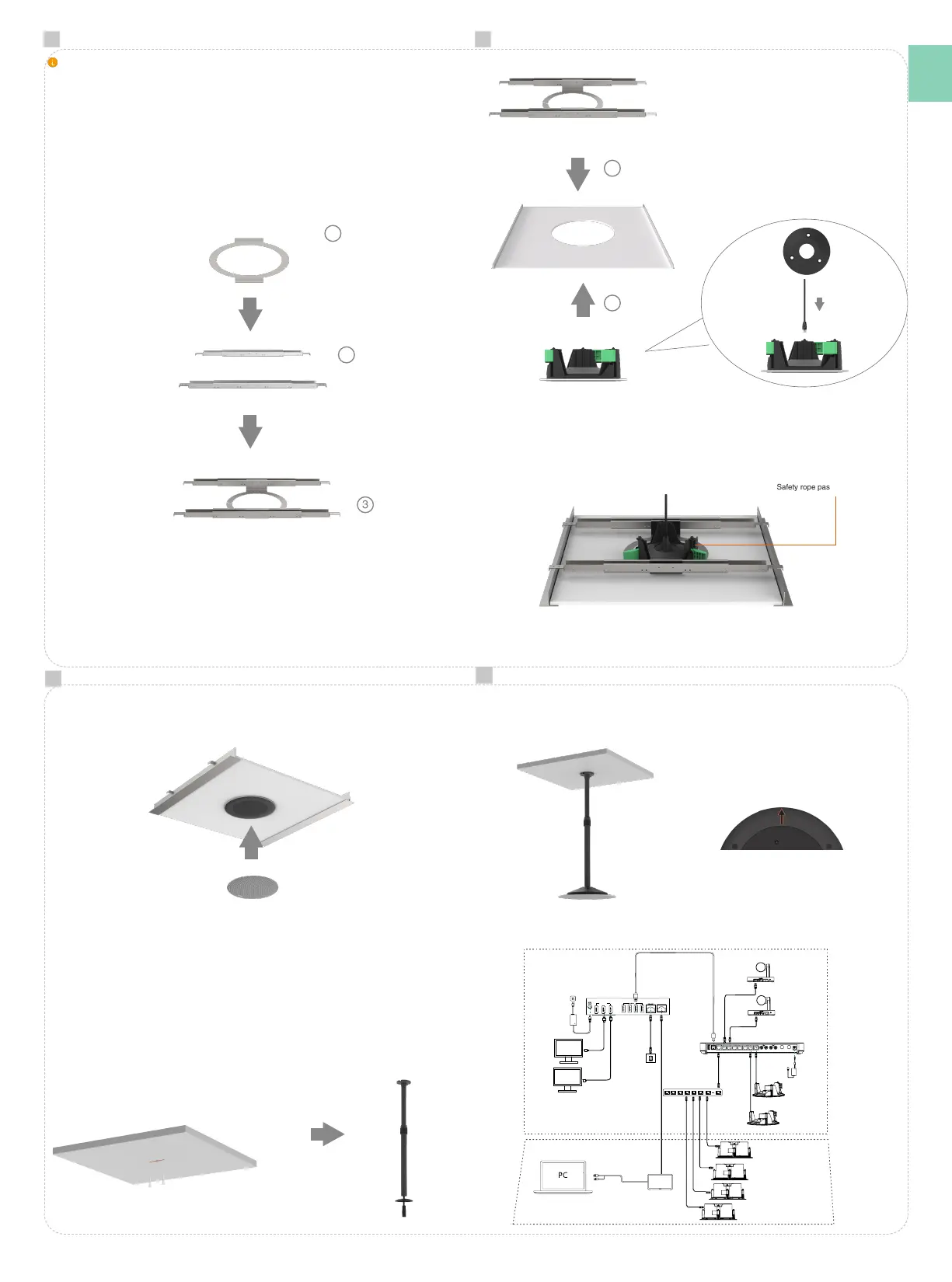

The following installation steps will demonstrate using the bracing bridge to secure the CM20.
If your ceiling has a load-bearing capacity greater than 1.38KG, you may choose not to use the
bracket for additional support, but the assembly xing bracket is still necessary.
1. Use screws to assemble the bracing bridge.
2. Use screws to combine the assembly xing bracket and the bracing bridge.
3. Adjust the bracing bridge to the appropriate length according to the size of the drop ceiling
grid(compatible with spans of
400-438mm/600-638mm/2'
), tighten the xing screws to prevent further
extension of the bracket.
Installation Method 2: Use the assembly xing bracket + bracing
bridge.
(If your ceiling has a load-bearing capacity less than or equal to 1.38KG, you can use the
bracing bridge for additional support during installation).
1
3
2
1
2
4.Place the bracing bridge onto the drop ceiling grid support (compatible with T-bar drop ceiling grid and
triangle drop ceiling grid).
5. Connect the ethernet cable and cover it with the dust cover.
6. Install CM20 along the opening circular of the bracket, pushing it towards the ceiling.
7. Hold the device by hand and securely tighten the three screws on its surface in a clockwise direction.
Adjust the lower surface of the CM20 to align it ush with the ceiling tiles.
• Attach the mesh cover magnetically to the CM20.
• Installation completed
（
main body
）
.
1. Drill a hole at a suitable location in the ceiling.
2. Assemble the suspend pole adapter, inner length-adjustable pole, outer length-
adjustable pole, and dust cover into a single unit.
3. Secure the adjustable length-adjustable pole in place, connect the ethernet
cable.
1. Tighten the screws connecting the length-adjustable pole to the device, attach the
CM20 to the length-adjustable pole, and install the magnetic mesh cover.
2. Adjust the orientation of the CM20 to a 0-degree angle by twisting the tightening buckle
in the middle of the length-adjustable pole to achieve optimal sound pickup.
Installation Method 3: Use
the Length-Adjustable Pole
Safety rope passes through here
4
Connection Sample
MTouch
3x HDMI out
MTouch Plus
SkySound CS10
CM20
UVC86
Mcore Pro
Display
PoE+Switch
AVHub
UVC86
CM20
SkySound CS10
E
N
41.8mm
5 6
7
8
