Sida 1/3

VCM35 Video Conferencing MicrophoneVCM35 Video Conferencing Microphone

IntroductionIntroduction

Yealink VCM35 is a wired video conferencing microphone array specially designed for the new generation of Yealink

Video Conferencing System. Its built-in 3-microphone array with a 20ft (6m) and 360° voice pickup range is an ideal

solution for any conference room that needs the best audio experience. With the Yealink Acoustic Echo Canceling

and Yealink Noise Proof Technology, Yealink VCM35 can effectively reduce ambient noise up to 90 dB and give you a

high-quality audio experience in full-duplex calls. Yealink VCM35 supports star-cascaded deployment, and its

extremely high scalability and flexibility make deployment more convenient and faster and can fully cover

conference rooms of various sizes.

VCM35 CompatibilityVCM35 Compatibility

For the VCM35 compatibility, please refer to .Teams Room Accessories Compatibility Lists

How to UseHow to Use

Connect MVC to VCM35Connect MVC to VCM35

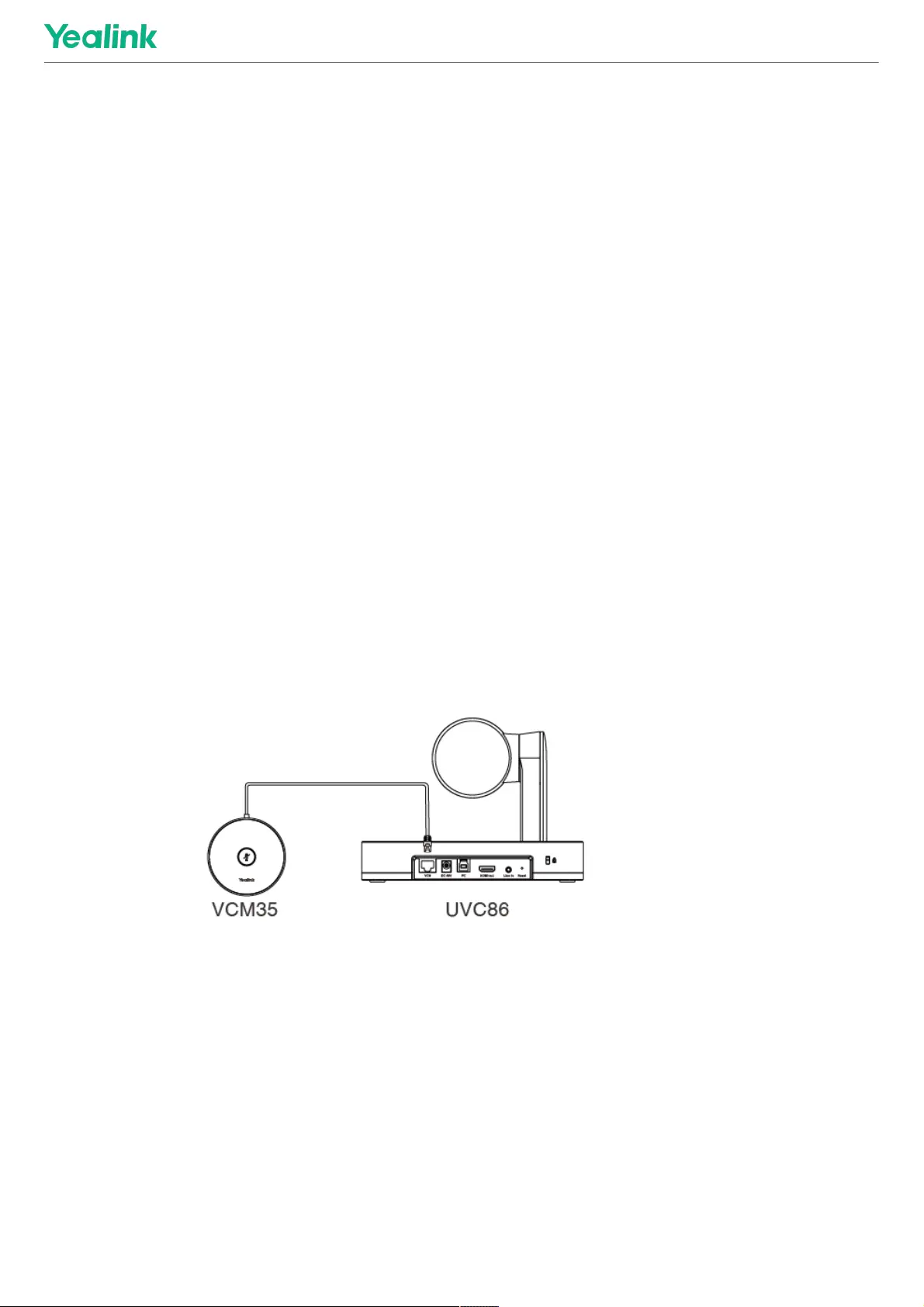

Method 1: Connect to the VCH port of the UVC camera/AVHub:Method 1: Connect to the VCH port of the UVC camera/AVHub:

Method 2: Connect via the PoE switchMethod 2: Connect via the PoE switch

VCM35 Video Conferencing Microphone

Method 2: Connect via AVHubMethod 2: Connect via AVHub

You can connect the UVC cameras and VCM35 to the AVHub simultaneously.

When you connect the UVC84/UVC86 directly to the AVHub, the total number of connections must be no more than

4 devices. If the total number of connections exceeds 4 devices, you need to connect a PoE switch (the PoE switch

must meet the 802.3 AT (PoE+) standard).

LED IndicatorLED Indicator

Please refer to: .LED Indicator

Mute/Unmute MicrophoneMute/Unmute Microphone

Please refer to: .Mute/Unmute Microphone

VCM35 Video Conferencing Microphone

Audio SettingsAudio Settings

If you want to manually set the specified audio input device after connecting the VCM35 to the MVC device, please

refer to .Audio Settings

Update VCM35Update VCM35

After connecting the VCM35 to the MVC device, it will automatically obtain the ROM package from the MVC device to

update.

You can also manually update through the Yealink Device Management Platform. For more information, please

refer to .Firmware Update

FAQFAQ

Can VCM35 and MVC’s built-in microphone pick up sound at the same time?Can VCM35 and MVC’s built-in microphone pick up sound at the same time?

The VCM35 is an external microphone and does not support simultaneous sound pickup with the built-in

microphone. You can set which microphone to use for pickup on MTouch II. For the operation method, please refer

to .Audio Settings

After connecting the MVC to the VCM35, the VCM35 After connecting the MVC to the VCM35, the VCM35 cannot pick up the audio/there is no response whencannot pick up the audio/there is no response when

touching the VCM35 mute button.touching the VCM35 mute button.

MVC does not support the simultaneous use of multiple microphone devices. Please check whether other

microphones are connected at the same time. For more information, please refer to Does MVC support multiple

microphone devices simultaneously?

How to reset the VCM35 microphone?How to reset the VCM35 microphone?

The VCM35 microphone has no reset feature.

VCM35 Video Conferencing Microphone

Produktspecifikationer

Varumärke:	Yealink
Kategori:	mikrofon
Modell:	VCM35
Färg på produkten:	Black, Transparent
Vikt:	300 g
Bredd:	490 mm
Djup:	150 mm
Höjd:	3 mm
Snäll:	Diffusor
Material:	Acrylic, Metal
Antal per paket:	1 stuk(s)
siffra:	1
Lämplig för inomhusbruk:	Ja
Antal lampor som stöds:	4
