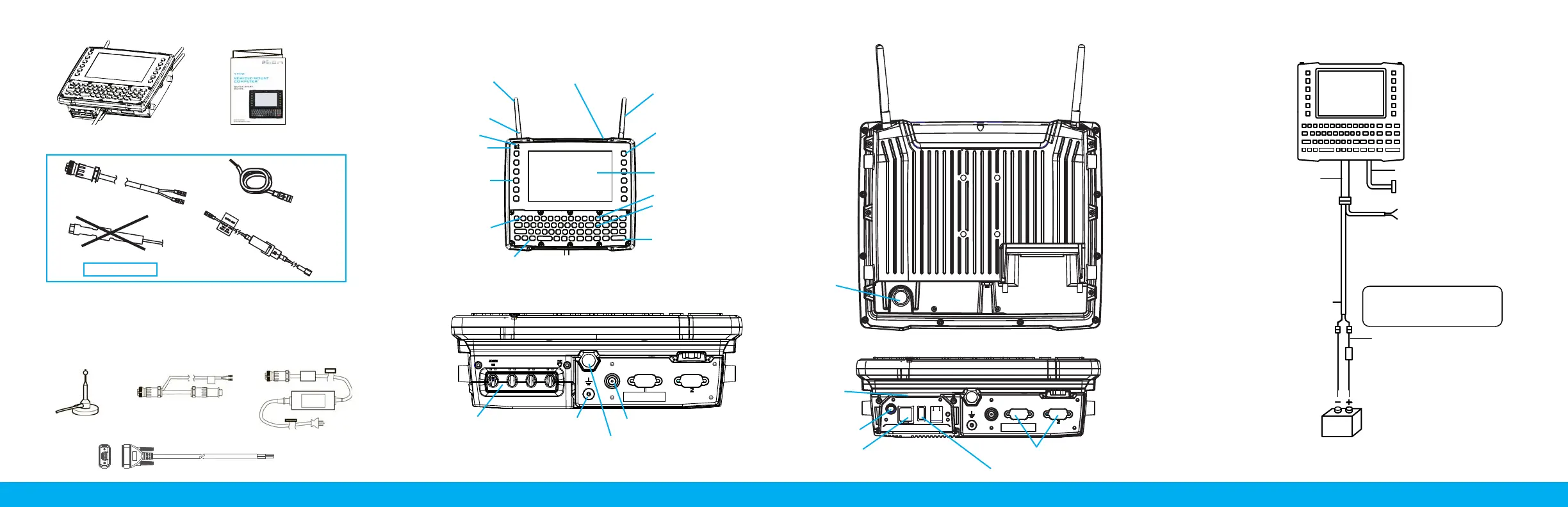

Without power pre-regulator

VEHICLE DC SUPPLY CONNECTIONS

OPTIONAL PARTS

Magmount and remote

external antenna

CONTENTS OF THE BOX

The VH10

This guide and any additional

documentation (dependent on order)

OVER

>

FRONT

Extension wire

Extension power cable

Cable kit 13985-301 includes an extension power cable with additional

lines to connect to the Ignition Switch.

Cable kit 13985-302 includes an extension power cable without lines

for the Ignition Switch.

Diode/choke assembly

Fuse assembly

DO NOT USE

Mounting hardware is packed separately, according to your order.

Adaptor cable with lines for

ignition switch

AC power adaptor

VH10 FEATURES

Display

SYM key

ENTER/Power key

UART RS-232 ports

BOTTOM

Power LED

Warning LED

Power button

Type B Micro-USB port (inside dome

plate - for service personnel only)

Function keys

Macro keys

Blue Modifier key

Antenna

(optional)

Orange Modifier key

Antenna

(optional)

Cable bay cover

Power cable

Audio jack

USB host port

DB9 screen blanking cable

Lines to ignition switch

(optional)

VH10 power cable

Vehicle DC power source

(12VDC to 48VDC nominal)

Positive

Negative

connection

connection

Extension power

cable

Extension wire

Fuse

DB9 cable

Lines to screen-blanking

sensor (optional)

Caution: Do not use the

diode/choke assembly in the

Extension Power Cable kit

Beeper

BACK

Vent

Ground lug

Powered USB host port

Unused ports should be covered with dust caps.

Strain

relief

brackets

Cable bay cover removed

Function keys and

Macro keys

PORTS
