•CAUTION:

■Use the included connection cable exclusively. Altering or replacing it will void your warranty.

■The camera is water- and dustproof and has been licensed according to the international standard IP69K. However,

vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP69K rated camera

models by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.

KEY FEATURES

• Compact “wide angle” universal camera

• Two different housing types, each with two adhesive pads, are

included in delivery

• System design allows front- or rear- mounting and use

• Detailed high contrast picture suited for twilight conditions

• Separable 3-part system cable, with cable parts of 0.7 m +

7.0 m + 0.7 m length

• Normal or mirror image picture output selectable

DESCRIPTION:

The ZENEC wide angle cam model ZE-RVC85WA was developed

for universal use, allowing retrofitting of a great variety of vehicles

due to its extremely compact housing shape. The picture can be

outputted as normal or mirror image, for mounting and utilization

of this model as front- or as rear view camera. Besides, the ZE-

RVC85WA is a true wide angle cam, offering an enormous horizon-

tal view angle of 190°.

This product is compatible with a wide variety of 2-DIN A/V receivers

of the aftermarket and the ZENEC E>GO product line up, including

ZENEC 2-DIN infotainers and naviceivers.

Technical Specifications:

Image device: ¼” / 6.4 mm Aptina ASX340 CMOS sensor

Lens focal length: f1.05

TV system: NTSC / 60 Hz

View angle: 210°(D) x 190°(H) x 140°(V)

Native sensor resolution: 680 (H) x 512 (V) pixels

Resolution of video-out: > 420 TV lines

Frame rate: 60 elds/sec.

Signal to noise ratio: > 48 dB

Light sensitivity: 0.5 Lux/F1.2/50IRE

Video output: 1.0 Vp-p, 75 ohms CVBS

White balance: Auto

Backlight compensation: Auto

Gamma correction: 0.45

Gain control: Auto

Sync system: Auto

Power supply: DC 5 – 16V

Current consumption: 60mA (DC12V) / ≤ 720mW

IP protection rating: IP69K

Operating temperature: -30°C~+75°C

ZE-RVC85WAZE-RVC85WA

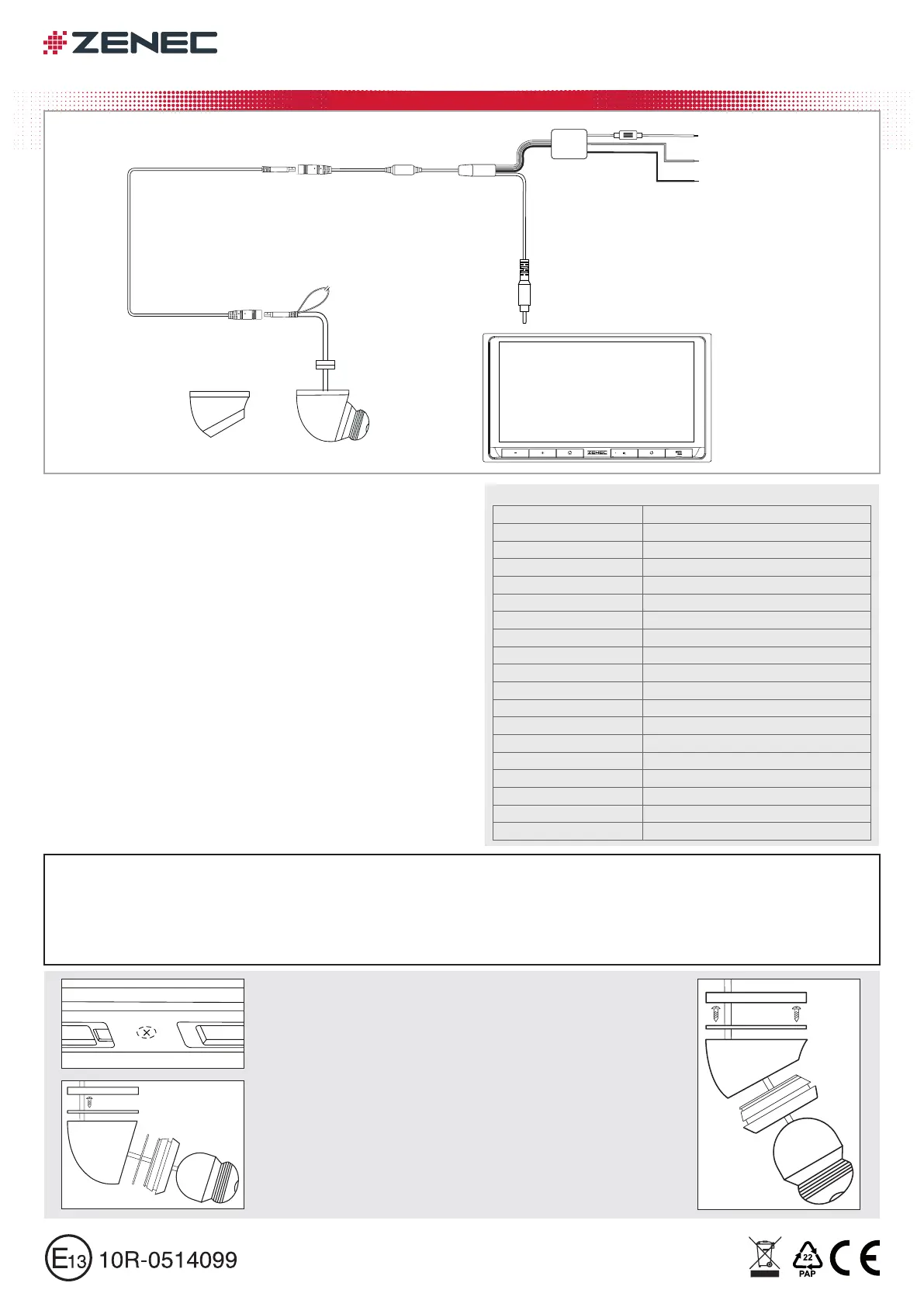

MOUNTING INSTRUCTIONSFRONT / REAR VIEW CAMERA

Video Out

(connect to Moni-/Naviceiver)

7.0 m

0.7 m

0.7 m

Rear camera mode: Green cable open

Front camera mode: Green cable twisted

Housing Front camera

2A fuse

Housing Rear camera

Red: Cam PWR (+12 V)

Black: GND

Yellow: B+ 12V (KL15)

lnstall the ZE-RVC85WA in the insert of the license illumination plate.

Take off the panel and drill a Ø 6.5 mm diameter hole.

Assemble the camera as shown in the two explosions drawings:

Left picture = Rear camera

Right picture = Front camera

Put the cable through the hole and fasten the camera to the car, using

the adhesive pad.

Important: Use the supplied metal ring only for the rear camera housing.

Rear camera

Front camera

ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland,

EU Legal Representative:

ACR S & V GmbH∙ Industriestr. 35∙ D-79787 Lauchringen∙ Germany ∙ www.zenec.com

Rev.E

Made in Taiwan

ZE-RVC45DT: 10R-0514099

E13, 10R-0514099
