Use, Care, and Installation Guide
www.zephyronline.com
Model number:
Serial Number:
Date of Purchase:
Sales Dealer:
APR14.0601 © Zephyr Corporation
Breeze I
AK1124x, AK1100x, AK1136x
Breeze II
AK1200x, AK1236x
READ AND SAVE THESE INSTRUCTIONS
www.zephyronline.com
1
SAFETY NOTICE ................................................................. 2-3
LIST OF MATERIALS ....................................................... 4
INSTALLATION
Ducting Calculation Sheet ....................................... 5
Mounting Height & Clearance................................ 6
Ducting Options ........................................................... 7
6SHFL¿FDWLRQV ............................................................... 8
Preparing Electrical .................................................... 9
Preparing Electrical and Ducting .......................... 10
Converting to Air Recirculating Mode ................. 11-12
Mounting the Range Hood ............................. 13
FEATURES & CONTROLS

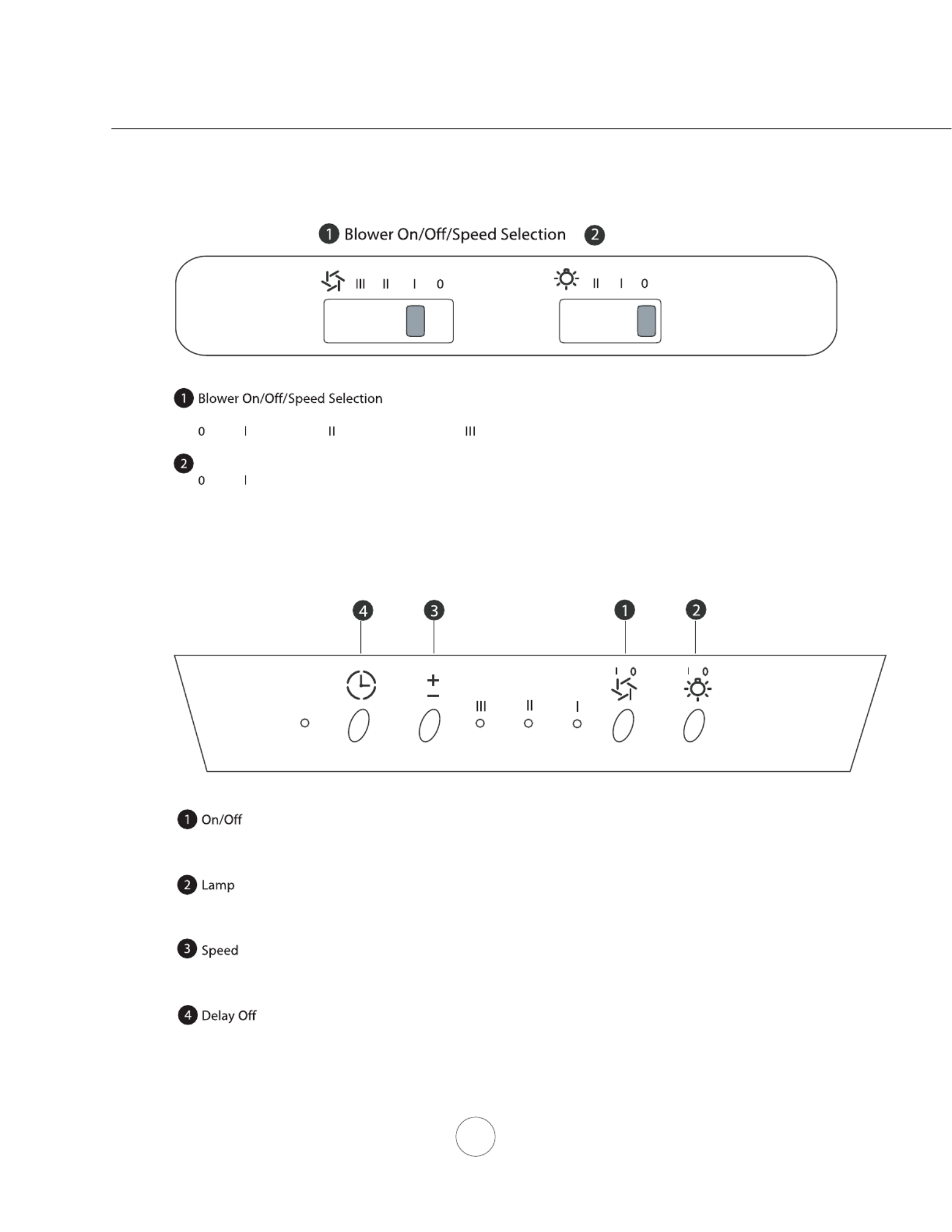

Controls & Features ................................................... 14
MAINTENANCE
Cleaning and Filter Removal .................................. 15
Lights ................................................................................ 16
TROUBLESHOOTING................................................................ 17

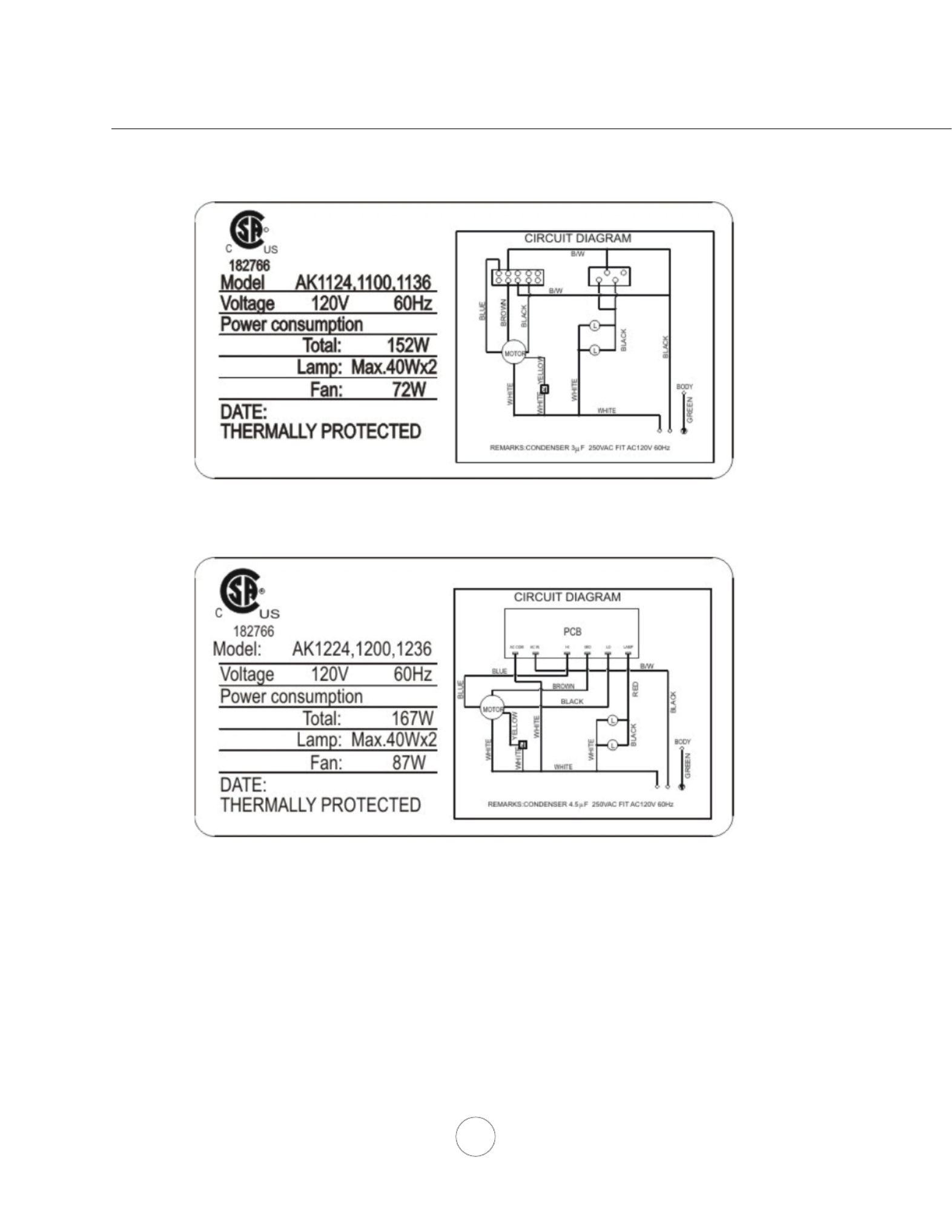

WIRING DIAGRAMS ................................................................... 18
LIST OF PARTS AND ACCESSORIES .............................. 19
Table of Contents
Important Safety Notice
3
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
NOT FOR USE OVER AN OUTDOOR GRILL.
CAUTION
7RUHGXFHULVNRI¿UHDQGWRSURSHUO\H[KDXVWDLURXWVLGH'RQRWYHQWH[KDXVWDLULQWRVSDFHVZLWKLQZDOOVFHLOLQJV
attics, crawl spaces or garages.
For indoor use only.
Do not use over cooking equipment greater than 60,000 BTU/hr.
This hood is not intended to be used as a shelf.
OPERATION
$OZD\VOHDYHVDIHW\JULOOHVDQG¿OWHUVLQSODFH:LWKRXWWKHVHFRPSRQHQWVRSHUDWLQJEORZHUVFRXOGFDWFKRQWRKDLU¿QJHUV
and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
*NOTE: Please check www.zephyronline.com for revisions before doing any custom work.
ELECTRICAL REQUIREMENTS
Important:
Observe all governing codes and ordinances.
It is the customer’s responsibility:
7RFRQWDFWDTXDOL¿HGHOHFWULFDOLQVWDOOHU
- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70
latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
,IFRGHVSHUPLWDQGDVHSDUDWHJURXQGZLUHLVXVHGLWLVUHFRPPHQGHGWKDWDTXDOL¿HGHOHFWULFLDQGHWHUPLQHWKDWWKH
ground path is adequate.
Do not ground to a gas pipe.
&KHFNZLWKDTXDOL¿HGHOHFWULFLDQLI\RXDUHQRWVXUHWKHUDQJHKRRGLVSURSHUO\JURXQGHG
Do not have a fuse in the neutral or ground circuit.
*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit
protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to
Electrical Diagram on product.
$FDEOHORFNLQJFRQQHFWRUQRWVXSSOLHGPLJKWDOVREHUHTXLUHGE\ORFDOFRGHV&KHFNZLWKORFDOUHTXLUHPHQWVSXUFKDVH
and install appropriate connector if necessary.
List of Materials
4
www.zephyronline.com
MODELS: BREEZE I - AK1124x, AK1100x, AK1136x
BREEZE II - AK1200x, AK1236x
PARTS SUPPLIED
1 - Hood
$OXPLQXPPHVK¿OWHUV
+DORJHQOLJKWEXOEV*8:SUHLQVWDOOHG
´[´UHFWDQJXODUVWDUWLQJFROODUZLWKGDPSHUORFDWHGLQVLGHKRRGERG\
1 - Hardware package

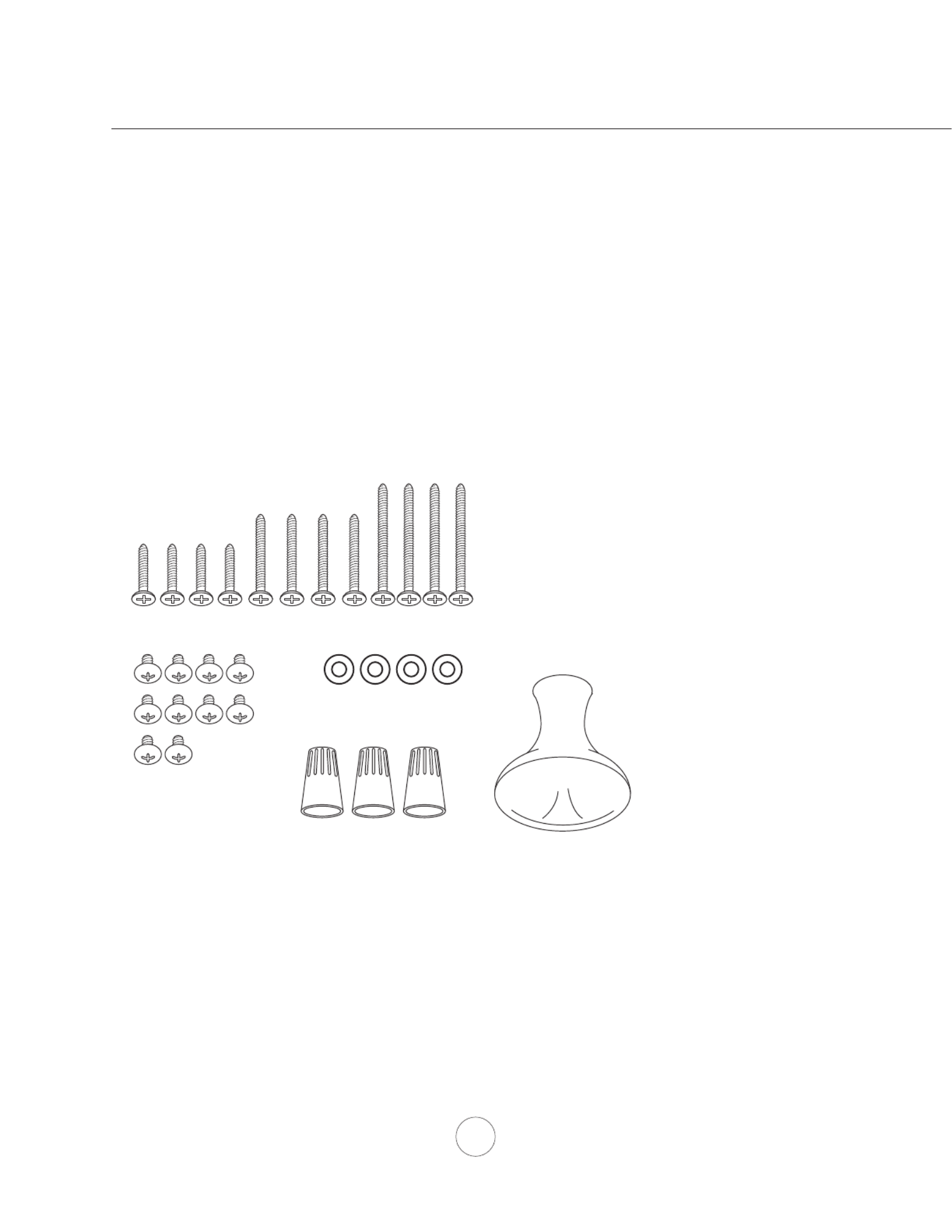

HARDWARE PACKAGE CONTENTS
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
&DEOHFRQQHFWRUif required by local codes
5HFLUFXODWLQJ.LW$.
M4 x 1” (4)
M4 x 1-1/2” (4)
M4 x 2” (4)
M4 x 8 (10) Wood screw washers (4)
Wire Caps (3)
Light bulb removal
Suction Cup (1)
5

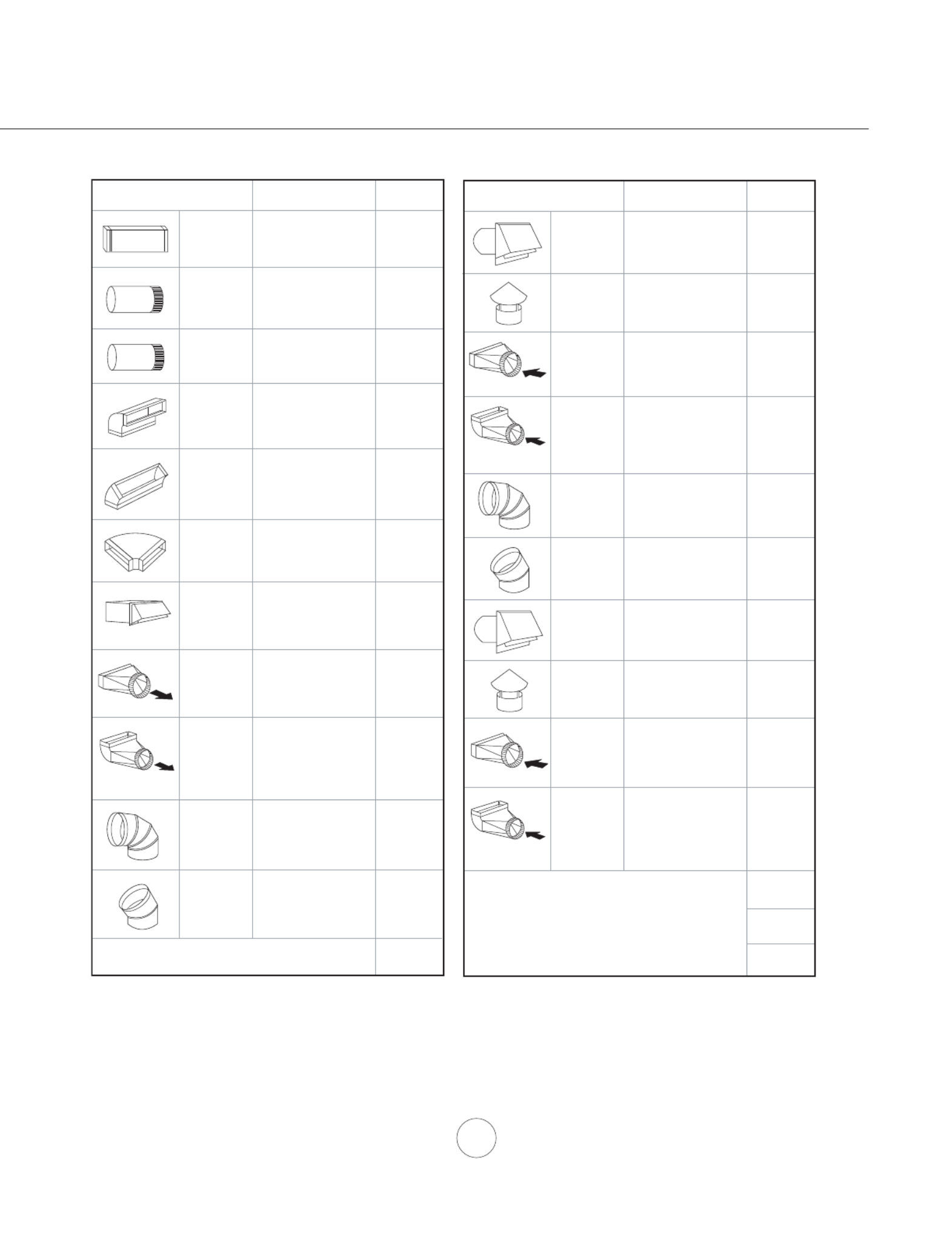

Installation – Ducting Calculation Sheet
Duct pieces Total
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) = Ft.
7”-10” Round,
straight
1 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.90 0
elbow
15 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.45 0
elbow
9 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.90 0
flat elbow
24 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
5 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
900elbow
20 Ft. x ( ) = Ft.
6” Round,
900elbow
15 Ft. x ( ) = Ft.
6” Round,
450elbow
9 Ft. x ( ) = Ft.
Ft.
6” Round,
straight
1 Ft. x ( ) = Ft.
Subtotal column 1 =
Duct pieces Total
Equivalent number
length x used =
6” Round
wall cap
with damper
30 Ft. x ( ) = Ft.
Round
wall cap
with damper
30 Ft. x ( ) = Ft.
7” - 10”
Round,
900elbow
15 Ft. x ( ) = Ft.
7” - 10”
7” - 10”
Round,
450elbow
9 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6” Round,
roof cap
30 Ft. x ( ) = Ft.
7” - 10”
Round,
roof cap
30 Ft. x ( ) = Ft.
Subtotal column 2 =
Subtotal column 1 =
Total ductwork =
6” round to
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” round to
3-1/ 4” x 10”
rect.
transition
900elbow
16 Ft. x ( ) = Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” round to
3-1/ 4” x 10”
rect.
transition
900elbow
23 Ft. x ( ) = Ft.
Maximum Duct Length: For satisfactory air movement,
the total duct length should not exceed 100 equivalent feet.
Installation – Mounting Height & Clearance
6
www.zephyronline.com
DUCTING
A minimum 3-1/4” x 10” rectangular duct must be
XVHGWRPDLQWDLQPD[LPXPDLUÀRZHI¿FLHQF\
Always use rigid type metal ducts only. Flexible
GXFWVFRXOGUHVWULFWDLUÀRZE\XSWR
$OVRXVHFDOFXODWLRQRQSDJHWRFRPSXWHWRWDO
available duct run when using elbows, transitions
and caps.
ALWAYS, when possible, reduce the number or
transitions and turns. If long duct run is required,
increase duct size.
If turns or transitions are required; install as far
away from hood duct output and as far apart,
between the two as possible.
Minimum mount height between range top to hood
bottom should be no less than 24”.
Maximum mount height should be no higher than
32”.
It is important to install the hood at the proper
mounting height. Hoods mounted too low could
UHVXOWLQKHDWGDPDJHDQG¿UHKD]DUGZKLOHKRRGV
mounted too high will be hard to reach and will
ORVHLWVSHUIRUPDQFHDQGHI¿FLHQF\
If available, also refer range manufacturer’s height
clearance requirements and recommended hood
mounting height above range.
Vertical Ducting:
3-1/4”x10” minimum
Horizontal Ducting:
3-1/4”x10” minimum
DAMAGE-SHIPMENT / INSTALLATION:
3OHDVH IXOO\ LQVSHFW XQLW IRU GDPDJH EHIRUH
installation.
,I WKHXQLW LVGDPDJHGLQ VKLSPHQW UHWXUQ WKH
unit to the store in which it was bought for
repair or replacement.
,IWKHXQLWLVGDPDJHG E\WKHFXVWRPHUUHSDLU
or replacement is the responsibility of the
customer.
,IWKHXQLWLVGDPDJHGE\WKHLQVWDOOHULIRWKHU
WKDQWKHFXVWRPHUUHSDLURIUHSODFHPHQWPXVW
be made by arrangement between customer
and installer.
36”
24” min.
32” max.
7
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside.
Use metal ductwork only.
)DVWHQDOOFRQQHFWLRQVZLWKVKHHWPHWDOVFUHZVDQGWDSHDOOMRLQWVZLWKFHUWL¿HG6LOYHU7DSHRU'XFW7DSH

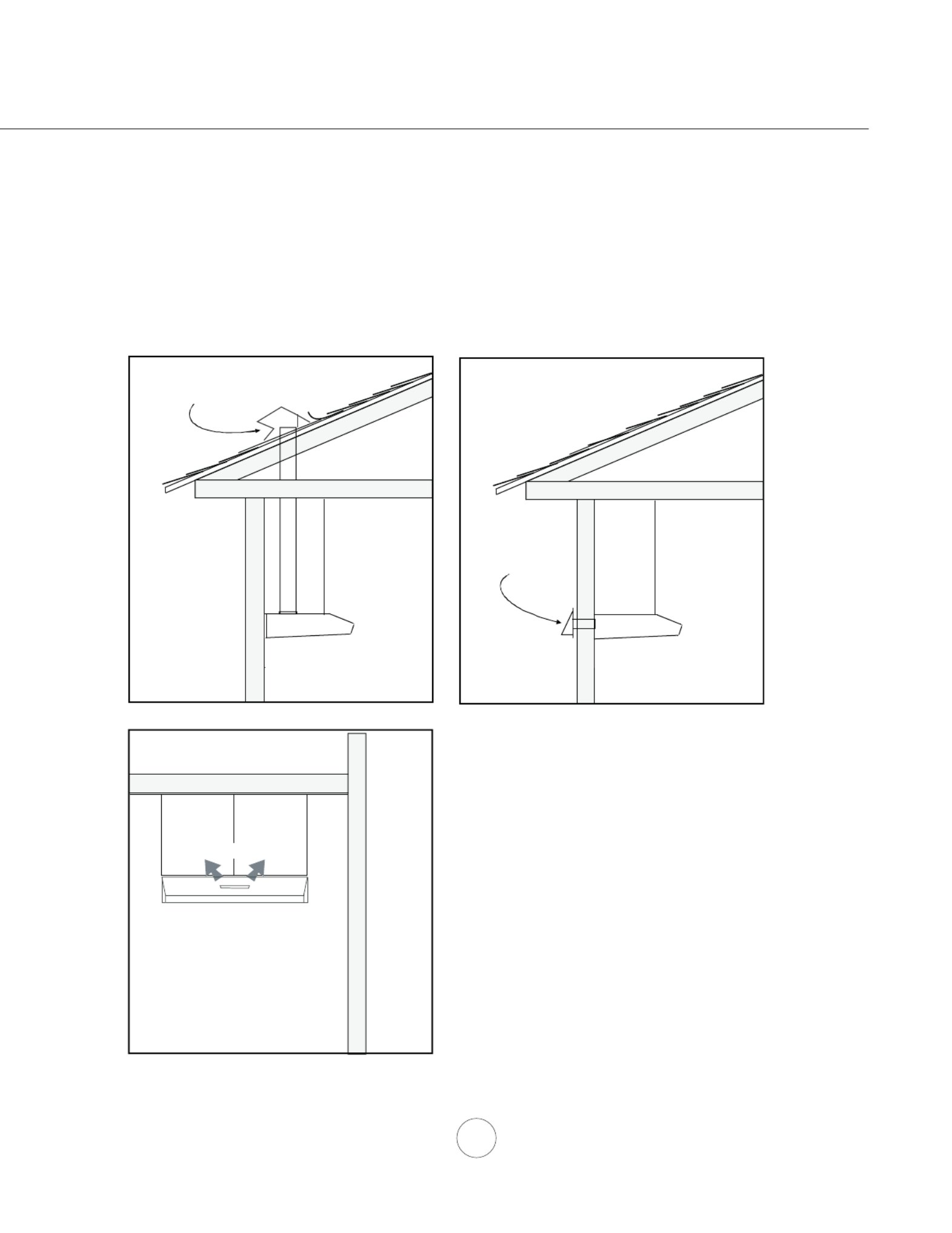

Some Ducting Options
Installation – Ducting Options
Roof Pitch w/
Flashing & Cap
Rear Ducting
3-1/4”x10”
vertical ducting
3-1/4”x10”
horizontal ducting
Air Recirculating
8
www.zephyronline.com

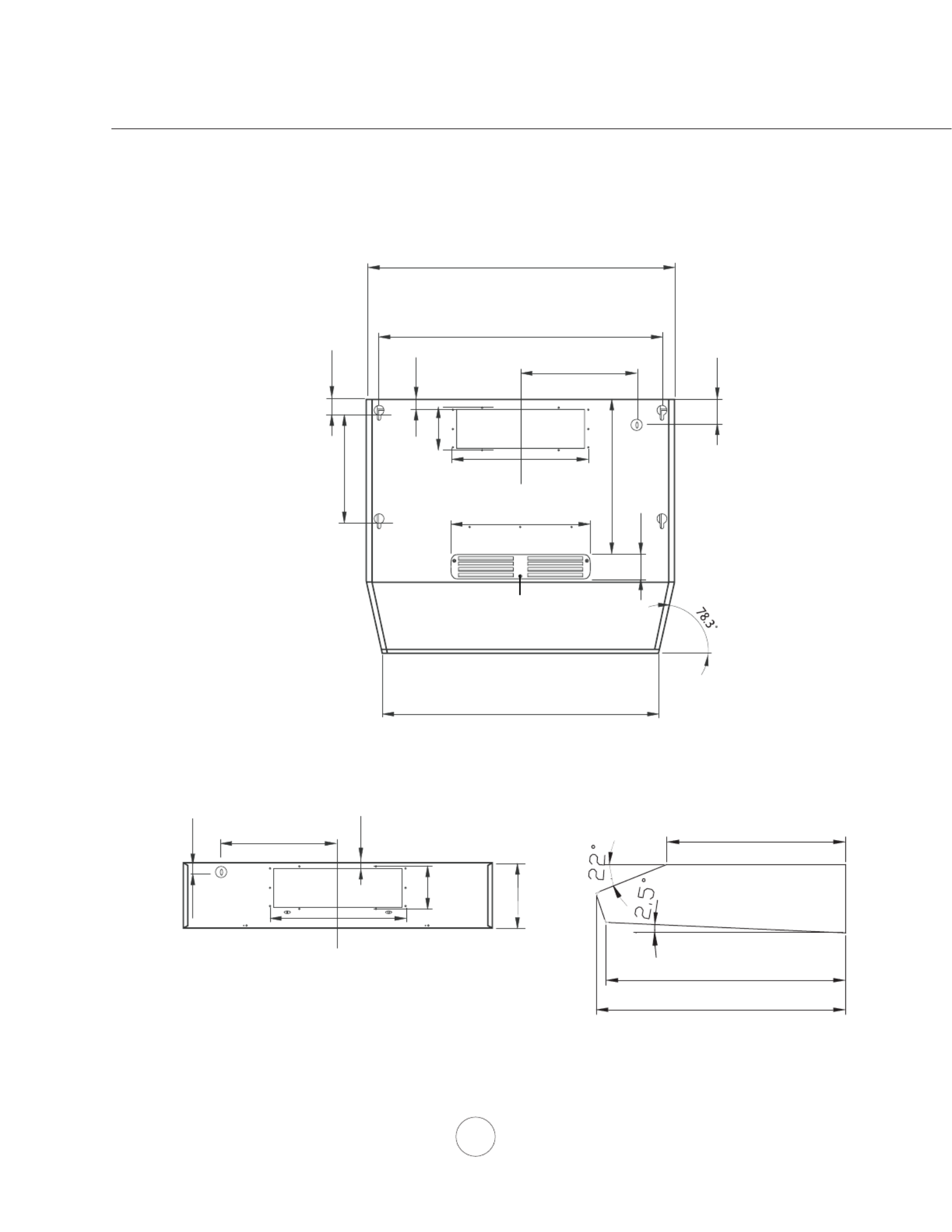

Installation – 6SHFL¿FDWLRQV
35-15/16” (36”)
29-15/16” (30”)
23-15/16” (24”)
33-7/8” (36”)
27-7/8” (30”)
22-1/16” (24”)
33-5/8” (36”)
27-5/8” (30”)
21-5/8” (24”)
2-3/4”
C/L
8-5/8” 1-3/8”
9-1/16”
2”
12-3/16”
10-7/8”
3/4”
9-1/16”
elec.
k/o
elec.
k/o
5-1/2”
14-3/8”
19-5/16”
20-3/32”
TOP
BACK SIDE
1/2”
1/2”
10”
3-1/4”
10”
3-1/4”
C/L
Air Recirculating Louver Plate
ELECTRICAL
WARNING
$OO(OHFWULFDOZRUNPXVWE\SHUIRUPHGE\TXDOL¿HGHOHFWULFLDQRUSHUVRQZLWKVLPLODUWHFKQLFDONQRZ
how and background.
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use
extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded
branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/
ground. Please also refer Electrical Diagram labeled on product.
AK11xxx - 152 Watts @ 1.3 Amps
AK12xxx - 167 Watts @ 1.4 Amps
Cable Lock:
$FDEOHORFNLQJFRQQHFWRUQRWVXSSOLHGPLJKWDOVREHUHTXLUHGE\ORFDOFRGHV&KHFNZLWKORFDOUHTXLUHPHQWV
and codes, purchase and install appropriate connector if necessary.
Installation – Preparing Electrical
Cable Lock
9

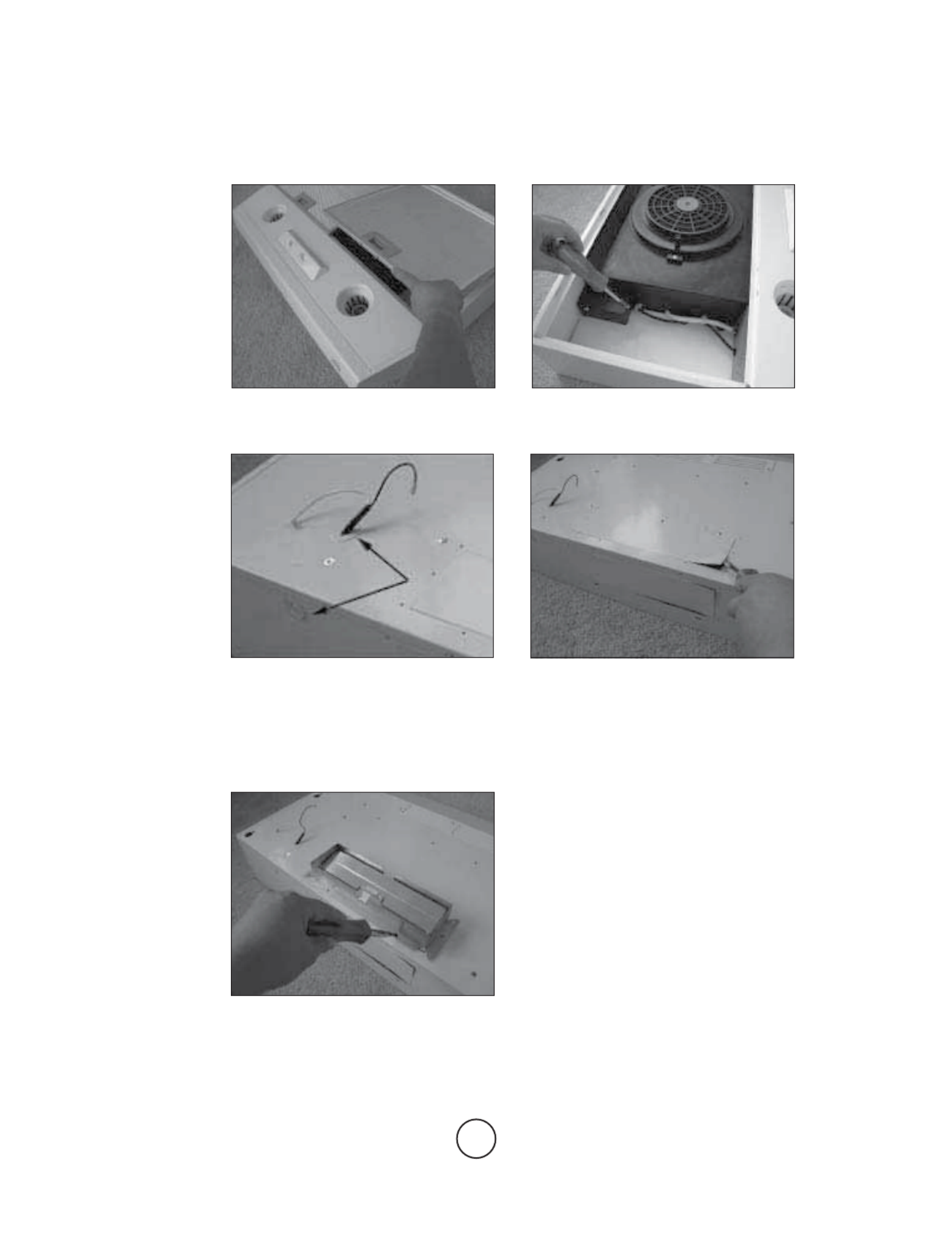

1. Remove filters 2. Remove cover from junction box to
gain access to electrical wiring.
3. If using a cable lock, pry open the
desired electrical knockout either on
top or back of hood. Feed the wires
through the cable lock. Some local
codes require the use of a cable lock,
check your local codes.
4. If using hood in air recirculating
mode skip steps 4 and 5.
Pry open desired 3-1/4” x 10” ducting
knock-out either on top or back of
hood.
5. Secure 3-1/4” x 10” starting collar
with damper to the duct opening using
(10) M4x8 screws.
Installation – Preparing Electrical and Ducting
10
www.zephyronline.com

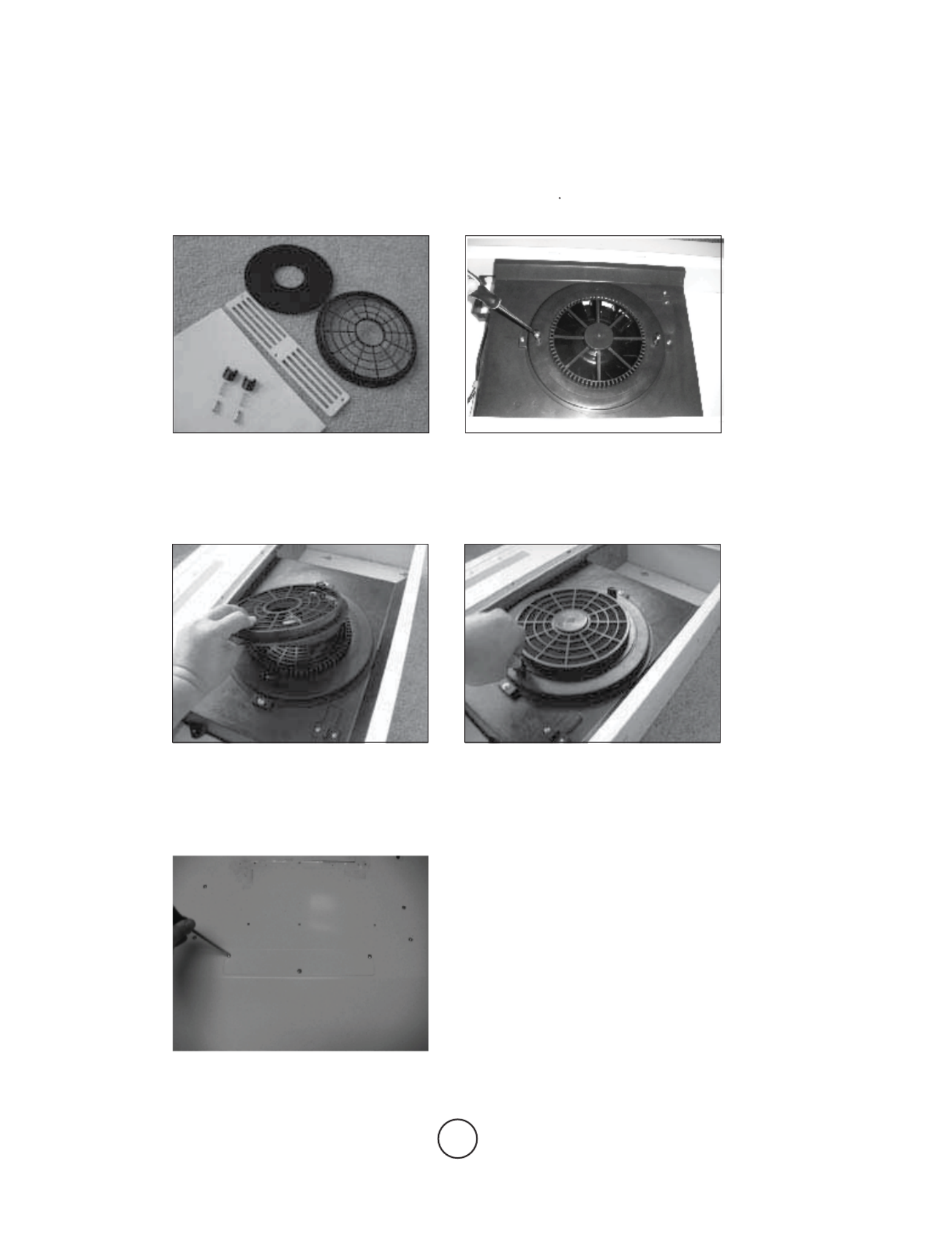

An air recirculating kit (optional) must be
purchased before using hood in recirculat-
ing mode.

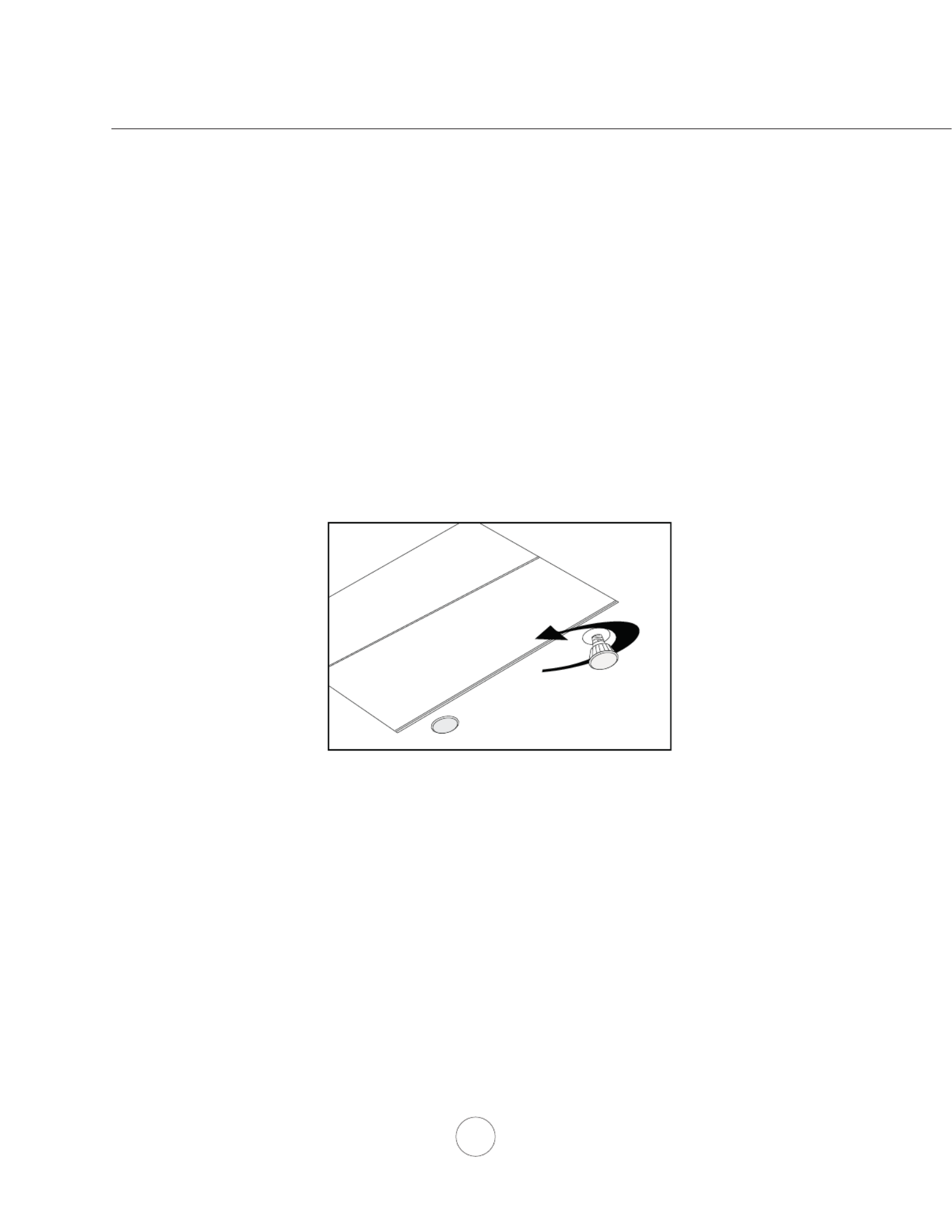

1. Secure each of the (2) spring clips to the
safety grille body (A). Do this by inserting
the screw through the spring and into the
clip. Secure each clip to the safety grille
body by using a philips head screwdriver.
2. Insert charcoal filter into charcoal filter
holder (B) and place it over the safety grille
body (A)
3. Secure charcoal filter holder to safety
grill body by lifting up on spring clips and
twisting. The clip should cover the lip of the
charcoal filter holder securely.
4. Remove each screw from recirculating
top plate. Plate is located on top of hood
towards the front.
NOTE: Skip the recirculating preparation pages if you are ducting the air out of your home.
Recirculating preparation
continued on next page
Installation – Converting to Air Recirculating Mode
Recirculating kit - 0AK11-21001
5HSODFHPHQW¿OWHU$.
11
The following instructions are for Breeze hoods beginning with serial number prex 13 and later.
Installation – Converting to Air Recirculating Mode
12
www.zephyronline.com

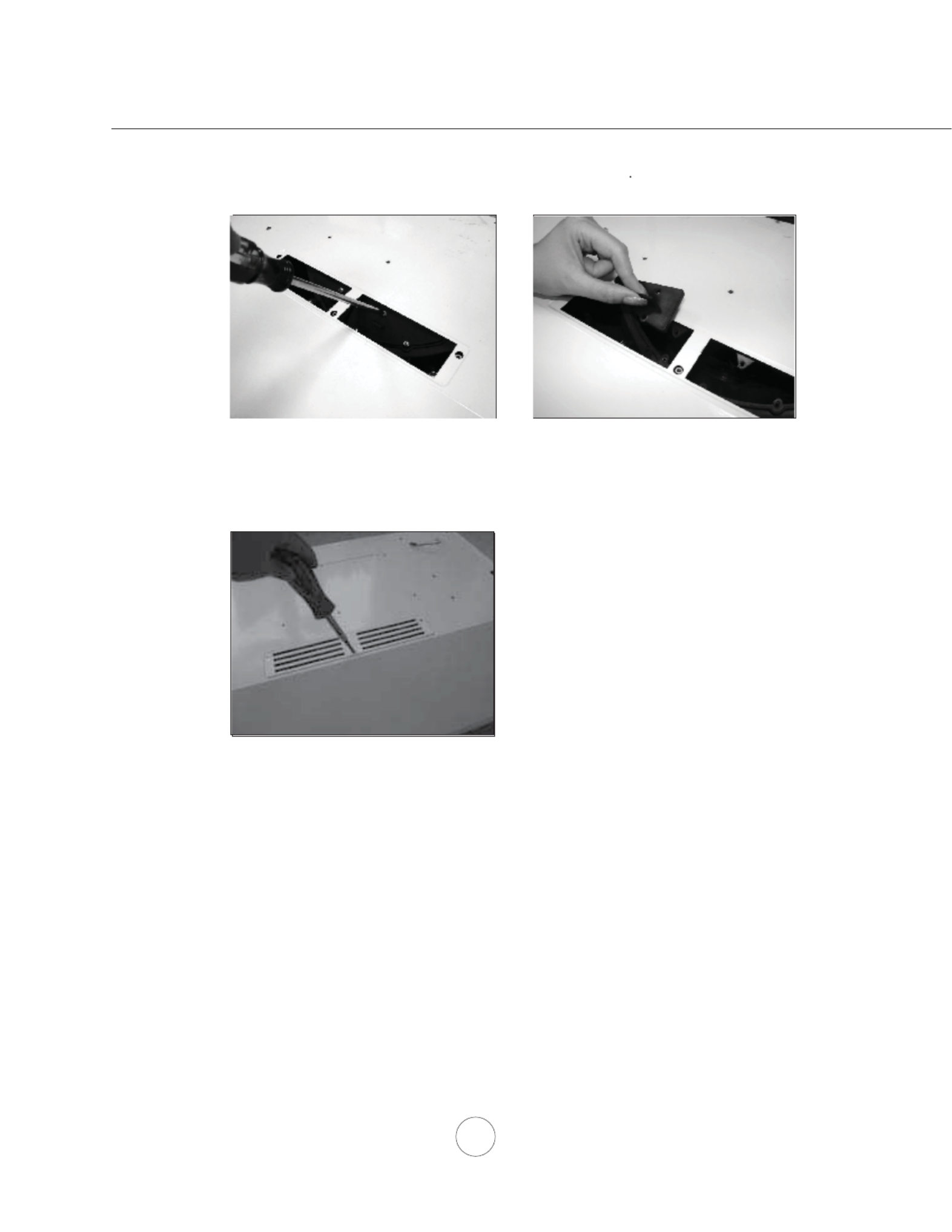

5. Remove each of the 5 screws holding
the (2) interior recirculating panels. 6. Remove (2) interior recirculating panels.
7. Place louvered recirculating plate over
top opening and secure using the screws
previously removed.
NOTE: Skip this page if you are ducting the air out of your home.

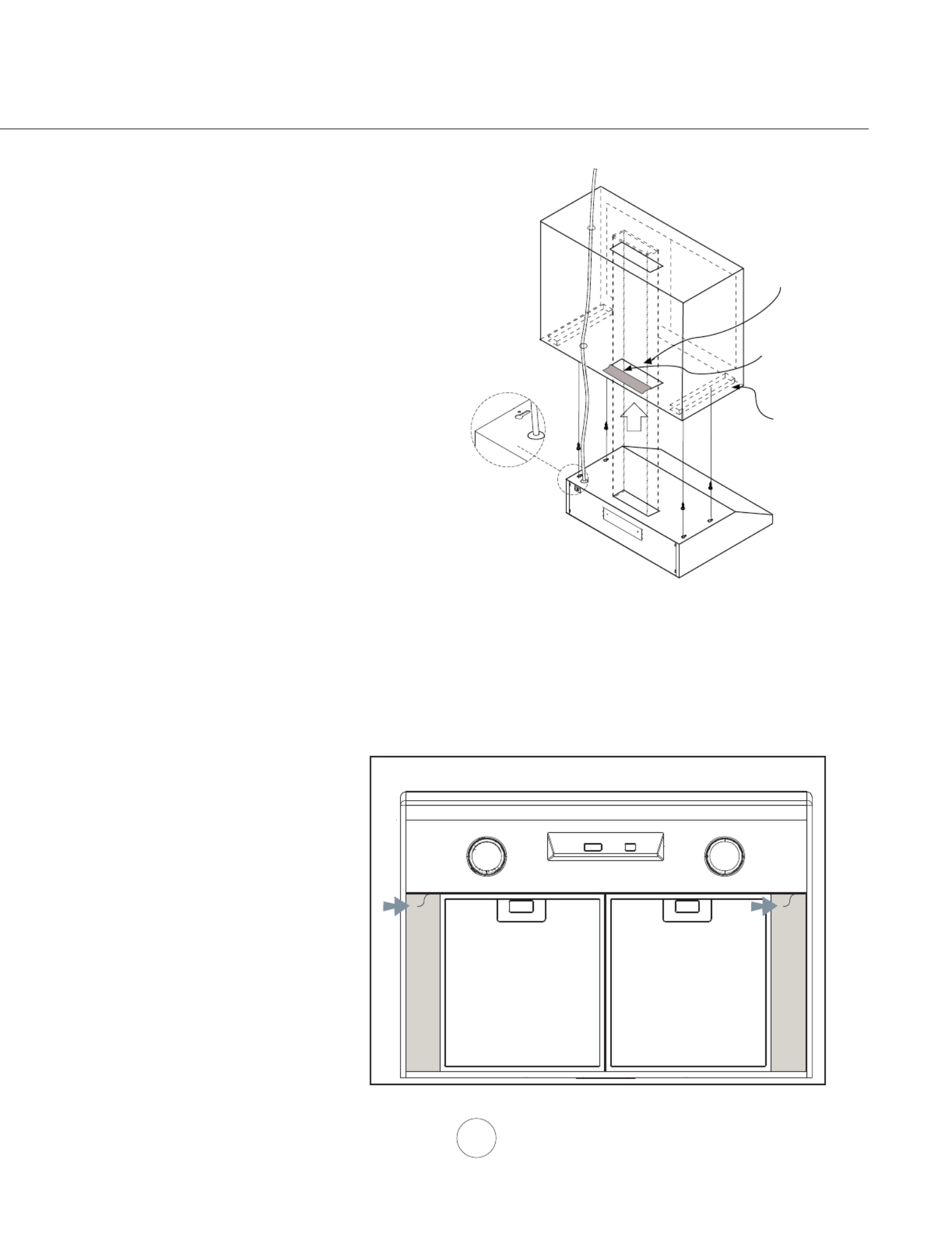

Installation – Mounting the Range Hood
13
Hood is designed for installation under a kitchen
cabinet (Fig 1)
6HOHFWSUHIHUUHGGXFWORFDWLRQYHUWLFDORUKRUL]RQWDOLI
ducting out of kitchen. Refer to page 7 for details.
%HJLQLQVWDOODWLRQE\UHPRYLQJWKH¿OWHUVLILQVWDOOHG
DQGVLGHVSDFHUSDQHOV´PRGHOVRQO\)LJ
3. Reinforce cabinet with 1”x2” wood strips if additional
strengthening is required or if cabinets are framed.
4. Temporarily position the range hood in the desired
mounting location. Measure and mark the mounting
holes, duct and electrical locations with a pencil.
5. Drill/cut out the required openings for duct and
electrical access by following the dimensions on page
8; make sure the duct opening is large enough to apply
duct tape.
)DVWHQKRRGRQWRFDELQHWZLWK0ZRRGVFUHZV
with washers provided.

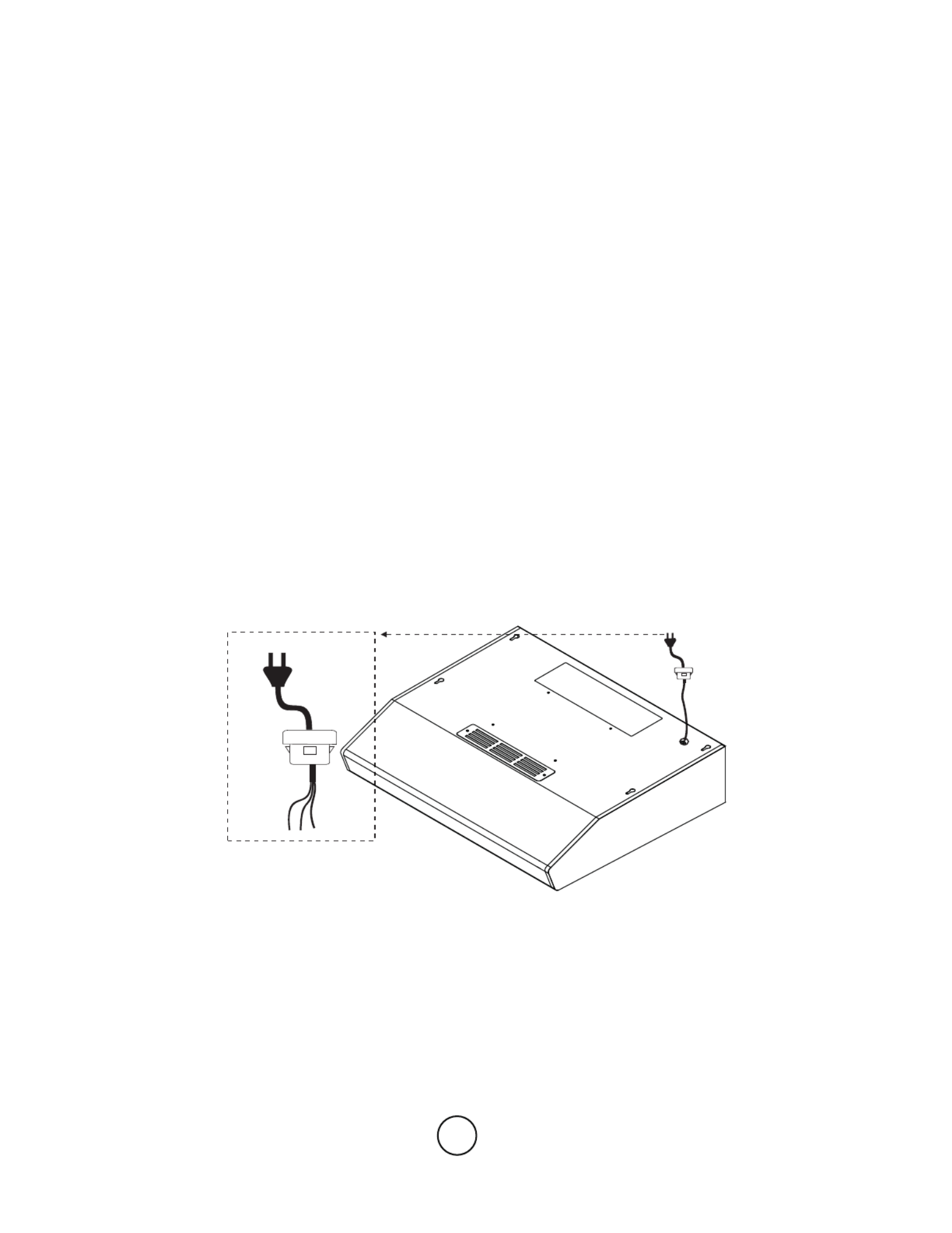

7. Install electrical.
8. Install duct work and seal with duct tape.
5HLQVWDOO¿OWHUVDQGVLGHVSDFHUSDQHOVLIDSSOLFDEOH
10. Power up hood and check for leaks around duct tape.
11. If recirculating the hood refer to page 11 and 12 for
details.
duct/silver
tape
Duct
opening
cutout
Add 1x2
wood strips
electrical
Fig 1
(Shown as vertical ducting)
Push in on panel latch then pull panel down
Fig 2
14
www.zephyronline.com
Features & Controls – Controls & Features
This button turns the motors on and o. It also shuts o power to the whole hood.
If the lights are on and this button is pushed, they will also turn o.
This button turns the lights on, o and also dims them. Press once to turn them on bright,
again for dim and one more time to shut them o.
This button will change the speed setting of the motors. By pushing it you will change the
speeds from high to medium to low.
This button will put the hood into delay o mode. When pushed, the hood will switch to the
lowest speed and the entire hood will shut down all functions after 5 minutes.
This switch turns the blower on and o and controls the speed selection.
is o, is low speed, is medium speed and is high speed.
is o, is dim, II is bright.
Breeze I, AK11xx
Breeze II, AK12xx
Lights Off/Dim/Bright
Lights Off/Dim/Bright
16
www.zephyronline.com
REPLACING LIGHT BULBS
CAUTION: Light bulb becomes extremely hot when turned on.
DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns.
Make sure all power is turned off and bulbs are not hot.
Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and falls
out.
,IEXOEVDUHGLI¿FXOWWRWXUQGXHWRSURORQJHGXVH¿UPO\DWWDFKDJODVVVXFWLRQFXSDSSUR[LPDWHO\WKHGLDPHWHURI
the bulb or use a rubber/latex glove and turn counter clockwise.
Replacement bulbs are available at most hardware stores or from Zephyronline.com.
3XUFKDVHW\SH05*8:KDORJHQ
For Zephyr part numbers please turn to page 19 of the manual.
Maintenance – Lights
Bottom hood view
Troubleshooting
17
TROUBLESHOOTING PROCEDURES FOR BREEZE I AND BREEZE II
Issue Cause What to do
After installation,
the unit doesn’t
work.
1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s
power is ON.
2. The power line and the cable locking connector
is not connecting properly.
2. Check the power connection with the unit is
connected properly.
3. The switch or control board wirings are
disconnected.
3. Make sure the wirings at the switch or control
board are connected properly.
4. The wires on control board or switch are loose. 4. Make sure the wires on the control board or
switch are connected properly.
5. The switch or control board is defective. 5. Change the switch or control board.
Light works, but
blower is not
turning.
1. The blower is defective, possible seized. 1. Change the blower.
2. The thermally protected system detects if the
blower is too hot to operate and shuts the blower
down.
2. The blower will function properly after the
thermally protected system cool down.
3. Damaged capacitor. 3. Change the capacitor.
4. The control board or blower switch is defective. 4. Change the control board or blower switch.
The unit is
vibrating.
1. The blower is not secure in place. 1. Tighten the blower in place.
2. Damaged blower wheel. 2. Change the blower wheel.
3. The hood is not secured in place. 3. Check the installation of the hood.
The unit is
whistling.
7KH¿OWHULVQRWLQWKHFRUUHFWSRVLWLRQ $GMXVWWKH¿OWHUVXQWLOWKHZKLVWOLQJVWRSV
2. The duct pipe connections are not sealed or
connected properly.
2. Check the duct pipe connections to be sure all
connections are sealed properly.
The blower is
working, but the
lights are not.
1. Defective bulb. 1. Change the bulb.
2. The light bulb is loose. 2. Tighten the light bulb.
3. The light bulb plug is disconnected. 3. Connect the light bulb plug.
The hood is
not venting out
properly.
1. The hood might be hanging to high from the
cook top.
1. Adjust the distance between the cook top and
the bottom of the hood within 24” and 32”
range.
2. The wind from the opened windows or opened
doors in the surrounding area are affecting the
ventilation of the hood.
2. Close all the windows and doors to eliminate
WKHRXWVLGHZLQGÀRZ
3. Blockage in the duct opening or duct work. 3. Remove all the blocking from the duct work or
duct opening.
4. The direction of duct opening is against the wind. 4. Adjust the duct opening direction.
5. Using the wrong size of ducting. 5. Change the ducting to correct size.
Mesh Filter is
vibrating.
0HVK¿OWHULVORRVH 1. Make sure the metal clips in the handle are
QRWVWXFN2UUHSODFHWKHPHVK¿OWHU
2. Filter sping clip is broken. 8QLQVWDOODQGUHLQVWDOO¿OWHUSXVKXSRQ¿OWHU
ODWFK5HSODFHPHVK¿OWHULIQHHGHG
18
www.zephyronline.com
Wiring Diagrams
RED
BLACK
19
DESCRIPTION PART #
Replacement Parts
/LJKW%XOE05*8:HDFK =%
0HWDO)LOWHU´KRRGVHDFK
0HWDO)LOWHU´DQG´KRRGVHDFK
Optional Accessories
Recirculating Kit 0AK11-21001
5HSODFHPHQW&KDUFRDO)LOWHUVSN $.
To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368
List of Parts and Accessories
1-888-880-8368
STAPLE YOUR RECEIPT HERE
TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call:
Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein
as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or work-
manship as follows:
Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we
will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to
manufacturing defects. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the
Products.
One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will
provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to
manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs
associated with this warranty.
Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts
and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and
service required for the Products and consumable parts such as incandescent or halogen light bulbs, metal and carbon
filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident,
faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other
than by us); (c) commercial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear
of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products,
pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips
to your home to teach you how to use the Products; or (g) damage to the Products caused by accident, fire, floods or act
of God. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our
designated service locations and for the travel cost to have a service technician come to your home to repair, remove or
reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor
costs associated with this warranty.
Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE
AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSE-
QUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF
THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRAN-
TIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING
THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not
allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential dam-
ages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclu-
sion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year period
described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and
shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall
determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in
connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned
parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the
original purchaser and applies in the United States and Canada.
To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or
telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identifi-
cation number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the
request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase
date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documenta-
tion to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.
Please check our website for any revisions, www.zephyronline.com.
Limited Warranty
MAY13.0301
Proof of the original purchase
date is needed to obtain
service under warranty
Guide d’utilisation, d’entretien et d’installation
www.zephyronline.com
Numéro de modèle :
Numéro de série :
Date d’achat :
Détaillant :
APR14.0601 © Zephyr Corporation
Breeze I
AK1124x, AK1100x, AK1136x
Breeze II
AK1200x, AK1236x
LISEZ ET CONSERVEZ CES INSTRUCTIONS
www.zephyronline.com
Produktspecifikationer
| Varumärke: | Zephyr |
| Kategori: | Fläktkåpa |
| Modell: | AK1100S |
Behöver du hjälp?
Om du behöver hjälp med Zephyr AK1100S ställ en fråga nedan och andra användare kommer att svara dig
Fläktkåpa Zephyr Manualer
15 Februari 2025
12 December 2024
12 December 2024
12 December 2024
12 December 2024
12 December 2024
12 December 2024
12 December 2024
12 December 2024
12 December 2024
Fläktkåpa Manualer
- Whirlpool
- Samus
- ECG
- Blomberg
- Scandomestic
- Klarstein
- Coyote
- M-System
- Electrolux
- Vestel
- Amana
- Corberó
- Limit
- ZLine
- Cookology
Nyaste Fläktkåpa Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
