M O N S O O N I
O N e - p I e c e l I N e r
e S S e N T I A l S
ZEPHYRONLINE.COM

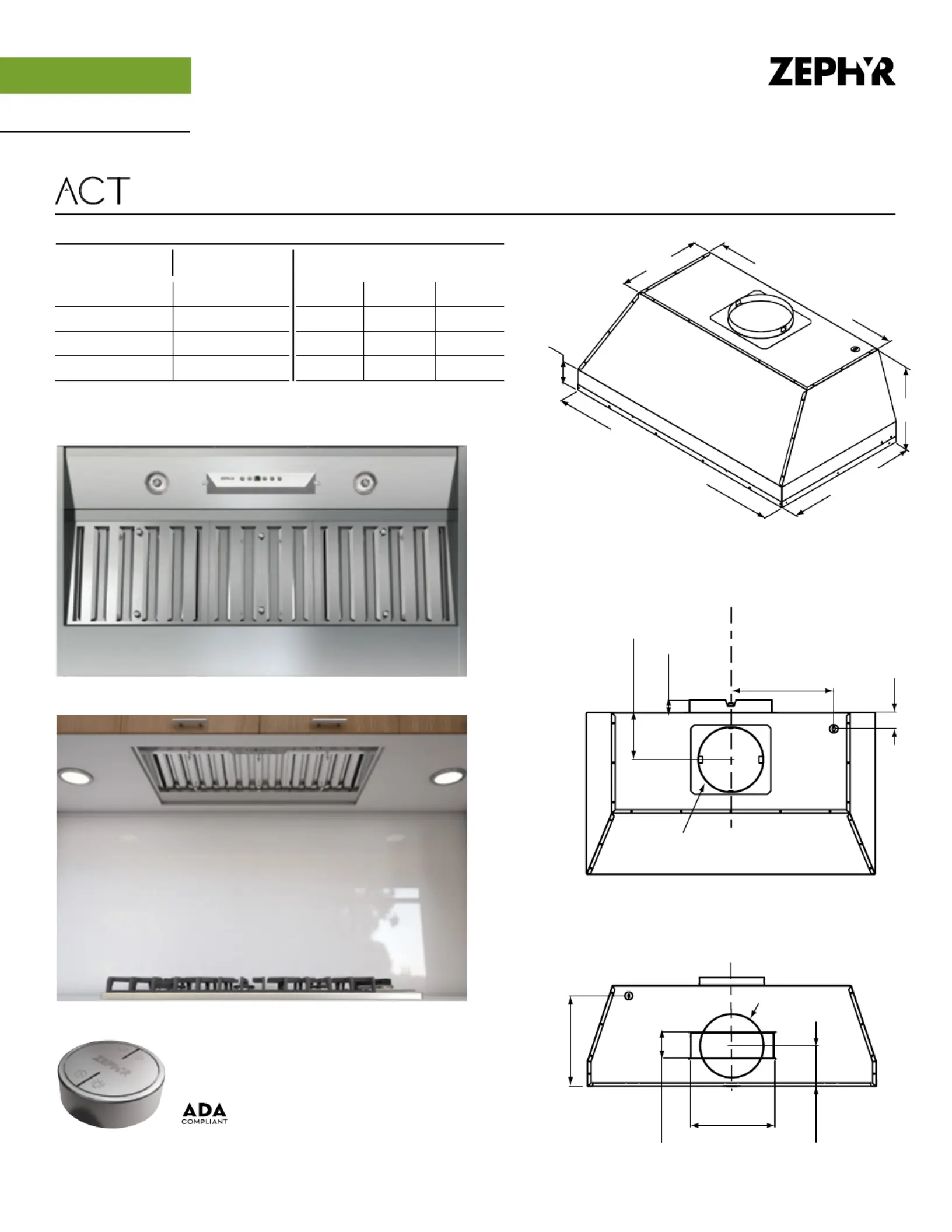

Monsoon I has taken the one-piece lin-
er to the next level. Including dual-lev-
el halogen lights and an ADA-compli-
ant RF remote you can easily control
Monsoon I without ever reaching over
a dangerous cooking surface. Equipped
with 6-speed electronic controls, pro
baffle filters, our exclusive ACT™ tech-
nology and either a powerful 600 CFM
blower (30” and 36” models) or 1,200
CFM blower (42” and 48” models).
TM
C
INTERNAL BLOWER
STANDARD
INTERNAL BLOWER with ACT™
AIRFLOW CONTROL TECHNOLOGY™*
30”/36” Min. - Max. CFM
30”/36” Min. - Max. Sones
42”/48” Min. - Max. CFM
42”/48” Min. - Max. Sones
200 - 600
1 - 6
450 - 1,200
3.5 - 9
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
*AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
200 - 390
1 - 4
350 - 390
3.3 - 4
NA
NA
350 - 590
3.3 - 6
200 - 290
1 - 3
NA
NA
(28”) 9-
1/4
”
(34”) 12-
1/4
”
(40”) 15-
1/4
”
(46”) 18-
1/4
”
Ø
*7-
3/4
”
5-
1/2
”*
3-
1/4
”*
10-
3/4
”
*9-
7/8
”
(28”, 34“) 5-
5/8
”
(40”, 46“) 5-
7/8
”
*1-
1/2
”
(28”, 34“)
Ø
7- ”3/4
(40”, 46“)
Ø
9- ”3/4
2”
C/L
C/L
elec.
k/o
TOP
FRONT
BACK
28-
3/8
”, 34-
3/8
”
40-
3/8
”, 46-
3/8
”
12”
1
2”
3”
22-
3/8
”, 28-
3/8
”
34-
3/8
”, 40-
3/8
”
1
9
-
1
/
4
”
*Horizontal ducting only available in 30” and 36” models
ZEPHYRONLINE.COM
Specifications subject to change, check zephyronline.com for up-to-date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
JAN17.0101
MODEL
Stainless Steel
Size
Blower CFM (Min. - Max.)
Sones (Min. - Max.)
ACT 590 CFM (Min. - Max.)
ACT 590 Sones (Min. - Max.)
ACT 390 CFM (Min. - Max.)
ACT 390 Sones (Min. - Max.)
ACT 290 CFM (Min. - Max.)
ACT 290 Sones (Min. - Max.)
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-Off
Clean Air Mode
Lighting
Dual-Level Lighting
Filters
Removable Grease Tray
RF Remote Control
Recirculating Option
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
OPTIONAL ACCESSORIES
Make-Up Air Kit
MOUNTING HEIGHT RANGE**
WARRANTY
AK9228AS
30” (28-3/8” x 19-1/4”)
200 - 600
1 - 6
NA
NA
200 - 390
1 - 4
200 - 290
1 - 3
Yes
Electronic Touch
6*
Yes
Yes
Halogen, 35W x2
Yes
Pro Baffle x2
Yes
Yes
No
8” Round
3-1/4” x 10” or 8” Round
120V, 60Hz at Max. 5A
MUA006A
26” - 36”
3 years parts, 1 year labor
AK9240AS
42” (40-3/8” x 19-1/4”)
450 - 1,200
3.5 - 9
350 - 590
3.3 - 6
350 - 390
3.3 - 4
NA
NA
Yes
Electronic Touch
6*
Yes
Yes
Halogen, 35W x2
Yes
Pro Baffle x3
Yes
Yes
No
10” Round
NA
120V, 60Hz at Max. 7A
MUA010A
26” - 36”
3 years parts, 1 year labor
*When ACT™ is enabled the maximum speed levels will change.
30” and 36” models: ACT 390 CFM = 3 speeds and ACT 290 CFM = 2 speeds.
42” and 48” models: ACT 590 CFM = 3 speeds and ACT 390 CFM = 2 speeds.
**Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
AK9234AS
36” (34-3/8” x 19-1/4”)
200 - 600
1 - 6
NA
NA
200 - 390
1 - 4
200 - 290
1 - 3
Yes
Electronic Touch
6*
Yes
Yes
Halogen, 35W x2
Yes
Pro Baffle x3
Yes
Yes
No
8” Round
3-1/4” x 10” or 8” Round
120V, 60Hz at Max. 5A
MUA006A
26” - 36”
3 years parts, 1 year labor
AK9246AS
48” (46-3/8” x 19-1/4”)
450 - 1,200
3.5 - 9
350 - 590
3.3 - 6
350 - 390
3.3 - 4
NA
NA
Yes
Electronic Touch
6*
Yes
Yes
Halogen, 35W x4
Yes
Pro Baffle x4
Yes
Yes
No
10” Round
NA
120V, 60Hz at Max. 7A
MUA010A
26” - 36”
3 years parts, 1 year labor
is an exclusive feature built into specific Zephyr hoods which can
limit the maximum blower CFM to meet local code requirements.
AIRFLOW CONTROL TECHNOLOGY™ (ACT™)
TM
C
M O N S O O N I
O N e - p I e c e l I N e r
e S S e N T I A l S
