AQD-WM300 (RS485)
User Manual
Indoor Air Quality Controller
Date: March 2021
Doc Version:1.0
English
AQD-WM300 (RS485)
Page
1
Description

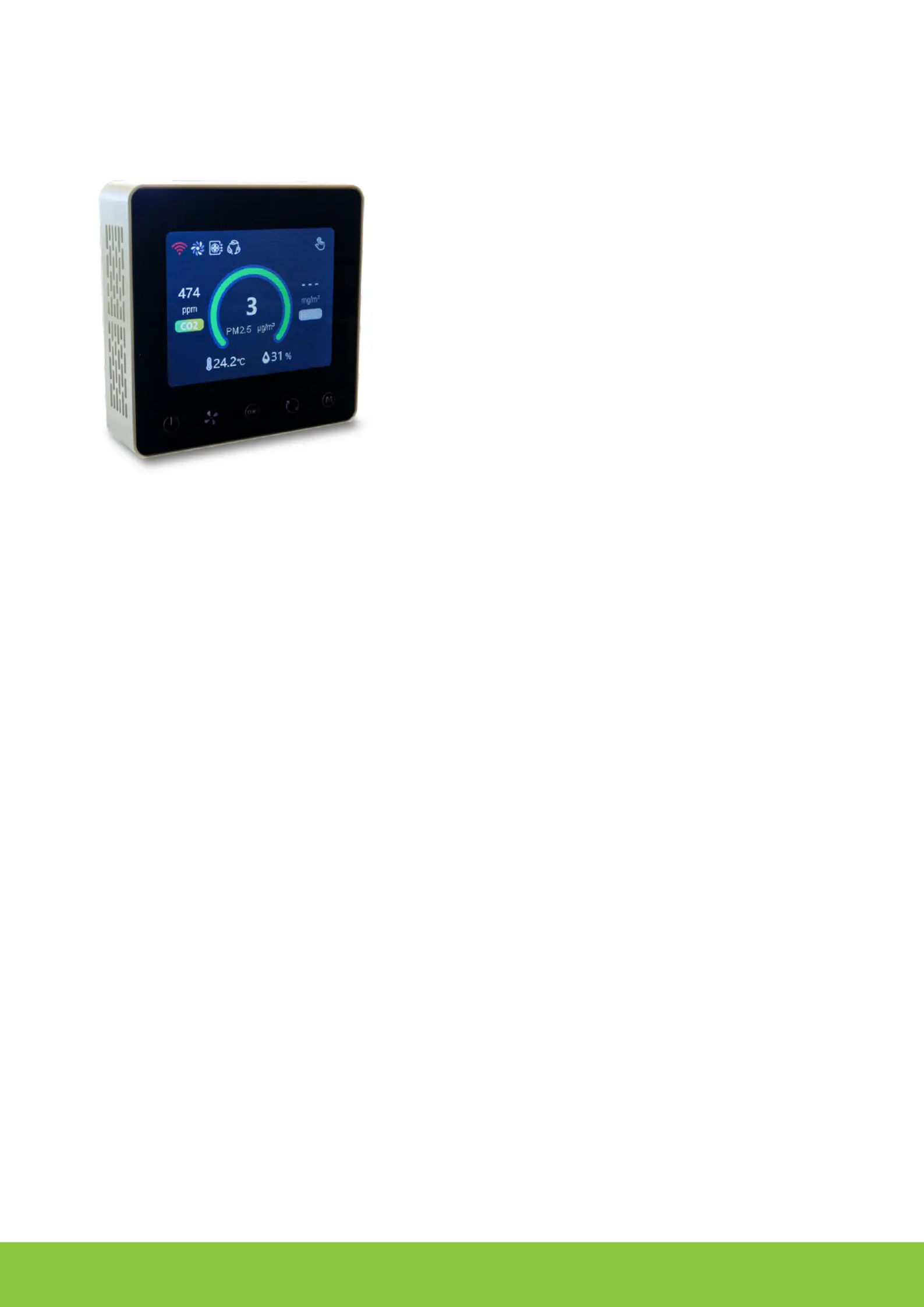

AQD-WM300 (RS485) is an indoor air quality controller with screen provides customers with visual indoor air
quality readings, such as PM2.5, CO2, temperature, humidity, etc. It is widely used in residential, commercial and
industrial applications, and can eectively improve air quality and create a healthy, comfortable, ecient,
environmentally friendly, energy-saving living and working environment.
Features
Compatible with embedded and wall-mounted xing methods;
Compatible with push-button and touch-screen operation;
Using standard 86 box size, thickness <24mm;
PM2.5, CO2, temperature and humidity etc., multiple sensors can be optionally selected.
Working Principle
The built-in dust sensor uses the principle of laser scattering technology to detect the indoor PM2.5 mass
concentration in real time (μg/m³).
The built-in carbon dioxide sensor uses the principle of NDIR technology to detect indoor CO2 concentration in
real time (ppm).
The temperature and humidity sensor use capacitor resistance material to detect the indoor temperature
(° C) and humidity (%) in real time.
Applications
• Residential ventilation system.
• Business ventilation system
• Industrial ventilation system
Specications
Working principle
Measurement range
PM2.5 Measurement accuracy
CO2 Measurement accuracy
Temperature Measurement
accuracy
Humidity Measurement accuracy
PM Response time T90
CO2 Response time T90
Working condition
Storage condition
Working voltage
Working current
Standby current
Signal Output
Installation hole distance
Dimension
Lifetime
±1ºC
±8%RH
≤8s
<120s
-10~50 0~95%RH(Non-condensing)ºC,
-20~60 0~95%RH(Non-condensing)ºC,
DC 12V
<140mA
≤80mA
RS485
60mm standard（ ）
86*86*24.9 mm
PM：≥5 years
CO2：≥10 years
CO2 NDIR：
PM：Laser scattering principle
±（50ppm+5% reading）@ 0~50℃
≤ 100μg/m³：±10μg/m³
> 100μg/m³ ±10% reading：
Reference Instrument TSI 8530，25±2 50±10%RH℃， ）
PM2.5 0~1000μg/m³：
CO2 0~5000ppm ：
Temperature -10 ~50： ℃ ℃
Humidity 0%~95%RH：
