Sida 1/16

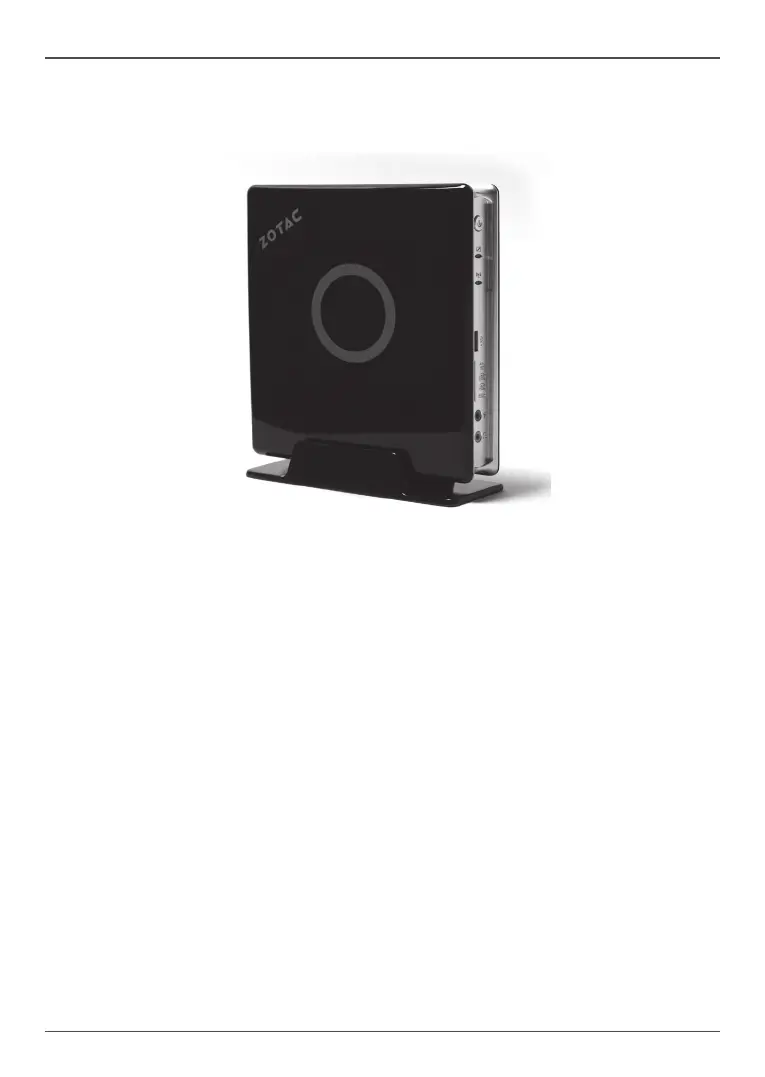

1
ZOTAC ZBOX
ZOTAC ZBOX
User’s Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form or by any means,except documenta-
tion kept by the purchaser for backup purposes, without the express written
permission of ZOTAC.
Products and corporate names mentioned in this manual may not be reg-
istered trademarks or copyrights of their respective companies, and are
used for identication purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are cor-
rect and up to date. However, the manufacturer makes no guarantee regard-
ing the accuracy of its contents, and reserves the right to make changes
without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
2
ZOTAC ZBOX
Table of Contents
Product Specications -------------------------------------------------------------------------- 3
Safety information -------------------------------------------------------------------------------- 4
Setting up your system 4 -----------------------------------------------------------------------
Care during use 4 --------------------------------------------------------------------------------
Welcome --------------------------------------------------------------------------------------------- 5
Package contents 5 ------------------------------------------------------------------------------
Getting to know your ZOTAC ZBOX -------------------------------------------------------- 6
Front view 6 ----------------------------------------------------------------------------------------
Rear view----------------------------------------------------------------------------------------- 7
How to disable the ring LED indicator ----------------------------------------------------- 8
Installing Hardware inside ZOTAC ZBOX ------------------------------------------------- 9
Installing a memory module 9 ----------------------------------------------------------------------
Removing the memory module 10 -------------------------------------------------------------
Installing a hard disk -------------------------------------------------------------------------- 11
Setting up your ZOTAC ZBOX ---------------------------------------------------------------- 12
Positioning your ZOTAC ZBOX --------------------------------------------------------------- 13
Installing the stand 13 -----------------------------------------------------------------------------
Installing your ZOTAC ZBOX to a monitor 13 -----------------------------------------------
Installing drivers and software --------------------------------------------------------------- 14
Installing an operating system 14 --------------------------------------------------------------
Installing system drivers 14 ----------------------------------------------------------------------
Using your ZOTAC ZBOX ----------------------------------------------------------------------- 15
Conguring a wireless connection --------------------------------------------------------- 15
Conguring a wired connection ------------------------------------------------------------- 15
Using a static IP 15 ----------------------------------------------------------------------------
Using a dynamic IP (PPPoE connection) 16 --------------------------------------------
Conguring audio output --------------------------------------------------------------------- 16
3
ZOTAC ZBOX
Product Specications
q Product Size
188mm x 188mm x 44mmv
q Microprocessor support
Intelv ® 2957U (Dual-core, 1.40 GHz)
q Operating systems:
v Supports Windows 7 32bit/64bit, Windows 8 32bit/64bit and Windows 8.1
32bit/64bit
q System Memory support
v 2 204-pin SO-DIMMs DDR3L-1600/1333 (1.35V)
v Up to 16 GB of memory
q USB Ports
v Four USB 3.0 ports on the back panel
v Two USB 2.0 ports (one from front, one from top)
q Onboard Serial ATA
v SATA 6.0 Gb/s transfer rates
v Supports one 2.5-inch SATA HDD or SSD (support the device with max 9.5mm
height)
q Onboard LAN
v Supports 10/100/1000 Mbps operation
v Supports IEEE 802.3
q WiFi/Bluetooth support
v Compliant with IEEE802.11ac standard
High speed wireless connection up to 433 Mbpsv
v Fully qualied Bluetooth v4.0
q Onboard Audio
v 2-channel High-Denition audio
v Supports Jack-Sensing function
q Green Function
v Supports ACPI (Advanced Conguration and Power Interface)
q Onboard Graphics support
nVidia Geforce GT 720v
HDMI 1.4a (max resolustions: 3840x2160 @30Hz, supports 4K display) v
DVI-I (max resolustions: 2560*1600 @60Hz) v
